EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2012
ICS 13.220.20 Will supersede EN 54-10:2002
English Version
Fire detection and fire alarm systems - Part 10: Flame detectors
- Point detectors
Systèmes de détection et d'alarme incendie - Partie 10: Brandmeldeanlagen - Teil 10: Flammenmelder -
Détecteurs de flamme - Détecteurs ponctuels Punktförmige Melder
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 72.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 54-10 rev:2012: E
worldwide for CEN national Members.

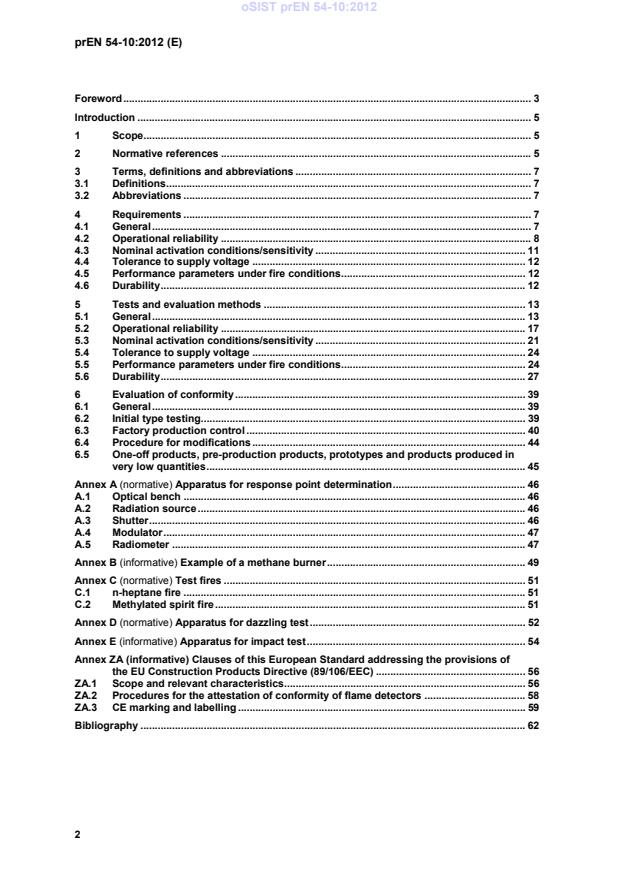

prEN 54-10:2012 (E)
Foreword . 3
Introduction . 5
1 Scope. 5
2 Normative references . 5
3 Terms, definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 7
4 Requirements . 7
4.1 General . 7
4.2 Operational reliability . 8
4.3 Nominal activation conditions/sensitivity . 11
4.4 Tolerance to supply voltage . 12
4.5 Performance parameters under fire conditions . 12
4.6 Durability . 12
5 Tests and evaluation methods . 13
5.1 General . 13
5.2 Operational reliability . 17
5.3 Nominal activation conditions/sensitivity . 21
5.4 Tolerance to supply voltage . 24
5.5 Performance parameters under fire conditions . 24
5.6 Durability . 27
6 Evaluation of conformity . 39
6.1 General . 39
6.2 Initial type testing . 39
6.3 Factory production control . 40
6.4 Procedure for modifications . 44
6.5 One-off products, pre-production products, prototypes and products produced in
very low quantities . 45
Annex A (normative) Apparatus for response point determination . 46
A.1 Optical bench . 46
A.2 Radiation source . 46
A.3 Shutter . 46
A.4 Modulator . 47
A.5 Radiometer . 47
Annex B (informative) Example of a methane burner . 49
Annex C (normative) Test fires . 51
C.1 n-heptane fire . 51
C.2 Methylated spirit fire . 51
Annex D (normative) Apparatus for dazzling test . 52
Annex E (informative) Apparatus for impact test . 54
Annex ZA (informative) Clauses of this European Standard addressing the provisions of
the EU Construction Products Directive (89/106/EEC) . 56
ZA.1 Scope and relevant characteristics . 56
ZA.2 Procedures for the attestation of conformity of flame detectors . 58
ZA.3 CE marking and labelling . 59
Bibliography . 62
prEN 54-10:2012 (E)
Foreword
This document (prEN 54-10:2012) has been prepared by Technical Committee CEN/TC 72 “Fire
Detection and fire alarm systems”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 54-10:2002.
This document has been prepared under a mandate given to CEN by the European Commission and
the European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
EN 54 "Fire detection and fire alarm systems": consists of the following parts:
Part 1: Introduction
Part 2: Control and indicating equipment
Part 3: Fire alarm devices – Sounders
Part 4: Power supply equipment
Part 5: Heat detectors – Point detectors
Part 7: Smoke detectors – Point detectors using scattered light, transmitted light or ionization
Part 11: Manual call points
Part 12: Smoke detectors – Line detector using an optical light beam
Part 13: Compatibility assessment of system components
Part 14: Guidelines for planning, design, installation, commissioning, use and maintenance
Part 15: Point detectors using a combination of detected phenomena
Part 16: Voice alarm control and indicating equipment
Part 17: Short circuit isolators
Part 18: Input/output devices
Part 20: Aspirating smoke detectors
Part 21: Alarm transmission and fault warning routine equipment
Part 22: Line-type heat detectors
Part 23: Fire alarm devices – Visual alarms
prEN 54-10:2012 (E)
Part 24: Components of voice alarm systems – Loudspeakers
Part 25: Components using radio links and system requirements
Part 26: Point fire detectors using carbon monoxide sensors
Part 27: Duct smoke detectors
Part 28: Non-resettable (digital) line type heat detectors
Part 29: Multi-sensor fire detectors - Point detectors using a combination of smoke and heat sensors
Part 30: Multi-sensor fire detectors - Point detectors using a combination of carbon monoxide and
heat sensors
Part 31: Multi-sensor detector – Point detector using
Part 32:Guidelines for the planning, design, installation, commissioning, use and maintenance of
voice alarm systems
NOTE This list includes standards that are in preparation and other standards may be added. For current
status of published standards refer to www.cen.eu.
prEN 54-10:2012 (E)
Introduction
The purpose of a flame detector is to warn person(s) within or in the vicinity of a building of the
occurrence of a fire emergency in order to enable such person(s) to take appropriate measures.
Flame detectors respond to the flickering ultra-violet or infra-red signal produced from burning
hydrocarbons. Flame detectors might be better suited to applications where heat and smoke sources
are present e.g. aircraft hangars or oil rigs.

This European Standard allows manufacturers to specify the range of the flame detector in terms of
the distance over which it can detect a flaming fire. Four ranges are defined and these are tested by
measuring the response of the flame detector to test fires at a fixed minimum and at the maximum
range as declared by the manufacturer. As contaminants on the window(s) could inhibit the
transmission of the radiation from a flame to the sensor(s) a window monitoring facility test has been
introduced, as an option with requirements, in order to check whether the function operates.

This European Standard gives common requirements for the construction and robustness of flame
detectors as well as for their performance under climatic, mechanical and electrical interference
conditions which are likely to occur in the service environment. Flame detectors are classified in one
of two application environment types, i.e. Type A and Type B. More severe climatic conditions are
applied to devices that are primarily intended for outdoor applications (Type B) than those primarily
intended for indoor applications (Type A)
1 Scope
This European Standard specifies requirements, test methods and performance criteria for point-type,
flame detectors that operate using radiation from a hydrocarbon flame for use in fire detection
systems installed in and around buildings.
Flame detectors having special characteristics suitable for the detection of specific fire risks are not
covered by this standard (although the standard may be used as guidance in assessing such
products). The performance requirements for any additional functions are beyond the scope of this
standard (e.g. additional features or enhanced functionality for which this standard does not define a
test or assessment method).
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 209-1:1989, Wrought aluminium and aluminium alloys — Chemical composition and forms of
products — Part 1: Chemical composition.
IEC 60064:2005, Tungsten filament lamps for domestic and similar general lighting purposes —
Performance requirements
EN 54-1:1996, Fire detection and fire alarm systems — Part 1: Introduction

EN 50130-4:1995, Alarm systems — Part 4: Electromagnetic compatibility — Product family standard:
Immunity requirements for components of fire, intruder and social alarm systems (including EN
50130-4:1995/A1:1998 and EN 50130-4:1995/A2:2003)

prEN 54-10:2012 (E)
EN 60068-1:1994, Environmental testing — Part 1: General and guidance (IEC 60068-1:1988 +
Corrigendum 1988 +A1:1992)
EN 60068-2-1:2007, Environmental testing — Part 2-1: Tests — Tests A: Cold (IEC 60068-2-1:2007)

EN 60068-2-2:2007, Environmental testing — Part 2-2: Tests — Test B: Dry heat (IEC 60068-2-
2:2007)
EN 60068-2-6:2008, Environmental testing — Part 2-6: Tests — Tests Fc: Vibration, (sinusoidal)
(IEC 60068-2-6:2007)
EN 60068-2-27:2009, Environmental testing — Part 2-27: Tests — Test Ea and guidance: Shock
(IEC 60068-2-27:2008)
EN 60068-2-30:2005, Environmental testing — Part 2-30: Tests — Test Db: Damp heat, cyclic (12 h +
12 h cycle) (IEC 60068-2-30:2005)

EN 60068-2-42:2003, Environmental testing — Part 2-42: Tests; Test Kc: Sulphur dioxide test for
contacts and connections (IEC 60068-2-42:2003)

EN 60068-2-75:1997, Environmental testing — Part 2-75: Tests — Test Eh: Hammer tests
(IEC 60068-2-75:1997)
EN 60068-2-78:2001, Environmental testing — Part 2-78: Tests; Test Cab: Damp heat, steady state
(IEC 60068-2-78:2001)
EN 60529:1991, Degrees of protection provided by enclosures (IP code) (IEC 60529:1989) (including
EN 60529:1991/A1:2000)
EN ISO 9001:2008, Quality management systems — Requirements (ISO 9001:2008)
prEN 54-10:2012 (E)
3 Terms, definitions and abbreviations
3.1 Definitions
For the purposes of this European standard, the terms and definitions in EN 54-1:1996 and the
following apply.
3.1.1
classification distance
distance d, measured in accordance with 5.5, at which the detector classification is determined

3.1.2
response point
distance D, measured in accordance with 5.1.5, at which the individual flame detector under test gives
an alarm signal
3.1.3
type A flame detector
detector primarily intended for indoor applications
NOTE Type A flame detectors may be suitable for some protected outdoor situations.
3.1.4
type B flame detector
detector primarily intended for outdoor applications
NOTE Type B flame detectors may be more suitable than type A flame detectors for some indoor situations
where high temperature and/or humidity are present.
3.2 Abbreviations
DC  Direct current
EMC Electromagnetic compatibility
IR  Infra-red
RMS Root mean square
UV  Ultra-violet
4 Requirements
4.1 General
In order to comply with this standard, flame detectors shall meet the requirements of Clause 4, which
shall be verified by visual inspection or engineering assessment, shall be tested as described in
Clause 5 and shall meet the requirements of the tests.
prEN 54-10:2012 (E)
4.2 Operational reliability
4.2.1 Classification
Detector settings, at which the manufacturer claims compliance with this standard, shall conform to
one of the following classes: X, 1, 2 or 3 (see Table 1) according to the requirements of the tests
specified in clauses 5.5.1 Fire Sensitivity.
Table 1 — Detector Classifications
Class Classification distance (m)
X > 25
1 25
2 17
3 12
NOTE: If the detector has provision for multiple classification settings then it may be referred to as
“Class P” (see 4.8.1)
4.2.2 Connection of ancillary devices
Where the detector provides for connections to ancillary devices (e.g. remote indicators, control relays
etc.), open- or short-circuit failures of these connections shall not prevent the correct operation of the
detector.
4.2.3 Monitoring of detachable detectors
For detachable detectors, a means shall be provided for a remote monitoring system (e.g. the control
and indicating equipment) to detect the removal of the head from the base, in order to give a fault
signal.
4.2.4 Manufacturer's adjustments
It shall not be possible to change the manufacturer's settings except by special means (e.g. the use of
a special code or tool) or by breaking or removing a seal.
4.2.5 On-site sensitivity adjustment
If there is provision for on-site sensitivity adjustment of the detector then:
a) for each setting, at which the manufacturer claims compliance with this standard, the detector
shall comply with the requirements of this standard and shall achieve a classification corresponding to
that marked on the detector for that setting;
b) for each setting in a), access to the adjustment means shall only be possible by the use of a code
or special tool;
c) any setting(s), at which the manufacturer does not claim compliance with this standard, shall only
be accessible by the use of a code or special tool, and it shall be clearly marked on the detector or in
the associated data, that if these setting(s) are used, the detector does not comply with the standard.
NOTE These adjustments may be carried out at the detector or at the control and indicating equipment.
prEN 54-10:2012 (E)
4.2.6 Marking and data
4.2.6.1 Marking
Each detector shall be clearly marked with the following information:
a) the number of this standard (i.e. EN 54-10:2010);
b) the name or trademark of the manufacturer or supplier;
c) the model designation (type or number);
d) the class(es) of the detector (i.e. Class 1, Class 2, Class 3 or Class X (d in metres)), for Class X
the distance shall be specified in brackets e.g. Class X (50);
NOTE If the detector has provision for on-site adjustment of the classes (see 4.7), then the marking of all the
classes may be replaced by “Class P” in which case the information must be supplied in the accompanying data;

e) some mark(s) or code(s), (e.g. a serial number or batch code) by which the manufacturer can
identify, at least, the date or batch and place of manufacture and the version number(s) of any
software, contained within the detector;
If the detector has a detachable base then the base shall be marked with the following information:
f) the model designation (type or number);
g) the wiring terminal designations;
Where any marking on the device uses symbols or abbreviations not in common use then these shall
be explained in the data supplied with the device. The marking shall be visible during installation of
the detector and shall be accessible during maintenance. The markings shall not be placed on screws
or other easily removable parts.
4.2.6.2 Data
The information required in 4.8 together with the following shall be supplied with the device, or shall
be given in a data sheet or technical manual identified on, or with each device:
a) operating voltage range(s);
b) IP Code to EN60529:1991 as amended by EN60529:1991/A1:2000;
c) the angle of reception α for each β angle as determined in 5.4;
max
d) the operating wavelength band(s) e.g. UV, IR;
e) any other information necessary to allow correct installation, operation and maintenance of the
device.
NOTE Additional information may be required by organisations certifying that detectors produced by a
manufacturer conform to the requirements of this standard.
To enable correct operation of the detectors, these data should describe the requirements for the
correct processing of the signals from the detector. This may be in the form of a full technical
specification of these signals, a reference to the appropriate signalling protocol or a reference to
suitable types of control and indicating equipment etc.
prEN 54-10:2012 (E)
4.2.7 Software controlled detectors
4.2.7.1 General
For detectors which rely on software control in order to fulfil the requirements of this standard, the
requirements of 4.2.7.2.2 to 4.2.7.2.4 shall be met.
4.2.7.2 Software documentation
4.2.7.2.1 The manufacturer shall submit documentation which gives an overview of the
software design. This documentation shall be in sufficient detail for the design to be inspected for
compliance with this standard and shall include at least the following:
f) a functional description of the main program flow (e.g. as a flow diagram or structogram)
including:
1) a brief description of the modules and the functions that they perform;
2) the way in which the modules interact;
3) the overall hierarchy of the program;
4) the way in which the software interacts with the hardware of the detector;
5) the way in which the modules are called, including any interrupt processing.
g) a description of which areas of memory are used for the various purposes (e.g. the program, site
specific data and running data);
h) a designation, by which the software and its version can be uniquely identified.
4.2.7.2.2 The manufacturer shall have available detailed design documentation, which
only needs to be provided if required by the testing authority. It shall comprise at least the following:
a) an overview of the complete configuration of the product, including all software and hardware
components;
b) a description of each module of the program, containing at least:
1) the name of the module;
2) a description of the tasks performed;
3) a description of the interfaces, including the type of data transfer, the valid data range and the
checking for valid data.
c) full source code listings, as hard copy or in machine-readable form (e.g. ASCII-code), including all
global and local variables, constants and labels used, and sufficient comment for the program flow
to be recognized;
d) details of any software tools used in the design and implementation phase (e.g. CASE-tools,
compilers).
4.2.7.3 Software design
In order to ensure the reliability of the detector, the following requirements for software design shall
apply:
prEN 54-10:2012 (E)
a) the software shall have a modular structure;
b) the design of the interfaces for manually and automatically generated data shall not permit invalid
data to cause error in the program operation;
c) the software shall be designed to avoid the occurrence of deadlock of the program flow.
4.2.7.4 The storage of programs and data
The program necessary to comply with this standard and any preset data, such as manufacturer's
settings, shall be held in non-volatile memory. Writing to areas of memory containing this program
and data shall only be possible by the use of some special tool or code and shall not be possible
during normal operation of the detector.
Site-specific data shall be held in memory which will retain data for at least two weeks without
external power to the detector, unless provision is made for the automatic renewal of such data,
following loss of power, within 1 hour of power being restored.
4.2.8 Enclosure Protection
No requirement shall apply to a type A flame detector.

Type B flame detector shall comply with Code IP54C of EN 60529:1991 as amended by
EN60529:1991/A1:2000.
4.2.9 Dazzling
Type A and type B flame detectors shall meet the requirements of 5.2.9.
4.2.10 Window monitoring facilities (option with requirements)
If the flame detector has this feature then it shall meet the requirements of 5.2.10.

4.3 Nominal activation conditions/sensitivity
4.3.1 Individual alarm indication
The alarm indicator of the detector shall meet the requirements specified in 5.3.1.
4.3.2 Repeatability
The detector shall have stable behaviour with respect to its sensitivity after a number of alarm
conditions and shall meet the requirements specified in 5.3.2.
4.3.3 Directional dependence
The sensitivity of the detector shall not be unduly dependent on the direction of airflow around it and
shall meet the requirements specified in 5.3.3.
4.3.4 Reproducibility
The sensitivity of the detector shall not vary unduly from specimen to specimen and shall meet the
requirements specified in 5.3.4.
prEN 54-10:2012 (E)
4.4 Tolerance to supply voltage
4.4.1 Variation in supply parameters
Within the specified range(s) of the supply parameters, the sensitivity of the detector shall not be
unduly dependent on these parameters (e.g. voltage) and shall meet the requirements specified in
5.4.1.
4.5 Performance parameters under fire conditions
4.5.1 Fire sensitivity
The detector shall have adequate sensitivity to incipient type fires that may occur in buildings and
meet the fire test requirements specified in 5.5.1.
4.6 Durability
4.6.1 Temperature resistance
4.6.1.1 Dry heat (operational)
The detector shall function correctly at high ambient temperatures as specified in 5.6.1.1.
4.6.1.2 Dry heat (endurance)
The detector shall be capable of withstanding long term exposure to high temperature as specified in
5.6.1.2.
4.6.1.3 Cold (operational)
The detector shall function correctly at low ambient temperatures, as specified in 5.6.1.3.
4.6.2 Humidity resistance
4.6.2.1 Damp heat, cyclic (operational)
The detector shall function correctly at a high level of relative humidity with short period of
condensation, as specified in 5.6.2.1.
4.6.2.2 Damp heat, cyclic (endurance)
The detector shall function correctly at high relative humidity (without condensation) as specified in
5.6.2.2.
4.6.2.3 Damp heat, steady state (endurance)
The detector shall be capable of withstanding long term exposure to a high level of continuous
humidity as specified in 5.6.2.3.
prEN 54-10:2012 (E)
4.6.3 Corrosion resistance
4.6.3.1 SO corrosion (endurance)
The detector shall function correctly at a high level of relative humidity with short period of
condensation, as specified in 5.6.3.1.
4.6.4 Shock and vibration resistance
4.6.4.1 Shock (operational)
The detector shall function correctly when submitted to mechanical shocks which are likely to occur in
the service environment as specified in 5.6.4.1.
4.6.4.2 Impact (operational)
The detector shall function correctly when submitted to mechanical impacts which it may sustain in
the normal service environment as specified in 5.6.4.2.
4.6.4.3 Vibration, sinusoidal (operational)
The detector shall function correctly when submitted to vibration at levels appropriate to its normal
service environment as specified in 5.6.4.3.
4.6.4.4 Vibration, sinusoidal (endurance)
The detector shall be capable of withstanding long exposure to vibration at levels appropriate to the
service environment as specified in 5.6.4.4.
4.6.5 Electrical stability
4.6.5.1 EMC, immunity (operational)
The detector shall operate shall operate correctly when submitted to electromagnetic interference as
specified in 5.6.5.1.
5 Tests and evaluation methods
5.1 General
5.1.1 Atmospheric conditions for tests
Unless otherwise stated in a test procedure, the testing shall be carried out after the test specimen
has been allowed to stabilize in the standard atmospheric conditions for testing as described in
IEC 60068-1 as follows:
a) temperature : (15 to 35) °C
b) relative humidity : (25 to 75) %
c) air pressure : (86 to 106) kPa
prEN 54-10:2012 (E)
NOTE If variations in these parameters have a significant effect on a measurement, then such variations
should be kept to a minimum during a series of measurements carried out as part of one test on one specimen.
5.1.2 Operating conditions for tests
If a test method requires a specimen to be operational, then the specimen shall be connected to
suitable supply and monitoring equipment with characteristics as required by the manufacturer's data.
Unless otherwise specified in the test method, the supply parameters applied to the specimen shall be
set within the manufacturer's specified range(s) and shall remain substantially constant throughout the
tests. The value chosen for each parameter shall normally be the nominal value, or the mean of the
specified range. If a test procedure requires a specimen to be monitored to detect any alarm or fault
signals, then connections shall be made to any necessary ancillary devices (e.g. through wiring to an
end-of-line device for conventional detectors) to allow a fault signal to be recognised.
Unless otherwise specified in the test method, detectors having adjustable sensitivity shall be set to
their highest sensitivity for the conditioning.
NOTE The details of the supply and monitoring equipment and the alarm criteria used should be given in the
test report.
5.1.3 Mounting arrangements
The specimen shall be mounted by its normal means of attachment in accordance with the
manufacturer's instructions. If these instructions describe more than one method of mounting then the
method considered to be most unfavourable shall be chosen for each test.
5.1.4 Tolerances
If a specific tolerance or deviation limit is not specified in a requirement or test procedure a deviation
limit of ± 5 % shall be applied.
5.1.5 Determination of response point
5.1.5.1 Principle
The response point shall be measured by exposing the detector to the radiation from a suitable flame
source and determining the greatest distance at which the detector will reliably produce an alarm
condition within a time of 30 s.
5.1.5.2 Test apparatus
The test apparatus shall be as described in annex A.
The design and construction of the apparatus, and the surfaces surrounding the test area, shall be
such that no significant radiation from the source reaches the detector apart from that which has
passed through the aperture. (This means for example that there shall be no reflection of radiation
from the walls or other parts of the apparatus, and no spurious radiation from hot flue gases or hot
surfaces around the burner.)
Throughout this test method it is necessary to align the detector relative to its optical axis and to
measure distances relative to the plane of the detector sensing element(s). If the detector does not
have a well-defined optical axis then the manufacturer shall nominate an optical axis for the purposes
of this test method. The position of this axis relative to an easily identifiable plane on the detector shall
be noted in the test report.
Similarly, if the detector sensing elements do not lie in a well-defined plane then the manufacturer
shall nominate a plane for the purposes of this test method. The position of this plane relative to an
easily identifiable plane on the detector shall be noted in the test report.
prEN 54-10:2012 (E)
5.1.5.3 Initial determination
A suitable area for the aperture shall be determined experimentally before the commencement of the
test programme such that the response point of one detector, chosen at random from the specimens
submitted for test, lies within the range 1300 mm to 1700 mm. The size and shape of the aperture
used shall be recorded and shall be kept constant throughout the test programme. For detectors
having adjustable sensitivity, and whose adjustment range covers more than one sensitivity class, it
will be necessary to determine an appropriate aperture size for each sensitivity class of the detector.
5.1.5.4 Source stability
After determining a suitable aperture size, and before any determination of response points, the
irradiance on the optical axis of the source shall be measured using the radiometer in accordance
with A.5. This measurement shall be carried out with no modulation of the source and with the
aperture unobstructed. The measured value of irradiance shall be recorded and used as a reference
throughout the test programme to verify that the source radiance has not varied by more than 5 %.
5.1.5.5 Test procedure
The specimen shall be connected to its supply and indicating equipment and shall be allowed to
stabilize for a period of 15 min or for a time specified by the manufacturer. During this stabilization
period the specimen shall be shielded, using the shutter in accordance with A.3, from all sources of
radiation which may affect the determination of the response point.
Before commencing any measurement of response point the burner shall be allowed to reach a stable
working condition.
The distance of the specimen from the source shall be varied and at each distance the detector shall
be exposed to the source for 30 s using the shutter. The response point D is the greatest distance,
measured between the aperture and the plane of the specimen sensing element(s), at which the
detector will reliably produce an alarm response within each 30 s exposure. If the detector response is
known to be dependent on previous exposure to radiation then sufficient time shall be allowed before
each exposure to ensure that previous exposures do not substantially affect the measurement of the
response point.
For detectors having stochastic response behaviour each value of D shall come from at least six
repetitions of each measurement, D being the mean value of these repetitions. Repetitions shall
continue until an additional value changes the average value of D by less than 5 %.
5.1.6 Reduced functional tests
Where the test procedure calls for a reduced functional test, the detector shall be exposed to a source
of radiation which is sufficient to cause an alarm response from the detector. The nature of the source
used and the duration of the exposure shall be appropriate to the product in question and shall be
defined or supplied by the manufacturer.
5.1.7 Provision for tests
The following shall be provided for testing compliance with this part of EN 54:
a) for detachable detectors, eight heads and eight bases; for non-detachable detectors, eight
specimens
b) the data required in 4.2.6.2.
The specimens shall be themselves representative of the manufacturer's normal production with
regard to their construction and calibration.
prEN 54-10:2012 (E)
NOTE This implies that the mean response point of the eight specimens, found in the reproducibility test
should also represent the production mean, and that the limits specified in the reproducibility test should also be
applicable to the manufacturer's production.
5.1.8 Test schedule
The detectors shall be tested according to the test schedule given in Table 2. After the reproducibility
test (at the highest sensitivity setting) the specimen with the largest value of response point (i.e. most
sensitive) shall be numbered 1 and the least sensitive shall be number 8. The detectors in between
these shall be numbered in order of decreasing sensitivity.

prEN 54-10:2012 (E)
Table 2 — Test Schedule
Test Clause Specimen Number
Type A Type B
Enclosure protection 5.2.8 - 1, 2
Dazzling (operational) 5.2.9 1 1
Window monitoring facilities (option) 5.2.10 1 1
Reproducibility 5.3.2 1-8 1-8
Repeatability 5.3.3 1 1
Directional dependence 5.3.4 1 1
Variation in supply parameters (operational) 5.4.1 1 1
Fire sensitivity 5.5.1 1,2,7,8 1,2,7,8
Dry heat (operational) 5.6.1.1 2 2
Dry heat (endurance) 5.6.1.2 - 2
Cold (operational) 5.6.1.3 2 2
Damp heat cyclic (operational) 5.6.2.1 6 6
Damp heat steady state (endurance) 5.6.2.2 6 6
Damp heat, cyclic (endurance) 5.6.2.3 - 7
Sulphur dioxide (SO ) corrosion (endurance) 5.6.3.1 5 5
Shock (operational) 5.6.4.1 8 8
Impact (operational) 5.6.4.2 7 7
Vibration, sinusoidal (operational) 5.6.4.3 4 4
Vibration, sinusoidal (endurance) 5.6.4.4 4 4

Electromagnetic Compatibility (EMC), Immunity tests
(operational)
a a
1 1
- Electrostatic discharge
a a
3 3
- Radiated electromagnetic fields
5.6.5.1
a a
3 3
- Conducted disturbances induced by electromagnetic fields
a a
3 3
- Fast transient bursts
a a
1 1
- Slow high energy voltage surge
a In the interests of test economy, it is permitted to use the same specimen for more than one EMC test. In that case,
intermediate functional test(s) on the specimen(s) used for more than one test may be deleted, and the functional test
conducted at the end of the sequence of tests. However it should be noted that in the event of a failure, it may not be possible
to identify which test exposure caused the failure (see clause 4 of EN 50130-4:1995).

5.2 Operational reliability
5.2.1 Classification
A visual inspection of a specimen shall be conducted to verify that the flame detector meets the
requirements for manufacturer's adjustment as specified in 4.2.1

5.2.2 Connection of ancillary devices
A visual inspection of a specimen shall be conducted to verify that the flame detector meets the
requirements for manufacturer's adjustment as specified in 4.2.2
prEN 54-10:2012 (E)
5.2.3 Monitoring of detachable detectors
A visual inspection of a specimen shall be conducted to verify that the flame detector meets the
requirements for manufacturer's adjustment as specified in 4.2.3.
5.2.4 Manufacturer's adjustments
A visual inspection of a specimen shall be conducted to verify that the flame detector meet the
requirements for manufacturer's adjustment as specified in 4.2.4.
5.2.5 On-site adjustment of behaviour
A visual inspection of a specimen shall be conducted to verify that the flame detector meets the
requirements for on site adjustments of behaviour as specified in 4.2.5.
5.2.6 Marking and data
Inspection of the marking of a specimen and of the data provided with the flame detector shall be
conducted to verify that these meet the requirements specified in 4.2.6.

NOTE Inspection of manufacturing drawings or artwork representative of the product marking is acceptable.
5.2.7 Software controlled detectors
Inspection of the software data provided with the flame detector shall be conducted to verify that
these meet the requirements specified in 4.2.7.

5.2.8 Enclosure protection
5.2.8.1 Object
To demonstrate that the degree of protection provided by the enclosure of the flame detector, with
regard to the ingress of solid foreign objects and the harmful effects due to the ingress of water,
meets the minimum requirements of this European Standard (see 4.8).

5.2.8.2 Enclosure of the flame detector
The enclosure of the flame detector shall be taken as comprising any parts of the outer physical
envelope of the device which prevent or restrict access of solid foreign objects to the sensor/s,
electronic assembly(ies) and wiring terminals.

NOTE Ingress of liquid inside the enclosure may be possible, but should not adversely affect the operation of
the device.
5.2.8.3 Test procedure
5.2.8.3.1 Reference
The test apparatus and procedures shall be as described in EN 60529:1991 as amended by
EN60529:1991/A1:2000. The following tests shall be conducted:

a) protection against solid foreign objects indicated by the first characteristic numeral;
b) protection against water indicated by the second characteristic numeral;
c) protection against access to hazardous parts indicated by the additional letter.

prEN 54-10:2012 (E)
5.2.8.3.2 State of the specimen during conditioning
The specimen under test shall be:
a) unpowered during the test for protection against solid foreign objects;
b) powered during the test for protection against water;
c) unpowered during the test for protection against access to hazardous parts.

The specimen under test shall be mounted as specified in EN 60529:1991 as amended by
EN60529:1991/A1:2000 and shall include all wiring termination boxes which form part of the flame
detector when installed.
5.2.8.3.3 Conditioning
The test conditions specified in EN 60529:1991 as amended by EN60529:1991/A1:2000 shall be
applied for the following IP Codes:
a) Type A, indoor use: no test
b) Type B, outdoor use: IP54C.

5.2.8.3.4 Final measurements
At the end of the conditioning period for the test for protection against water:
a) the response point of the specimen shall be measured as described in 5.1.5;
b) the specimen shall be examined for ingress of water inside the enclosure.
5.2.8.4 Requirements
The flame detector shall be deemed to comply with the requirements of this subclause if:
a) the specimen tested complies with the acceptance conditions for the test for protection against
solid foreign objects of EN 60529:1991 as amended by EN60529:1991/A1:2000;
b) after the conditioning period for the test for protection against water (see 5.2.8.3.3);
c) the specimen tested complies with the acceptance conditions for the test against protection against
access to hazardous parts of EN 60529:1991 as amended by EN60529:1991/A1:2000:
1) the mean ratio D :D shall not be greater than 1,26 from that measured for the same
max min
specimen in the reproducibility test (see 5.2); and
2) no water has penetrated the enclosure or, if water has penetrated the enclosure, the device
incorporates adequate provision for drainage.

5.2.9 Dazzling (operational)
5.2.9.1 Object
To demonstrate the immunity of the detector to stray light generated by artificial light sources.
5.2.9.2 Test procedure and apparatus
5.2.9.2.1 General
The test procedure and apparatus described in 5.2.9.2.2 to 5.2.9.2.6 and annex D shall be used.
5.2.9.2.2 State of the specimen
...
