EN 4467:2007
(Main)Aerospace series - Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) - Vacuum induction melted and consumable electrode remelted - Solution treated and precipitation treated - Bar - a or D ≤ 150 mm - Rm ≥ 1 200 MPa
Aerospace series - Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) - Vacuum induction melted and consumable electrode remelted - Solution treated and precipitation treated - Bar - a or D ≤ 150 mm - Rm ≥ 1 200 MPa
This standard specifies the requirements relating to:
Steel FE-PM1505 (X1CrNiMoAlTi12-9-2)
Vacuum induction melted and consumable electrode remelted
Solution treated and precipitation treated
Bar
a or D ≤ 150 mm
Rm ≥ 1 200 MPa
for aerospace applications.
Luft- und Raumfahrt - Stahl FE-PM1505 (X1CrNiMoAlTi12-9-2) - vakuuminduktionserschmolzen und mit selbstverzehrender Elektrode umgeschmolzen - Lösungsgeglüht und ausgehärtet - Stangen - a oder D ≤ 150 mm - Rm ≥ 1 200 MPa
Diese Norm legt die Anforderungen an
Stahl FE PM1505 (X1CrNiMoAlTi12-9-2)
Vakuuminduktionserschmolzen und
mit selbstverzehrender Elektrode umgeschmolzen
Lösungsgeglüht und ausgehärtet
Stangen
a oder D ≤ 150 mm
Rm ≥ 1 200 MPa
für Anwendungen in der Luft- und Raumfahrt fest.
Série aérospatiale - Acier FE-PM1505 (X1CrNiMoAlTi12-9-2) - Élaboré sous vide par induction et refondu à l'électrode consommable - Mis en solution et vieilli - Barres - a ou D ≤ 150 mm - Rm ≥ 1 200 MPa
Aeronavtika - Jeklo FE-PM1505 (X1CrNiMoAlTi12-9-2) - Palice a ali D ≤ 150 mm - Rm ≥ 1200 MPa, taljene z vakuumsko indukcijo in pretaljene s talilno elektrodo, žarjene v topilu in utrjene
General Information
- Status
- Published
- Publication Date
- 10-Jul-2007
- Withdrawal Date
- 30-Jan-2008
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4 - Metallic
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4467:2007 is a European aerospace material standard that defines the requirements for steel FE-PM1505 (X1CrNiMoAlTi12-9-2) supplied as bar for aerospace applications. The standard covers chemical composition, melting and remelting methods, heat treatment (solution treated and precipitation treated), dimensional limits (bar a or D ≤ 150 mm) and mechanical properties, with a minimum tensile strength Rm ≥ 1 200 MPa. It is intended for use where high-strength, vacuum-refined stainless-type steel bars are required for aerospace components.
Key topics and technical requirements
- Material designation: FE‑PM1505 (X1CrNiMoAlTi12‑9‑2) with the chemical limits specified for C, Si, Mn, P, S, Cr, Mo, Ni, Al, Ti and N.
- Melting methods: Vacuum induction melting and consumable electrode remelting to ensure high cleanliness and low inclusions.
- Form and size: Bars (a or D) with maximum dimension ≤ 150 mm.
- Heat treatment:
- Solution treatment: 820–860 °C with quench (OQ, AQ or WQ) cooling to ≤ 20 °C.
- Solution + precipitation (ageing): solution treatment as above followed by ageing at 540–560 °C for ≥ 4 h (air-cooled).
- Mechanical properties:
- Tensile strength Rm ≥ 1 200 MPa.
- Proof stress Rp0.2 ≥ 1 100 MPa in specified conditions.
- Ductility and toughness criteria (elongation, reduction of area, hardness limits) are specified for delivery and use conditions.
- Microstructure and cleanliness: Limits on δ‑ferrite (≤ 2 %), grain size (G ≥ 6), and inclusion/micro‑cleanliness (Category 5) with macro/microstructure inspections defined.
- Testing & inspection: Testpiece selection, dimensional and marking inspection, and product qualification requirements (reference to EN 4700‑2, EN 2043 and EN 4436 for test methods).
Applications and users
- Typical use: High-strength aerospace components and structural parts where clean, vacuum-refined stainless-type steel bars with Rm ≥ 1 200 MPa are required.
- Who uses EN 4467:2007: Aerospace manufacturers, material suppliers, design and procurement engineers, metallurgists, quality assurance and certification bodies responsible for selecting and qualifying bar stock for aircraft and space hardware.
Related standards
- EN 4700-2 - Technical specification for bar and section (wrought steels)
- EN 2043 - General requirements for semi-finished product qualification (aerospace)
- EN 4436 - Test method for δ‑ferrite content
- EN 4258, EN 4500-5 - Organization and drafting rules for aerospace metallic material standards
EN 4467:2007 helps ensure consistent chemistry, cleanliness, heat treatment and mechanical performance of FE‑PM1505 bars-critical for traceable, high-strength aerospace components.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4467:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) - Vacuum induction melted and consumable electrode remelted - Solution treated and precipitation treated - Bar - a or D ≤ 150 mm - Rm ≥ 1 200 MPa". This standard covers: This standard specifies the requirements relating to: Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) Vacuum induction melted and consumable electrode remelted Solution treated and precipitation treated Bar a or D ≤ 150 mm Rm ≥ 1 200 MPa for aerospace applications.
This standard specifies the requirements relating to: Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) Vacuum induction melted and consumable electrode remelted Solution treated and precipitation treated Bar a or D ≤ 150 mm Rm ≥ 1 200 MPa for aerospace applications.
EN 4467:2007 is classified under the following ICS (International Classification for Standards) categories: 49.025.10 - Steels. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4467:2007 has the following relationships with other standards: It is inter standard links to EN 4258:2024, EN 4632-004:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4467:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

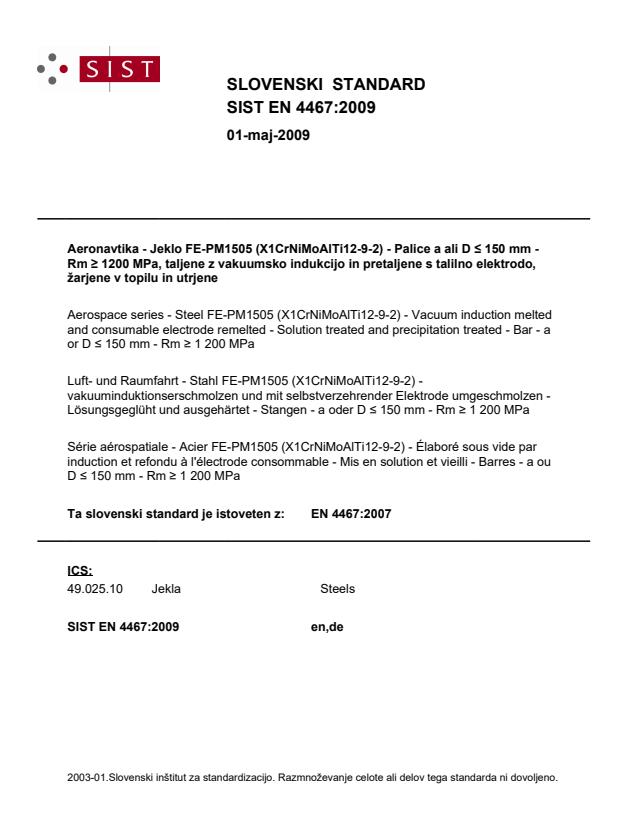

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.49.025.10JeklaSteelsICS:Ta slovenski standard je istoveten z:EN 4467:2007SIST EN 4467:2009en,de01-maj-2009SIST EN 4467:2009SLOVENSKI
STANDARD

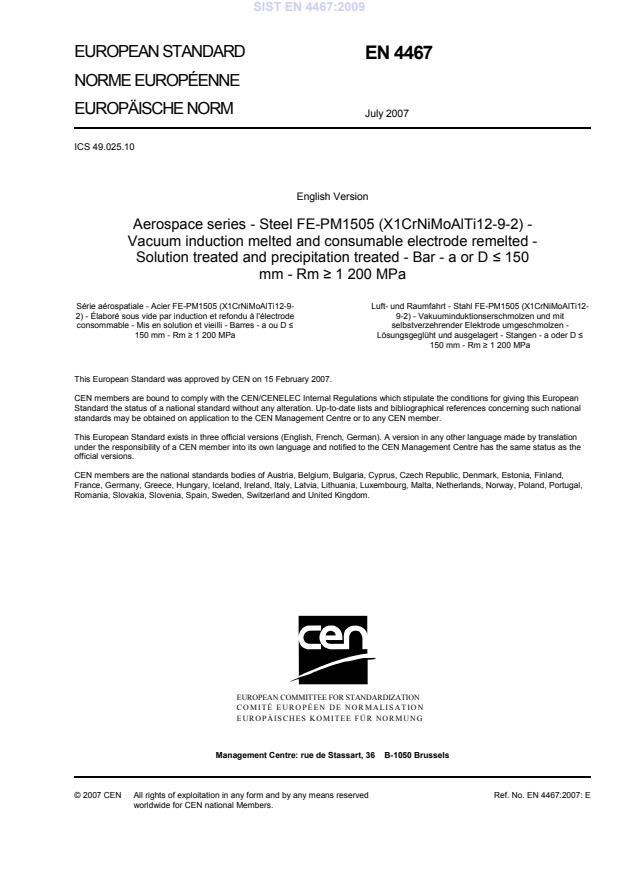

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4467
July 2007 ICS 49.025.10 English Version
Aerospace series - Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) - Vacuum induction melted and consumable electrode remelted - Solution treated and precipitation treated - Bar - a or D ≤ 150 mm - Rm ≥ 1 200 MPa
Série aérospatiale - Acier FE-PM1505 (X1CrNiMoAlTi12-9-2) - Élaboré sous vide par induction et refondu à l'électrode consommable - Mis en solution et vieilli - Barres - a ou D ≤ 150 mm - Rm ≥ 1 200 MPa
Luft- und Raumfahrt - Stahl FE-PM1505 (X1CrNiMoAlTi12-9-2) - Vakuuminduktionserschmolzen und mit selbstverzehrender Elektrode umgeschmolzen - Lösungsgeglüht und ausgelagert - Stangen - a oder D ≤ 150 mm - Rm ≥ 1 200 MPa This European Standard was approved by CEN on 15 February 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2007 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4467:2007: ESIST EN 4467:2009
...
