EN 2267-008:2005
(Main)Aerospace series - Cables, electrical, for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 008: DM family, single UV laser printable and multicore assembly - Product standard
Aerospace series - Cables, electrical, for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 008: DM family, single UV laser printable and multicore assembly - Product standard
This standard specifies the characteristics of UV laser printable electrical lightweight cables DM family for use in the on-board electrical systems of aircraft at operating temperatures between - 55 °C and 260 °C. Nevertheless, if needed, - 65 °C is also acceptable as shown by cold test.
It shall also be possible to mark these cables by qualified compatible marking. These markings shall satisfy the requirements of EN 3838.
Luft- und Raumfahrt - Leitungen, elektrisch, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 008: DM-Familie, ein- und mehradrige Leitungen, UV-Laser-bedruckbar - Produktnorm
Diese Norm legt die Eigenschaften von UV-Laser-bedruckbaren, leichten elektrischen Leitungen der DM Familie zur Verwendung in Bordnetzen von Luftfahrzeugen bei Betriebstemperaturen zwischen –55 °C und 260 °C fest. Es können aber auch, falls erforderlich, –65 °C verwendet werden, wie die Kälteprüfung zeigt.
Es muss auch möglich sein, diese Leitungen mit einer qualifizierten, verträglichen Kennzeichnung zu versehen. Diese Kennzeichnungen müssen die Anforderungen von EN 3838 erfüllen.
Série aérospatiale - Câbles, électriques, d'usage général, températures de fonctionnement comprises entre - 55 °C et 260 °C - Partie 008 : Famille DM, fil simple marquable au laser UV et éléments assemblés - Norme de produit
Aeronavtika – Električni kabli za splošno uporabo – Delovne temperature med –55 °C in 260 °C – 008. del: Družina DM, snop enožilnih in večžilnih kablov z možnostjo UV-laserskega tiskanja – Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 15-Nov-2005
- Withdrawal Date
- 30-May-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 16-Nov-2005
- Completion Date
- 16-Nov-2005
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 4057-402:2006 - Aerospace series - Cable ties for harnesses - Test methods - Part 402: Life cycle - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2267-008:2005 is a CEN/AECMA aerospace product standard for the DM family of lightweight electrical cables intended for on‑board aircraft systems. It covers single UV‑laser printable single‑core cables and multicore assemblies rated for continuous operating temperatures from −55 °C to 260 °C (cold testing to −65 °C is acceptable). The standard defines materials, construction, marking and a comprehensive set of tests and quality requirements for high‑temperature, aviation‑grade electrical wiring.
Keywords: EN 2267-008:2005, aerospace cable standard, UV laser printable cable, DM family, aircraft electrical cables, high temperature cable
Key topics and technical requirements
- Materials and conductors
- Conductors: copper or copper alloy, nickel‑plated per EN 4434 (code D).
- Insulation construction
- Inner layer: polyimide tape (nominal 30 µm) coated both sides with 2.5 µm fluorocarbon.
- Outer layer(s): one or two PTFE tapes; tape thicknesses and overlaps specified per conductor size.
- For single cores, the outer PTFE tape must be UV‑laser printable.
- Mechanical / electrical characteristics
- Dimensional, mass and DC resistance limits specified per nominal sections (AWG equivalents).
- Thermal endurance: 60 000 h at 260 °C.
- Flammability: extinguishing time ≤ 3 s.
- Cold performance: cold bend test at −65 ± 2 °C.
- Laser markability: UV laser marking required; contrast requirement K ≥ 50%.
- Test suite and performance
- Follows test methods from EN 3475‑100 and EN 2084: voltage proof, insulation resistance, overload, thermal shock, accelerated ageing, bend/abrasion/torsion/strip tests, smoke density, toxicity, arc tracking, wet short circuit and more.
- Specific mechanical loads and pass/fail criteria listed (e.g., dynamic cut‑through forces by conductor size, scrape abrasion forces).
- Marking and traceability
- Marking by qualified compatible methods must satisfy EN 3838 requirements.
- Quality assurance
- Qualification and QA procedures referenced to EN 9133.
Applications and who uses it
- Intended use: on‑board electrical systems of fixed‑wing and rotorcraft aircraft, avionics harnesses and high‑temperature wiring installations.
- Primary users:
- Aerospace OEMs, wire and cable manufacturers and suppliers
- Avionics and electrical harness designers
- Certification engineers, procurement teams and maintenance/repair organizations
- Quality and test laboratories verifying compliance with EN 2267‑008:2005
Related standards
- EN 2267‑002 (general requirements for −55 °C to 260 °C family)
- EN 2084, EN 2235 (cable technical specifications)
- EN 3475‑100 (test methods)
- EN 3838 (user‑applied markings)
- EN 4434 (conductors), EN 9133 (qualification / QA)
This standard is essential when specifying or procuring UV‑laser markable, high‑temperature aerospace cables (DM family) to ensure consistent materials, manufacturing and verified performance in aircraft environments.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2267-008:2005 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, electrical, for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 008: DM family, single UV laser printable and multicore assembly - Product standard". This standard covers: This standard specifies the characteristics of UV laser printable electrical lightweight cables DM family for use in the on-board electrical systems of aircraft at operating temperatures between - 55 °C and 260 °C. Nevertheless, if needed, - 65 °C is also acceptable as shown by cold test. It shall also be possible to mark these cables by qualified compatible marking. These markings shall satisfy the requirements of EN 3838.
This standard specifies the characteristics of UV laser printable electrical lightweight cables DM family for use in the on-board electrical systems of aircraft at operating temperatures between - 55 °C and 260 °C. Nevertheless, if needed, - 65 °C is also acceptable as shown by cold test. It shall also be possible to mark these cables by qualified compatible marking. These markings shall satisfy the requirements of EN 3838.
EN 2267-008:2005 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2267-008:2005 has the following relationships with other standards: It is inter standard links to EN 2235:2022, EN 3838:2022, EN 2267-002:2025, EN 2084:2018, EN 3475-100:2010, EN 4434:2005, EN 9133:2018, EN 2267-002:2015, EN 4057-402:2006, EN 2267-002:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2267-008:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

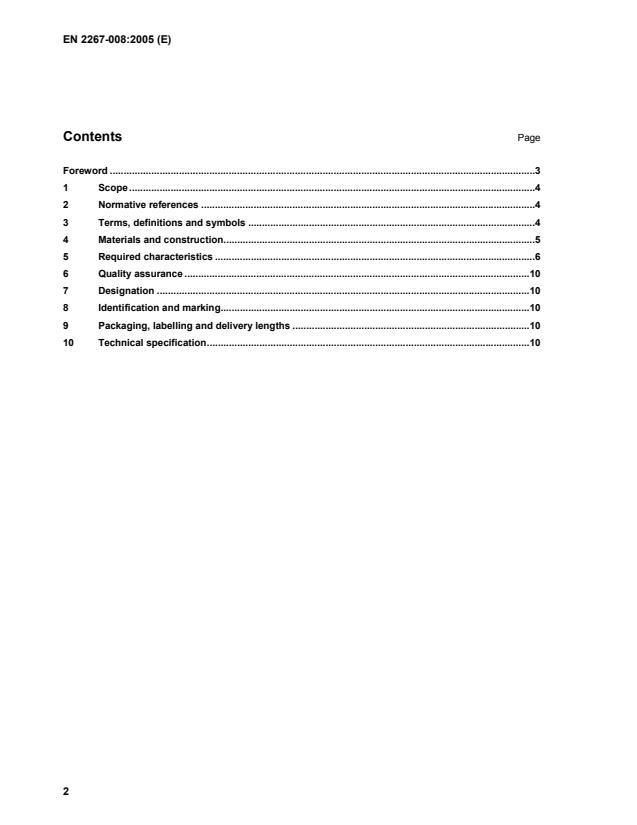

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Cables, electrical, for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 008: DM family, single UV laser printable and multicore assembly - Product standardSérie aérospatiale - Câbles, électriques, d'usage général, températures de fonctionnement comprises entre - 55 °C et 260 °C - Partie 008 : Famille DM, fil simple marquable au laser UV et éléments assemblés - Norme de produitLuft- und Raumfahrt - Leitungen, elektrisch, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 008: DM-Familie, ein- und mehradrige Leitungen, UV-Laser-bedruckbar - ProduktnormTa slovenski standard je istoveten z:EN 2267-008:2005SIST EN 2267-008:2006en49.060ICS:SLOVENSKI
STANDARDSIST EN 2267-008:200601-julij-2006
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2267-008
November 2005 ICS 49.060 English Version
Aerospace series - Cables, electrical, for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 008: DM family, single UV laser printable and multicore assembly - Product standard
Série aérospatiale - Câbles, électriques, d'usage général, températures de fonctionnement comprises entre -55 °C et 260 °C - Partie 008 : Famille DM, fil simple marquable au laser UV et éléments assemblés - Norme de produit
Luft- und Raumfahrt - Leitungen, elektrisch, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 008: DM-Familie Ein-und mehradrige Leitungen UV-laser bedruckbar - Produktnorm This European Standard was approved by CEN on 26 September 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2005 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2267-008:2005: E
Cables, electric, single-core, general purpose, with conductors in copper or copper alloy
Technical specification. EN 2235, Aerospace series — Single and multicore electrical cables, screened and jacketed — Technical specification.1) EN 2267-002, Aerospace series
Cables, electrical, for general purpose
Operating temperatures
...
