EN 4674-002:2015
(Main)Aerospace series - Electrical cables, installation - Self-wrapping shielding (EMI) protective sleeve - Part 002: General and list of product standard
Aerospace series - Electrical cables, installation - Self-wrapping shielding (EMI) protective sleeve - Part 002: General and list of product standard
This European Standard provides a list of all parts and identification information of self-wrapping shielding (EMI) protective sleeve required for the protection of cable and cable bundles for aerospace application.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Selbstschließender abschirmender (EMI) Schutzschlauch - Teil 002: Allgemeines und Liste der Produktnormen
Série aérospatiale - Câbles électriques, installation - Gaine de protection blindée (EMI) auto-fermable - Partie 002: Généralités et liste des normes de produit
Aeronavtika - Električni kabli, namestitev - Samoovojna zaslonska (EMI) zaščitna obojka - 002. del: Splošno in seznam standardov za proizvod
Ta evropski standard zagotavlja seznam vseh delov in identifikacijske informacije za samoovojne zaslonske (EMI) zaščitne obojke, potrebne za zaščito kablov in snopov kablov za uporabo v aeronavtiki.
General Information
- Status
- Published
- Publication Date
- 17-Feb-2015
- Withdrawal Date
- 30-Aug-2015
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 18-Feb-2015
- Completion Date
- 18-Feb-2015
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4674-002:2015 is a CEN (ASD‑STAN) European standard that provides the general requirements and a list of product standards for self‑wrapping shielding (EMI) protective sleeves used on aerospace electrical cables and cable bundles. It defines identification, packaging, marking and storage rules needed to ensure consistent selection, traceability and handling of EMI protection sleeves in aerospace applications.
Key topics and requirements
- Scope: Lists all parts and identification information for self‑wrapping shielding (EMI) protective sleeve for aerospace cable installation.
- Product families: References product standards with defined applications and temperature ranges:
- EN 4674-003 - Open sleeve for inside pressurized areas, EMI protection 5 kA, temperature range −65 °C to 200 °C (tracer line: blue).
- EN 4674-004 - Open sleeve for external use, EMI protection 10 kA, temperature range −65 °C to 200 °C (tracer line: red or pink).
- Identification:
- Inclusion of a tracer line to indicate minimum overlap and maximum admissible bundle diameter.
- Coloured tracer line on external edge to identify product standard; tracer line for minimum overlap must match external tracer colour.
- Size verification via mandrel/bundle and tracer line; inside retaining fibres are normally natural colour unless otherwise specified.
- Marking and labelling: Each drum or spool must be labelled with manufacturer name, sleeve designation (identity block), batch number, date of manufacture (month, year), inspector’s mark, and lengths (total and per piece).
- Packaging: Sleeves supplied on drums or spools; loaded drum/spool mass must not exceed 13 kg.
- Storage:
- Avoid outdoor storage and close proximity (<2 m) to direct UV light sources.
- Keep packaged until use; protect against fluids, dust, high temps, low humidity and chemical vapours.
- Maximum storage life: 8 years unless re‑qualified.
- Quality assurance: Conformance to EN 9133 qualification and quality management procedures.
Applications and users
- Practical use: selection, procurement, installation and maintenance of EMI protective sleeves for aerospace wiring harnesses in pressurized cabins, external aircraft zones and other avionics installations.
- Primary users:
- Aerospace engineers and wiring harness designers
- Procurement and quality managers at OEMs and suppliers
- Technical staff in manufacturing, inspection and stores handling
- Certification and compliance teams verifying product identification and storage practices
Related standards
- EN 4674-001 - Technical specification (terms, definitions and technical requirements)
- EN 4674-003 - Open sleeve - inside pressurized area (EMI 5 kA)
- EN 4674-004 - Open sleeve - external use (EMI 10 kA)
- EN 9133 - Quality management systems - Qualification procedure for aerospace standard parts
Keywords: EN 4674-002, self‑wrapping shielding, EMI protective sleeve, aerospace cables, EMI protection, tracer line, packaging, storage, product standard.
Get Certified
Connect with accredited certification bodies for this standard
DEKRA North America
DEKRA certification services in North America.
Eagle Registrations Inc.
American certification body for aerospace and defense.
Element Materials Technology
Materials testing and product certification.
Sponsored listings
Frequently Asked Questions
EN 4674-002:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical cables, installation - Self-wrapping shielding (EMI) protective sleeve - Part 002: General and list of product standard". This standard covers: This European Standard provides a list of all parts and identification information of self-wrapping shielding (EMI) protective sleeve required for the protection of cable and cable bundles for aerospace application.
This European Standard provides a list of all parts and identification information of self-wrapping shielding (EMI) protective sleeve required for the protection of cable and cable bundles for aerospace application.
EN 4674-002:2015 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4674-002:2015 has the following relationships with other standards: It is inter standard links to EN 4674-004:2017, EN 4674-001:2017, EN 9133:2018, EN 4674-003:2017, EN 4674-001:2015, EN 4674-003:2015, EN 4674-004:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4674-002:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

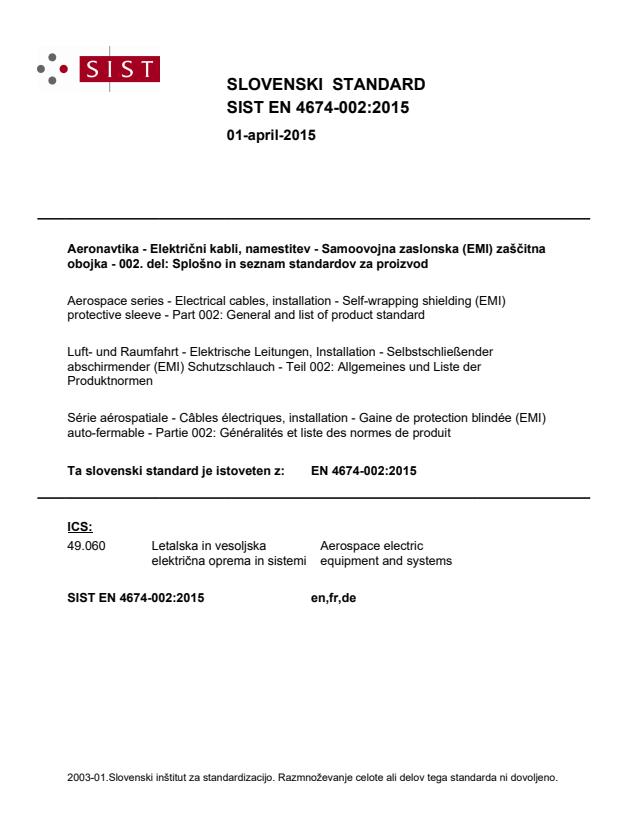

SLOVENSKI STANDARD
01-april-2015
$HURQDYWLND(OHNWULþQLNDEOLQDPHVWLWHY6DPRRYRMQD]DVORQVND (0, ]DãþLWQD
RERMNDGHO 6SORãQRLQVH]QDPVWDQGDUGRY]DSURL]YRG
Aerospace series - Electrical cables, installation - Self-wrapping shielding (EMI)
protective sleeve - Part 002: General and list of product standard
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Selbstschließender
abschirmender (EMI) Schutzschlauch - Teil 002: Allgemeines und Liste der
Produktnormen
Série aérospatiale - Câbles électriques, installation - Gaine de protection blindée (EMI)
auto-fermable - Partie 002: Généralités et liste des normes de produit
Ta slovenski standard je istoveten z: EN 4674-002:2015
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

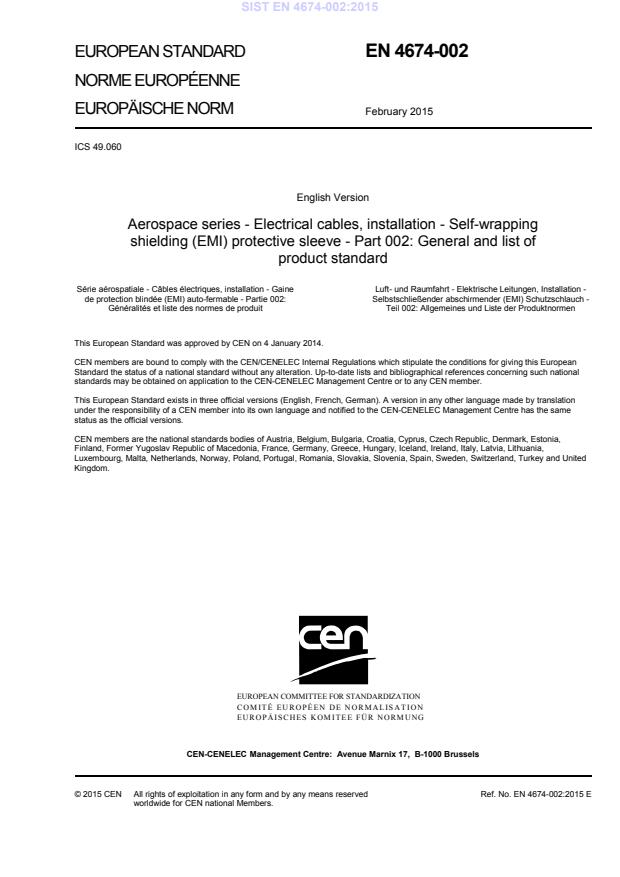

EUROPEAN STANDARD
EN 4674-002
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2015
ICS 49.060
English Version
Aerospace series - Electrical cables, installation - Self-wrapping
shielding (EMI) protective sleeve - Part 002: General and list of
product standard
Série aérospatiale - Câbles électriques, installation - Gaine Luft- und Raumfahrt - Elektrische Leitungen, Installation -
de protection blindée (EMI) auto-fermable - Partie 002: Selbstschließender abschirmender (EMI) Schutzschlauch -
Généralités et liste des normes de produit Teil 002: Allgemeines und Liste der Produktnormen
This European Standard was approved by CEN on 4 January 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4674-002:2015 E
worldwide for CEN national Members.

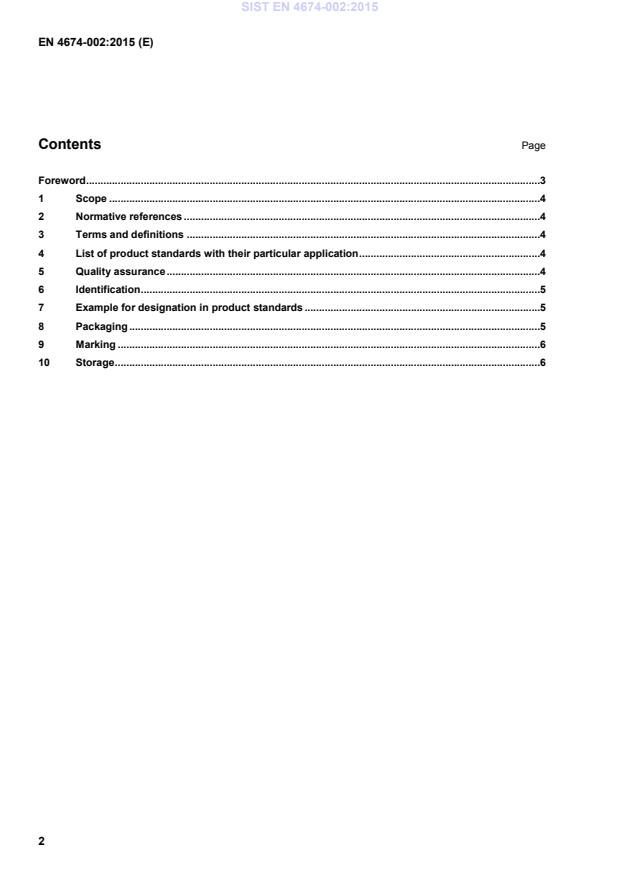

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 List of product standards with their particular application .4
5 Quality assurance .4
6 Identification .5
7 Example for designation in product standards .5
8 Packaging .5
9 Marking .6
10 Storage .6
Foreword
This document (EN 4674-002:2015) has been prepared by the Aerospace and Defence Industries Association
of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of ASD,
prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2015, and conflict
...
