EN 2995-005:2006
(Main)Aerospace series - Circuit breakers, single-pole, temperature compensated, rated current 1 A to 25 A - Part 005: With polarized signal contact - Product standard
Aerospace series - Circuit breakers, single-pole, temperature compensated, rated current 1 A to 25 A - Part 005: With polarized signal contact - Product standard
This standard specifies the characteristics of single-pole circuit breakers, temperature compensated with a rated current from 1 A to 25 A, used in aircraft on-board circuits at a temperature between - 55 °C and 125 °C and at a maximum altitude of Z 22 000 m.
These circuits breakers are operated by a push-pull type single push button (actuator), with delayed action "trip-free" tripping with a polarized signal contact which is open when main contacts are closed, and inversely.
They will continue to function up to the short-circuit current.
Luft- und Raumfahrt - Schutzschalter, einpolig, Temperaturkompensiert, Nennströme von 1 A bis 25 A - Teil 005: Mit polarisiertem Signalkontakt - Produktnorm
Diese Norm legt die Eigenschaften von einpoligen, temperaturkompensierten Schutzschaltern mit Nennströmen von 1 A bis 25 A fest, die in Luftfahrzeug Bordnetzen im Temperaturbereich zwischen 55 °C und 125 °C und bei einer maximalen Höhenlage Z = 22 000 m verwendet werden.
Diese Schutzschalter besitzen einen Druckknopf (Betätigungsknopf) mit Druck Zug Betätigung mit Freiaus¬lösung und verzögerter Auslösefunktion und einen polarisierten Signalkontakt, der bei geschlossenen Haupt¬kontakten geöffnet ist und umgekehrt.
Ihre Funktion ist bis zum Kurzschlussstrom sichergestellt.
Série aérospatiale - Disjoncteurs unipolaires compensés en température, intensités nominales 1 A à 25 A - Partie 005 : Avec contact de signalisation polarisé - Norme de produit
Aeronavtika - Odklopniki, enopolni, temperaturno kompenzirani, nazivni tok od 1 A do 25 A - 005. del: S polariziranim signalnim kontaktom - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 22-Aug-2006
- Withdrawal Date
- 27-Feb-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2995-005:2006 - Aerospace series product standard for single‑pole, temperature‑compensated circuit breakers (1 A to 25 A) with polarized signal contact. Published by CEN, this standard defines the characteristics, mechanical and electrical requirements, test conditions and marking/delivery rules for push‑pull, trip‑free circuit breakers intended for aircraft on‑board circuits operating between −55 °C and 125 °C and up to 22 000 m altitude.
Key topics and technical requirements
- Scope & function
- Single‑pole circuit breakers, rated 1 A to 25 A, temperature compensated and trip‑free (delayed action).
- Operated by a single push‑pull actuator; includes a polarized signal contact that is open when main contacts are closed (and vice versa).
- Designed to continue functioning up to specified short‑circuit currents.
- Electrical characteristics
- Nominal voltages: 28 V DC and 115 V AC (360–800 Hz).
- Signal contact diode spec: max 0.5 A at 125 °C, peak repetitive reversal ≥ 800 V, JANTX quality per MIL‑S‑19500.
- Voltage drop, tripping thresholds, overload trip times and short‑circuit performance are defined in tabular form (see standard for exact values).
- Mechanical & environmental
- Defined dimensions, mass (max 28 g including hardware for delivery code A), panel mounting and terminals per referenced figures and TR 6083.
- Vibration, shock and endurance tests specified (combined vibration at elevated temperatures, 50 gn shock, thousands of load/no‑load operations).
- Tightening torques and recommended contact insertion/removal tools are listed.
- Tests & safety
- Short‑circuit performance and dielectric strength requirements referenced to EN 3841‑305 and related aerospace test methods.
- Insulation resistance, corrosion, humidity and contaminant resistance per EN 2995‑001.
Applications and users
- Who uses EN 2995-005:2006
- Aerospace electrical designers and system engineers specifying protection components for aircraft on‑board power systems.
- Avionics component manufacturers developing or certifying temperature‑compensated circuit breakers with polarized signaling.
- Test laboratories and certification bodies performing electrical/mechanical qualification and environmental testing.
- Maintenance, procurement and OEM teams ensuring parts comply with European aerospace standards.
- Practical applications
- Overcurrent protection and signaling in aircraft electrical distribution panels, avionics racks and cockpit systems where temperature extremes and high altitude operation are critical.
Related standards
- EN 2995-001 (technical specification)
- EN 3841-305 (short‑circuit test methods)
- EN 6113 (connection and attachment hardware)
- EN 3155-016 (contacts)
- TR 6083 (panel cut‑outs) (See EN 2995‑005 for full normative references and detailed tables.)
Keywords: EN 2995-005:2006, aerospace circuit breakers, single-pole circuit breaker, temperature compensated, polarized signal contact, aircraft electrical protection, avionics components.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2995-005:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Circuit breakers, single-pole, temperature compensated, rated current 1 A to 25 A - Part 005: With polarized signal contact - Product standard". This standard covers: This standard specifies the characteristics of single-pole circuit breakers, temperature compensated with a rated current from 1 A to 25 A, used in aircraft on-board circuits at a temperature between - 55 °C and 125 °C and at a maximum altitude of Z 22 000 m. These circuits breakers are operated by a push-pull type single push button (actuator), with delayed action "trip-free" tripping with a polarized signal contact which is open when main contacts are closed, and inversely. They will continue to function up to the short-circuit current.
This standard specifies the characteristics of single-pole circuit breakers, temperature compensated with a rated current from 1 A to 25 A, used in aircraft on-board circuits at a temperature between - 55 °C and 125 °C and at a maximum altitude of Z 22 000 m. These circuits breakers are operated by a push-pull type single push button (actuator), with delayed action "trip-free" tripping with a polarized signal contact which is open when main contacts are closed, and inversely. They will continue to function up to the short-circuit current.
EN 2995-005:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2995-005:2006 has the following relationships with other standards: It is inter standard links to EN 3155-016:2025, EN 3841-305:2004, EN 2995-001:2023, EN 3155-002:2024, EN 4728:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2995-005:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

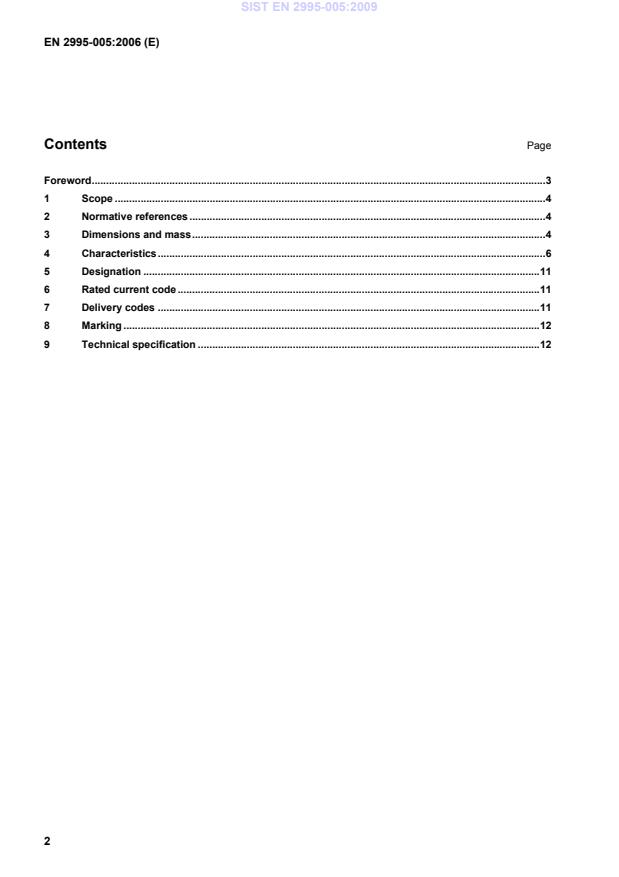

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aeronavtika - Odklopniki, enopolni, temperaturno kompenzirani, nazivni tok od 1 A do 25 A - 005. del: S polariziranim signalnim kontaktom - Standard za proizvodLuft- und Raumfahrt - Schutzschalter, einpolig, Temperaturkompensiert, Nennströme von 1 A bis 25 A - Teil 005: Mit polarisiertem Signalkontakt - ProduktnormSérie aérospatiale - Disjoncteurs unipolaires compensés en température, intensités nominales 1 A à 25 A - Partie 005 : Avec contact de signalisation polarisé - Norme de produitAerospace series - Circuit breakers, single-pole, temperature compensated, rated current 1 A to 25 A - Part 005: With polarized signal contact - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2995-005:2006SIST EN 2995-005:2009en,de01-junij-2009SIST EN 2995-005:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 2995-005August 2006ICS 49.060 English VersionAerospace series - Circuit breakers, single-pole, temperaturecompensated, rated current 1 A to 25 A - Part 005: Withpolarized signal contact - Product standardSérie aérospatiale - Disjoncteurs unipolaires compensés entempérature, intensités nominales 1 A à 25 A - Partie 005 :Avec contact de signalisation polarisé - Norme de produitLuft- und Raumfahrt - Schutzschalter, einpolig,Temperaturkompensiert, Nennströme von 1 A bis 25 A -Teil 005: Mit polarisiertem Signalkontakt - ProduktnormThis European Standard was approved by CEN on 5 June 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 2995-005:2006: ESIST EN 2995-005:2009
Aerospace series – Circuit breakers, single-pole, temperature compensated, rated current 1 A to 25 A – Part 001: Technical specification.
EN 3155-016,
Aerospace series – Electrical contacts used in elements of connection – Part 016: Contacts, electrical, male, type A, crimp, class S – Product standard. EN 3841-305,
Aerospace series – Circuit breakers – Test methods – Part 305: Short-circuit performance.
EN 6113,
Aerospace series – Circuit breaker, connecting and attachment hardware.1) TR 6083,
Aerospace series – Cut-outs for installation of electrical components.2) MIL-I-81969/1A,
Installing and removal tools, connector electrical contact, type III, class 2, composition C.3) MIL-I-81969/14C,
Installing and removal tools, connector electrical contact, type III, class 2, composition B.3) MIL-S-19500,
Semiconductor device, diode, silicon, fast recovery.3) FED-STD-595B,
Colors used in Government Procurement. 3 Dimensions and mass 3.1 Di
...
