EN 13254:2014+A1
February 2015 ICS 59.080.70 Supersedes EN 13254:2014English Version
Geotextiles and geotextile-related products - Characteristics required for use in the construction of reservoirs and dams
Géotextiles et produits apparentés - Caractéristiques requises pour l'utilisation dans la construction de réservoirs et de barrages
Geotextilien und geotextilverwandte Produkte - Geforderte Eigenschaften für die Anwendung beim Bau von Rückhaltebecken und Staudämmen This European Standard was approved by CEN on 9 November 2013 and includes Amendment 1 approved by CEN on 13 December 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13254:2014+A1:2015 ESIST EN 13254:2014+A1:2015

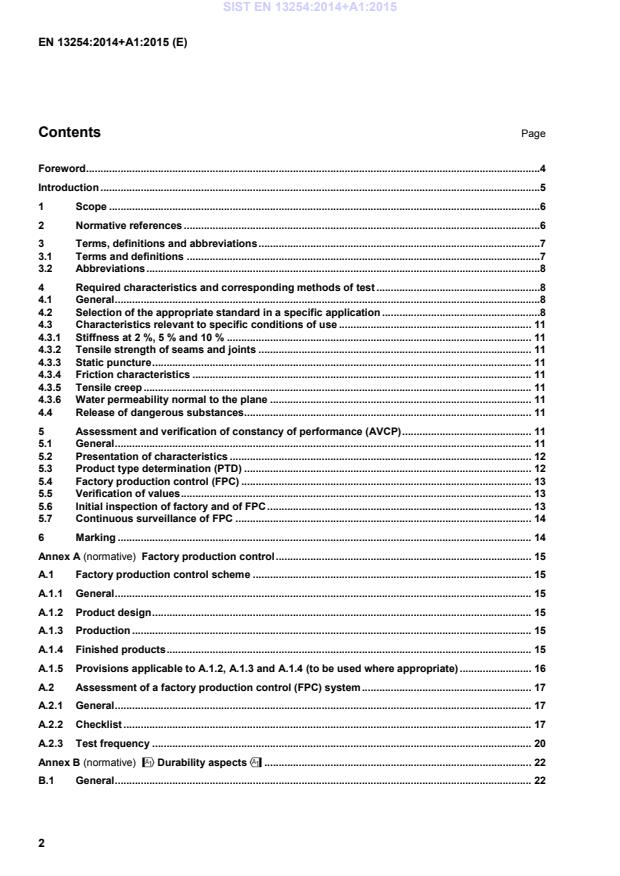

Factory production control . 15 A.1 Factory production control scheme . 15 A.1.1 General . 15 A.1.2 Product design . 15 A.1.3 Production . 15 A.1.4 Finished products . 15 A.1.5 Provisions applicable to A.1.2, A.1.3 and A.1.4 (to be used where appropriate) . 16 A.2 Assessment of a factory production control (FPC) system . 17 A.2.1 General . 17 A.2.2 Checklist . 17 A.2.3 Test frequency . 20 Annex B (normative)
!Durability aspects" . 22 B.1 General . 22 SIST EN 13254:2014+A1:2015

Guidelines for the selection of the appropriate standard in a specific application . 28 Annex D (informative)
Significant technical changes to the superseded standard . 30 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 31 ZA.1 Scope and relevant characteristics . 31 ZA.2 Procedure for AVCP of Geotextiles and geotextiles-related products for the use in the construction of reservoirs and dams . 35 ZA.2.1 Systems of AVCP . 35 ZA.2.2 Declaration of performance (DoP) . 38 ZA.3 CE marking and labelling . 41 Bibliography . 44
EN 12226,
EN 12447, Geotextiles and geotextile-resistance to hydrolysis in water EN 13719, Geotextiles and geotextile-of geotextiles in contact with geosynthetic barriers EN 14574, d geosynthetics EN ISO 9862,
EN ISO 1043-1, characteristics bfpl kjnm-kc !EN ISO 3696, tater for analy" EN ISO 10318,
EN ISO 10319, -width tensile test bfpl kjmksc EN ISO 10320, Geotextiles and geotextile-fdentification on site bfpl kjmljc EN ISO 10321, -width strip method bfpl kjmlkc SIST EN 13254:2014+A1:2015

caused by granular material bfpl kjqllc EN ISO 11058, Geotextiles and geotextile-characteristics normal to the planef without load bfpl kkjorc EN ISO 12236, stc bfpl kllmpc EN ISO 12956, Geotextiles and geotextile-bfpl klsopc EN ISO 12957-1, klsoq-kc EN ISO 12957-2, klsoq-lc EN ISO 13426-1, Geotextiles and geotextile-mart kt deocells bfpl kmnlp-kc EN ISO 13426-2, Geotextiles and geotextile-mart lt deocomposites bfpl kmnlp-lc EN ISO 13431, Geotextiles and geotextile-rupture behaviour bfpl kmnmkc EN ISO 13433,
EN ISO 13438, Geotextiles and geotextile-resistance to oxidation bfpl kmnmrc ISO 10390, poil quality — aetermination of pe ASTM D7409 — 07e1, ptandard qest jethod for Carboxyl bnd droup Content of molyethylene qerephthalate bmbqc varns ASTM D4603 — 03(2011)e1, ptandard qest jethod for aetermining fnherent siscosity of molybbthylene qerephthalatec bmbqc by dlass Capillary siscometer 3 Terms, definitions and abbreviations 3.1 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 10318 and the following apply. 3.1.1 product geotextile or geotextile-related product 3.1.2 specification any document in which the work, functions and specific conditions of use of the product are described SIST EN 13254:2014+A1:2015

aramid — GCO-R: geocomposite reinforcement 4 Required characteristics and corresponding methods of test 4.1 General The main functions of geotextiles and geotextile-related products used in the construction of reservoirs and dams are filtration, separation, reinforcement and protection. If a drainage or erosion control system is integrated in the construction, the requirements of the appropriate standards shall also be fulfilled. As the separation function is always used in conjunction with another function, the separation function shall never be specified alone. The specification shall define which functions and conditions of use are relevant (see Table 1). The producer shall provide the necessary data based on the requirements and test methods specified in this European Standard, as described in 5.1. The characteristics, their relevance to the conditions of use, and the test methods to be used, are specified in Table 1. The list of characteristics in Table 1 includes those needed for regulatory purposes (H), those relevant to all conditions of use (A), and those relevant to specific conditions of use (S). The indication “–” means that the characteristic is not relevant for that function. Where, for the same property, data for more than one function shall be provided, the following ranking order shall be observed: H overrules A, A overrules S, and S overrules “–”. The functions and conditions of use, corresponding with the S-coded characteristics in Table 1, are specified in 4.3. Durability shall be assessed in accordance with the requirements of Annex B. 4.2 Selection of the appropriate standard in a specific application Guidelines for the selection of the appropriate standard in a specific application are given in Annex C. SIST EN 13254:2014+A1:2015

EN 14574 – – – H (11) Characteristic opening size EN ISO 12956 H H – - - (12) Water permeability normal to the plane (velocity index) EN ISO 11058 H H S - - (13) Durability According to Annex B H H H H SIST EN 13254:2014+A1:2015

H: required for regulatory purposes
A: relevant to all conditions of use
S: relevant to specific conditions of use
“–”: indicates that the characteristic is not relevant for that function. a Static puncture resistance may not be relevant for some types of products, e. g. GGR, GCO-R or GST. b If the mechanical properties (tensile strength and static puncture) are coded “H” in this Table, the producer shall provide data for both. The use of only one, either tensile strength or static puncture, is sufficient in a tender specification. c The strength of internal structural junctions of geocells shall be tested in accordance with EN ISO 13426-1. d The strength of internal structural junctions of geocomposites shall be tested in accordance with EN ISO 13426-2. SIST EN 13254:2014+A1:2015

(normative)
Factory production control A.1 Factory production control scheme A.1.1 General The items to be addressed in the factory production control manual relating to the system of control, determined from 5.4, are given in A.1. The single steps of factory production control are addressed in the check-list (A.2). NOTE Manufacturers operating an FPC system, which complies with EN ISO 9001 and which addresses the provisions of this European standard are considered satisfying the FPC requirements of this European Standard. A.1.2 Product design The manufacturer shall describe how product design requirements and criteria are identified, checked, controlled and updated to be unambiguous and relevant to the use of the product and its specification. The manufacturer shall describe the communication of the product design to the internal production departments or to external subcontractors. A.1.3 Production A.1.3.1 Raw or incoming materials The manufacturer shall define the acceptance criteria of raw or incoming materials and the procedures that he operates to ensure that these are met. The manufacturer shall document by analyses and/or certificates from his suppliers that all raw or incoming materials meet the declared performance, including durability performance. A.1.3.2 Production process The relevant features of the plant and production process shall be defined giving the frequency of the inspections, checks and tests, together with the values or criteria required on equipment and on work in process. The actions to be taken when control values or criteria are not obtained shall be recorded. These records shall be available for inspection. A.1.4 Finished products A.1.4.1 Tests on the finished product The size of the samples and the frequency of sampling, together with the results obtained, shall be recorded. These records shall be available for inspection. A.1.4.2 Alternative tests Where alternative tests to the reference tests are used, details of the alternative tests and procedures together with their correlation with the reference tests shall be recorded and shall be made available for inspection. SIST EN 13254:2014+A1:2015

Design 1.1 – Has the manufacturer a description how design requirements and criteria are identified, checked, controlled and updated to be unambiguous and relevant to the use of the product and its specification? qo be assessed only if claimed by the manufacturer oefer to the manufactureras documentation. 1.2 – Has the manufacturer a description of the communication of the design to the internal production departments or to external subcontractors? qo be assessed only if claimed by the manufacturer. oefer to the manufactureras documentation. 2 Product identification and traceability 2.1 – What are the means used for the unique identification of any individual finished product? E oefer to the manufactureras documentation. SIST EN 13254:2014+A1:2015

3 Production process control 3.1 – Are there documents which define the production process parameters which could affect quality? E oefer to the manufactureras documentation. 3.2 –Are the standards and procedures implemented? E
3.3 – Are the specified requirements concerning process validation, including the associated personnel and equipment, documented? E oefer to the manufactureras documentation. 4 Inspection and testing on receipt of raw materials 4.1 – Are there specification sheets concerning incoming raw materials? E oefer to the manufactureras documentation. 4.2 – Are there documents which define what shall be done in case of non-conformance of raw materials? E oefer to the manufactureras documentation. 4.3 – Are the nature and frequency of the evaluation of incoming raw materials described and followed? E oefer to the manufactureras documentation. 5 Inspection and testing during manufacturing 5.1 – Are there inspections or tests during the manufacturing process with specific requirement for the results? E oefer to the manufactureras documentation. 5.2 – Are there documents concerning inspection or testing during the manufacturing process with requirement for the results? E oefer to the manufactureras documentation. 5.3 – Do they define what shall be done in case of non-conformance of the product with the requirements? E oefer to the manufactureras documentation. 5.4 – Are non-conforming products isolated from conform products when they are detected during manufacturing? E oefer to the manufactureras documentation. 5.5 – Is there a procedure for handling non-conforming products? E oefer to the manufactureras documentation. 6 Final inspection and testing 6.1 – Are there installations, equipment and personnel for final inspection and tests? E oefer to the manufactureras documentation.
qhis requirement may be fulfilled by concluding a subcontracting agreement with one or more organizations or persons having the necessary skills and equipment. SIST EN 13254:2014+A1:2015
...
