EN 2279:2018
(Main)Aerospace series - Steel FE-PM37 - 900 MPa ≤ Rm ≤ 1 100 MPa - Forgings - De ≤ 150 mm
Aerospace series - Steel FE-PM37 - 900 MPa ≤ Rm ≤ 1 100 MPa - Forgings - De ≤ 150 mm
This standard specifies the requirements relating to:
Steel FE-PM37
900 MPa ≤ Rm ≤ 1 100 MPa
Forgings
De ≤ 150 mm
for aerospace applications.
Luft- und Raumfahrt - Stahl FE-PM37 - 900 MPa ≤ Rm ≤ 1 100 MPa - Gesenk-und Freiformschmiedestücke - De ≤ 150 mm
Série aérospatiale - Acier FE-PM37 - 900 MPa ≤ Rm ≤ 1 100 MPa - Pièces forgées et matricées - De ≤ 150 mm
Aeronavtika - Jeklo FE-PM37 - 900 MPa ≤ Rm ≤ 1100 MPa - Izkovki - De ≤ 150 mm
Ta standard določa zahteve, ki se nanašajo na:
Jeklo FE-PM37
900 MPa ≤ Rm ≤ 1100 MPa
Izkovki
De ≤ 150 mm
za uporabo v aeronavtiki.
General Information
- Status
- Published
- Publication Date
- 24-Jul-2018
- Withdrawal Date
- 30-Jan-2019
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4 - Metallic
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2024
- Completion Date
- 11-Feb-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2279:2018 is a European (CEN) aerospace material standard that defines the requirements for Steel FE‑PM37 used in forged aerospace components. The standard targets high‑strength forgings with a tensile strength 900 MPa ≤ Rm ≤ 1 100 MPa and maximum forging diameter De ≤ 150 mm. It is part of the EN aerospace series and references general rules for metallic material standards and forging specifications.
Key topics and technical requirements
- Material designation: Steel FE‑PM37.
- Mechanical range: Tensile strength Rm between 900 and 1 100 MPa (as the material class requirement).
- Form and size: Intended for forgings with De ≤ 150 mm.
- Chemical composition (typical limits given in the standard):
- C: 0.08 – 0.13%
- Si: max 0.35% (min not specified)
- Mn: 0.50 – 0.90%
- P: max 0.030% (min not specified)
- S: max 0.025% (min not specified)
- Cr: 11.0 – 12.5%
- Mo: 1.50 – 2.00%
- Ni: 2.00 – 3.00%
- V: 0.25 – 0.40%
- N: 0.020 – 0.040%
- Melting method: Air melted.
- Heat treatment / delivery conditions: Options include softened and hardened & tempered conditions. The standard gives a reference heat treatment: harden at 1 050 ± 10 °C followed by tempering at 650 ± 5 °C.
- Testing and inspection: The standard refers to sampling, test-piece direction (L or LT), and common mechanical test types (proof stress, hardness in HB, elongation), with specific test methods and acceptance criteria to be applied per EN 2157‑1 and purchaser/manufacturer agreement.
- Conformance: Product qualification and inspection programs are to be agreed between manufacturer and purchaser.
Applications and users
EN 2279:2018 is intended for:
- Aerospace manufacturers specifying high‑strength forged parts (shafts, fittings, landing gear subcomponents where size and strength limits apply).
- Material engineers and metallurgists selecting steel grades for forgings requiring controlled chemistry and heat treatment.
- Procurement and quality assurance teams who need a standardized technical specification for supply contracts and inspections.
- Test laboratories performing mechanical and metallurgical verification against EN requirements.
Related standards
- EN 2157‑1 - Aerospace series: Steel - Forging stock and forgings - Technical specification - Part 1 (general requirements)
- EN 4258 - Organisation of aerospace metallic material standards
- EN 4500‑005 - Rules for drafting/presentation of material standards (specific rules for steels)
Keywords: EN 2279:2018, steel FE‑PM37, aerospace forgings, 900–1100 MPa, De ≤ 150 mm, hardened and tempered, CEN, forging specification.
Get Certified
Connect with accredited certification bodies for this standard
DEKRA North America
DEKRA certification services in North America.
Eagle Registrations Inc.
American certification body for aerospace and defense.
Element Materials Technology
Materials testing and product certification.
Sponsored listings
Frequently Asked Questions
EN 2279:2018 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Steel FE-PM37 - 900 MPa ≤ Rm ≤ 1 100 MPa - Forgings - De ≤ 150 mm". This standard covers: This standard specifies the requirements relating to: Steel FE-PM37 900 MPa ≤ Rm ≤ 1 100 MPa Forgings De ≤ 150 mm for aerospace applications.
This standard specifies the requirements relating to: Steel FE-PM37 900 MPa ≤ Rm ≤ 1 100 MPa Forgings De ≤ 150 mm for aerospace applications.
EN 2279:2018 is classified under the following ICS (International Classification for Standards) categories: 49.025.10 - Steels. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2279:2018 has the following relationships with other standards: It is inter standard links to EN 4500-005:2024, EN 4258:2024, EN 2157-1:1993. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2279:2018 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

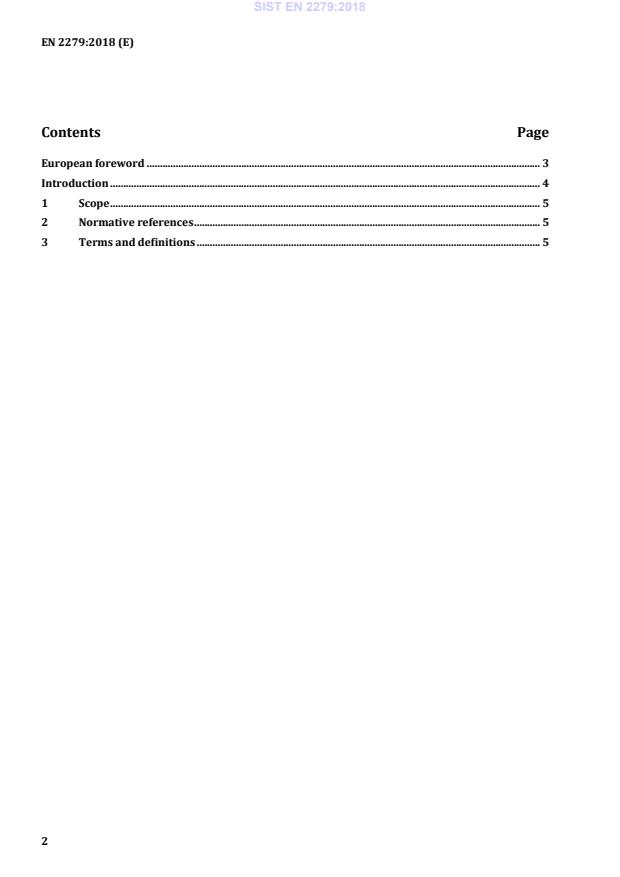

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.*HVHQNXQGPP49.025.10JeklaSteelsICS:Ta slovenski standard je istoveten z:EN 2279:2018SIST EN 2279:2018en,fr,de01-oktober-2018SIST EN 2279:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2279
July
t r s z ICS
v {ä r t wä s r English Version
Aerospace series æ Steel FEæPM u y æ
{ r r MPa ≤ Rm ≤
s
s r r MPa æ Forgings æ De ≤
s w r mm Série aérospatiale æ Acier FEæPM u y æ
{ r r MPa ≤ Rm ≤
s
s r r MPa æ Pièces forgées et matricées æ De ≤
s w r mm
Luftæ und Raumfahrt æ Stahl FEæPM u y æ
{ r r MPa ≤ Rm ≤ s
s r r MPa æ Gesenkæund Freiformschmiedestücke æ De ≤
s w r mm This European Standard was approved by CEN on
x November
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
t t y {ã t r s z ESIST EN 2279:2018
w 2 Normative references .
w 3 Terms and definitions .
w
...
