CEN/TR 15118:2005
(Main)Testing guidelines for touch and close fasteners
Testing guidelines for touch and close fasteners
This Technical Report describes different methods of integration of touch and close fasteners to the final or finished product, such as:
Sewing,
mechanical attachment,
adhesive pressure sensitive,
heat activated,
welded attachment,
moulding in,
straps,
non-continous application in various widths,
together with the appropriate test method.
Textilien - Haftverschlüsse - Anforderungen
Lignes directrices pour l'essai des fermetures auto-agrippantes
Le présent Rapport Technique décrit les différentes méthodes d�intégration de fermetures auto-agrippantes au
produit final ou fini, telles que :
la couture,
la fixation mécanique,
l�adhésif sensible à la pression,
l�activation par la chaleur,
la fixation par le soudage,
le moulage,
les sangles,
l�application discontinue sur des largeurs différentes,
à appliquer en même temps que la méthode d�essai appropriée.
Navodila za preskušanje sprijemnih zapenjal
General Information
- Status
- Published
- Publication Date
- 10-May-2005
- Technical Committee
- CEN/TC 248 - Textiles and textile products
- Drafting Committee
- CEN/TC 248/WG 5 - Touch and close fasteners
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 11-May-2005
- Completion Date
- 11-May-2005
Overview
CEN/TR 15118:2005 - "Testing guidelines for touch and close fasteners" is a CEN Technical Report produced by CEN/TC 248 (Textiles and textile products) and approved in 2005. It provides guidance on methods for integrating touch-and-close fasteners (hook-and-loop style closures) into finished products and recommends appropriate test methods to verify performance after different types of attachment (sewing, mechanical, adhesives, heat activation, welding, moulding-in, straps and non-continuous applications).
Key topics and technical requirements
- Integration methods covered: sewing, mechanical attachment, pressure-sensitive adhesive, heat-activated, welded attachment, moulding in, straps, and non-continuous application in various widths.
- Test guidance is organized into four characteristic groups (Table 1):
- A - Construction characteristics (identification of materials, overall and effective widths, edge types)
- B - Mechanical resistance and usage (longitudinal shear strength, peel strength, breaking strength/elongation, behaviour after washing/dry-cleaning, dimensional stability, curvature)
- C - Colour fastness (light, washing, dry cleaning)
- D - Particular behaviour (customer or sector-specific tests such as burning or flame behaviour)
- References to established EN/ISO test methods are recommended for specific measurements:
- Peel (EN 12242), Longitudinal shear (EN 13780), Dimensional change (EN 12243), Widths (EN 12240), Curvature (EN 1416), Slit selvedges (EN 1415)
- Colour fastness standards: EN ISO 105-B02, EN ISO 105-C06, EN ISO 105-D01
- Textile tensile testing reference: EN ISO 13934-1
Practical applications and users
Who uses CEN/TR 15118:2005:
- Textile and apparel manufacturers selecting attachment methods for closures
- Footwear, accessory and soft-goods designers specifying fastener integration
- Quality and test laboratories performing peel, shear and durability testing
- OEMs in transport, aerospace and consumer products needing evidence of durability, colour fastness and flame or burning behaviour (see sector-specific tests cited) Practical uses:
- Choosing the correct attachment method (e.g., adhesive vs. sewing) based on expected loads, washing/dry-cleaning exposure and dimensional stability
- Defining test programs for product verification and compliance
- Informing design decisions to improve longevity, safety and consumer performance
Related standards
Key referenced standards include EN 1415, EN 1416, EN 12240, EN 12242, EN 12243, EN 13780, EN ISO 13934-1, EN ISO 105-B02/C06/D01, ISO 3795, AECMA prEN 2310 and FAR 23853B.
Keywords: CEN/TR 15118:2005, touch and close fasteners, testing guidelines, peel strength, shear strength, dimensional stability, colour fastness, fastener attachment methods.
Frequently Asked Questions
CEN/TR 15118:2005 is a technical report published by the European Committee for Standardization (CEN). Its full title is "Testing guidelines for touch and close fasteners". This standard covers: This Technical Report describes different methods of integration of touch and close fasteners to the final or finished product, such as: Sewing, mechanical attachment, adhesive pressure sensitive, heat activated, welded attachment, moulding in, straps, non-continous application in various widths, together with the appropriate test method.
This Technical Report describes different methods of integration of touch and close fasteners to the final or finished product, such as: Sewing, mechanical attachment, adhesive pressure sensitive, heat activated, welded attachment, moulding in, straps, non-continous application in various widths, together with the appropriate test method.
CEN/TR 15118:2005 is classified under the following ICS (International Classification for Standards) categories: 61.040 - Headgear. Clothing accessories. Fastening of clothing. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase CEN/TR 15118:2005 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2005
Navodila za preskušanje sprijemnih zapenjal
Testing guidelines for touch and close fasteners
Textilien - Haftverschlüsse - Anforderungen
Lignes directrices pour l'essai des fermetures auto-agrippantes
Ta slovenski standard je istoveten z: CEN/TR 15118:2005
ICS:
61.040 3RNULYDOD'RGDWNLN Headgear. Clothing
REODþLORP6SHQMDQMHREODþLO accessories. Fastening of
clothing
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
TECHNICAL REPORT
CEN/TR 15118
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
May 2005
ICS 61.040
English version
Testing guidelines for touch and close fasteners
Lignes directrices pour l'essai des fermetures auto- Textilien - Haftverschlüsse - Anforderungen
agrippantes
This Technical Report was approved by CEN on 7 April 2005. It has been drawn up by the Technical Committee CEN/TC 248.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 15118:2005: E
worldwide for CEN national Members.

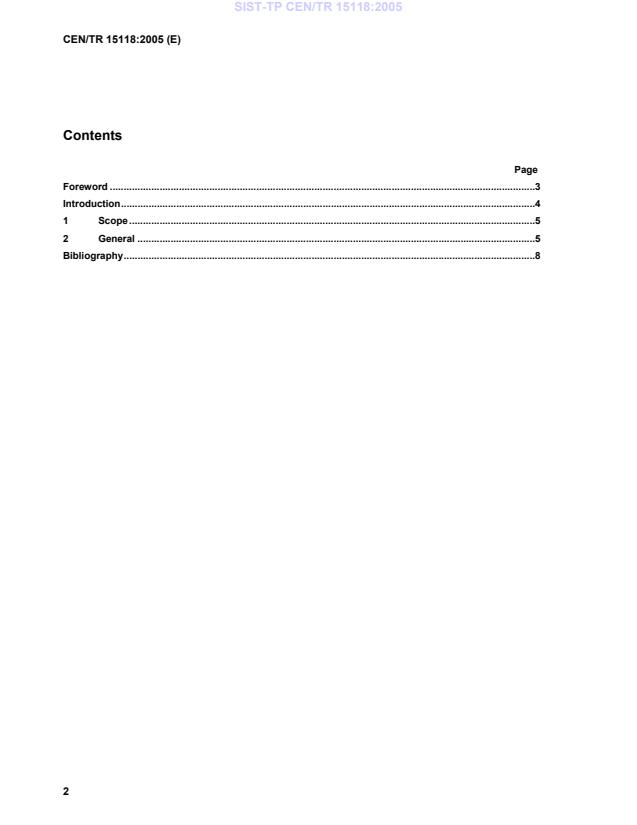

Contents
Page
Foreword .3
Introduction.4
1 Scope .5
2 General .5
Bibliography.8
Foreword
This document (CEN/TR 15118:2005) has been prepared by Technical Committee CEN/TC 248 “Textiles and
textile products”, the secretariat of which is held by BSI.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this Technical Report: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg,
Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and the
United Kingdom.
Introduction
A large and growing variety of touch and close fasteners exist on the market. They differ by the nature of their
raw materials, their construction, the type of gripping elements and in their performance, e.g. shear strength,
peel, cycling and cleaning.
To ensure that a touch and close fastener of a particular type is suitable for the consumer's end product, the
guidelines recommend that different procedures are followed to ensure that the chosen type of attachment is
appropriate.
1 Scope
This Technical Report describes
...
