EN 6059-601:2014
(Main)Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 601: Open and close
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 601: Open and close
This European Standard specifies a method of assessing the behaviour of protection sleeves or conduits subject to open and close manipulation for installation, rework and repairs.
It shall be used together with EN 6059-100.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche - Prüfverfahren - Teil 601: Öffnen und Schließen
Diese Europäische Norm legt ein Verfahren zur Bewertung des Verhaltens von selbstschließenden Schutzschläuchen oder anderen Wellschläuchen fest, um die Funktion des Öffnen und Schließen bei Einbau, Nacharbeit oder Reparatur zu überprüfen.
Sie ist zusammen mit EN 6059-100 anzuwenden.
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes d'essais - Partie 601: Ouverture et fermeture
La présente Norme européenne spécifie une méthode d’évaluation des gaines de protection ou conduits soumis à des manipulations d’ouverture et de fermeture pour l’installation, les remises en place et les réparations.
Elle doit être utilisée conjointement avec l’EN 6059-100.
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode - 601. del: Zaprte in odprte
EN 6059-601 določa metodo za preskušanje obnašanja zaprtih in odprtih zaščitnih obojk ali kanalov za namestitev, predelavo in popravila. Uporabljal naj bi se s standardom EN 6059-100.
General Information
- Status
- Published
- Publication Date
- 29-Apr-2014
- Withdrawal Date
- 30-Oct-2014
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 11-Feb-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 6059-601:2014 specifies a test method to assess the behaviour of protection sleeves and conduits used with aerospace electrical cables when subjected to repeated open-and-close manipulation during installation, rework and repairs. Intended as part of the Aerospace series of test methods, this Part 601 is to be used together with EN 6059-100 (General) and focuses on mechanical handling that verifies sleeve integrity and memory form after repeated use.
Key topics and requirements
- Scope: Tests the behaviour of protection sleeves/conduits during insertion and removal operations typical of installation and maintenance.
- Specimen preparation:
- Sleeve specimen length: 1.0 m placed horizontally.
- Wire harness: standard aerospace wires, 1.2 m length, diameter equal to the maximum allowable for the sleeve size.
- Test carried out at ambient temperature (typically ~20 °C).
- Test method (phased procedure):
- Performed on the smallest and a medium sleeve size defined by the product specification.
- Use the manufacturer’s installation tooling to:
- Insert tooling into the sleeve.
- Install the sleeve onto the wire bundle with the tooling.
- Remove the tooling from the sleeve end.
- Remove the sleeve from the wire bundle by pulling the sleeve.
- Repeat insertion/removal cycles X times (X is defined in the applicable product standard).
- Acceptance criteria (visual inspection):
- No visible damage, no broken wires or filaments on the sleeve.
- No degradation of any protective inner layer (e.g., PTFE tape).
- Memory form verification: the maximum-diameter tracer indicator must not be visible after cycling, confirming sleeve recovery.
Applications and users
- Practical for aerospace OEMs, cable and harness manufacturers, suppliers of protection sleeves and conduits, MRO (maintenance, repair and overhaul) facilities, and independent test laboratories.
- Used to validate product design, production quality control, qualification for installation tooling, and maintenance procedures to ensure sleeves maintain protective function after repeated manipulations.
- Helps reduce in-service failures from sleeve abrasion, internal layer damage or loss of shape-memory that could expose wiring to abrasion, chafing or environmental risks.
Related standards
- EN 6059-100 - Aerospace series: Electrical cables, installation - Protection sleeves - Test methods - Part 100: General (normative reference and required companion document).
Keywords: EN 6059-601:2014, protection sleeves, aerospace electrical cables, test methods, open and close, installation, rework, repairs, sleeve memory form.
Get Certified
Connect with accredited certification bodies for this standard
DEKRA North America
DEKRA certification services in North America.
Eagle Registrations Inc.
American certification body for aerospace and defense.
Element Materials Technology
Materials testing and product certification.
Sponsored listings
Frequently Asked Questions
EN 6059-601:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 601: Open and close". This standard covers: This European Standard specifies a method of assessing the behaviour of protection sleeves or conduits subject to open and close manipulation for installation, rework and repairs. It shall be used together with EN 6059-100.
This European Standard specifies a method of assessing the behaviour of protection sleeves or conduits subject to open and close manipulation for installation, rework and repairs. It shall be used together with EN 6059-100.
EN 6059-601:2014 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 6059-601:2014 has the following relationships with other standards: It is inter standard links to EN 6059-100:2015, EN 6049-004:2019, EN 6049-001:2015, EN 6049-001:2018, EN 4674-003:2017, EN 4674-001:2017, EN 6049-008:2017, EN 6059-100:2011, EN 6049-009:2016, EN 4674-004:2017, EN 6049-005:2014, EN 6049-008:2013. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 6059-601:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2014
$HURQDYWLND(OHNWULþQLNDEOLQDPHVWLWHY=DãþLWQHRERMNH3UHVNXVQHPHWRGH
GHO =DSUWHLQRGSUWH
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods -
Part 601: Open and close
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche -
Prüfverfahren - Teil 601: Öffnen und Schließen
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes
d'essais - Partie 601: Ouverture et fermeture
Ta slovenski standard je istoveten z: EN 6059-601:2014
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 6059-601
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2014
ICS 49.060
English Version
Aerospace series - Electrical cables, installation - Protection
sleeves - Test methods - Part 601: Open and close
Série aérospatiale - Câbles électriques, installation - Gaines Luft- und Raumfahrt - Elektrische Leitungen, Installation -
de protection - Méthodes d'essais - Partie 601: Ouverture et Schutzschläuche - Prüfverfahren - Teil 601: Öffnen und
fermeture Schließen
This European Standard was approved by CEN on 4 January 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6059-601:2014 E
worldwide for CEN national Members.

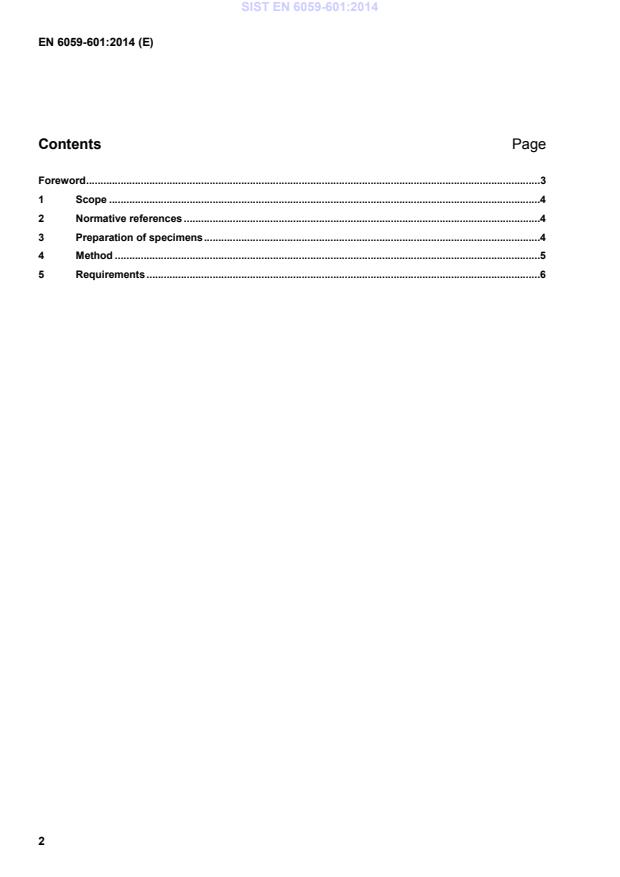

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Preparation of specimens .4
4 Method .5
5 Requirements .6
...
