EN 12390-10:2018
(Main)Testing hardened concrete - Part 10: Determination of the carbonation resistance of concrete at atmospheric levels of carbon dioxide
Testing hardened concrete - Part 10: Determination of the carbonation resistance of concrete at atmospheric levels of carbon dioxide
This document specifies a method of determining the carbonation rate of a concrete, expressed in mm/√a.
This document establishes a procedure where a standardized climate controlled chamber is used and where specimens are placed on a natural exposure site protected from direct rainfall. The standardized climate controlled chamber procedure is the reference method.
These procedures are applicable for the initial testing of concrete, but they are not applicable for factory production control.
Prüfung von Festbeton - Teil 10: Bestimmung des Karbonatisierungswiderstandes von Beton bei atmosphärischer Konzentration von Kohlendioxid
Essais pour béton durci - Partie 10 : Détermination de la résistance à la carbonatation du béton à des niveaux atmosphériques de dioxyde de carbone
Le présent document spécifie une méthode de détermination de la vitesse de carbonatation d’un béton, exprimée en mm/√a.
Le présent document établit un mode opératoire qui utilise une enceinte climatique contrôlée normalisée et un autre dans lequel les éprouvettes sont placées sur un site naturel d’exposition, protégées de l’exposition directe aux précipitations. Le mode opératoire avec l’enceinte climatique contrôlée normalisée est la méthode de référence.
Ces modes opératoires s’appliquent pour la caractérisation initiale du béton, mais ne sont pas applicables pour le contrôle de production en usine.
Preskušanje strjenega betona - 10. del: Določevanje odpornosti betona proti karbonatizaciji pri atmosferski koncentraciji ogljikovega dioksida
Ta evropski standard opisuje postopke za določevanje stopnje karbonatizacije pri betonu, izražene v mm/√leto.
Ta evropski standard opisuje postopek, pri katerem se uporablja standardizirana skladiščna komora, v kateri so primerki dani v naravno območje, ki je zaščiteno pred neposrednimi padavinami.
Ti postopki so primerni za začetno preskušanje betona, vendar niso primerni za kontrolo
tovarniške proizvodnje.
General Information
Relations
Overview
EN 12390-10:2018 - Testing hardened concrete. Part 10 specifies a laboratory and field procedure to determine the carbonation resistance of concrete at atmospheric CO2 levels. The standard defines how to measure the carbonation rate (expressed in mm/√a) using either a standardized climate controlled chamber (reference method) or a natural exposure site protected from direct rainfall. It is intended for initial testing and research, not for factory production control.
Key topics and requirements
- Objective: Determine carbonation depth and calculate the carbonation rate of freshly cast concrete.
- Specimens: Pairs of prismatic beams (reference) or cubes cast from a single batch; curing and handling per EN 12390-1 / EN 12390-2.
- Reference chamber conditions: CO2 ≈ 0.040% by volume (400 ppm), temperature 20 ± 2 °C, relative humidity 65 ± 2% (see Annex A for chamber guidance).
- Natural exposure option: Specimens placed on a sheltered site with monitoring of CO2, temperature and RH (see Annex B).
- Measurement: Use phenolphthalein (1 g in 70 ml ethanol + 30 ml water) or an alternative pH indicator to reveal carbonation depth. Measure at multiple points per face (precision 0.5 mm) and compute mean depth.
- Instrumentation precision: CO2 recording ±0.001% by volume; RH ±1.0%; temperature ±0.5 °C.
- Test ages: The procedure requires repeated measurements at defined exposure ages (commonly multiple ages over months) to determine the rate in mm/√a.
- Safety note: Phenolphthalein is on the REACH candidate list; handle with care in a fume hood and use PPE.
Applications
- Assess the effect of cement type, admixtures, mix proportions (w/c ratio) and fines content on carbonation resistance.
- Provide input data for durability and corrosion-initiation models of reinforced or prestressed concrete.
- Support material qualification, comparative studies, research, and development of concrete mixes aimed at improving long-term durability.
- Serve as a reference method when establishing equivalent durability procedures or classifying concretes by carbonation performance.
Who uses this standard
- Concrete technologists, durability engineers and research laboratories
- Material suppliers and cement/admixture manufacturers
- Structural designers and asset owners assessing service life and reinforcement corrosion risk
- Standards bodies and testing laboratories validating new mixes (not for routine factory QC)
Related standards
- EN 12390‑1, EN 12390‑2, EN 12390‑3 (specimen dimensions, curing and compressive strength)
- Other parts of EN 12390 series (e.g., Part 12 accelerated carbonation method - under development)
Keywords: EN 12390-10:2018, carbonation resistance, testing hardened concrete, carbonation rate mm/√a, climate controlled chamber, phenolphthalein, natural exposure site, concrete durability.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.DPrüfung von Festbeton - Teil 10: Bestimmung des Karbonatisierungswiderstandes von Beton bei atmosphärischer Konzentration von KohlendioxidEssais pour béton durci - Partie 10 : Détermination de la résistance à la carbonatation du béton à des niveaux atmosphériques de dioxyde de carboneTesting hardened concrete - Part 10: Determination of the carbonation resistance of concrete at atmospheric levels of carbon dioxide91.100.30Beton in betonski izdelkiConcrete and concrete productsICS:Ta slovenski standard je istoveten z:EN 12390-10:2018SIST EN 12390-10:2019en,fr,de01-april-2019SIST EN 12390-10:2019SLOVENSKI
STANDARDSIST-TS CEN/TS 12390-10:20081DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12390-10
December
t r s z English Version
Testing hardened concrete æ Part
s rã Determination of the carbonation resistance of concrete at atmospheric levels of carbon dioxide Essais pour béton durci æ Partie
s r ã Détermination de la résistance à la carbonatation du béton à des niveaux atmosphériques de dioxyde de carbone
Prüfung von Festbeton æ Teil
s rã Bestimmung des Karbonatisierungswiderstandes von Beton bei atmosphärischer Konzentration von Kohlendioxid This European Standard was approved by CEN on
s { October
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t u { ræ s rã t r s z ESIST EN 12390-10:2019

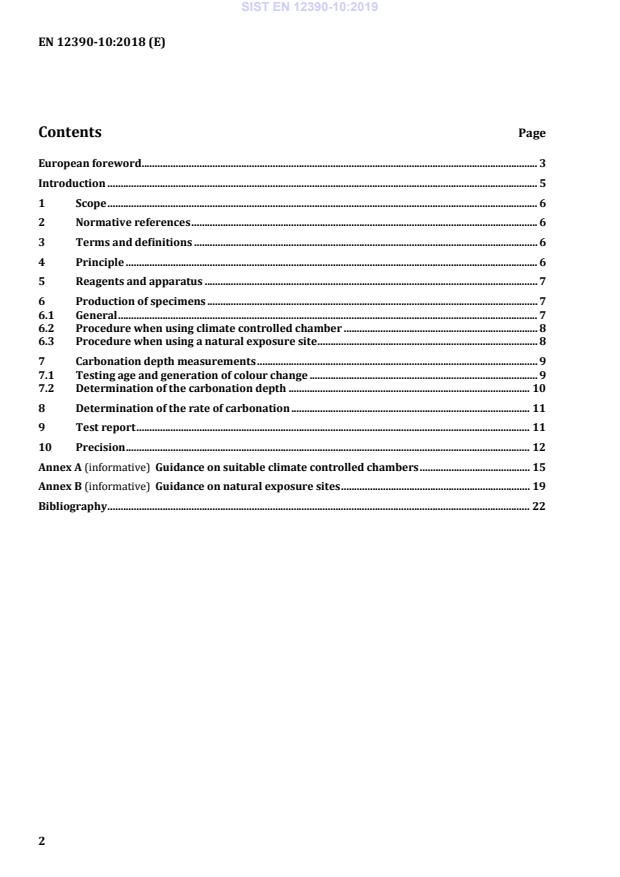

Guidance on suitable climate controlled chambers . 15 Annex B (informative)
Guidance on natural exposure sites . 19 Bibliography . 22 SIST EN 12390-10:2019
This document establishes a procedure where a standardized climate controlled chamber is used and where specimens are placed on a natural exposure site protected from direct rainfall. The standardized climate controlled chamber procedure is the reference method. These procedures are applicable for the initial testing of concrete, but they are not applicable for factory production control. 2 Normative references The following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 12390-1, Testing hardened concrete — Part 1: Shape, dimensions and other requirements for specimens and moulds EN 12390-2, Testing hardened concrete — Part 2: Making and curing specimens for strength tests EN 12390-3, Testing hardened concrete — Part 3: Compressive strength of test specimens 3 Terms and definitions No terms and definitions are listed in this document. ISO and IEC maintain terminological databases for use in standardization at the following addresses: — IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
4 Principle Pairs of beams of concrete (or two cubes per test age) from the same batch of concrete are stored in a climate controlled chamber as specified in 5.4 or on a natural exposure site as specified in 5.5. After defined periods of exposure, an approximately 50 mm thick slice of the beam is broken off at each test age and tested for its carbonation depth. If cubes are being used, they are broken in half and one half of each cube is used to measure the carbonation depth, the other half being discarded.
The carbonation depth is measured at three locations on each face of each beam/cube giving a potential total of 12 measurements per specimen and potentially 24 measurements for the two specimens. The mean carbonation depth of all measurements is calculated. The remains of the beams are returned to the climate controlled chamber for testing at other pre-defined ages. Using at least three sets of measurements taken at 3 months, 6 months and 1 determined. SIST EN 12390-10:2019
If this is not possible, local meteorological data can be used. 5.6 Apparatus for recording the relative humidity, which ensures a precision of the measurement of ± 1,0 %, and the temperature with a precision of ± 0,5 °C. 5.7 Apparatus for recording CO2 concentration with a precision of ± 0,001 % by volume. If a climate controlled chamber is being used, it shall be fitted with an audible/visual/electronic alarm to signify breaching of limits. 5.8 Fan to provide a homogeneous CO2 concentration in the air. Type, dimensions and power of the fan has to be adapted to the dimension of the chamber. 6 Production of specimens 6.1 General Representative samples of the constituents, e.g. cement, aggregates, shall be used for making the test specimens. Either a sample of concrete is taken from the concrete production plant or the concrete mixes shall be produced using the laboratory’s standard procedures. The specimens for one test, which include specimens for the carbonation test and compressive strength tests, shall be cast from a single batch of concrete. For laboratory production, a minimum batch volume of 50 l is recommended. SIST EN 12390-10:2019
This is either by horizontal storage or vertical storage, but ensuring a 50 mm gap between adjacent specimens. The temperature shall be measured at least once per day at a constant time. The relative humidity and carbon dioxide concentration shall be measured and recorded at least once every two hours. The average carbon dioxide concentration in the climate controlled chamber over the duration of the test shall be (0,040 ± 0,001) % with no variation outside (0,040 ± 0,005) %. 6.3 Procedure when using a natural exposure site For each concrete mix, cast at least two beams or at least six cubes for carbonation testing and at least 2 or if the strength development is not known, at least 5 compressive strength specimens from a single batch of concrete. The test specimens shall be cast horizontally in accordance with EN 12390-2. After finishing the test specimens, cover the exposed surface with polythene or similar impermeable sheeting to prevent drying.
After (24 ± 2) h, the moulds shall be stripped and the carbonation test specimens transferred without delay into close-fitting, sealed polythene bags or similar storage material and stored at (20 ± 2) °C until they have reached 50 % of the reference strength. If the temperature range is from 15 °C to 25 °C, 50 % of the reference strength may be assumed to have been achieved after 2 days for rapid, 4 days for medium and 7 days for slow concrete strength development.
If the strength development is not known at least three cubes or cylinders shall be tested at different ages to ascertain when 50 % of the reference strength has been
...
Frequently Asked Questions
EN 12390-10:2018 is a standard published by the European Committee for Standardization (CEN). Its full title is "Testing hardened concrete - Part 10: Determination of the carbonation resistance of concrete at atmospheric levels of carbon dioxide". This standard covers: This document specifies a method of determining the carbonation rate of a concrete, expressed in mm/√a. This document establishes a procedure where a standardized climate controlled chamber is used and where specimens are placed on a natural exposure site protected from direct rainfall. The standardized climate controlled chamber procedure is the reference method. These procedures are applicable for the initial testing of concrete, but they are not applicable for factory production control.
This document specifies a method of determining the carbonation rate of a concrete, expressed in mm/√a. This document establishes a procedure where a standardized climate controlled chamber is used and where specimens are placed on a natural exposure site protected from direct rainfall. The standardized climate controlled chamber procedure is the reference method. These procedures are applicable for the initial testing of concrete, but they are not applicable for factory production control.
EN 12390-10:2018 is classified under the following ICS (International Classification for Standards) categories: 91.100.30 - Concrete and concrete products. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12390-10:2018 has the following relationships with other standards: It is inter standard links to CEN/TS 12390-10:2007, prEN 12390-10. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 12390-10:2018 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
