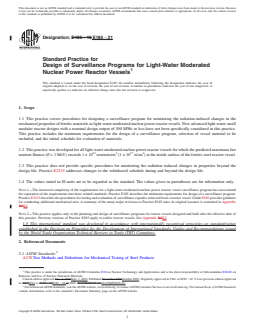

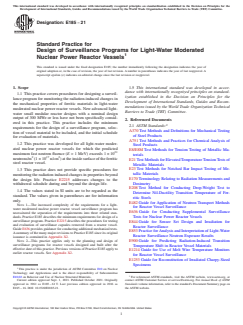

ASTM E185-21

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: E185 − 16 E185 − 21
Standard Practice for
Design of Surveillance Programs for Light-Water Moderated
Nuclear Power Reactor Vessels
This standard is issued under the fixed designation E185; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice covers procedures for designing a surveillance program for monitoring the radiation-induced changes in the
mechanical properties of ferritic materials in light-water moderated nuclear power reactor vessels. New advanced light-water small
modular reactor designs with a nominal design output of 300 MWe or less have not been specifically considered in this practice.
This practice includes the minimum requirements for the design of a surveillance program, selection of vessel material to be
included, and the initial schedule for evaluation of materials.
1.2 This practice was developed for all light-water moderated nuclear power reactor vessels for which the predicted maximum fast
21 2 17 2
neutron fluence (E > 1 MeV) exceeds 1 × 10 neutrons/m (1 × 10 n/cm ) at the inside surface of the ferritic steel reactor vessel.
1.3 This practice does not provide specific procedures for monitoring the radiation induced changes in properties beyond the
design life. Practice E2215 addresses changes to the withdrawal schedule during and beyond the design life.
1.4 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
NOTE 1—The increased complexity of the requirements for a light-water moderated nuclear power reactor vessel surveillance program has necessitated
the separation of the requirements into three related standards. Practice E185 describes the minimum requirements for design of a surveillance program.
Practice E2215 describes the procedures for testing and evaluation of surveillance capsules removed from a reactor vessel. Guide E636 provides guidance
for conducting additional mechanical tests. A summary of the many major revisions to Practice E185 since its original issuance is contained in Appendix
X1X2.
NOTE 2—This practice applies only to the planning and design of surveillance programs for reactor vessels designed and built after the effective date of
this practice. Previous versions of Practice E185 apply to earlier reactor vessels. See Appendix X1X2.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
A370 Test Methods and Definitions for Mechanical Testing of Steel Products
This practice is under the jurisdiction of ASTM Committee E10 on Nuclear Technology and Applications and is the direct responsibility of Subcommittee E10.02 on
Behavior and Use of Nuclear Structural Materials.
Current edition approved Dec. 1, 2016Sept. 1, 2021. Published December 2016October 2021. Originally approved in 1961 as E185 – 61 T. Last previous edition approved
ɛ1
in 20152016 as E185 – 15E185 – 16. . DOI: 10.1520/E0185-16.10.1520/E0185-21.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

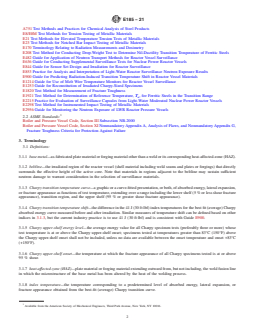

E185 − 21
A751 Test Methods and Practices for Chemical Analysis of Steel Products
E8/E8M Test Methods for Tension Testing of Metallic Materials
E21 Test Methods for Elevated Temperature Tension Tests of Metallic Materials
E23 Test Methods for Notched Bar Impact Testing of Metallic Materials
E170 Terminology Relating to Radiation Measurements and Dosimetry
E208 Test Method for Conducting Drop-Weight Test to Determine Nil-Ductility Transition Temperature of Ferritic Steels
E482 Guide for Application of Neutron Transport Methods for Reactor Vessel Surveillance
E636 Guide for Conducting Supplemental Surveillance Tests for Nuclear Power Reactor Vessels
E844 Guide for Sensor Set Design and Irradiation for Reactor Surveillance
E853 Practice for Analysis and Interpretation of Light-Water Reactor Surveillance Neutron Exposure Results
E900 Guide for Predicting Radiation-Induced Transition Temperature Shift in Reactor Vessel Materials
E1214 Guide for Use of Melt Wire Temperature Monitors for Reactor Vessel Surveillance
E1253 Guide for Reconstitution of Irradiated Charpy-Sized Specimens
E1820 Test Method for Measurement of Fracture Toughness
E1921 Test Method for Determination of Reference Temperature, T , for Ferritic Steels in the Transition Range
o
E2215 Practice for Evaluation of Surveillance Capsules from Light-Water Moderated Nuclear Power Reactor Vessels
E2298 Test Method for Instrumented Impact Testing of Metallic Materials
E2956 Guide for Monitoring the Neutron Exposure of LWR Reactor Pressure Vessels
2.2 ASME Standards:
Boiler and Pressure Vessel Code, Section III Subsection NB-2000
Boiler and Pressure Vessel Code, Section XI Nonmandatory Appendix A, Analysis of Flaws, and Nonmandatory Appendix G,
Fracture Toughness Criteria for Protection Against Failure
3. Terminology
3.1 Definitions:
3.1.1 base metal—as-fabricated plate material or forging material other than a weld or its corresponding heat-affected-zone (HAZ).
3.1.2 beltline—the irradiated region of the reactor vessel (shell material including weld seams and plates or forgings) that directly
surrounds the effective height of the active core. Note that materials in regions adjacent to the beltline may sustain sufficient
neutron damage to warrant consideration in the selection of surveillance materials.
3.1.3 Charpy transition temperature curve—a graphic or a curve-fitted presentation, or both, of absorbed energy, lateral expansion,
or fracture appearance as functions of test temperature, extending over a range including the lower shelf (5 % or less shear fracture
appearance), transition region, and the upper shelf (95 % or greater shear fracture appearance).
3.1.4 Charpy transition temperature shift—the difference in the 41 J (30 ft·lbf) index temperatures for the best fit (average) Charpy
absorbed energy curve measured before and after irradiation. Similar measures of temperature shift can be defined based on other
indices in 3.1.3, but the current industry practice is to use 41 J (30 ft·lbf) and is consistent with Guide E900.
3.1.5 Charpy upper-shelf energy level—the average energy value for all Charpy specimen tests (preferably three or more) whose
test temperature is at or above the Charpy upper-shelf onset; specimens tested at temperatures greater than 83°C (150°F) above
the Charpy upper-shelf onset shall not be included, unless no data are available between the onset temperature and onset +83°C
(+150°F).
3.1.6 Charpy upper-shelf onset—the temperature at which the fracture appearance of all Charpy specimens tested is at or above
95 % shear.
3.1.7 heat-affected-zone (HAZ)—plate material or forging material extending outward from, but not including, the weld fusion line
in which the microstructure of the base metal has been altered by the heat of the welding process.
3.1.8 index temperature—the temperature corresponding to a predetermined level of absorbed energy, lateral expansion, or
fracture appearance obtained from the best-fit (average) Charpy transition curve.
Available from the American Society of Mechanical Engineers, Third Park Avenue, New York, NY 10016.

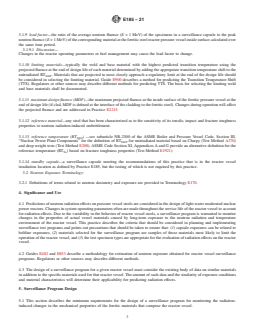

E185 − 21
3.1.9 lead factor—the ratio of the average neutron fluence (E > 1 MeV) of the specimens in a surveillance capsule to the peak
neutron fluence (E > 1 MeV) of the corresponding material at the ferritic steel reactor pressure vessel inside surface calculated over
the same time period.
3.1.9.1 Discussion—
Changes in the reactor operating parameters or fuel management may cause the lead factor to change.
3.1.10 limiting materials—typically the weld and base material with the highest predicted transition temperature using the
projected fluence at the end of design life of each material determined by adding the appropriate transition temperature shift to the
unirradiated RT . Materials that are projected to most closely approach a regulatory limit at the end of the design life should
NDT
be considered in selecting the limiting material. Guide E900 describes a method for predicting the Transition Temperature Shift
(TTS). Regulators or other sources may describe different methods for predicting TTS. The basis for selecting the limiting weld
and base materials shall be documented.
3.1.11 maximum design fluence (MDF)—the maximum projected fluence at the inside surface of the ferritic pressure vessel at the
end of design life (if clad, MDF is defined at the interface of the cladding to the ferritic steel). Changes during operation will affect
the projected fluence and are addressed in Practice E2215.
3.1.12 reference material—any steel that has been characterized as to the sensitivity of its tensile, impact and fracture toughness
properties to neutron radiation-induced embrittlement.
3.1.13 reference temperature (RT ) —see subarticle NB-2300 of the ASME Boiler and Pressure Vessel Code, Section III,
NDT
“Nuclear Power Plant Components” for the definition of RT for unirradiated material based on Charpy (Test Method A370)
NDT
and drop weight tests (Test Method E208). ASME Code Section XI, Appendices A and G provide an alternative definition for the
reference temperature (RT ) based on fracture toughness properties (Test Method E1921)
To
3.1.14 standby capsule—a surveillance capsule meeting the recommendations of this practice that is in the reactor vessel
irradiation location as defined by Practice E185, but the testing of which is not required by this practice.
3.2 Neutron Exposure Terminology:
3.2.1 Definitions of terms related to neutron dosimetry and exposure are provided in Terminology E170.
4. Significance and Use
4.1 Predictions of neutron radiation effects on pressure vessel steels are considered in the design of light-water moderated nuclear
power reactors. Changes in system operating parameters often are made throughout the service life of the reactor vessel to account
for radiation effects. Due to the variability in the behavior of reactor vessel steels, a surveillance program is warranted to monitor
changes in the properties of actual vessel materials caused by long-term exposure to the neutron radiation and temperature
environment of the reactor vessel. This practice describes the criteria that should be considered in planning and implementing
surveillance test programs and points out precautions that should be taken to ensure that: (1) capsule exposures can be related to
beltline exposures, (2) materials selected for the surveillance program are samples of those materials most likely to limit the
operation of the reactor vessel, and (3) the test specimen types are appropriate for the evaluation of radiation effects on the reactor
vessel.
4.2 Guides E482 and E853 describe a methodology for estimation of neutron exposure obtained for reactor vessel surveillance
programs. Regulators or other sources may describe different methods.
4.3 The design of a surveillance program for a given reactor vessel must consider the existing body of data on similar materials
in addition to the specific materials used for that reactor vessel. The amount of such data and the similarity of exposure conditions
and material characteristics will determine their applicability for predicting radiation effects.
5. Surveillance Program Design
5.1 This section describes the minimum requirements for the design of a surveillance program for monitoring the radiation-
induced changes in the mechanical properties of the ferritic materials that compose the reactor vessel.

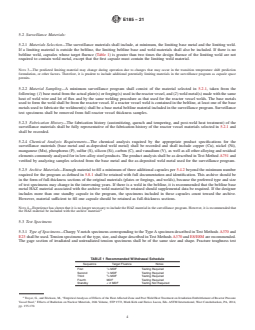

E185 − 21
5.2 Surveillance Materials:
5.2.1 Materials Selection—The surveillance materials shall include, at minimum, the limiting base metal and the limiting weld.
If a limiting material is outside the beltline, the limiting beltline base and weld materials shall also be included. If there is no
beltline weld, capsules whose target fluence (Table 1) is greater than two times the design fluence of the limiting weld are not
required to contain weld metal, except that the first capsule must contain the limiting weld material.
NOTE 3—The predicted limiting material may change during operation due to changes that may occur in the transition temperature shift prediction
formulation, or other factors. Therefore, it is prudent to include additional potentially limiting materials in the surveillance program as capsule space
permits.
5.2.2 Material Sampling—A minimum surveillance program shall consist of the material selected in 5.2.1, taken from the
following: (1) base metal from the actual plate(s) or forging(s) used in the reactor vessel, and (2) weld metal(s) made with the same
heat of weld wire and lot of flux and by the same welding procedure as that used for the reactor vessel welds. The base metals
used to form the weld shall be from the reactor vessel. If a reactor vessel weld is contained in the beltline, at least one of the base
metals used to fabricate the weldment(s) shall be a base metal beltline material included in the surveillance program. Surveillance
test specimens shall be removed from full reactor vessel thickness samples.
5.2.3 Fabrication History—The fabrication history (austenitizing, quench and tempering, and post-weld heat treatment) of the
surveillance materials shall be fully representative of the fabrication history of the reactor vessel materials selected in 5.2.1 and
shall be recorded.
5.2.4 Chemical Analysis Requirements—The chemical analysis required by the appropriate product specifications for the
surveillance materials (base metal and as-deposited weld metal) shall be recorded and shall include copper (Cu), nickel (Ni),
manganese (Mn), phosphorus (P), sulfur (S), silicon (Si), carbon (C), and vanadium (V), as well as all other alloying and residual
elements commonly analyzed for in low-alloy steel products. The product analysis shall be as described in Test Method A751 and
verified by analyzing samples selected from the base metal and the as-deposited weld metal used for the surveillance program.
5.2.5 Archive Materials—Enough material to fill a minimum of three additional capsules per 5.4.2 beyond the minimum number
required for the program as defined in 5.8.1 shall be retained with full documentation and identification. This archive should be
in the form of full-thickness sections of the original materials (plates or forgings, and welds), because the preferred type and size
of test specimens may change in the intervening years. If there is a weld in the beltline, it is recommended that the beltline base
metal HAZ material associated with the archive weld material be retained should supplemental data be required. If the designer
includes more than one standby capsule in the program, the specimens included in these capsules count toward the archive.
However, material sufficient to fill one capsule should be retained as full-thickness sections.
NOTE 4—Experience has shown that it is no longer necessary to include the HAZ material in the surveillance program. However, it is recommended that
the HAZ material be included with the archive material.
5.3 Test Specimens
5.3.1 Type of Specimens—Charpy V-notch specimens corresponding to the Type A specimen described in Test Methods A370 and
E23 shall be used. Tension specimens of the type, size, and shape described in Test Methods A370 and E8/E8M are recommended.
The gage section of irradiated and unirradiated tension specimens shall be of the same size and shape. Fracture toughness test
TABLE 1 Recommended Withdrawal Schedule
Sequence Target Fluence Notes
First ⁄4 MDF Testing Required
Second ⁄2 MDF Testing Required
Third ⁄4 MDF Testing Required
Fourth MDF Testing Required
Standby < 2 MDF Testing Not Required
Troyer, G., and Erickson, M., “Empirical Analyses of Effects of the Heat Affected Zone and Post Weld Heat Treatment on Irradiation Embrittlement of Reactor Pressure
Vessel Steel,” Effects of Radiation on Nuclear Materials, 26th Volume, STP 1572, Mark Kirk and Enrico Lucon, Eds. ASTM International, West Conshohocken, PA, 2014,
pp. 155-170.

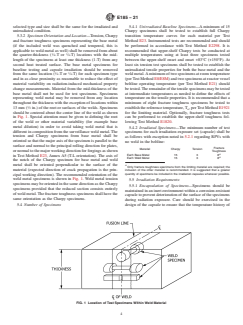

E185 − 21
specimens shall be consistent with the guidelines provided in Test Methods E1820 and E1921 and the selected type and size shall
be the same for the irradiated and unirradiated condition.
5.3.2 Specimen Orientation and Location—Tension, Charpy and fracture toughness specimens representing the base metal (if the
included weld was quenched and tempered, this is applicable to weld metal as well) shall be removed from about the
1 3
quarter-thickness ( ⁄4-T or ⁄4-T) locations with the mid-length of the specimens at least one thickness (1-T) from any second heat
treated surface. The base metal specimens for baseline testing and capsule irradiation should be removed from the same location
1 3
( ⁄4-T or ⁄4-T) for each specimen type and in as close proximity as reasonable to reduce the effect of material variability on
radiation-induced mechanical property change measurements. Material from the mid-thickness of the base metal shall not be used
for test specimens. Specimens representing weld metal may be removed from any location throughout the thickness with the
exception of locations within 13 mm ( ⁄2 in.) of the root or surfaces of the welds. Specimens should be centered about the center
line of the weld as shown in Fig. 1. Special attention must be given to defining the root of the weld or other material variability
(for example base metal dilution) in order to avoid taking weld metal that is different in composition from the surveillance weld
metal. The tension and Charpy specimens from base metal shall be oriented so that the major axis of the specimen is parallel to
the surface and normal to the principal rolling direction for plates, or normal to the major working direction for forgings as shown
in Test Method E23, Annex A5 (T-L orientation). The axis of the notch of the Charpy specimen for base metal and weld metal shall
be oriented perpendicular to the surface of the material (expected direction of crack propagation is the principal working direction).
The recommended orientation of the weld metal specimens is shown in Fig. 1. Weld metal tension specimens may be oriented in
the same direction as the Charpy specimens provided that the reduced section consists entirely of weld metal. The fracture
toughness specimens shall have the same orientation as the Charpy specimens.
5.4 Number of Specimens
5.4.1 Unirradiated Baseline Specimens—A minimum of 15 Charpy specimens shall be tested to establish full Charpy transition
temperature curves for each material per Test Method E23. Instrumented tests are recommended and should be performed in
accordance with Test Method E2298. It is recommended that upper-shelf Charpy tests be conducted at multiple temperatures using
at least three specimens tested between the upper-shelf onset and onset +83°C (+150°F). At least six tension test specimens shall
be tested to establish the unirradiated tensile properties for both the base metal and the weld metal. A minimum of two specimens
at room temperature (per Test Method E8/E8M) and two specimens at reactor vessel beltline operating temperature (per Test
Method E21) should be tested. The remainder of the tensile specimens may be tested at intermediate temperatures as needed to
define the effects of temperature on the tensile properties. It is recommended that a minimum of eight fracture toughness specimens
be tested to establish the reference temperature, T , per Test Method E1921 for the limiting material. Optionally, fracture toughness
o
tests can be performed to establish the upper-shelf toughness following Test Method E1820.
5.4.2 Irradiated Specimens—The minimum number of test specimens for each irradiation exposure set (capsule) shall be as
follows with exception noted in 5.2.1 regarding RPVs with no weld in the beltline:
FIG. 1 Location of Test Specimens Within Weld Material
E185 − 21
Fracture
Material Charpy Tension
Toughness
A
Each Base Metal 15 3 8
A
Each Weld Metal 15 3 8
A
Only fracture toughness specimens from the limiting material are required; the inclusion of the other material is recommended. It is suggested that a greater quantity of
specimens be included in the irradiation capsules whenever possible.
5.5 Irradiation Requirements:
5.5.1 Encapsulation of Specimens—Specimens should be maintained in an inert environment within a corrosion-resistant capsule
to prevent deterioration of the surface of the specimens during radiation exposure. Care should be exercised in the design of the
capsule to ensure that the temperature history of the specimens matches, as closely as possible, the temperature experienced by
the reactor vessel. Surveillance capsules shall be designed to prevent mechanical damage to the specimens and monitors during
irradiation. The design of the capsule and capsule attachments shall also permit insertion of replacement capsules into the reactor
vessel if required at a later time in the lifetime of the vessel. The design of the capsule holder and the means of attachment shall
(1) preclude structural material degradation at the attachment, (2) avoid interference with in-service inspection required by ASME
Code Section XI, and (3) ensure the functionality of the capsule holder during the service life.
5.5.2 Location of Capsules:
5.5.2.1 Vessel Capsules (Required)—Surveillance capsules shall be located within the reactor vessel so that the specimen
irradiation history duplicates as closely as possible, within the physical constraints of the system, the neutron spectrum,
temperature history, and maximum neutron fluence experienced by the reactor vessel. The beltline material lead factor(s) should
be greater than 1.5 and less than five. A lead factor near 1.5 will provide data that will closely duplicate the fluence of the vessel
material and will enable monitoring through most of the operating lifetime. Capsules with higher lead factors will provide data
earlier in plant life but will limit dosimetry monitoring capability for the later portion of the operating lifetime because it may be
necessary to remove all the remaining capsules before the end of the design life due to the high fluence accumulation rate such
that twice MDF is not exceeded. This range of lead factors has been selected to minimize the calculational uncertainties in
extrapolating the surveillance measurements from the specimens to the reactor vessel wall and to optimize the ability of the
program to monitor material property changes throughout the life of the reactor vessel, while keeping potential flux effects to a
minimum. During the service life of the reactor vessel the lead factors for individual capsules may change as a result of changes
in the reactor operating parameters or fuel management.
5.5.2.2 Accelerated Irradiation Capsules (Optional)—The design of some reactor vessel or core internals may not allow the
positioning of all surveillance capsules with the recommended lead factors. Additional capsules may be positioned with higher lead
factors than those described in 5.5.2.1 for accelerated irradiation. Plants with lead factors greater than five should provide a method
of verifying the validity of the accelerated irradiation data. One method by which this verification may be accomplished is the
inclusion of a reference material (see 5.6).
5.5.3 Neutron Dosimeters:
5.5.3.1 Selection of Neutron Dosimeters—Neutron dosimeters for the surveillance capsules shall be selected according to Guide
E844. The group of dosimeters selected shall be capable of providing information about fast neutron fluence, fluence rate, and
spectrum; and thermal neutron fluence and fluence rate information; and displacements per atom (dpa) and dpa rate in iron.
5.5.3.2 Location of Neutron Dosimeters—Dosimeters shall be located within each surveillance capsule (see 5.5.2.1) and each
accelerated capsule (see 5.5.2.2) if used.
5.5.3.3 Dosimetry measurement(s) may be advisable before the withdrawal of the first or between subsequent specimen capsules
or after withdrawal of all capsules. If the capsule withdrawal schedule leads to long periods of operation without any dosimetry
measurements, separate dosimeter(s) should be used to monitor radiation conditions independent of the surveillance capsules.
More information on monitoring the neutron exposure of the reactor pressure vessel may be found in Guide E2956.
NOTE 5—Generally, the preferred location for additional dosimetry is the air gap between the reactor pressure vessel reflective insulation and the biological
shield surrounding the reactor. Dosimetry in this location can monitor the neutron exposure of the reactor vessel; both axially and azimuthally. In addition,
dosimetry with various azimuthal locations can monitor changes in the core azimuthally, whereas the surveillance capsule dosimeters cannot detect core
changes away from the surveillance capsule location. Operationally, dosimetry in this location is more easily removed and replaced than dosimetry located
within the vessel.
E185 − 21
5.6 Reference Materials:
5.6.1 Use of Reference Materials—The use of a reference material is optional. A reference material can provide an indication of
possible deviations from the expected surveillance capsule irradiation conditions (for example, temperature and neutron fluence).
5.6.2 Selection of Reference Materials—If selected, the irradiation response of the reference material should be well characterized.
The dependence of the specified mechanical property change (for example, transition temperature shift or change in yield strength)
on irradiation temperature and neutron fluence should be documented to permit a useful evaluation of the irradiation conditions.
In addition, reference material uniformity can affect the evaluation of reference material data; therefore, it is recommended that
reference material uniformity be considered when a reference material is chosen. The selected reference material should have a
measurable property change at surveillance capsul
...
