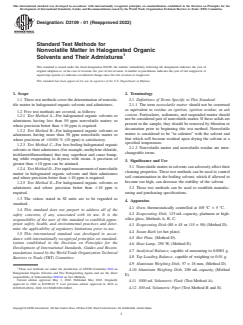

ASTM D2109-01(2022)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D2109 − 01 (Reapproved 2022)
Standard Test Methods for
Nonvolatile Matter in Halogenated Organic
Solvents and Their Admixtures
This standard is issued under the fixed designation D2109; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope 2. Terminology
1.1 These test methods cover the determination of nonvola- 2.1 Definitions of Terms Specific to This Standard:
tile matter in halogenated organic solvents and admixtures. 2.1.1 The term nonvolatile matter should not be construed
as equivalent to residue on ignition, ignition residue, or ash
1.2 Five test methods are covered, as follows:
content. Particulates, sediments, and suspended matter should
1.2.1 Test Method A—For halogenated organic solvents or
not be considered part of nonvolatile matter. If these solids are
admixtures having less than 50 ppm nonvolatile matter; or
present in the sample, they should be removed by filtration or
where precision better than 610 ppm is required.
decantation prior to beginning this test method. Nonvolatile
1.2.2 Test Method B—For halogenated organic solvents or
matter is considered to be “in solution” with the solvent and
admixtures having more than 50 ppm nonvolatile matter or
that which will become residual upon drying the solvent at a
where precision of 60.001% (10 ppm) is satisfactory.
specified temperature.
1.2.3 Test Method C—For low-boiling halogenated organic
2.1.2 Nonvolatile matter and nonvolatile residue are inter-
solvents or their admixtures (for example, methylene chloride,
changeable terms.
trichlorotrifluoroethane) that may superheat and cause bump-
ing while evaporating to dryness with steam. A precision of
3. Significance and Use
greater than 610 ppm can be attained.
3.1 Nonvolatile matter in solvents can adversely affect their
1.2.4 Test Method D—Forrapidmeasurementofnonvolatile
cleaning properties. These test methods can be used to control
matter in halogenated organic solvents and their admixtures
soil contamination in the boiling solvent, which if allowed to
and where precision better than 610 ppm is required.
become too high, can decrease the stability of the solvent.
1.2.5 Test Method E—For halogenated organic solvents or
admixtures and where precision better than 610 ppm is
3.2 These test methods can be used to establish manufac-
required.
turing and purchasing specifications.
1.3 The values stated in SI units are to be regarded as
4. Apparatus
standard.
4.1 Oven, thermostatically controlled at 105°C 6 5°C.
1.4 This standard does not purport to address all of the
4.2 Evaporating Dish, 125mL capacity, platinum or high-
safety concerns, if any, associated with its use. It is the
silica glass, Methods A, B, C.
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter-
4.3 Evaporating Dish (80 × 45 or 115 × 50) (Method D).
mine the applicability of regulatory limitations prior to use.
4.4 Steam Bath (or hot plate).
1.5 This international standard was developed in accor-
4.5 Hot Plate, (Method D).
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
4.6 Heat Lamp, 250 W, (Method E).
Development of International Standards, Guides and Recom-
4.7 Analytical Balance, capable of measuring to 0.0001 g.
mendations issued by the World Trade Organization Technical
4.8 Top Loading Balance, capable of weighing to 0.01 g.
Barriers to Trade (TBT) Committee.
4.9 Aluminum Weighing Dish, 57 × 18 mm, (Method D).
These test methods are under the jurisdiction of ASTM Committee D26 on
4.10 Aluminum Weighing Dish, 200 mL capacity, (Method
Halogenated Organic Solvents and Fire Extinguishing Agents and are the direct
E).
responsibility of Subcommittee D26.04 on Test Methods.
Current edition approved May 1, 2022. Published May 2022. Originally
4.11 1000 mL Volumetric Flask (Test Method A).
approved in 1962 as D2109-62 T. Last previous edition approved in 2016 as
D2109-01(2016). DOI: 10.1520/D2109-01R22. 4.12 100 mL Volumetric Pipet (Test Method B and E).
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

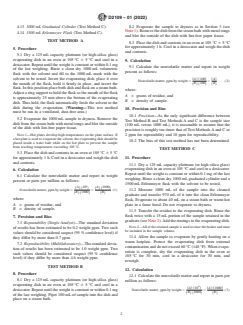

D2109 − 01 (2022)
4.13 1000 mL Graduated Cylinder (Test Method C). 8.2 Evaporate the sample to dryness as in Section 5 (see
Note1).Removethedishfromthesteambathwithmetaltongs
4.14 1500 mL Erlenmeyer Flask (Test Method C).
and blot the outside of the dish with lint-free paper tissue.
TEST METHOD A
8.3 Placethedishandcontentsinanovenat105°C 65°C
for approximately 1 h. Cool in a desiccator and weigh the dish
5. Procedure
and contents.
5.1 Dry a 125mL capacity platinum (or high-silica glass)
evaporating dish in an oven at 105°C 6 5°C and cool in a
9. Calculation
desiccator.Repeatuntiltheweightisconstantorwithin0.1mg
9.1 Calculate the nonvolatile matter and report in weight
of the last weighing. Rinse a clean dry 1000mL volumetric
percent as follows:
flask with the solvent and fill to the 1000mL mark with the
A 100 A
solvent to be tested. Invert the evaporating dish, place it over ~ !~ ! ~ !
Nonvolatilematter, ppmbyweight 5 5 (2)
the mouth of the flask, hold it firmly in place, and invert the ~B!~100! ~B!
flask.Inthispositionplacebothdishandflaskonasteambath.
where:
Adjustaringsupporttoholdtheflasksothemouthoftheflask
A = grams of residue, and
is approximately 25 mm above the bottom of the evaporating
B = density of sample.
dish.Thusheld,theflaskautomaticallyfeedsthesolventtothe
dish during the evaporation. (Warning—This test method
10. Precision and Bias
must be run in a ventilated, dust-free area.)
10.1 Precision—As the only significant difference between
5.2 Evaporate the 1000mL sample to dryness. Remove the
Test Method B and Test Methods A and C is the sample size
dish from the steam bath with metal tongs and blot the outside
(100 mL versus 1000 mL), it is reasonable to assume that the
of the dish with lint-free paper tissue.
precision is roughly ten times that of Test MethodsAand C or
NOTE 1—Hot plates develop high temperatures on the plate surface. If 2 ppm for repeatability and 10 ppm for reproducibility.
ahotplateisusedtoevaporatethesolvent,theevaporatingdishshouldbe
10.2 The bias of this test method has not been determined.
placed inside a water bath while on the hot plate to prevent the sample
from reaching temperatures exceeding 105°C.
TEST METHOD C
5.3 Placethedishandcontentsinanovenat105°C 65°C
for approximately 1 h. Cool in a desiccator and weigh the dish
11. Procedure
and contents.
11.1 Dry a 125mL capacity platinum (or high-silica glass)
evaporating dish in an oven at 105°C and cool in a desiccator.
6. Calculation
Repeat until the weight is constant or within 0.1 mg of the last
6.1 Calculate the nonvolatile matter and report in weight
weighing. Rinse a clean dry 1000mLgraduated cylinder and a
percent or parts per million as follows:
1500mL Erlenmeyer flask with the solvent to be tested.
~A!~10 ! ~A!~1000!
Nonvolatilematter, ppmbyweight 5 5 (1) 11.2 Measure 1000 mL of the sample into the cleaned
B 1000 B
~ !~ ! ~ !
graduate and
...
