ASTM C479-04(2022)
(Specification)Standard Specification for Vitrified Clay Liner Plates
Standard Specification for Vitrified Clay Liner Plates
ABSTRACT
This specification establishes the criteria for the acceptance of vitrified clay liner plates used to protectively line or face pipe, culverts, abutments, structures, or appurtenances. Linear plates manufactured shall be known as curved linear plates or flat liner plates. These plates shall be manufactured from fire clay, shale, surface clay, or a combination of these materials that, when formed into liner plates and fired to suitable temperatures, yield a product that is strong, durable, serviceable, and free of objectionable defects. The absorption of liner plates shall not exceed 6%. The liner plates shall be subjected to acid resistance test. These liner plates shall be uniformly vitrified throughout their thickness and have a homogeneous structural texture.
SCOPE
1.1 This specification establishes the criteria for the acceptance of vitrified clay liner plates used to protectively line or face pipe, culverts, abutments, structures, or appurtenances.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Aug-2022
- Technical Committee
- C04 - Vitrified Clay Pipe
- Drafting Committee
- C04.20 - Methods of Test and Specifications
Relations
- Effective Date
- 01-Jan-2013
- Effective Date
- 01-Oct-2009
- Effective Date
- 01-Jun-2008
- Effective Date
- 15-Dec-2007
- Effective Date
- 15-Jul-2006
- Effective Date
- 01-Feb-2005
- Effective Date
- 01-Oct-2004
- Effective Date
- 01-Dec-2003
- Effective Date
- 01-Nov-2003
- Effective Date
- 10-Jun-2003
- Effective Date
- 10-Dec-2002
- Effective Date
- 10-Feb-2001
- Effective Date
- 10-Feb-2001
- Effective Date
- 10-Mar-1998
Overview
ASTM C479-04(2022) is the internationally recognized standard specification for vitrified clay liner plates. Developed by ASTM International, this standard establishes the essential criteria for the acceptance and use of vitrified clay liner plates in infrastructure and construction projects. These plates serve as protective linings or facings for pipes, culverts, abutments, and various structural appurtenances, helping to extend the lifespan and improve the durability of these components. The specification covers both curved and flat liner plate designs, and mandates requirements for materials, performance, dimensional tolerances, and workmanship.
Key Topics
- Material Requirements: Liner plates must be manufactured from fire clay, shale, surface clay, or a suitable blend. The firing process must yield a strong, durable, and defect-free product.
- Types of Liner Plates: The standard covers curved liner plates and flat liner plates, addressing their usage according to structural demands.
- Absorption Rate: The water absorption of vitrified clay liner plates must not exceed 6%, ensuring durability and consistent performance.
- Acid Resistance: Plates are tested for resistance to acid exposure. The acid-soluble matter from the plates must not exceed 0.25% if such testing is specified.
- Uniform Vitrification: Plates must be homogeneously vitrified throughout their entire thickness to guarantee structural integrity.
- Dimensional Tolerances: The standard specifies strict dimensions and permissible variations for length, width, thickness, and the design of the tenon ribs.
- Workmanship: Plates must be free of significant defects such as cracks, chips beyond set limits, and blisters. A high-quality finish and consistent appearance are required for all products.
Applications
Vitrified clay liner plates covered by ASTM C479-04(2022) are widely used in a range of civil engineering and construction applications where chemical resistance, durability, and serviceability are imperative. Key applications include:
- Pipeline Protection: Lining for sewer pipes, culverts, and stormwater conduits to enhance chemical and abrasion resistance.
- Structural Lining: Protective facing for abutments and structural supports in bridges, tunnels, and retaining walls.
- Industrial Infrastructure: Used in areas where exposure to acids or other chemicals is probable, boosting longevity in harsh environments.
- Appurtenances: Lining or facing for tanks, chambers, and ancillary structural components to prevent corrosion and ensure a durable, low-maintenance solution.
By meeting ASTM’s stringent requirements, vitrified clay liner plates ensure consistent performance, supporting safe and sustainable infrastructure across public works, transportation, and industry sectors.
Related Standards
Organizations and professionals specifying or handling vitrified clay products can benefit from understanding related ASTM standards, including:
- ASTM C301 - Test Methods for Vitrified Clay Pipe: Provides methods for testing the material and performance characteristics of vitrified clay.
- ASTM C43 (Withdrawn 2009) - Terminology of Structural Clay Products: Offers definitions relevant to the types of clays and products used in these applications.
Many projects in the construction and civil infrastructure fields refer to these and other ASTM standards to ensure regulatory compliance, safety, and optimal product performance.
Keywords: vitrified clay liner plates, ASTM C479-04, clay pipe lining, sewer lining, infrastructure protection, chemical resistance, structural durability, culvert lining, acid-resistant liner plates, ASTM standards.
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Building products evaluation and certification.
QAI Laboratories
Building and construction product testing and certification.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
Sponsored listings
Frequently Asked Questions
ASTM C479-04(2022) is a technical specification published by ASTM International. Its full title is "Standard Specification for Vitrified Clay Liner Plates". This standard covers: ABSTRACT This specification establishes the criteria for the acceptance of vitrified clay liner plates used to protectively line or face pipe, culverts, abutments, structures, or appurtenances. Linear plates manufactured shall be known as curved linear plates or flat liner plates. These plates shall be manufactured from fire clay, shale, surface clay, or a combination of these materials that, when formed into liner plates and fired to suitable temperatures, yield a product that is strong, durable, serviceable, and free of objectionable defects. The absorption of liner plates shall not exceed 6%. The liner plates shall be subjected to acid resistance test. These liner plates shall be uniformly vitrified throughout their thickness and have a homogeneous structural texture. SCOPE 1.1 This specification establishes the criteria for the acceptance of vitrified clay liner plates used to protectively line or face pipe, culverts, abutments, structures, or appurtenances. 1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification establishes the criteria for the acceptance of vitrified clay liner plates used to protectively line or face pipe, culverts, abutments, structures, or appurtenances. Linear plates manufactured shall be known as curved linear plates or flat liner plates. These plates shall be manufactured from fire clay, shale, surface clay, or a combination of these materials that, when formed into liner plates and fired to suitable temperatures, yield a product that is strong, durable, serviceable, and free of objectionable defects. The absorption of liner plates shall not exceed 6%. The liner plates shall be subjected to acid resistance test. These liner plates shall be uniformly vitrified throughout their thickness and have a homogeneous structural texture. SCOPE 1.1 This specification establishes the criteria for the acceptance of vitrified clay liner plates used to protectively line or face pipe, culverts, abutments, structures, or appurtenances. 1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM C479-04(2022) is classified under the following ICS (International Classification for Standards) categories: 91.100.25 - Terracotta building products. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM C479-04(2022) has the following relationships with other standards: It is inter standard links to ASTM C301-13, ASTM C301-04(2009), ASTM C43-08, ASTM C43-07, ASTM C43-06, ASTM C43-05, ASTM C301-04, ASTM C43-03a, ASTM C301-98(2003), ASTM C43-03, ASTM C43-02, ASTM C43-01, ASTM C43-99, ASTM C301-98. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM C479-04(2022) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

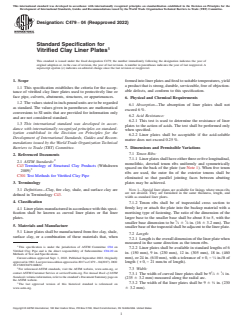

Designation: C479 −04 (Reapproved 2022)
Standard Specification for
Vitrified Clay Liner Plates
This standard is issued under the fixed designation C479; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope formedintolinerplatesandfiredtosuitabletemperatures,yield
a product that is strong, durable, serviceable, free of objection-
1.1 This specification establishes the criteria for the accep-
able defects, and conform to this specification.
tance of vitrified clay liner plates used to protectively line or
face pipe, culverts, abutments, structures, or appurtenances.
6. Physical and Chemical Requirements
1.2 The values stated in inch-pound units are to be regarded
6.1 Absorption—The absorption of liner plates shall not
as standard. The values given in parentheses are mathematical
exceed 6%.
conversions to SI units that are provided for information only
6.2 Acid Resistance:
and are not considered standard.
6.2.1 This test is used to determine the resistance of liner
1.3 This international standard was developed in accor-
plates to the action of acids. The test shall be performed only
dance with internationally recognized principles on standard-
when specified.
ization established in the Decision on Principles for the
6.2.2 Liner plates shall be acceptable if the acid-soluble
Development of International Standards, Guides and Recom-
matter does not exceed 0.25%.
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee. 7. Dimensions and Permissible Variations
7.1 Tenon Ribs:
2. Referenced Documents
7.1.1 Linerplatesshallhaveeitherthreeorfivelongitudinal,
2.1 ASTM Standards:
monolithic, dovetail tenon ribs uniformly and symmetrically
C43Terminology of Structural Clay Products (Withdrawn
spaced on the back of the plate (see Note 1). When five tenon
2009)
ribs are used, the outer fin of the exterior tenons shall be
C301Test Methods for Vitrified Clay Pipe
eliminated so that parallel jointing faces between abutting
plates may be achieved.
3. Terminology
NOTE 1—Special liner plates are available for linings where tenon ribs
3.1 Definitions—Clay, fire clay, shale, and surface clay are
are not desired. They are furnished in the same thickness, length, and
defined in Terminology C43.
width as standard liner plates.
4. Classification
7.1.2 Tenon ribs shall be of trapezoidal cross section to
firmly key or attach the plate into the backup material with a
4.1 Linerplatesmanufacturedinaccordancewiththisspeci-
mortising type of fastening. The ratio of the dimension of the
fication shall be known as curved liner plates or flat liner
larger base to the smaller base shall be about 8 to 5, with the
plates.
5 1
smaller base dimension to be ⁄8 6 ⁄8 in. (16 6 3.2 mm). The
5. Materials and Manufacture
smallerbaseofthetrapezoidshallbeadjacenttothelinerplate.
5.1 Liner plates shall be manufactured from fire clay, shale,
7.2 Length:
surface clay, or a combination of these materials that, when
7.2.1 Lengthistheoveralldimensionofthelinerplatewhen
measured in the same direction as the tenon ribs.
This specification is under the jurisdiction of ASTM Committee C04 on
7.2.2 Liner plates shall be available in standard lengths of 6
Vitrified Clay Pipe and is the direct responsibility of Subcommittee C04.20 on
in. (150 mm), 9 in. (230 mm), 12 in. (305 mm), 18 in. (460
Methods of Test and Specifications.
mm), or 24 in. (610 mm), with a tolerance of+0,− ⁄4 in./ft of
Current edition approved Sept. 1, 2022. Published September 2022. Originally
approvedin1961.Lastpreviouseditionapprovedin2017asC479–04(2017).DOI:
length (+0,−21 mm⁄m of length).
10.1520/C0479-04R22.
7.3 Width:
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
1 1
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
7.3.1 The width of curved liner plates shall be 9 ⁄4 6 ⁄8 in.
Standards volume information, refer to the standard’s Document Summary page on
(235 6 3.2 mm) measured along the radial arc.
the ASTM website.
7.3.2 The width of flat liner plates shall be 9 6 ⁄8 in. (230
The last approved version of this historical standard is referenced on
www.astm.org. 6 3.2 mm).
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

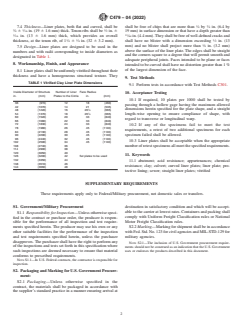

C479 − 04 (2022)
1 3
7.4 Thickness—Liner plates, both flat and curved, shall be shall be free of chips that are more than ⁄4 by ⁄4 in. (6.4 by
3 1 1
⁄4 6 ⁄16 in. (19 6 1.6 mm) thick. Tenon ribs shall be ⁄2 in. 6 19mm) in surface dimension or that have a depth greater than
1 11
⁄16 in. (13 6 1.6 mm) thick, which provides an overall ⁄64in.(4.4mm).Theyshallbefreeofwell-definedcracksand
1 1 1
thickness, at the tenon rib, of 1 ⁄4 6 ⁄8
...
