ASTM F707/F707M-94(2019)e1
(Specification)Standard Specification for Modular Gauge Boards
Standard Specification for Modular Gauge Boards
ABSTRACT
This specification covers modular gage boards for mounting dial pressure gages and dial thermometers for miscellaneous shipboard applications. Gage boards under this specification are suitable for pressure gages and dial thermometers with either turret or back flanged type cases and with either back or bottom connections. Gage boards may be furnished in two types and grades, namely: Type I, Type II, Grade a, and Grade b. Unless otherwise specified the gage boards shall be manufactured from the specified carbon steel for Grade a and form the specified aluminum alloy for Grade b. Materials shall be capable of being bent at room temperature through the prescribed angle and direction without cracking on the outside of the bent portion. Unless otherwise specified, gage boards shall be drilled for mounting the specified dial sizes. When specified, drilling shall be limited to one size gage for either Type I or Type II gage boards. The dimensional requirements for the gage boards are detailed and illustrated.
SCOPE
1.1 This specification covers modular gauge boards for mounting 89-mm [31/2-in.], 114-mm [41/2-in.], 152-mm [6-in.], and 216-mm [81/2-in.] dial size pressure gauges and dial thermometers for miscellaneous shipboard applications.
1.2 Gauge boards ordered under this specification are suitable for pressure gauges and dial thermometers with either turret or back flanged type cases and with either back or bottom connections (see Appendix X1).
1.3 Gauge mounting dimensions shall be in accordance with ASME B40.1.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
Note 1: Gauge boards covered by this specification are those normally supplied by the shipyard as opposed to the shipyard’s equipment subcontractor.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Jul-2019
- Technical Committee
- F25 - Ships and Marine Technology
- Drafting Committee
- F25.11 - Machinery and Piping Systems
Relations
- Effective Date
- 01-Aug-2019
Overview
ASTM F707/F707M-94(2019)e1 sets forth the standard specification for modular gauge boards used for mounting dial pressure gauges and dial thermometers in shipboard applications. Developed by ASTM International, this specification ensures reliable, standardized installations of pressure-indicating instruments across a range of dial sizes and mounting types commonly required on marine vessels.
This standard applies to gauge boards that accommodate both turret and back-flanged cases, compatible with back or bottom connections, supporting versatile configurations suited for various ship machinery spaces.
Key Topics
Scope and Purpose
- Covers modular gauge boards intended for 89-mm (3½-in.), 114-mm (4½-in.), 152-mm (6-in.), and 216-mm (8½-in.) dial size pressure gauges and dial thermometers.
- The specification addresses both metric (SI) and inch-pound units, but requires choosing one system per application.
- Considers gauge boards normally supplied by shipyards rather than equipment subcontractors.
Types and Grades
- Type I: For 89-mm and 114-mm dial gauge sizes.
- Type II: For 152-mm and 216-mm dial gauge sizes.
- Grade a: Manufactured from carbon steel.
- Grade b: Made from aluminum alloy.
Design and Manufacturing Requirements
- Boards must be bendable at room temperature through specified angles without cracking.
- Drilled mounting holes must correspond to the applicable dial sizes. When required, boards can be drilled for a specific size only.
- Gauge mounting dimensions are in accord with ASME B40.1.
Finish and Marking
- Carbon steel (Grade a) boards are typically delivered with a zinc chromate primer unless otherwise specified.
- Aluminum (Grade b) boards receive a pretreatment wash and zinc chromate primer.
- Each board must be clearly marked with ASTM designation, manufacturer identity, quantity, and purchase order on the packaging.
Applications
Marine and Shipboard Instrumentation
- Ideal for shipbuilders and marine engineers who need standardized, high-quality mounting solutions for pressure gauges and thermometers in engine rooms, machinery spaces, and other shipboard environments.
- Suitable for simplex, duplex, and differential pressure gauges, as well as dial thermometers, with both turret and back-flanged cases.
- The modular design enables flexible installation: single, horizontal, vertical, or pyramid arrangements, allowing fast adaptation and expansion.
Compliance and Procurement
- Widely specified within procurement documents for naval and commercial vessels to ensure compatibility and ease of maintenance.
- Meets international standardization expectations as outlined by the World Trade Organization’s TBT Committee guidance, helping shipyards streamline ordering and installation processes.
Related Standards
- ASME B40.1: Specifies pressure indicating dial type - elastic element gauges, ensuring compatibility in mounting dimensions.
- Federal Specification TT-P-645: Primer paint (zinc chromate) for carbon steel gauge boards.
- Military Specification DOD-P-15328: Pretreatment wash for aluminum gauge boards.
Looking for standards-compliant modular gauge board solutions ensures improved interoperability, safety, and quality aboard marine vessels. Adhering to ASTM F707/F707M-94(2019)e1 enhances uniformity and reliability in shipboard instrumentation mounting.
Keywords: modular gauge boards, dial pressure gauges, dial thermometers, shipboard applications, ASTM F707, marine instrumentation, pressure gauge mounting, standard specification.
Get Certified
Connect with accredited certification bodies for this standard
DNV
DNV is an independent assurance and risk management provider.
Lloyd's Register
Lloyd's Register is a global professional services organisation specialising in engineering and technology.
ABS Quality Evaluations Inc.
American Bureau of Shipping quality certification.
Sponsored listings
Frequently Asked Questions
ASTM F707/F707M-94(2019)e1 is a technical specification published by ASTM International. Its full title is "Standard Specification for Modular Gauge Boards". This standard covers: ABSTRACT This specification covers modular gage boards for mounting dial pressure gages and dial thermometers for miscellaneous shipboard applications. Gage boards under this specification are suitable for pressure gages and dial thermometers with either turret or back flanged type cases and with either back or bottom connections. Gage boards may be furnished in two types and grades, namely: Type I, Type II, Grade a, and Grade b. Unless otherwise specified the gage boards shall be manufactured from the specified carbon steel for Grade a and form the specified aluminum alloy for Grade b. Materials shall be capable of being bent at room temperature through the prescribed angle and direction without cracking on the outside of the bent portion. Unless otherwise specified, gage boards shall be drilled for mounting the specified dial sizes. When specified, drilling shall be limited to one size gage for either Type I or Type II gage boards. The dimensional requirements for the gage boards are detailed and illustrated. SCOPE 1.1 This specification covers modular gauge boards for mounting 89-mm [31/2-in.], 114-mm [41/2-in.], 152-mm [6-in.], and 216-mm [81/2-in.] dial size pressure gauges and dial thermometers for miscellaneous shipboard applications. 1.2 Gauge boards ordered under this specification are suitable for pressure gauges and dial thermometers with either turret or back flanged type cases and with either back or bottom connections (see Appendix X1). 1.3 Gauge mounting dimensions shall be in accordance with ASME B40.1. 1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. Note 1: Gauge boards covered by this specification are those normally supplied by the shipyard as opposed to the shipyard’s equipment subcontractor. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers modular gage boards for mounting dial pressure gages and dial thermometers for miscellaneous shipboard applications. Gage boards under this specification are suitable for pressure gages and dial thermometers with either turret or back flanged type cases and with either back or bottom connections. Gage boards may be furnished in two types and grades, namely: Type I, Type II, Grade a, and Grade b. Unless otherwise specified the gage boards shall be manufactured from the specified carbon steel for Grade a and form the specified aluminum alloy for Grade b. Materials shall be capable of being bent at room temperature through the prescribed angle and direction without cracking on the outside of the bent portion. Unless otherwise specified, gage boards shall be drilled for mounting the specified dial sizes. When specified, drilling shall be limited to one size gage for either Type I or Type II gage boards. The dimensional requirements for the gage boards are detailed and illustrated. SCOPE 1.1 This specification covers modular gauge boards for mounting 89-mm [31/2-in.], 114-mm [41/2-in.], 152-mm [6-in.], and 216-mm [81/2-in.] dial size pressure gauges and dial thermometers for miscellaneous shipboard applications. 1.2 Gauge boards ordered under this specification are suitable for pressure gauges and dial thermometers with either turret or back flanged type cases and with either back or bottom connections (see Appendix X1). 1.3 Gauge mounting dimensions shall be in accordance with ASME B40.1. 1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. Note 1: Gauge boards covered by this specification are those normally supplied by the shipyard as opposed to the shipyard’s equipment subcontractor. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM F707/F707M-94(2019)e1 is classified under the following ICS (International Classification for Standards) categories: 47.020.70 - Navigation and control equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM F707/F707M-94(2019)e1 has the following relationships with other standards: It is inter standard links to ASTM F707/F707M-94(2011). Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM F707/F707M-94(2019)e1 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
´1

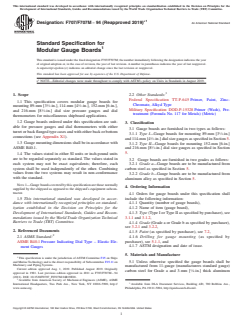

Designation: F707/F707M −94 (Reapproved 2019) An American National Standard
Standard Specification for
Modular Gauge Boards
This standard is issued under the fixed designation F707/F707M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
ε NOTE—Editorial changes were made throughout to comply with ASTM’s policy on Units in Standards in August 2019.
1. Scope 2.2 Other Standards:
Federal Specification TT-P-645 Primer, Paint, Zinc-
1.1 This specification covers modular gauge boards for
Chromate, Alkyd Type
1 1
mounting 89-mm [3 ⁄2-in.], 114-mm [4 ⁄2-in.], 152-mm [6-in.],
Military Specification DOD-P-15328 Primer (Wash), Pre-
and 216-mm [8 ⁄2-in.] dial size pressure gauges and dial
treatment (Formula No. 117 for Metals) (Metric)
thermometers for miscellaneous shipboard applications.
1.2 Gauge boards ordered under this specification are suit-
3. Classification
able for pressure gauges and dial thermometers with either
3.1 Gauge boards are furnished in two types as follows:
turretorbackflangedtypecasesandwitheitherbackorbottom
3.1.1 Type I—Gauge boards for mounting 89-mm [3 ⁄2-in.]

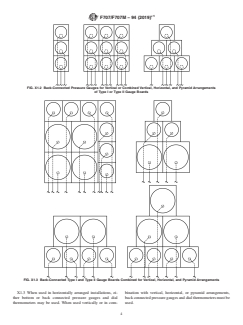

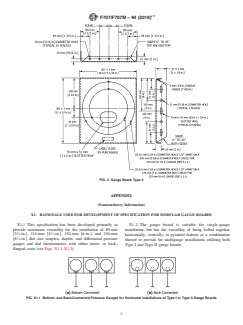

connections (see Appendix X1).
and114-mm[4 ⁄2-in.]dialsizegaugesasspecifiedinSection5.
1.3 Gaugemountingdimensionsshallbeinaccordancewith
3.1.2 Type II—Gauge boards for mounting 152-mm [6-in.]
ASME B40.1.
and 216-mm [8 ⁄2-in.] dial size gauges as specified in Section
5.
1.4 The values stated in either SI units or inch-pound units
are to be regarded separately as standard. The values stated in
3.2 Gauge boards are furnished in two grades as follows:
each system may not be exact equivalents; therefore, each
3.2.1 Grade a—Gauge boards are to be manufactured from
system shall be used independently of the other. Combining
carbon steel as specified in Section 5.
values from the two systems may result in non-conformance
3.2.2 Grade b—Gauge boards are to be manufactured from
with the standard.
aluminum alloy as specified in Section 5.
NOTE 1—Gauge boards covered by this specification are those normally
4. Ordering Information
supplied by the shipyard as opposed to the shipyard’s equipment subcon-
tractor.
4.1 Orders for gauge boards under this specification shall
1.5 This international standard was developed in accor-
include the following information:
dance with internationally recognized principles on standard- 4.1.1 Quantity (number of gauge boards),
ization established in the Decision on Principles for the
4.1.2 Name of item (gauge board),
Development of International Standards, Guides and Recom- 4.1.3 Type (Type I or Type II as specified by purchaser), see
mendations issued by the World Trade Organization Technical
3.1.1 and 3.1.2,
Barriers to Trade (TBT) Committee. 4.1.4 Grade (Grade a or Grade b as specified by purchaser),
see 3.2.1 and 3.2.2,
2. Referenced Documents
4.1.5 Paint (as specified by purchaser), see 7.2,
2.1 ASME Standard: 4.1.6 Drilling for gauge mounting (as specified by
ASME B40.1 Pressure Indicating Dial Type – Elastic Ele- purchaser), see 5.1.1, and
4.1.7 ASTM designation and date of issue.
ment Gauges
5. Materials and Manufacture
This specification is under the jurisdiction of ASTM Committee F25 on Ships
and Marine Technology and is the direct responsibility of Subcommittee F25.11 on 5.1 Unless otherwise specified the gauge boards shall be
Machinery and Piping Systems.
manufactured from 11-gauge (manufacturers standard gauge)
Current edition approved Aug. 1, 2019. Published August 2019. Originally
carbon steel for Grade a and 3-mm [ ⁄8-in.] thick aluminum
approved in 1981. Last previous edition approved in 2011 as F707/F707M – 94
(2011). DOI: 10.1520/F0707_F0707M-94R19E01.
Available from American Society of Mechanical Engineers (ASME), ASME
International Headquarters, Two Park Ave., New York, NY 10016-5990, http:// Available from DLA Document Services, Building 4/D, 700 Robbins Ave.,
www.asme.org. Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
´1
F707/F707M − 94 (2019)

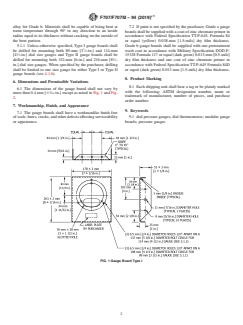

alloy for Grade b. Materials shall be capable of being bent at 7.2 If paint is not specified by the purchaser, Grade a gauge
room temperature through 90° in any direction to an inside b
...
