ASTM D5637-05(2017)
(Test Method)Standard Test Method for Moisture Resistance of Electrical Insulating Varnishes
Standard Test Method for Moisture Resistance of Electrical Insulating Varnishes
SIGNIFICANCE AND USE
5.1 This test method is useful for the evaluation of insulating varnish performance in high humidity exposure.
SCOPE
1.1 This test method covers the mechanical performance of electrical insulating varnishes subjected to high humidity conditions.
1.2 The values stated in SI units are to be regarded as standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. See 7.1.
Note 1: There is not ISO or IEC equivalent.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Oct-2017
- Technical Committee
- D09 - Electrical and Electronic Insulating Materials
- Drafting Committee
- D09.01 - Electrical Insulating Products
Relations
- Effective Date
- 01-Nov-2017
- Effective Date
- 01-Nov-2019
- Effective Date
- 01-Mar-2019
- Effective Date
- 01-Nov-2018
- Effective Date
- 01-Apr-2012
- Effective Date
- 01-May-2007
- Effective Date
- 10-Sep-2002
- Effective Date
- 10-Sep-2001
- Effective Date
- 10-Sep-2001
- Effective Date
- 01-Nov-2017
Overview
ASTM D5637-05(2017) is the standard test method developed by ASTM International to assess the moisture resistance of electrical insulating varnishes. This method evaluates the mechanical performance-specifically, the retention of bond strength-of insulating varnishes when exposed to high humidity environments. The standard provides a systematic approach for manufacturers, electrical engineers, and quality assurance teams to determine how well varnish coatings protect wire windings and other electrical components from moisture-induced degradation.
This test method uses standardized procedures to measure the effect of high humidity on the varnish's mechanical properties, helping stakeholders gain reliable data for product specification, comparison, and regulatory compliance.
Key Topics
- High Humidity Exposure: Focuses on evaluating varnish performance under conditions of elevated relative humidity, simulating operational environments where moisture may compromise insulation.
- Mechanical Performance Assessment: Involves testing the flexural strength of varnish-treated helical coils before and after humidity conditioning, using a tensile testing machine and specific fixtures as referenced in ASTM D2519.
- Sample Preparation and Conditioning: Outlines the preparation of test specimens, the conditioning protocol using a controlled exposure chamber, and the rapid testing procedures necessary to ensure accurate moisture resistance results.
- Reporting and Interpretation: Specifies the required reporting format, including description of varnish, identification of wire, cure times, and detailed bond strength measurements.
- Safety Considerations: Reminds users to comply with appropriate safety practices, such as safe handling and application of liquid varnishes, and highlights the user’s responsibility for safety, health, and environmental compliance.
- Units of Measurement: All results are reported in SI units, ensuring global relevance and consistency.
Applications
ASTM D5637-05(2017) is widely applied in several scenarios within the electrical manufacturing and maintenance industries:
- Product Development: Used by manufacturers to qualify new or improved insulating varnishes for electrical equipment, ensuring suitability for environments prone to moisture.
- Quality Assurance: Supports ongoing compliance testing and quality assurance across production batches to prevent premature insulation failures in service.
- Performance Benchmarking: Offers a basis for comparing the moisture resistance of different varnish formulations, which is essential for procurement specifications and R&D.
- Regulatory and Safety Compliance: Assists designers and specifiers in meeting safety codes and international trade requirements by using standardized test methods for insulation materials.
- Failure Analysis: Facilitates post-failure investigations by quantifying how moisture ingress may have contributed to insulation breakdown.
Equipment such as exposure chambers (capable of maintaining high humidity) and tensile testing machines, as referenced in ASTM D2519 and IEEE 117, are essential tools for carrying out this standard.
Related Standards
For comprehensive evaluation of electrical insulating varnishes and materials in humid conditions, consider the following referenced and related standards:
- ASTM D2519: Test Method for Bond Strength of Electrical Insulating Varnishes by the Helical Coil Test - provides foundational techniques for sample preparation and bond strength measurement used in D5637.
- IEEE 117: Standard Test Procedure for Evaluation of Systems of Insulating Materials for Random-Wound AC Electric Machinery - offers guidance on test procedures for related insulating systems.
- Other ASTM Standards for Electrical Insulation: Explore additional ASTM standards covering the evaluation of electrical insulating materials for complementary property assessments.
Note: There is no direct ISO or IEC equivalent for ASTM D5637-05(2017), making this standard particularly important for organizations operating in the global electrical and electronic insulation sector.
Keywords: ASTM D5637, moisture resistance, electrical insulating varnish, high humidity test, bond strength, insulation quality, humidity conditioning, varnish performance, electrical insulation standards.
Get Certified
Connect with accredited certification bodies for this standard
IMQ S.p.A. (Certification)
Italian electrical product certification.
SLG Prüf- und Zertifizierungs GmbH
German testing and certification body.
UL Solutions
Global safety science company with testing, inspection and certification.
Sponsored listings
Frequently Asked Questions
ASTM D5637-05(2017) is a standard published by ASTM International. Its full title is "Standard Test Method for Moisture Resistance of Electrical Insulating Varnishes". This standard covers: SIGNIFICANCE AND USE 5.1 This test method is useful for the evaluation of insulating varnish performance in high humidity exposure. SCOPE 1.1 This test method covers the mechanical performance of electrical insulating varnishes subjected to high humidity conditions. 1.2 The values stated in SI units are to be regarded as standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. See 7.1. Note 1: There is not ISO or IEC equivalent. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 5.1 This test method is useful for the evaluation of insulating varnish performance in high humidity exposure. SCOPE 1.1 This test method covers the mechanical performance of electrical insulating varnishes subjected to high humidity conditions. 1.2 The values stated in SI units are to be regarded as standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. See 7.1. Note 1: There is not ISO or IEC equivalent. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D5637-05(2017) is classified under the following ICS (International Classification for Standards) categories: 29.035.60 - Varnished fabrics. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D5637-05(2017) has the following relationships with other standards: It is inter standard links to ASTM D5637-05(2012), ASTM D2519-19a, ASTM D2519-19, ASTM D2519-18, ASTM D2519-07(2012), ASTM D2519-07, ASTM D2519-02, ASTM D2519-96, ASTM D2519-01, ASTM D3955-20. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D5637-05(2017) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

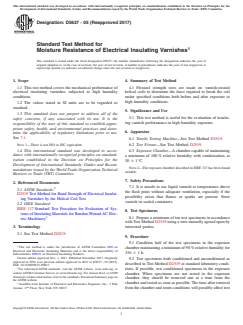

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D5637 − 05 (Reapproved 2017)
Standard Test Method for
Moisture Resistance of Electrical Insulating Varnishes
This standard is issued under the fixed designation D5637; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 4. Summary of Test Method
1.1 This test method covers the mechanical performance of 4.1 Flexural strength tests are made on varnish-treated
electrical insulating varnishes subjected to high humidity helical coils to determine the force required to break the coil
conditions. under specified conditions both before and after exposure to
high humidity conditions.
1.2 The values stated in SI units are to be regarded as
standard.
5. Significance and Use
1.3 This standard does not purport to address all of the
5.1 This test method is useful for the evaluation of insulat-
safety concerns, if any, associated with its use. It is the
ing varnish performance in high humidity exposure.
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter-
6. Apparatus
mine the applicability of regulatory limitations prior to use.
See 7.1.
6.1 Tensile Testing Machine—See Test Method D2519.
NOTE 1—There is not ISO or IEC equivalent. 6.2 Test Fixture—See Test Method D2519.
1.4 This international standard was developed in accor-
6.3 Exposure Chamber—Achamber capable of maintaining
dance with internationally recognized principles on standard-
a minimum of 100 % relative humidity with condensation, at
ization established in the Decision on Principles for the
30 6 1°C.
Development of International Standards, Guides and Recom-
NOTE 2—The exposure chamber described in IEEE 117 has been found
mendations issued by the World Trade Organization Technical
suitable.
Barriers to Trade (TBT) Committee.
7. Safety Precautions
2. Referenced Documents
7.1 It is unsafe to use liquid varnish at temperatures above
2.1 ASTM Standards:
the flash point without adequate ventilation, especially if the
D2519 Test Method for Bond Strength of Electrical Insulat-
possibility exists that flames or sparks are present. Store
ing Varnishes by the Helical Coil Test
varnish in sealed containers.
2.2 IEEE Standard:
IEEE 117 Standard Test Procedure for Evaluation of Sys-
8. Test Specimens
tems of Insulating Materials for Randon-WoundAC Elec-
8.1 Prepare a minimum of ten test specimens in accordance
tric Machinery
withTestMethodD2519usingawiremutuallyagreeduponby
interested parties.
3. Terminology
3.1 See Test Method D2519.
9. Procedure
9.1 Condition half of the test specimens in the exposure
This test method is under the jurisdiction of ASTM Committee D09 on
chamber maintaining a minimum of 98 % relative humidity for
Electrical and Electronic Insulating Materials and is the direct responsibility of
336 61h.
Subcommittee D09.01 on Electrical Insulating Products.
Current edition approved Nov. 1, 2017. Published November 2017. Originally
9.2 Test specimens both conditioned and unconditioned as
approved in 1994. Last p
...
