ASTM F2252/F2252M-13(2018)
(Practice)Standard Practice for Evaluating Ink or Coating Adhesion to Flexible Packaging Materials Using Tape
Standard Practice for Evaluating Ink or Coating Adhesion to Flexible Packaging Materials Using Tape
SIGNIFICANCE AND USE
3.1 Poor adhesion of ink or coating to the base substrate can impact the readability of printed materials, affect the functionality of coated materials, or create a source of contamination. This practice provides a means for evaluating the adhesion of ink or coating to a flexible packaging material.
3.2 For purposes of resolving inter-laboratory disagreements, test methods developed from this practice may be improved by defining and controlling the pressure and method of tape application, (for example, using weighted roller), and the speed and angle of tape removal.
3.3 This practice does not address acceptability criteria. These need to be jointly determined by the user and producer of the product.
SCOPE
1.1 This practice describes a means of evaluating ink or coating adhesion to flexible packaging materials. This practice is intended for use on flexible packaging materials whose surfaces are not damaged by the application and removal of tape.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Aug-2018
- Technical Committee
- F02 - Primary Barrier Packaging
- Drafting Committee
- F02.20 - Physical Properties
Relations
- Effective Date
- 01-Sep-2018
- Refers
ASTM E171/E171M-11(2020) - Standard Practice for Conditioning and Testing Flexible Barrier Packaging - Effective Date
- 01-May-2020
- Refers
ASTM E171/E171M-11(2015) - Standard Practice for Conditioning and Testing Flexible Barrier Packaging - Effective Date
- 01-Oct-2015
- Refers
ASTM E171/E171M-11 - Standard Practice for Conditioning and Testing Flexible Barrier Packaging - Effective Date
- 15-Nov-2011
- Refers
ASTM D3330/D3330M-04(2010) - Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape - Effective Date
- 01-Apr-2010
- Effective Date
- 01-Oct-2004
- Effective Date
- 10-Oct-2002
- Effective Date
- 10-Oct-2000
Overview
ASTM F2252/F2252M-13(2018), the Standard Practice for Evaluating Ink or Coating Adhesion to Flexible Packaging Materials Using Tape, is developed by ASTM International. This standard provides a reliable method for assessing the adhesion quality of inks or coatings on flexible packaging through a tape test. Good adhesion is critical to ensure print readability, maintain coating functionality, and reduce contamination risks in packaging applications.
The practice outlines procedures for preparing samples, applying and removing adhesive tape, and evaluating the degree of ink or coating removal. The standard is applicable to a variety of flexible packaging materials not damaged by tape use, ensuring consistent and reproducible evaluation of adhesion performance.
Key Topics
Purpose and Significance
- Addresses the importance of ink and coating adhesion for printing clarity and packaging integrity.
- Provides a uniform procedure for adhesion testing to help resolve inter-laboratory disagreements.
Test Methodology
- Use of commonly available adhesive tapes (e.g., 3M #610 or Sellotape).
- Preparation of specimens with careful application and removal of tape at a defined angle and speed.
- Visual evaluation of the sample and tape after the test to assess adhesion loss.
Customization and Agreement
- The method does not prescribe pass/fail criteria; acceptability levels must be mutually agreed upon by the product user and producer.
- Tape type, application pressure, removal speed, and angle should be standardized and agreed upon to ensure consistency.
Units of Measurement
- Supports both SI and inch-pound units, but they must not be combined in a single procedure.
Applications
Flexible Packaging Industry
- Used extensively to evaluate the quality and durability of printed graphics or protective coatings on bags, pouches, and wraps.
Quality Assurance
- Assists manufacturers in maintaining product quality by providing a practical in-house test for confirming adhesion properties of inks and coatings before product release.
Resolution of Disputes
- Offers a standardized approach to assessing adhesion performance, reducing disagreements between customers, suppliers, and laboratories.
Research and Development
- Supports new materials testing or process changes by providing a benchmark for acceptable adhesion performance.
Related Standards
These ASTM standards are frequently referenced alongside ASTM F2252/F2252M-13(2018):
- ASTM D3330/D3330M - Test Method for Peel Adhesion of Pressure-Sensitive Tape.
- ASTM E171/E171M - Practice for Conditioning and Testing Flexible Barrier Packaging.
These related documents offer further guidance on tape test procedures and the conditioning of flexible materials, forming a comprehensive framework for adhesion testing in packaging applications.
Keywords: ASTM F2252, ink adhesion, coating adhesion, tape test, flexible packaging, print quality, adhesion evaluation, packaging standards, coating performance, material testing.
Frequently Asked Questions
ASTM F2252/F2252M-13(2018) is a standard published by ASTM International. Its full title is "Standard Practice for Evaluating Ink or Coating Adhesion to Flexible Packaging Materials Using Tape". This standard covers: SIGNIFICANCE AND USE 3.1 Poor adhesion of ink or coating to the base substrate can impact the readability of printed materials, affect the functionality of coated materials, or create a source of contamination. This practice provides a means for evaluating the adhesion of ink or coating to a flexible packaging material. 3.2 For purposes of resolving inter-laboratory disagreements, test methods developed from this practice may be improved by defining and controlling the pressure and method of tape application, (for example, using weighted roller), and the speed and angle of tape removal. 3.3 This practice does not address acceptability criteria. These need to be jointly determined by the user and producer of the product. SCOPE 1.1 This practice describes a means of evaluating ink or coating adhesion to flexible packaging materials. This practice is intended for use on flexible packaging materials whose surfaces are not damaged by the application and removal of tape. 1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 3.1 Poor adhesion of ink or coating to the base substrate can impact the readability of printed materials, affect the functionality of coated materials, or create a source of contamination. This practice provides a means for evaluating the adhesion of ink or coating to a flexible packaging material. 3.2 For purposes of resolving inter-laboratory disagreements, test methods developed from this practice may be improved by defining and controlling the pressure and method of tape application, (for example, using weighted roller), and the speed and angle of tape removal. 3.3 This practice does not address acceptability criteria. These need to be jointly determined by the user and producer of the product. SCOPE 1.1 This practice describes a means of evaluating ink or coating adhesion to flexible packaging materials. This practice is intended for use on flexible packaging materials whose surfaces are not damaged by the application and removal of tape. 1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM F2252/F2252M-13(2018) is classified under the following ICS (International Classification for Standards) categories: 87.080 - Inks. Printing inks. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM F2252/F2252M-13(2018) has the following relationships with other standards: It is inter standard links to ASTM F2252/F2252M-13e1, ASTM E171/E171M-11(2020), ASTM E171/E171M-11(2015), ASTM E171/E171M-11, ASTM D3330/D3330M-04(2010), ASTM D3330/D3330M-04, ASTM D3330/D3330M-02, ASTM D3330/D3330M-00. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM F2252/F2252M-13(2018) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

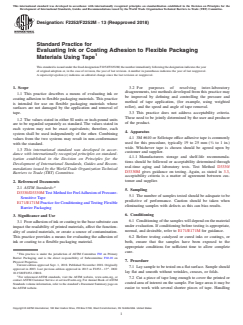

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: F2252/F2252M − 13 (Reapproved 2018)
Standard Practice for
Evaluating Ink or Coating Adhesion to Flexible Packaging
Materials Using Tape
ThisstandardisissuedunderthefixeddesignationF2252/F2252M;thenumberimmediatelyfollowingthedesignationindicatestheyear
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3.2 For purposes of resolving inter-laboratory
disagreements, test methods developed from this practice may
1.1 This practice describes a means of evaluating ink or
be improved by defining and controlling the pressure and
coating adhesion to flexible packaging materials. This practice
method of tape application, (for example, using weighted
is intended for use on flexible packaging materials whose
roller), and the speed and angle of tape removal.
surfaces are not damaged by the application and removal of
tape. 3.3 This practice does not address acceptability criteria.
These need to be jointly determined by the user and producer
1.2 The values stated in either SI units or inch-pound units
of the product.
are to be regarded separately as standard. The values stated in
each system may not be exact equivalents; therefore, each
4. Apparatus
system shall be used independently of the other. Combining
4.1 3M #610 or Sellotape office adhesive tape is commonly
values from the two systems may result in non-conformance
used for this procedure, typically 19 to 25 mm ( ⁄4 to 1 in.)
with the standard.
wide. Whichever tape is chosen should be agreed upon by
1.3 This international standard was developed in accor-
customer and supplier.
dance with internationally recognized principles on standard-
4.1.1 Manufacturers storage and shelf-life recommenda-
ization established in the Decision on Principles for the
tions should be followed or acceptability determined through
Development of International Standards, Guides and Recom-
real-time aging and laboratory tests. Test Method D3330/
mendations issued by the World Trade Organization Technical
D3330M gives guidance on testing. Again, as stated in 3.3,
Barriers to Trade (TBT) Committee.
acceptability criteria is a matter of agreement between cus-
tomer and supplier.
2. Referenced Documents
2.1 ASTM Standards:
5. Sampling
D3330/D3330M Test Method for PeelAdhesion of Pressure-
5.1 The number of samples tested should be adequate to be
Sensitive Tape
predictive of performance. Caution should be taken when
E171/E171M Practice for Conditioning and Testing Flexible
eliminating samples with defects as this can bias results.
Barrier Packaging
6. Conditioning
3. Significance and Use
6.1 Conditioning of the samples will depend on the material
3.1 Poor adhesion of ink or coating to the base substrate can
under evaluation. If conditioning before testing is appropriate,
impact the readability of printed materials, affect the function-
normal, and desirable, refer to E171/E171M for guidance.
ality of coated materials, or create a source of contamination.
This practice provides a means for evaluating the adhesion of
6.2 Before testing catalyzed or cured inks or coatings, or
ink or coating to a flexible packaging material.
both, ensure that the samples have been exposed to the
appropriate conditions for sufficient time to allow complete
cure.
This practice is under the jurisdiction of ASTM
...
