ASTM B897-23

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: B897 − 18 B897 − 23
Standard Specification for
Configuration of Zinc and Zinc Alloy Jumbo, Block, Half
Block, and Slab Ingot
This standard is issued under the fixed designation B897; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*Scope
1.1 This specification covers zinc and zinc alloy jumbo, block, half block, and slab ingot meeting dimensional requirements.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to become familiar with all hazards including those identified in the appropriate Safety Data Sheet
(SDS) for this product/material as provided by the manufacturer, to establish appropriate safety, health, and environmental
practices, and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 The following standards of the issue in effect on date of order acceptance, form a part of this specification to the extent
referenced herein:
2.2 ASTM Standards:
B6 Specification for Zinc
B852 Specification for Continuous Galvanizing Grade (CGG) Zinc Alloys for Hot-Dip Galvanizing of Sheet Steel
B899 Terminology Relating to Non-ferrous Metals and Alloys
B949 Specification for General Requirements for Zinc and Zinc Alloy Products
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
3. Terminology
3.1 Terms shall be defined in accordance with Terminology B899.
3.2 Definitions of Terms Specific to This Standard:
This specification is under the jurisdiction of ASTM Committee B02 on Nonferrous Metals and Alloys and is the direct responsibility of Subcommittee B02.04 on Zinc
and Cadmium.
Current edition approved Nov. 1, 2018April 1, 2023. Published January 2019April 2023. Originally approved in 1999. Last previous edition approved in 20132018 as
B897 – 13. DOI: 10.1520/B0897-18.18. DOI: 10.1520/B0897-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B897 − 23
3.2.1 jumbo ingot, n—large casting of zinc or zinc alloy, having through holes for chains, designed for handling by mechanical
equipment, with a nominal weight of 2400 pounds, 2400 lb, which is also referred to as a jumbo or strip jumbo.
3.2.2 block ingot, n—large casting of zinc or zinc alloy, having lift pockets, designed for handling by mechanical equipment, with
a nominal weight of 2400 pounds,lb, which is also referred to as a block.
3.2.3 half block ingot, n—large casting of zinc or zinc alloy, having lift pockets, designed for handling by mechanical equipment,
with a nominal weight of 1200 pounds, 1200 lb, which is also referred to as half block.
3.2.4 slab ingot, n—smaller casting of zinc or zinc alloy designed for manual handling, but often handled by mechanical
equipment, with a nominal weight of 55 pounds, 55 lb, which is also referred to as slab.
3.2.5 slab bundle, n—arrangement of typically 40 slab ingots strapped with metal or other binding, with nominal weight of 2200
pounds, 2200 lb, which is also referred to as bundle. The bundle may be stacked on a wood or other skid.
4. Ordering Information
4.1 Orders for jumbo, block, half block, or slab ingots under this specification shall include the following information in addition
to the appropriate information specified in Specification B949, Section 4:
4.1.1 Type of ingot (Jumbo, Type 1 Block, Type 2 Block, Half Block Type 1, Half Block Type 2, or Slab).
4.1.2 Order may stipulate dimensions, or tolerances, or both, not meeting this specification only upon mutual written agreement
between purchaser and producer.
5. Materials and Manufacture
5.1 The producer shall use care to have each lot of zinc metal or zinc alloy jumbo, block, half block, or slab ingots be of as uniform
quality as possible.
6. Dimensions, Mass, and Permissible Variations
6.1 Jumbo Ingots:

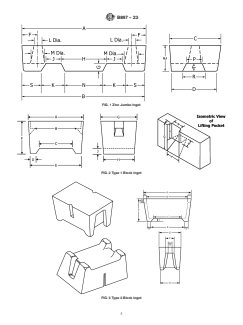

TABLE 1 Zinc Jumbo Ingot Specification
Weight 24002400 lb ± 100 lb (1089(1089 kg ± 45 kg)
Table of Dimensions
Drawing
Identification Dimension Definition Dimension, in. Dimension, mm
Letter
min max min max
A Top length 48.75 50.25 1238 1276
A
B Bottom overall length 46.00 48.00 1168 1219
C Top width 19.25 20.25 489 514
0.5C Center of pin hole to length edge 9.63 10.13 245 257
A
D Bottom overall width 16.50 18.50 419 470
B
E Height 11.75 13.25 298 337
F Center of pin hole to end edge 5.75 6.75 146 171
G Height of side fork slots 3.00 4.00 76 102
J Upper width of side fork slot 5.50 8.00 140 203
K Lower width of side fork slot 8.00 10.50 203 267
L Top pin hole diameter 3.00 5.00 76 127
B
M Bottom pin hole diameter 4.50 6.50 114 165
N Bottom center leg width 11.50 15.25 292 387
B,C
P Upper width of end fork slot 5.50 8.00 140 203
C
R Lower width of end fork slot 7.50 10.00 191 254
S Lower outer leg(s) length 6.50 8.00 165 203
T Height of end fork slot 3.00 4.00 76 102
A
Dimensions with curved corners are measured by placing straight edges on both
sides of the curve and using the intersecting point for the reference measurement.
B
Minimum P dimension must be greater than the M dimension maximum.
C
Minimum R dimension must be greater than the P dimension maximum.
B897 − 23
TABLE 2 Zinc Block Ingot Specification
Weight 24002400 lb ± 100 lb (1089 ± 45 kg)(1089 kg ± 45 kg)
Table of Dimensions
Drawing
Identification Dimension Definition Dimension, in. Dimension, mm
Letter
min max min max
A Top length 29.50 33.00 749 838
E Bottom length 23.00 30.25 584 768
G Top width 19.25 23.00 489 584
H Bottom width 14.00 19.25 356 489
F Height 18.50 23.50 470 597
C Lower width of side fork slot 14.75 20.00 375 508
D Lower leg length 2.25 4.25
...
