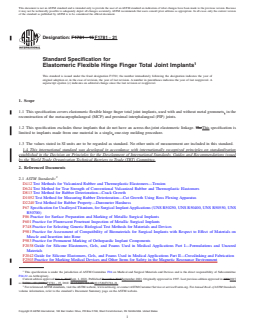

ASTM F1781-21

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

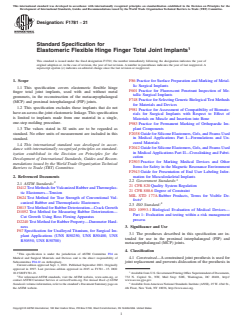

Designation: F1781 − 15 F1781 − 21
Standard Specification for
Elastomeric Flexible Hinge Finger Total Joint Implants
This standard is issued under the fixed designation F1781; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers elastomeric flexible hinge finger total joint implants, used with and without metal grommets, in the
reconstruction of the metacarpophalangeal (MCP) and proximal interphalangeal (PIP) joints.
1.2 This specification excludes those implants that do not have an across-the-joint elastomeric linkage. TheThis specification is
limited to implants made from one material in a single, one-step molding procedure.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D412 Test Methods for Vulcanized Rubber and Thermoplastic Elastomers—Tension
D624 Test Method for Tear Strength of Conventional Vulcanized Rubber and Thermoplastic Elastomers
D813 Test Method for Rubber Deterioration—Crack Growth
D1052 Test Method for Measuring Rubber Deterioration—Cut Growth Using Ross Flexing Apparatus
D2240 Test Method for Rubber Property—Durometer Hardness
F67 Specification for Unalloyed Titanium, for Surgical Implant Applications (UNS R50250, UNS R50400, UNS R50550, UNS
R50700)
F86 Practice for Surface Preparation and Marking of Metallic Surgical Implants
F601 Practice for Fluorescent Penetrant Inspection of Metallic Surgical Implants
F748 Practice for Selecting Generic Biological Test Methods for Materials and Devices
F981 Practice for Assessment of Compatibility of Biomaterials for Surgical Implants with Respect to Effect of Materials on
Muscle and Insertion into Bone
F983 Practice for Permanent Marking of Orthopaedic Implant Components
F2038 Guide for Silicone Elastomers, Gels, and Foams Used in Medical Applications Part I—Formulations and Uncured
Materials
F2042 Guide for Silicone Elastomers, Gels, and Foams Used in Medical Applications Part II—Crosslinking and Fabrication
F2503 Practice for Marking Medical Devices and Other Items for Safety in the Magnetic Resonance Environment
This specification is under the jurisdiction of ASTM Committee F04 on Medical and Surgical Materials and Devices and is the direct responsibility of Subcommittee
F04.22 on Arthroplasty.
Current edition approved Oct. 1, 2015Sept. 1, 2021. Published December 2015September 2021. Originally approved in 1997. Last previous edition approved in 20092015
as F1781 – 03 (2009).F1781 – 15. DOI: 10.1520/F1781-15.10.1520/F1781-21.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

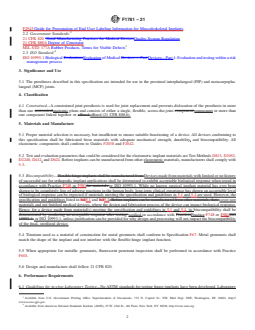

F1781 − 21
F2943 Guide for Presentation of End User Labeling Information for Musculoskeletal Implants
2.2 Government Standards:
21 CFR 820 Good Manufacturing Practices for Medical DevicesQuality System Regulation
21 CFR 888.6 Degree of Constraint
MIL STD 177A Rubber Products, Terms for Visible Defects
2.3 ISO Standard:
ISO 10993-1 Biological EvaluationsEvaluation of Medical Devices — Part Devices—Part 1: Evaluation and testing within a risk
management process
3. Significance and Use
3.1 The prostheses described in this specification are intended for use in the proximal interphalangeal (PIP) and metacarpopha-
langeal (MCP) joints.
4. Classification
4.1 Constrained—A constrained joint prosthesis is used for joint replacement and prevents dislocation of the prosthesis in more
than one anatomicalanatomic plane and consists of either a single, flexible, across-the-joint component,component or more than
one component linked together or affined.affined (21 CFR 888.6).

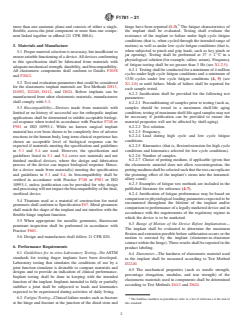

5. Materials and Manufacture
5.1 Proper material selection is necessary, but insufficient to ensure suitable functioning of a device. All devices conforming to
this specification shall be fabricated from materials with adequate mechanical strength, durability, and biocompatibility. All
elastomeric components shall conform to Guides F2038 and F2042.
5.2 Test and evaluation parameters that could be considered for the elastomeric implant materials are Test Methods D813, D1052,
D2240, D412, and D624. Before implants can be manufactured from other elastomeric materials, manufacturers shall comply with
5.3.
5.3 Biocompatibility—Flexible hinge implants shall be manufactured from Devices made from materials with limited or no history
of successful use for orthopedic implant applications shall be determined to exhibit acceptable biological response when tested in
accordance with Practice F748 or F981the materials or ISO 10993-1. While no known surgical implant material has ever been
shown to be completely free of adverse reactions in the human body, long-term clinical experience has shown an acceptable level
of biological response can be expected if materials meeting the specification and guidelines in 5.1 and 5.4 are used. However, the
specification and guidelines listed in 5.25.1 and 5.35.4. Before implants can be manufactured from other materials, their cover raw
materials and not finished medical devices, where the design and fabrication process of the device can impact biological response.
Hence, for a device made from material(s) meeting the specification and guidelines in 5.1 and 5.4, its biocompatibility shall be
demonstrated by producing an acceptable response after testing verified in accordance with PracticesPractice F748 or F981ISO
10993-1. or ISO 10993-1, unless justification can be provided for why design and processing will not impact the biocompatibility
of the final, sterilized device.
5.4 Titanium used as a material of construction for metal grommets shall conform to Specification F67. Metal grommets shall
match the shape of the implant and not interfere with the flexible hinge implant function.
5.5 When appropriate for metallic grommets, fluorescent penetrant inspection shall be performed in accordance with Practice
F601.
5.6 Design and manufacture shall follow 21 CFR 820.
6. Performance Requirements
6.1 Guidelines for in-vitro Laboratory Testing—No ASTM standards for testing finger implants have been developed. Laboratory
Available from U.S. Government Printing Office Superintendent of Documents, 732 N. Capitol St., NW, Mail Stop: SDE, Washington, DC 20401, http://
www.access.gpo.gov.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.

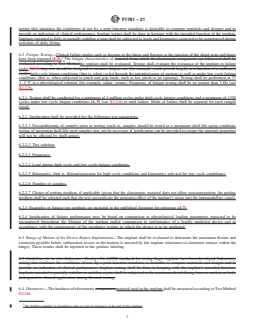

F1781 − 21
testing that simulates the conditions of use by a joint function simulator is desirable to compare materials and designs and to
provide an indication of clinical performance. Implant testing shall be done in keeping with the intended function of the implant.
Implants intended to fully or partially stabilize a joint shall be subjected to loads and kinematics expected to be experienced during
activities of daily living.
6.2 Fatigue Testing—Clinical failure modes such as fracture at the hinge and fracture at the junction of the distal stem and hinge
have been reported (1-3). The fatigue characteristics of material from which the elastomeric components are fabricated shall be
evaluated according to Test Methodthe implant shall be evaluated. Testing shall evaluate the resistance of the implant to failure
under D813. Any test should be designed to measure fatigue rate (for example, crack growth length) as a function of a million(s)
cycles.high cycle fatigue conditions (that is, when cycled through the intended range of motion) as well as under low cycle fatigue
conditions (that is, when subjected to pinch and grip loads, such as key pinch or jar opening). Testing shall be performed at 37
6 2 °C in a physiological solution (for example, saline, serum). Frequency of fatigue testing shall be no greater than 3 Hz (see
X1.2.5).
6.2.1 Testing shall be conducted for a minimum of 4 million cycles under high cycle fatigue conditions and a minimum of 1330
cycles under low cycle fatigue conditions (4, 5) (see X1.2.6) or until failure. Mode of failure shall be reported for each sample
tested.
6.2.2 Justification shall be provided for the following test parameters:
6.2.2.1 Preconditioning of samples prior to testing (such as, samples should be tested in a maximum shelf-life aging condition;
testing of maximum shelf-life aged samples may not be necessary if justification can be provided to ensure the material properties
will not be affected by shelf-aging).
6.2.2.2 Test solution.
6.2.2.3 Frequency.
6.2.2.4 Load during high cycle and low cycle fatigue conditions.
6.2.2.5 Kinematics (that is, flexion/extension for high cycle conditions and kinematics selected for low cycle conditions).
6.2.2.6 Number of samples.
6.2.2.7 Choice of potting medium, if applicable (given that the elastomeric material does not allow osseointegration, the potting
medium shall be selected such that the test can replicate the pistoning effect of the implant’s stems into the intramedullary canal).
6.2.3 Examples of fatigue test methods are included in the published literature for reference (4-7).
6.2.4 Justification of fatigue performance may be based on comparison to physiological loading parameters expected to be
encountered throughout the lifetime of the implant and/or comparison to performance of a legally marketed device and in
accordance with the requirements of the regulatory regime in which the device is to be marketed.
6.3 Range of Motion of the Device Before Implantation—The implant shall be evaluated to determine the maximum flexion and
extension possible before subluxation occurs or the motion is arrested by the implant (elastomer-to-elastomer contact within the
hinge). These results shall be reported in the product labeling.
6.3 Guidelines for in vitro Laboratory Testing—No ASTM standards for testing finger implants have been developed. Laboratory
testing that simulates the conditions of use, by a joint function simulator, is desirable to compare materials and designs and to
provide an indication of clinical performance. Implant testing shall be done in keeping with the implant’s intended function.
Implants intended to partially stabilize or stabilize a joint shall be subjected to the maximum destabilizing force or motion, or both,
anticipated in clinical application during flexural testing.
6.4 Durometer—The hardness of elastomeric components material used in the implant shall be measured according to Test Method
D2240.
The boldface numbers in parentheses refer to a list of references at the end of this standard.
F1781 − 21
6.5 The mechanical properties (such as tensile strength, percentage elongation, modulus, and tear strength) of the elastomeric
materials used in components shall be determined according to Test Methods D412 and D624.

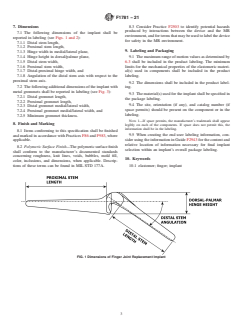

7. Dimensions
7.1 The following dimensions of finger and joint replacement components the implant shall be reported in labeling (see Figs. 1
and 2):
7.1.1 Distal stem length,
7.1.2 Proximal stem length,
7.1.3 Hinge width in medial/lateral plane,
7.1.4 Hinge height in dorsal/palmar plane,
7.1.5 Distal stem width,
7.1.6 Proximal stem width, and
7.1.7 Distal-proximal hinge width.width, and
7.1.8 Angulation of the distal stem axis with respect to the proximal stem axis.
7.2 The following additional dimensions of fingerthe implant with metal grommets shall be reported in labeling (see Fig. 3):
7.2.1 Distal stemgrommet length,
7.2.2 Proximal stemgrommet length,
7.2.3 Distal grommet length,medial/lateral width,
7.2.4 Proximal grommet length, medial/lateral width, and
7.2.5 Hinge height in dorsal/palmar plane.Minimum grommet thickness.

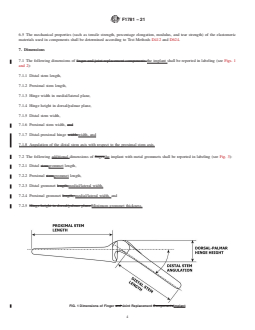

FIG. 1 Dimensions of Finger and Joint Replacement ComponentsImplant
F1781 − 21

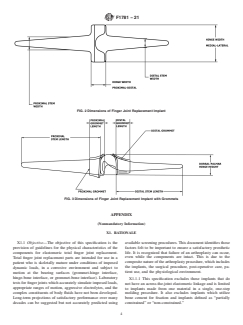

FIG. 2 Dimensions
...
