IEC 61850-8-1:2011 specifies a method of exchanging time-critical and non-time-critical data through local-area networks by mapping ACSI to MMS and ISO/IEC 8802-3 frames. Defines a standardized method of using the ISO 9506 services to implement the exchange of data. For those ACSI services defined in IEC 61850-7-2 that are not mapped to MMS, this part defines additional protocols. It describes real utility devices with respect to their external visible data and behaviour using an object oriented approach. The objects are abstract in nature and may be used to a wide variety of applications. The use of this mapping goes far beyond the application in the utility communications. The main changes with respect to the previous edition are listed below:  - the support of gigabit Ethernet,   - the link layer redundancy,  - the extension of the length of the object reference,  - the extension of the reason for inclusion type for comprehensive logging,  - the mapping of the tracking services,  - a second mapping of the objectReference when used in the tracking services, or as linking,  - the extension of the AdditionalCause enumeration,  - the simulation of GOOSE telegram,  - the so-called fixed-length encoded GOOSE,  - the removal of the SCL Control Block.

Kommunikationsnetze und -systeme für die Automatisierung der elektrischen Energieversorgung - Teil 8-1: Spezifische Abbildung von Kommunikationsdiensten (SCSM) - Abbildungen auf MMS (nach ISO 9506-1 und ISO 9506-2) und ISO/IEC 8802-3

Réseaux et systèmes de communication pour l’automatisation des systèmes électriques - Partie 8-1: Mise en correspondance des services de communication spécifiques (SCSM) - Mises en correspondance pour MMS (ISO 9506-1 et ISO 9506-2) et pour l’ISO/CEI 8802-3

La CEI 61850-8-1:2011 spécifie une méthode d'échange de données prioritaires et de données non prioritaires par l'intermédiaire de réseaux locaux par la mise en correspondance de l'ACSI avec les trames MMS et ISO/CEI 8802-3. Définit une méthode normalisée d'utilisation des services ISO 9506 pour mettre en oeuvre l'échange de données. Pour ces services ACSI définis dans la CEI 61850-7-2 qui ne sont pas mis en correspondance en MMS, cette partie définit des protocoles additionnels. Elle décrit des équipements de distribution réels en fonction de leurs données et comportements visibles externes en utilisant une approche orientée objet. Les objets sont de nature abstraite et peuvent être utilisés dans des applications très diverses. L'utilisation de cette mise en correspondance dépasse l'application dans les communications de distribution. Les principales modifications apportées à l'édition précédente sont les suivantes:  - la prise en charge d'Ethernet gigabit,  - la redondance de couche liaison,  - l'extension de la longueur de la référence d'objet,  - l'extension de la raison du type d'inclusion pour une journalisation complète,  - la mise en correspondance des services de suivi,  - une deuxième mise en correspondance de la référence d'objet lorsqu'elle est utilisée dans les services de suivi, ou en tant que lien,  - l'extension de l'énumération AdditionalCause,  - la simulation de télégramme GOOSE,  - le GOOSE nommé codé de longueur fixe,  - l'élimination du bloc de commande SCL.

Komunikacijska omrežja in sistemi za avtomatizacijo porabe električne energije - 8-1. del: Preslikava posebne komunikacijske storitve - Preslikave v MMS (ISO 9506-1 in ISO 9506-2) in v ISO/IEC 8802-3

Ta del IEC 61850 določa metodo izmenjave časovno kritičnih in časovno nekritičnih podatkov prek lokalnih omrežij s preslikavo ACSI v okvire MMS in ISO/IEC 8802-3. Storitve in protokol MMS so določeni za delovanje v vseh komunikacijskih profilih, združljivih z OST in TCP. Z uporabo MMS se zagotovi podpora centraliziranih in porazdeljenih arhitektur. Ta standard vključuje izmenjavo prikazov podatkov v realnem času, nadzornih operacij, poročevalnih obvestil.
Določa preslikavo objektov in storitev ACSI (vmesnik abstraktne komunikacijske storitve, IEC 61850-7-2) v okvire MMS (specifikacija industrijskega sporočanja, ISO 9506) in ISO/IEC 8802-3.
Ta standard določa tudi preslikavo časovno kritičnih izmenjav informacij v protokol ne-MMS. Semantike protokola so navedene v IEC 61850-7-2. Vsebuje sintakso protokola, definicijo, preslikavo v formate okvirov ISO/IEC 8802-3 in vse pomembne postopke, specifične za uporabo ISO/IEC 8802-3.
Preslikava ACSI v MMS opredeljuje, kako se izvajajo koncepti, objekti in storitve ASCI s koncepti, objekti in storitvami MMS. Ta preslikava omogoča interoperabilnost med funkcijami, ki jih izvajajo različni proizvajalci.
Ta del IEC 61850 opredeljuje standardizirano metodo z uporabo storitev ISO 9506 pri izvajanju izmenjave podatkov. Za storitve ACSI, opredeljene v IEC 61850-7-2, ki se ne preslikajo v MMS, ta del opredeljuje dodatne protokole. Opisuje realne javne pripomočke v zvezi z zunanje vidljivimi podatki in lastnosti pri uporabi objektno usmerjenega pristopa. Objekti so po svoji naravi abstraktni in se lahko uporabljajo pri zelo različnih aplikacijah. Uporaba te preslikave ni omejena le na uporabo pri javnih komunikacijah.
Ta del IEC 61850 podaja preslikave za storitve in objekte, določene v IEC 61850-7-2, IEC 61850-7-3 in IEC 61850-7-4.

General Information

Status
Published
Publication Date
08-Nov-2011
ICS
29.240.30 - Control equipment for electric power systems
33.200 - Telecontrol. Telemetering
Technical Committee
PSE - Power systems management
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
11-Oct-2011
Due Date
16-Dec-2011
Completion Date
09-Nov-2011
Mandate
M/490 - Standardisation mandate to the European Standardisation Organisations (ESOs) to support European Smart Grid deployment
Ref Project
EN 61850-8-1:2011 - Communication networks and systems for power utility automation - Part 8-1: Specific communication service mapping (SCSM) - Mappings to MMS (ISO 9506-1 and ISO 9506-2) and to ISO/IEC 8802-3

Relations

Replaces
SIST EN 61850-8-1:2005 - Communication networks and systems in substations -- Part 8-1: Specific Communication Service Mapping (SCSM) - Mappings to MMS (ISO 9506-1 and ISO 9506-2) and to ISO/IEC 8802-3
Effective Date
01-Dec-2011
Amended By
SIST EN 61850-8-1:2011/A1:2020 - Communication networks and systems for power utility automation - Part 8-1: Specific communication service mapping (SCSM) - Mappings to MMS (ISO 9506-1 and ISO 9506-2) and to ISO/IEC 8802-3
Effective Date
01-Jun-2020
SIST EN 61850-8-1:2011SIST EN 61850-8-1:2011
PreviousNext
Standard
SIST EN 61850-8-1:2011
English language
196 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-december-2011
.RPXQLNDFLMVNDRPUHåMDLQVLVWHPL]DDYWRPDWL]DFLMRSRUDEHHOHNWULþQHHQHUJLMH
GHO3UHVOLNDYDSRVHEQHNRPXQLNDFLMVNHVWRULWYH3UHVOLNDYHY006 ,62
LQ,62 LQY,62,(&
Communication networks and systems for power utility automation - Part 8-1: Specific
Communication Service Mapping (SCSM) - Mappings to MMS (ISO 9506-1 and ISO
9506-2) and to ISO/IEC 8802-3
Kommunikationsnetze und -systeme für die Automatisierung der elektrischen
Energieversorgung - Teil 8-1: Spezifische Abbildung von Kommunikationsdiensten
(SCSM) - Abbildungen auf MMS (nach ISO 9506-1 und ISO 9506-2) und ISO/IEC 8802-3
Réseaux et systèmes de communication pour l’automatisation des systèmes électriques
- Partie 8-1: Mise en correspondance des services de communication spécifiques
(SCSM) - Mises en correspondance pour MMS (ISO 9506-1 et ISO 9506-2) et pour
l’ISO/CEI 8802-3
Ta slovenski standard je istoveten z: EN 61850-8-1:2011
ICS:
29.240.30 Krmilna oprema za Control equipment for electric
elektroenergetske sisteme power systems
33.200 Daljinsko krmiljenje, daljinske Telecontrol. Telemetering
meritve (telemetrija)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61850-8-1
NORME EUROPÉENNE
September 2011
EUROPÄISCHE NORM
ICS 33.200 Supersedes EN 61850-8-1:2004

English version
Communication networks and systems for power utility automation -
Part 8-1: Specific communication service mapping (SCSM) -
Mappings to MMS (ISO 9506-1 and ISO 9506-2) and to ISO/IEC 8802-3
(IEC 61850-8-1:2011)
Réseaux et systèmes de communication Kommunikationsnetze und -systeme für
pour l'automatisation des systèmes die Automatisierung der elektrischen
électriques - Energieversorgung -
Partie 8-1: Mise en correspondance des Teil 8-1: Spezifische Abbildung von
services de communication spécifiques Kommunikationsdiensten (SCSM) -
(SCSM) - Abbildungen auf MMS (nach ISO 9506-1
Mises en correspondance pour MMS (ISO und ISO 9506-2) und ISO/IEC 8802-3
9506-1 et ISO 9506-2) et (IEC 61850-8-1:2011)
pour l'ISO/CEI 8802-3
(CEI 61850-8-1:2011)
This European Standard was approved by CENELEC on 2011-07-22. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61850-8-1:2011 E

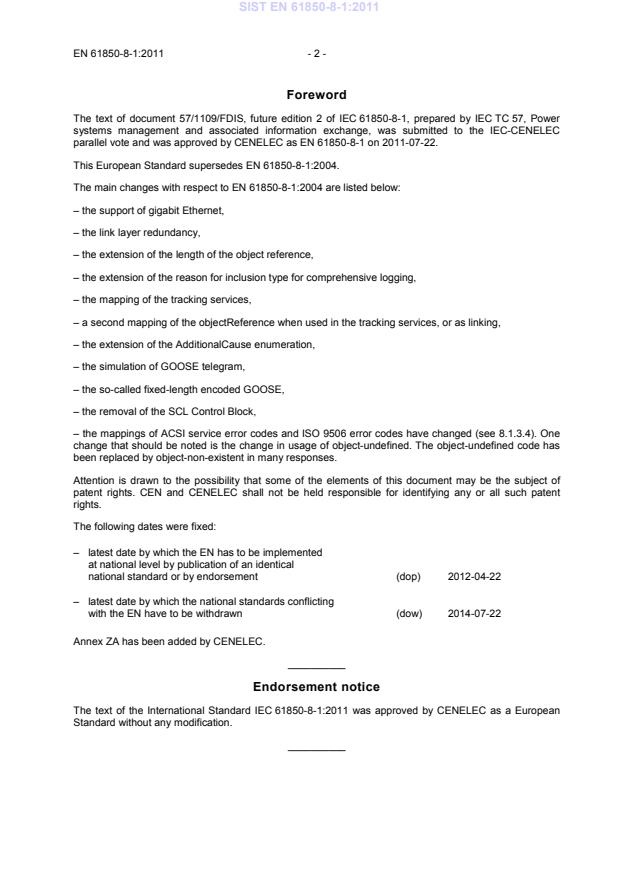

Foreword
