SIST EN 50288-3-1:2013

SLOVENSKI STANDARD
01-oktober-2013
9HþHOHPHQWQLNRYLQVNLNDEOL]DDQDORJQHLQGLJLWDOQHNRPXQLNDFLMHLQNUPLOMHQMH
GHO3RGURþQDVSHFLILNDFLMD]DQH]DVORQMHQHNDEOH]ODVWQRVWPLGR0+]
+UEWHQLþQLNDEOL]DYRGRUDYQRPRQWDåRLQPRQWDåRYVWDYEDK
Multi-element metallic cables used in analogue and digital communication and control -
Part 3-1: Sectional specification for unscreened cables characterised up to 100 MHz -
Horizontal and building backbone cables
Mehradrige metallische Daten- und Kontrollkabel für analoge und digitale Übertragung -
Teil 3-1: Rahmenspezifikation für ungeschirmte Kabel bis 100 MHz - Kabel für den
Horizontal- und Steigbereich
Câbles métalliques à éléments multiples utilisés pour les transmissions et les
commandes analogiques et numériques - Partie 3-1: Spécification intermédiaire pour les
câbles non blindés pour applications jusqu'à 100 MHz - Câbles horizontaux et verticaux
de bâtiment
Ta slovenski standard je istoveten z: EN 50288-3-1:2013
ICS:
33.120.20 äLFHLQVLPHWULþQLNDEOL Wires and symmetrical
cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50288-3-1
NORME EUROPÉENNE
May 2013
EUROPÄISCHE NORM
ICS 33.120.20 Supersedes EN 50288-3-1:2003

English version
Multi-element metallic cables used in analogue and digital communication
and control -
Part 3-1: Sectional specification for unscreened cables characterised up
to 100 MHz -
Horizontal and building backbone cables

Câbles métalliques à éléments multiples Mehradrige metallische Daten- und
utilisés pour les transmissions et les Kontrollkabel für analoge und digitale
commandes analogiques et numériques - Übertragung -
Partie 3-1: Spécification intermédiaire Teil 3-1: Rahmenspezifikation für
pour les câbles non blindés pour ungeschirmte Kabel bis 100 MHz -
applications jusqu'à 100 MHz - Kabel für den Horizontal- und
Câbles horizontaux et verticaux de Steigbereich
bâtiment
This European Standard was approved by CENELEC on 2013-03-18. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50288-3-1:2013 E

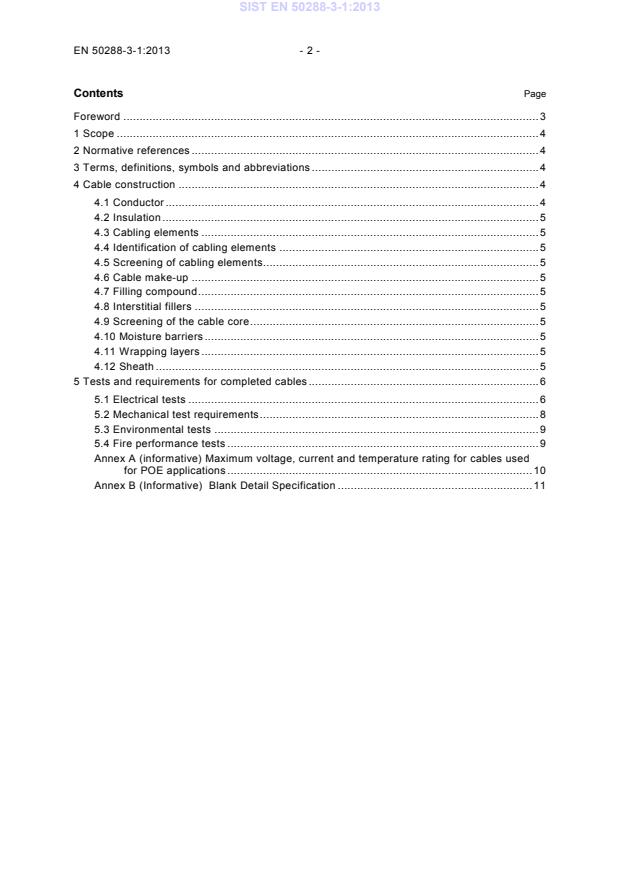

Contents  Page
Foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms, definitions, symbols and abbreviations . 4
4 Cable construction . 4
4.1 Conductor . 4
4.2 Insulation . 5
4.3 Cabling elements . 5
4.4 Identification of cabling elements . 5
4.5 Screening of cabling elements . 5
4.6 Cable make-up . 5
4.7 Filling compound . 5
4.8 Interstitial fillers . 5
4.9 Screening of the cable core . 5
4.10 Moisture barriers . 5
4.11 Wrapping layers . 5
4.12 Sheath . 5
5 Tests and requirements for completed cables . 6
5.1 Electrical tests . 6
5.2 Mechanical test requirements . 8
5.3 Environmental tests . 9
5.4 Fire performance tests . 9
Annex A (informative) Maximum voltage, current and temperature rating for cables used
for POE applications . 10
Annex B (Informative) Blank Detail Specification . 11

- 3 - EN 50288-3-1:2013
Foreword
This document EN 50288-3-1:2013 has been prepared by CLC/SC 46XC "Multicore, Multipair and Quad
Data communication cables", of CLC/TC 46X, "Communication cables".
The following dates are fixed:
• latest date by which this document has to
(dop) 2014-03-18
be implemented at national level by publication
of an identical national standard or by
endorsement
• latest date by which the national standards
(dow) 2016-03-18
conflicting with this document have to
be withdrawn
This document supersedes EN 50288-3-1:2003.
− the addition of the Blank Detail Specification Annex;
− a number minor corrections and updating of references;
− the re-classification of ‘ELFEXT’ to ‘ACR-F’.
This Part 3-1 is to be read in conjunction to EN 50288-1.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed for
Use within Certain Voltage Limits (LVD - 2006/95/EC).

1 Scope
EN 50288-3-1 is a sectional specification for unscreened cables, characterised from 1 MHz up to 100 MHz,
to be used in horizontal and building backbone wiring as defined in EN 50173.
This sectional specification contains the electrical, mechanical, transmission and environmental
performance characteristics of the cables, when tested in accordance with the referenced test methods.
This sectional specification is to be read in conjunction with EN 50288-1, which contains the essential
provisions for its application.
The cables covered in this sectional specification are intended to operate with voltages and currents
normally encountered in communication systems. These cables are not intended to be used in conjunction
with low impedance sources, for example, the electric power supplies of public utility mains.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 50173 Series Information technology - Generic cabling systems
EN 50288-1 Multi-element metallic cables used in analogue and digital communication
and control - Part 1: Generic specification
EN 50289 Series Communication cables - Specifications for test methods
EN 50290 Series Communication cables
EN 60811 Series Electric and optical fibre cables - Test methods for non-metallic materials
(IEC 60811 series)
IEC 60189-2 Low-frequency cables and wires with PVC insulation and PVC sheath -
Part 2: Cables in pairs, triples, quads and quintuples for inside installations
3 Terms, definitions, symbols and abbreviations
3.1 Terms and definitions
For the purposes of this document the terms and definitions of EN 50288-1 apply.
3.2 Symbols and abbreviations
For the purposes of this document, the following abbreviations apply.
EX Exogenous (derived or originating externally)
POE Power Over Ethernet
4 Cable construction
4.1 Conductor
The conductor shall be solid copper and meet the requirements of EN 50288-1, 4.1.

- 5 - EN 50288-3-1:2013
The conductor shall be plain or metal coated.
The nominal conductor diameter shall be ≥ 0,5 mm and ≤ 0,8 mm.
NOTE Constructions with ‘copper clad’ conductors do not meet the requirements.
4.2 Insulation
The insulation shall be of a suitable material according to the relevant part of EN 50290-2.
4.3 Cabling elements
The cable element shall be a pair or a quad.
4.4 Identification of cabling elements
Unless otherwise specified, the colour coding for identification is given in IEC 60189-2. The colours shall
meet the requirements of EN 50288-1, 4.4.
4.5 Screening of cabling elements
Not applicable.
4.6 Cable make-up
The cable elements shall be laid up in concentric layer(s) or units to form the cable core.
4.7 Filling compound
Not applicable.
4.8 Interstitial fillers
Where fillers are used they shall meet the requirements of EN 50288-1, 4.8.
4.9 Screening of the cable core
Not applicable.
4.10 Moisture barriers
Not applicable.
4.11 Wrapping layers
Where wrapping layers are used they shall be in accordance with EN 50288-1, 4.11.
4.12 Sheath
The sheath shall be of a suitable material according to the relevant part of EN 50290-2.

5 Tests and requirements for completed cables
The following tables give the tests to be applied, together with the respective limits, in order to demonstrate
compliance with this specification.
5.1 Electrical tests
5.1.1 Low-frequency and d.c. electrical measurements
Table 1 - Low-frequency and d.c. electrical measurements
EN 50288-1 Parameter Requirement
sub-clause
5.1.1.1 Conductor loop resistance ≤ 19,0 Ω/100 m
5.1.1.2 Conductor resistance unbalance
≤ 2,0 %
5.1.1.3 Dielectric strength 1,0 kV d.c. or 0,7 kV a.c. for 1 min
conductor/conductor or
2,5 kV d.c. or 1,7 kV a.c. for 2 s
5.1.1.4 Insulation resistance
≥ 5 000 MΩ.km when tested in accordance with
EN 50289-1-4
5.1.1.5 Mutual capacitance No requirement specified
5.1.1.6 Capacitance unbalance to earth
≤ 1 200 pF/km
5.1.2 High-frequency electrical and transmission measurements
...
