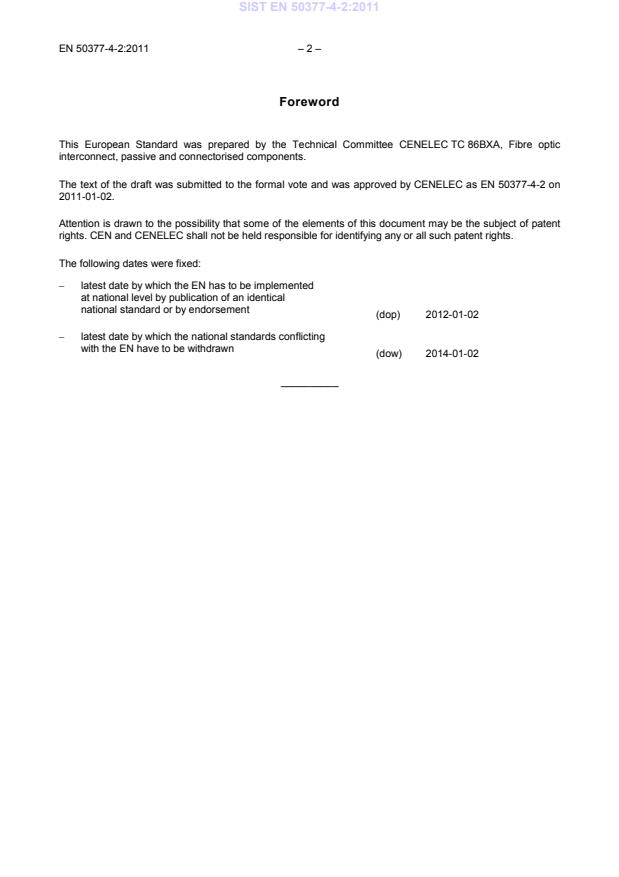

This European Standard was approved by CENELEC on 2011-01-02. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
(dop)
2012-01-02 – latest date by which the national standards conflicting with the EN have to be withdrawn
(dow)
2014-01-02 __________ SIST EN 50377-4-2:2011

– 3 – EN 50377-4-2:2011 Connector sets and interconnect components to be used in optical fibre communication systems – Product specifications Part 4-2: Type SC/APC simplex 8° terminated on IEC 60793-2-50 of types B1.1 and B1.3 singlemode fibre, with full zirconia ferrule category U Description Performance Coupling mechanism: Push-pull Application: For use in EN Category U (uncontrolled environment) Configuration: Plug/adaptor/plug Attenuation grades: (random mate) B: ≤ 0,12 dB mean ≤ 0,25 dB for 97 % of measurements
C: ≤ 0,25 dB mean
≤ 0,50 dB for 97 % of measurements Fibre category: EN 60793-2-50 Types B1.1 and B1.3 Cable type: See Table 3 Return loss grade: (random mate) 1: ≥ 60 dB mated ≥ 55 dB unmated Related documents: EN 60794-2 Optical fibre cables – Part 2: Indoor cables – Sectional specification (IEC 60794-2) EN 61300 series Fibre optic interconnecting devices and passive components – Basic test and measurement procedures (IEC 61300 series) EN 61753-1 Fibre optic interconnecting devices and passive components performance standard – Part 1: General and guidance for performance standards (IEC 61753-1) EN 61754-4 Fibre optic connector interfaces – Part 4: Type SC connector family (IEC 61754-4) EN 61755-1 Fibre optic connector optical interfaces – Part 1: Optical interfaces for single mode non-dispersion shifted fibres – General and guidance (IEC 61755-1) EN 61755-3-2:2009 Fibre optic connector optical interfaces – Part 3-2: Optical interface, 2,5 mm and 1,25 mm diameter cylindrical full zirconia ferrules for 8 degrees angled-PC single mode fibres (IEC 61755-3-2:2006, mod. + corr. Jan. 2009) ETSI EN 300 019 series Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment ETSI TS 100 671 Transmission and Multiplexing (TM); Passive optical components; Optical fibre connectors for single mode optical fibre communication systems; Common requirements and conformance testing Outline and maximum dimensions: 68REF.58 MAX.79REF.60 MAX.
Attenuation against reference . 29A.1Test details . 29A.2Reference connector details. 29Annex B (normative)
Adaptor matched reference plug details . 30Annex C (normative)
Sample size and product sourcing requirements . 31Annex D (informative)
Zirconia ferrule response surface . 32Bibliography . 33 SIST EN 50377-4-2:2011

– 5 – EN 50377-4-2:2011 Figures Figure 1 – Outline dimensions – Plug . 10Figure 2 – Outline dimensions . 11Figure 3 – Plug mating face and other limit dimensions . 12Figure 4 – Adaptor mating face and other limit dimensions . 14Figure 5 – Ferrule endface geometry after termination . 16Figure 6 – Positioning of fibre core . 17Figure 7 – Ferrule end face geometry – Allowable undercut . 18Figure 8 – Requirements for the attenuation grades
for the plug fibre core connected to the ideal reference . 19Figure 9 – Pin gauge for adaptor . 20Figure D.1 – Radius vs. undercut and apex offset. 32 Tables Table 1 – Ensured level of random attenuation . 6Table 2 – Preferred colour scheme . 8Table 3 – Plug variants . 9Table 4 – Adaptor variants . 9Table 5 – Optical interface parameter values for APC ferrules . 16Table 6 – Geometrical parameters . 17Table 7 – Optical performance requirements . 22Table 8 – Mechanical performance requirements . 23Table 9 – Environmental performance requirements . 27Table A.1 – Test details for reference connectors . 29Table C.1 – Sample size and product sourcing requirements . 31 SIST EN 50377-4-2:2011

1.3 Operating environment The tests selected combined with the severities and durations are representative of a category U environment described in EN 61753-1. 1.4 Reliability Whilst the anticipated service life expectancy of the product in this environment is 20 years, compliance with this standard does not guarantee the reliability of the product. This should be predicted using a recognised reliability assessment programme. 1.5 Quality assurance Compliance with this standard does not guarantee the manufacturing consistency of the product. This should be maintained using a recognised quality assurance programme. SIST EN 50377-4-2:2011

– 7 – EN 50377-4-2:2011 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 60793-2-50 Optical fibres – Part 2-50: Product specifications – Sectional specification for class B single-mode fibres (IEC 60793-2-50) EN 61300-2-1 Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-1: Tests – Vibration (sinusoidal) (IEC 61300-2-1) EN 61300-2-2 Part 2-2: Tests – Mating durability (IEC 61300-2-2) EN 61300-2-4 Part 2-4: Tests – Fibre/cable retention (IEC 61300-2-4) EN 61300-2-5 Part 2-5: Tests – Torsion/twist (IEC 61300-2-5) EN 61300-2-6 Part 2-6: Tests – Tensile strength of coupling mechanism (IEC 61300-2-6) EN 61300-2-7 Part 2-7: Tests – Bending moment (IEC 61300-2-7) EN 61300-2-12 Part 2-12: Tests – Impact (IEC 61300-2-12) EN 61300-2-17 Part 2-17: Tests – Cold (IEC 61300-2-17) EN 61300-2-18 Part 2-18: Tests – Dry heat – High temperature endurance (IEC 61300-2-18) EN 61300-2-22 Part 2-22: Tests – Change of temperature (IEC 61300-2-22) EN 61300-2-26 Part 2-26: Tests – Salt mist (IEC 61300-2-26) EN 61300-2-27 Part 2-27: Tests – Dust – Laminar flow (IEC 61300-2-27) EN 61300-2-42 Part 2-42: Tests – Static side load for connectors (IEC 61300-2-42) EN 61300-2-44 Part 2-44: Tests – Flexing of the strain relief of fibre optic devices (IEC 61300-2-44) EN 61300-2-46 Part 2-46: Tests – Damp heat cyclic (IEC 61300-2-46) EN 61300-3-6 Part 3-6: Examinations and measurements – Return loss (IEC 61300-3-6) EN 61300-3-10 Part 3-10: Examinations and measurements – Gauge retention force (IEC 61300-3-10) EN 61300-3-15 Part 3-15: Examinations and measurements – Dome eccentricity of a convex polished ferrule endface (IEC 61300-3-15) EN 61300-3-16 Part 3-16: Examinations and measurements – Endface radius of spherically polished ferrules (IEC 61300-3-16) EN 61300-3-23 Part 3-23: Examination and measurements – Fibre position relative to ferrule endface (IEC 61300-3-23) EN 61300-3-28 Part 3-28: Examinations and measurements – Transient loss (IEC 61300-3-28) EN 61300-3-34 Part 3-34: Examinations and measurements – Attenuation of random mated connectors (IEC 61300-3-34) EN 61300-3-42 Part 3-42: Examinations and measurements – Attenuation of single mode alignment sleeves and or adaptors with resilient alignment sleeves (IEC 61300-3-42) EN 61753-1 Fibre optic interconnecting devices and passive components performance standard – Part 1: General and guidance for performance standards (IEC 61753-1) ISO 8015 Technical drawings – Fundamental tolerancing principle SIST EN 50377-4-2:2011

Covers (dust caps) are provided to protect each port of the adaptor. 3.4 Materials Materials which are not specified or which are not specifically described are left to the discretion of the manufacturer. 3.5 Dimensions Outline dimensions and other dimensions necessary to ensure intermateability or which affect performance are specified. All other dimensions are left to the discretion of the manufacturer. Where the mating face limit dimensions are not in agreement with an IEC Interface Standard this is clearly stated. 3.6 Colour and marking Marking of the product shall be in the following order of precedence: – identification of manufacturer; – manufacturing date code: year/week; – manufacturers part number; – variant identification number. The preferred colour scheme is given in Table 2. Table 2 – Preferred colour scheme Delatch housing SC-APC plug Adaptor Green, RAL 6018 Green, RAL 6018
– 9 – EN 50377-4-2:2011 4 Variants 4.1 Terminated plug The defined fibre/cable variants are given in Table 3. Table 3 – Plug variants
E N 5 0377-4-2- * * -*1
Variant No. Fibre/cable mm Structure Note
01 0,7 - 1,4 Buffered fibre 8 degrees
02 2,0 ± 0,2 Reinforced cable8 degrees
03 2,5 ± 0,2 Reinforced cable8 degrees
04 2,8 ± 0,2 Reinforced cable8 degrees
05 3,0 ± 0,2 Reinforced cable8 degrees
06 3,2 ± 0,2 Reinforced cable8 degrees
Variant Attenuation grade
B B
C C
Code Return loss grade
1 1
4.2 Adaptor The defined adaptor variants are given in Table 4. Table 4 – Adaptor variants
E N 5 0377-4-2- * * *
Variant number Format
A01 Rectangular flange - simplex
Ref. Dimensions Note min. mm max.BH
58 BF
60 Figure 1 – Outline dimensions – Plug SIST EN 50377-4-2:2011

– 11 – EN 50377-4-2:2011 5.1.2 Adaptor Variant No. A01
Ref. Dimensions Note min. mm max.AF 21,5 22,5 AG 17,9 18,1 AH 12,6 13,0 AI 9,2 9,4 AJ 2,2 2,4Diameter AK 27,0 27,8 AL 2,8 3,2 AM 14,4 16,4 AN 7,7 8,0 AO 1,7 2,0See NOTE NOTE Panel thickness should be between 1,0 mm and 1,5 mm. a) Adaptor
Ref. Dimensions Note min. mm max.W 2,4 2,6Diameter X 13,1 13,5 Y 17,9 18,1 Z 9,5 10,0 b) Panel cut out Figure 2 – Outline dimensions SIST EN 50377-4-2:2011

NOTES
See following page. Figure 3 – Plug mating face and other limit dimensions SIST EN 50377-4-2:2011

– 13 – EN 50377-4-2:2011 References Dimensions Note min. mm max. A 2,498 5 2,499 5Diameter d e B 4,80 4,90Diameter C 6,80 7,40 D 4,90 5,30 E 6,70 6,80 F 19 23Degree G 25 35Degree H 7,15 7,50a b β 89,5 90,5Degree I 0,80 1,20 J 5,30 5,50 K -0,10 0,05c L 2,11 2,50 M 2,00 2,80 N 6,60 6,80 O 1,60 1,80 P 8,89 8,99 Q 0,80 1,00 R 7,29 7,39
rS
0,80 0,90Radius T 4,05 4,15 U 5,40 5,60 V 0 0,50 cBC 0 0,50Chamfer EA 90 Degree f a Ferrule compression force shall be from 7,8 N to 11,8 N when the ferrule is compressed to a point where H is (7,00 ± 0,10) mm. b This value shows the dimension after the ferrule is polished and in the unmated condition. c The negative dimension refers to the position of the inside bottom plane in the direction towards the rear of the connector relative to the mechanical reference plane. d Envelope condition in accordance with ISO 8015. e Surface roughness Ra ≤ 0,1 µm. f The dimension EA is defined as an angle between two planes: One plane, plane A, through the axis of the ferrule and the axis of symmetry of the guide key. The other plane, plane B, passes through the axis of the ferrule and the normal to the angle PC reference plane. Figure 3 – Plug mating face and other limit dimensions (continued) SIST EN 50377-4-2:2011

Figure 4 – Adaptor mating face and other limit dimensions SIST EN 50377-4-2:2011

– 15 – EN 50377-4-2:2011 References Dimensions Note min. mm max.A
Diameter a B 4,69 4,79Diameter D 4,9 5,5 H 6,9 7,1 I 0,4 0,8 J 5,51 5,9 K 0,06 1 L 1,9 2,1 O 2,0 2,2 P 9,0 9,1 R 7,4 7,5 S 1,0 1,1 T 3,8 4,04 U 5,0 5,4Degree V 0,6 1,6 AA 27 33Degree AB 0,8 1,0 AC 0,4 0,6 AD 0,7 0,8 AE 0,4 0,6 BA 5,4 5,6 BB 10,8 11,2 a The connector alignment feature is a zirconia ceramic resilient sleeve which is free to move in the adaptor. Alternative materials may be used for the sleeve that have directly compatible materials properties with zirconia. The gauge retention force shall be measured with 2 gauge pins, each inserted to the middle of the alignment feature. The gauge retention force shall be from 2,0 N to 5,9 N, for the extraction of one gauge. The surface roughness of the inside of the alignment sleeve shall be Ra < 0,3 µm. Figure 4 – Adaptor mating face and other limit dimensions (continued) SIST EN 50377-4-2:2011

Figure 5 – Ferrule endface geometry after termination
Table 5 – Optical interface parameter valu
...
