SIST EN 933-10:2009 is a European Standard developed by CEN that specifies a reference method for determining the particle size distribution of filler aggregates up to 2 mm in size, using air jet sieving. This standard applies to natural or manufactured origin filler aggregates and is primarily intended for type testing and dispute resolution. Alternative methods, such as a wet sieving procedure conforming to EN 933-1, exist but have limitations, such as being unsuitable for mixed filler materials.

The method outlined in SIST EN 933-10:2009 is part of a broader series of tests for the geometrical properties of aggregates. It provides a reliable, precise way to assess fines and the grading of filler aggregates, which is critical to quality control and performance assessment in construction materials.

Key Topics

  • Scope and Purpose
    SIST EN 933-10:2009 establishes a reference method for air jet sieving to evaluate particle size distribution of filler aggregates (≤ 2 mm). It is designed for type testing and resolving testing disputes.

  • Test Principle
    The standard employs a dry sieving process using air jets to separate particles based on size. The process involves passing the aggregate through a series of sieves with apertures of 2 mm, 0.125 mm, and 0.063 mm. The mass of material retained on each sieve is measured and expressed as a percentage of the original dry sample mass.

  • Apparatus and Equipment
    Equipment must conform with EN 932-5 general requirements, including:

    • Air jet sieving apparatus operating at a controlled air pressure difference of (3.0 ± 0.5) kPa
    • Test sieves with round frames and precise square aperture sizes (0.063 mm, 0.125 mm, 2 mm)
    • Thermostatically controlled ventilated oven for drying samples to constant mass (110 ± 5 °C)

  • Sample Preparation and Testing Procedure
    Test portions of approximately 50 g are dried, cooled, and weighed. The sieving follows with measured timing and pressure controls to ensure separation without particle agglomeration or electrostatic interference.

  • Calculations and Reporting
    Results include the mass retained on each sieve as percentage values and cumulative percentages passing each sieve. The test report must reference the standard, sample identification, laboratory details, and test results. Optional graphical data presentations can enhance interpretation.

  • Precision
    Repeatability and reproducibility tests indicate high reliability, with values of r = 3% and R = 3.5% respectively, ensuring consistent results.

Applications

  • Aggregate Quality Control
    SIST EN 933-10:2009 is essential for producers and users of filler aggregates, ensuring that fines and particle size distributions meet strict specifications for construction applications.

  • Type Testing and Certification
    Certification bodies and laboratories use this standard to perform compliance testing for natural or manufactured filler aggregates.

  • Dispute Resolution
    The standard serves as the authoritative reference method in cases where disagreements arise on aggregate grading results.

  • Factory Production Control
    While the described method is for type testing, manufacturers can develop factory-control procedures linked to this reference method to assure ongoing product quality.

  • Road and Asphalt Mixing
    Accurate grading of filler aggregates is critical in bituminous mixtures for roads and pavements, influencing durability and performance.

Related Standards

  • EN 933 Series (Geometrical Properties of Aggregates)

    • EN 933-1: Particle size distribution - Sieving method (wet sieving alternative)
    • EN 933-2: Test sieves - Aperture sizes and calibration
    • EN 933-3 to EN 933-11: Other aggregate shape, composition, and fines assessment methods

  • EN 932 Series

    • General properties testing and sample preparation for aggregates

  • EN 1097 Series

    • Mechanical and physical properties testing of aggregates

  • EN 1367 Series

    • Thermal and weathering property tests for aggregates

  • EN 1744 Series

    • Tests focused on chemical properties of aggregates

  • EN 13179

    • Tests specific for filler aggregates used in bituminous mixtures

By integrating SIST EN 933-10:2009 into aggregate testing protocols, stakeholders can achieve precise, reproducible measurement of filler grading, ensuring optimal material performance in construction and infrastructure projects. This contributes to higher quality, safety, and regulatory compliance within the construction materials industry.

Frequently Asked Questions

SIST EN 933-10:2009 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Tests for geometrical properties of aggregates - Part 10: Assessment of fines - Grading of filler aggregates (air jet sieving)". This standard covers: This European Standard describes the reference method used for type testing and in cases of dispute for determining the particle size distribution up to 2 mm size of natural or manufactured origin filler aggregate using air jet sieving. For other purposes, in particular factory production control, other methods may be used provided that an appropriate working relationship with the reference method has been established. NOTE A wet sieving procedure conforming to EN 933-1 can be used as an alternative method. However, this procedure is not applicable for mixed filler.

This European Standard describes the reference method used for type testing and in cases of dispute for determining the particle size distribution up to 2 mm size of natural or manufactured origin filler aggregate using air jet sieving. For other purposes, in particular factory production control, other methods may be used provided that an appropriate working relationship with the reference method has been established. NOTE A wet sieving procedure conforming to EN 933-1 can be used as an alternative method. However, this procedure is not applicable for mixed filler.

SIST EN 933-10:2009 is classified under the following ICS (International Classification for Standards) categories: 91.100.15 - Mineral materials and products. The ICS classification helps identify the subject area and facilitates finding related standards.

SIST EN 933-10:2009 has the following relationships with other standards: It is inter standard links to SIST EN 933-10:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase SIST EN 933-10:2009 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.

Standards Content (Sample)


SLOVENSKI STANDARD
01-oktober-2009
1DGRPHãþD
SIST EN 933-10:2002
3UHVNXVLJHRPHWULþQLKODVWQRVWLDJUHJDWRYGHO8JRWDYOMDQMHILQLKGHOFHY
=UQDYRVWNDPHQHPRNH VHMDQMH]]UDþQLPFXUNRP
Tests for geometrical properties of aggregates - Part 10: Assessment of fines - Grading
of filler aggregates (air jet sieving)
Prüfverfahren für geometrische Eigenschaften von Gesteinskörnungen - Teil 10:
Beurteilung von Feinanteilen - Kornverteilung von Füller (Luftstrahlsiebung)
Essais pour déterminer les caractéristiques géométriques des granulats - Partie 10:
Détermination des fines - Granularité des fillers (tamisage dans un jet d'air)
Ta slovenski standard je istoveten z: EN 933-10:2009
ICS:
91.100.15 Mineralni materiali in izdelki Mineral materials and
products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 933-10
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2009
ICS 91.100.15 Supersedes EN 933-10:2001
English Version
Tests for geometrical properties of aggregates - Part 10:
Assessment of fines - Grading of filler aggregates (air jet
sieving)
Essais pour déterminer les caractéristiques géométriques Prüfverfahren für geometrische Eigenschaften von
des granulats - Partie 10: Détermination des fines - Gesteinskörnungen - Teil 10: Beurteilung von Feinanteilen -
Granularité des fillers (tamisage dans un jet d'air) Kornverteilung von Füller (Luftstrahlsiebung)
This European Standard was approved by CEN on 12 June 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 933-10:2009: E
worldwide for CEN national Members.

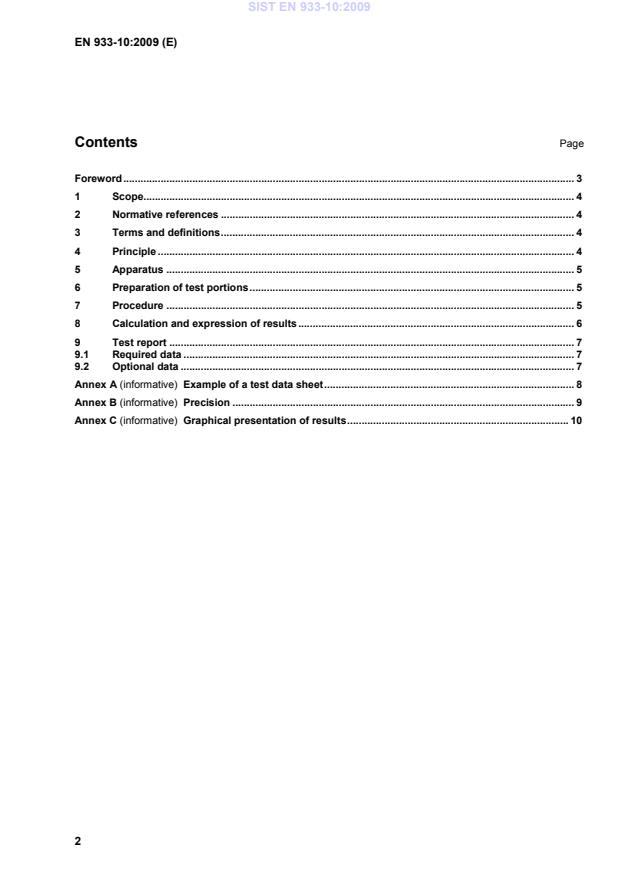

Contents Page
