ISO/PAS 27145-1:2006

PUBLICLY ISO/PAS
AVAILABLE 27145-1
SPECIFICATION
First edition
2006-09-15
Road vehicles — Implementation of
WWH-OBD communication
requirements —
Part 1:
General information and use case
definition
Véhicules routiers — Mise en application des exigences de
communication WWH-OBD —
Partie 1: Informations générales et définition de cas d'usage

Reference number
©
ISO 2006

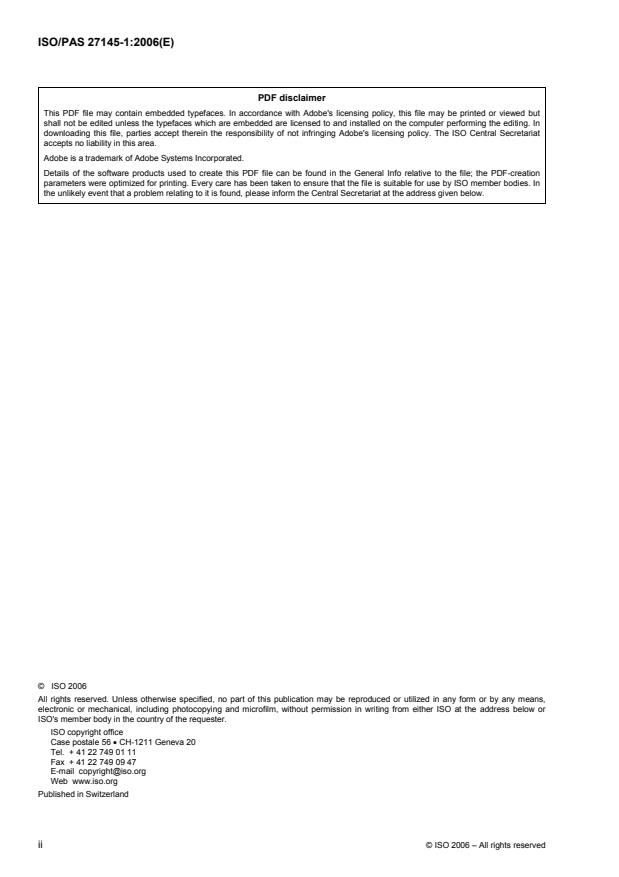

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Symbols and abbreviated terms . 3
5 Conventions . 4
6 Document overview. 4
7 Use case description. 5
7.1 Overview . 5
7.2 Emissions-related use cases. 5
7.2.1 Use case summary . 5
7.2.2 Use case 1 – Information about the emissions-related OBD system state . 5
7.2.3 Use case 2 – Information about active and confirmed emissions-related malfunctions. 6
7.2.4 Use case 3 – Information related to diagnosis for the purpose of repair . 6
8 Vehicle On-Board Diagnostic (VOBD) . 7
8.1 VOBD definition . 7
8.2 VOBD system . 7
8.3 VOBD data set . 9
8.4 VOBD access method. 10
8.4.1 Overview . 10
8.4.2 VOBD data caching mode. 10
8.4.3 VOBD direct access mode . 13
Bibliography . 15

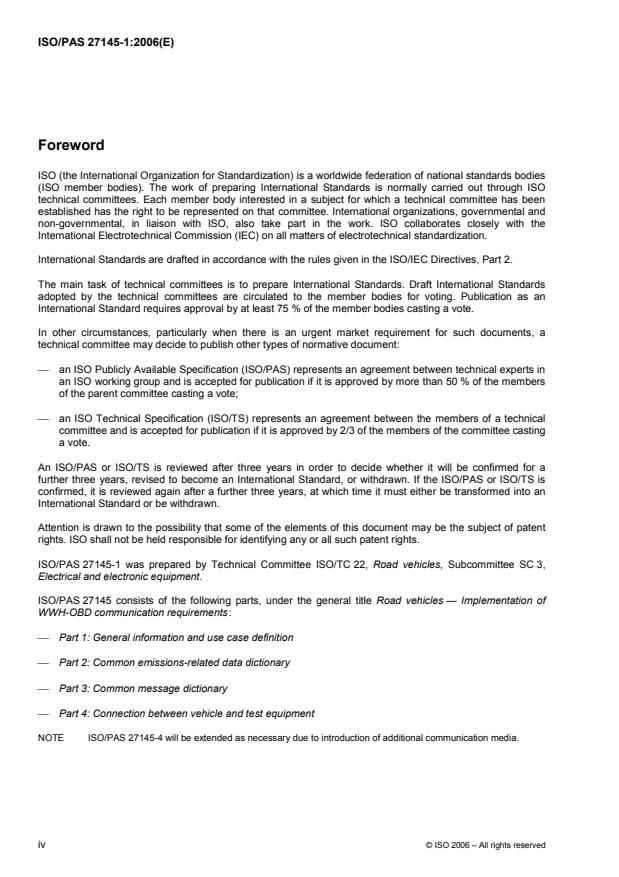

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of normative document:
⎯ an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
⎯ an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting
a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/PAS 27145-1 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 3,
Electrical and electronic equipment.
ISO/PAS 27145 consists of the following parts, under the general title Road vehicles — Implementation of
WWH-OBD communication requirements:
⎯ Part 1: General information and use case definition
⎯ Part 2: Common emissions-related data dictionary
⎯ Part 3: Common message dictionary
⎯ Part 4: Connection between vehicle and test equipment
NOTE ISO/PAS 27145-4 will be extended as necessary due to introduction of additional communication media.

iv © ISO 2006 – All rights reserved

Introduction
This document set includes the communication between the vehicle's OBD systems and test equipment
implemented across vehicles within the scope of the WWH-OBD GTR (World Wide Harmonized On-Board
Diagnostics Global Technical Regulations).
It has been established in order to apply the unified diagnostic services (specified in ISO 14229-1).
To achieve this, it is based on the Open Systems Interconnection (OSI) Basic Reference Model in accordance
with ISO/IEC 7498-1 and ISO/IEC 10731, which structures communication systems into seven layers. When
mapped on this model, the services specified by ISO/PAS 27145 are broken into:
⎯ Diagnostic services (layer 7), specified in ISO/PAS 27145-3;
⎯ Presentation layer (layer 6), specified in ISO/PAS 27145-2;
⎯ Session layer services (layer 5), specified in ISO/PAS 27145-4;
⎯ Transport layer services (layer 4), specified in ISO/PAS 27145-4;
⎯ Network layer services (layer 3), specified in ISO/PAS 27145-4;
⎯ Data link layer (layer 2), specified in ISO/PAS 27145-4;
⎯ Physical layer (layer 1), specified in ISO/PAS 27145-4;
in accordance with Table 1.
Table 1 — Enhanced and legislated OBD diagnostic specifications applicable to the OSI layers
Implementation of WWH-OBD communication
Applicability OSI 7 layers
requirements, e.g. emissions-related UDS
Application (layer 7) ISO/PAS 27145-3 / ISO 14229-1
Presentation (layer 6) ISO/PAS 27145-2
Session (layer 5)
Seven layers
according to
Transport (layer 4)
ISO/IEC 7498-1 and
ISO/IEC 10731
Network (layer 3) ISO/PAS 27145-4
Data link (layer 2)
Physical (layer 1)
PUBLICLY AVAILABLE SPECIFICATION ISO/PAS 27145-1:2006(E)

Road vehicles — Implementation of WWH-OBD communication
requirements —
Part 1:
General information and use case definition
1 Scope
ISO/PAS 27145 is intended to become the single communication standard for access to OBD-related
information. To allow for a smooth migration from the existing communication standards to this future
worldwide standardized communication standard, the initial communication concept will be based on CAN. In
a second step, ISO/PAS 27145 will be extended to define the world-wide harmonized OBD communication
standard based on existing industry communications standards (e.g. Internet Protocol) over Ethernet. Due to
the usage of standard network layer protocols, future extensions to optional physical layers (e.g. wireless) are
possible.
This part of ISO/PAS 27145 gives an overview of the structure and the partitioning of the different parts of this
standard, and shows the relation between the parts. In addition, it outlines the use case scenarios where the
ISO/PAS 27145 document set will be used. All terminology that is common throughout the ISO/PAS 27145
document set is also outlined here.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 7498-1, Information technology — Open Systems Interconnection — Basic Reference Model — Part 1:
The Basic Model
ISO/IEC 10731, Information technology — Open Systems Interconnection — Basic Reference Model —
Conventions for the definition of OSI services
ISO 14229-1, Road vehicles — Unified diagnostic services (UDS) — Part 1: Specification and requirements
ISO/PAS 27145-2, Road vehicles — Implementation of WWH-OBD communication requirements — Part 2:
Common emissions-related data dictionary
ISO/PAS 27145-3, Road vehicles — Implementation of WWH-OBD communication requirements — Part 3:
Common message dictionary
ISO/PAS 27145-4, Road vehicles — Implementation of WWH-OBD communication requirements — Part 4:
Connection between vehicle and test equipment
3 Terms and definitions
For the purposes of this document the terms and definitions in ISO 14229-1 and the following terms apply.
3.1
Calibration Identification
CALID
identification code for a specific software/calibration contained in a server/ECU
NOTE If regulations require calibration identifications for emissions-related software, those are reported in a
standardized format as specified in ISO/PAS 27145-2. Additional details are included in the WWH-OBD GTR.
3.2
Class A, B1, B2, C malfunctions
definitions that apply to emissions-related OBD systems
NOTE Class A, B1, B2 or C are attributes of a DTC. These attributes characterize the impact of a malfunction on
emissions or on the OBD system's monitoring capability according to the requirements of the WWH-OBD GTR. Additional
details are included in ISO/PAS 27145-3.
3.3
Continuous-Malfunction Indicator
malfunction indicator showing a steady indication at all times while the key is in the on (run) position with the
engine running (ignition ON – engine ON)
3.4
Continuous-Malfunction Indicator Counter
counter which conveys the amount of time during which the OBD system has been operated while a
Continuous-MI is activated
NOTE Additional details are included in the WWH-OBD GTR.
3.5
Calibration Verification Number
CVN
server/ECU calculated verification number of a calibration identification number to verify the integrity of the
software/calibration contained in a server/ECU
NOTE If regulations require calibration identifications for emissions-related software, those are reported in a
standardized format as specified in ISO/PAS 27145-2. Additional details are included in the WWH-OBD GTR.
3.6
discriminatory display
applying to emissions-related OBD systems, requires the MI to be activated according to the class in which a
malfunction has been classified
NOTE Additional details are included in the WWH-OBD GTR.
3.7
Global Technical Regulation
GTR
(See 3.15.)
3.8
malfunction
failure or deterioration of a vehicle or engine system or component, including the OBD system
NOTE The WWH-OBD GTR will specifically identify what conditions are considered to be malfunctions.
2 © ISO 2006 – All rights reserved

3.9
Malfunction Indicator
MI
indicator which clearly informs the driver of the vehicle in the event of a malfunction
NOTE Additional details are included in the WWH-OBD GTR.
3.10
Malfunction Indicator Counter
counter which conveys the amount of time during which the OBD system has operated while a malfunction is
active
NOTE Additional details are included in the WWH-OBD GTR.
3.11
non-discriminatory display
applying to emissions-related OBD systems, requires only a single type of MI activation
NOTE Additional details are included in the WWH-OBD GTR.
3.12
On-Board Diagnostics
OBD
system that monitors some or all computer input and control signals
NOTE Signal(s) outside of the predetermined limits imply a fault in the system or in a related system.
3.13
Vehicle Identification Number
VIN
identification number specific and unique to each vehicle following the applicable legal provisions of each
national/regional authority
3.14
Vehicle On-Board Diagnostics
VOBD
provides a single access point for external test equipment to retrieve all data of the OBD system
3.15
World Wide Harmonized – On-Board Diagnostics Global Techical Regulation
WWH – OBDGTR
defines the use-cases and requirements for OBD systems
NOTE See Reference [1] in the Bibliography for further details regarding the WWH-OBD GTR.
4 Symbols and abbreviated terms
CALID Calibration Identification
CVN Calibration Verification Number
DTC Diagnostic Trouble Code
ECM Engine Control Module
ECU Electronic Control Unit
GTR Global Technical Regulations
MI Malfunction Indicator
OBD On-Board Diagnostics
UDM Urea Dosing Module
VIN Vehicle Identification Number
VOBD Vehicle On-Board Diagnostics
WLAN Wireless Local Area Network
WWH-OBD Word Wide Harmonized On-Board Diagnostics
WWH-OBD GTR World Wide Harmonized On-Board Diagnostics Global Technical Regulation
5 Conventions
ISO/PAS 27145 is based on the conventions discussed in the O.S.I. Service Conventions (ISO/IEC 10731:1994)
as they apply for diagnostic services.
6 Document overview
The ISO/PAS 27145 document set provides an implementer with all documents and references required to
support the implementation of legislated on board diagnostics in accordance with the requirements set forth in
WWH-OBD GTR (Global Technical Regulation).
⎯ ISO/PAS 27145-1: General information and use case definitions (this part), provides an overview of the
document set along with the use case definitions and a common set of resources (definitions, references)
for use by all subsequent parts.
⎯ ISO/PAS 27145-2: Common emissions-related data dictionary, provides data definitions for emissions-
related legislated diagnostics (see also Note below).
⎯ ISO/PAS 27145-3: Common message dictionary, provides the message implementation details from
ISO 14229 – UDS to support the required legislated OBD.
⎯ ISO/PAS 27145-4: Connection between vehicle and test equipment, defines the details necessary to
implement the communication between the vehicle's OBD systems and test equipment including the
definition/reference of physical layers, data link layers, network layer, transport layer and session layer.
This part of the standard will be extended as necessary due to introduction of additional communication
media.
NOTE Additional parts of this standard will be introduced as necessary to consider further OBD systems not yet
covered by this standard.
4 © ISO 2006 – All rights reserved

7 Use case description
7.1 Overview
The OBD system is required to make available vehicle diagnostic information under several different use
cases as specified by the WWH-OBD GTR (Global Technical Regulation). These use cases provide the
implementer with guidance in the implementation of the VOBD (described later in this document), and
methodology used on the vehicle to make the required data available. This part of the standard will be
extended as necessary due to introduction of additional WWH-OBD GTR use cases (i.e. non emissions-
related).
7.2 Emissions-related use cases
7.2.1 Use case summary
The following is a summary of the use cases applicable to emissions-related OBD systems:
⎯ Use case 1: Information about the emissions-related OBD system state – The purpose of this
information package is to provide the minimum data set specified as necessary by the WWH-OBD GTR
to obtain the vehicle, or engine state with respect to its emission performance as specified in the WWH-
OBD GTR. A typical use of this information package may be a ‘Roadside Check’ performed by an
enforcement authority.
⎯ Use case 2: Information about active emissions-related malfunctions – The purpose of this
information package is to provide access to the expanded data set specified as necessary by the WWH-
OBD GTR to determine vehicle readiness and characterise the malfunctions detected by the OBD system.
A typical use of this information package may be a periodic inspection by enforcement authorities.
⎯ Use case 3: Information related to diagnosis for the purpose of repair – The purpose of this
information package is to provide access to all OBD data required by the WWH-OBD GTR and available
from the OBD system. A typical use of this information package may be the Diagnostic Servicing of the
vehicle or system in a workshop environment.
Detailed definition of each data item listed in the use cases can be found in the emissions-related module of
the WWH-OBD GTR.
7.2.2 Use case 1 – Information about the emissions-related OBD system state
This use case provides an enforcement agency with the Malfunction Indication status and associated vehicle
system data (e.g. MI counter, readiness status etc.).
The OBD system shall provide the data items as required by the emissions-related module of the WWH-OBD
GTR and in the format as specified in ISO/PAS 27145-2 for the external roadside check test equipment to
assimilate and provide the enforcement agency with the following information.
a) The WWH-OBD GTR (and revision) number.
b) Discriminatory / Non-Discriminatory display strategy.
c) The VIN (Vehicle Identification Number).
d) Presence of a Continuous-MI.
e) The readiness status of the OBD system.
f) The number of engine operating hours since the Malfunction Indicator has been activated (Continuous-MI
counter).
This information shall be read-only access (i.e. no clearing) within the context of use case 1.
7.2.3 Use case 2 – Information about active and confirmed emissions-related malfunctions
This information will provide any inspection station with a subset of engine related OBD data including the
Malfunction Indicator status and associated data (MI counters), a list of active/confirmed malfunctions of
classes A and B and associated data (e.g. B1-counter).
The OBD system shall provide the data items as required by the emissions-related module of the WWH-OBD
GTR and in the format as specified in ISO/PAS 27145-2 for the external inspection test equipment to
assimilate the data and provide an inspector with the following information:
a) The WWH-OBD GTR (and revision) number.
b
...
