ISO 7043:2012

INTERNATIONAL ISO
STANDARD 7043
Third edition
2012-09-01
Prevailing torque type hexagon nuts with
flange (with non-metallic insert), style
2 — Product grades A and B
Écrous hexagonaux à embase, autofreinés (à anneau non métallique),
style 2 — Grades A et B
Reference number
©
ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Dimensions . 1
4 Requirements and reference International Standards . 4
5 Designation . 4
Annex A (informative) Gauging of hexagon nuts with flange . 5
Bibliography . 7

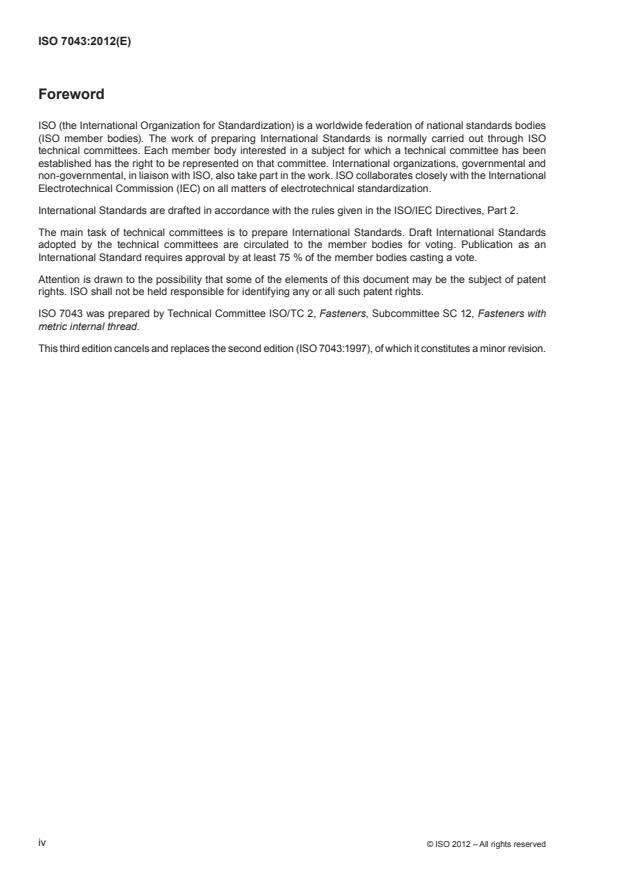

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 7043 was prepared by Technical Committee ISO/TC 2, Fasteners, Subcommittee SC 12, Fasteners with
metric internal thread.
This third edition cancels and replaces the second edition (ISO 7043:1997), of which it constitutes a minor revision.
iv © ISO 2012 – All rights reserved

INTERNATIONAL STANDARD ISO 7043:2012(E)
Prevailing torque type hexagon nuts with flange (with non-
metallic insert), style 2 — Product grades A and B
1 Scope
This International Standard specifies the characteristics of prevailing torque type hexagon nuts with flange
(with non-metallic insert), of style 2, with threads from M5 to M20 inclusive, in product grade A for threads up to
and including M16 and product grade B for threads above M16, and with property classes 8, 9 and 10.
NOTE The dimensions of the nuts correspond to those given in ISO 4161 plus prevailing torque feature.
If other specifications are required, they can be selected from existing International Standards, for example
ISO 261, ISO 724, ISO 898-2, ISO 965-2, ISO 2320 and ISO 4759-1.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
ISO 225, Fasteners — Bolts, screws, studs and nuts — Symbols and descriptions of dimensions
ISO 261, ISO general purpose metric screw threads — General plan
ISO 724, ISO general-purpose metric screw threads — Basic dimensions
ISO 898-2, Mechanical properties of fasteners made of carbon steel and alloy steel — Part 2: Nuts with
specified property classes – Coarse thread and fine pitch thread
ISO 965-2, ISO general purpose metric screw threads — Tolerances — Part 2: Limits of sizes for general
purpose external and internal screw threads — Med
...
