ISO/IEC 14598-1:1999

INTERNATIONAL ISO/IEC
STANDARD 14598-1
First edition
1999-04-15
Information technology — Software product
evaluation —
Part 1:
General overview
Technologies de l'information — Évaluation de produits logiciels —
Partie 1: Aperçu général
Reference number
B C
ISO/IEC 14598-1:1999(E)

---------------------- Page: 1 ----------------------
ISO/IEC 14598-1:1999(E)

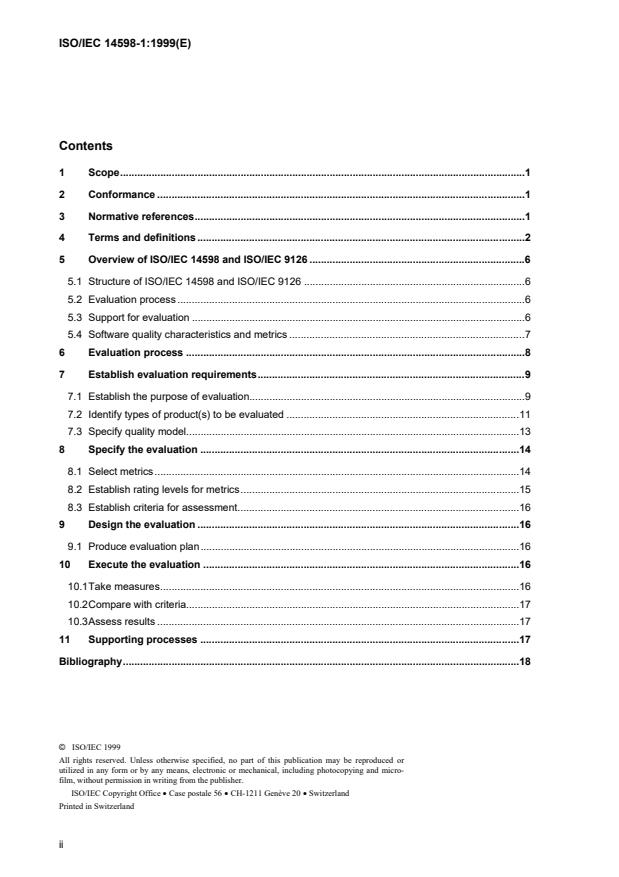

Contents
1 Scope.1
2 Conformance .1
3 Normative references.1
4 Terms and definitions.2
5 Overview of ISO/IEC 14598 and ISO/IEC 9126 .6
5.1 Structure of ISO/IEC 14598 and ISO/IEC 9126 .6
5.2 Evaluation process .6
5.3 Support for evaluation .6
5.4 Software quality characteristics and metrics .7
6 Evaluation process .8
7 Establish evaluation requirements.9
7.1 Establish the purpose of evaluation.9
7.2 Identify types of product(s) to be evaluated .11
7.3 Specify quality model.13
8 Specify the evaluation .14
8.1 Select metrics.14
8.2 Establish rating levels for metrics.15
8.3 Establish criteria for assessment.16
9 Design the evaluation .16
9.1 Produce evaluation plan.16
10 Execute the evaluation .16
10.1Take measures.16
10.2Compare with criteria.17
10.3Assess results .17
11 Supporting processes .17
Bibliography.18
©  ISO/IEC 1999
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or
utilized in any form or by any means, electronic or mechanical, including photocopying and micro-
film, without permission in writing from the publisher.
ISO/IEC Copyright Office • Case postale 56 • CH-1211 Genève 20 • Switzerland
Printed in Switzerland
ii

---------------------- Page: 2 ----------------------
©
ISO/IEC ISO/IEC 14598-1:1999(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1. Draft International Standards adopted by the joint technical committee are circulated to
national bodies for voting. Publication as an International Standard requires approval by at least 75 %
of the national bodies casting a vote.
International Standard ISO/IEC 14598-1 was prepared by Joint Technical Committee ISO/IEC JTC 1
Information technology, Subcommittee SC 7, Software engineering.
ISO/IEC 14598-1 is intended for use in conjunction with ISO/IEC 9126-1 (in preparation) which will
replace ISO/IEC 9126 (1991).
ISO/IEC 14598 consists of the following parts under the general title Information technology — Software
product evaluation :
— Part 1: General overview
— Part 2: Planning and management
— Part 3: Process for developers
— Part 4: Process for acquirers
— Part 5: Process for evaluators
— Part 6: Documentation of evaluation modules
iii

---------------------- Page: 3 ----------------------
©
ISO/IEC 14598-1:1999(E) ISO/IEC

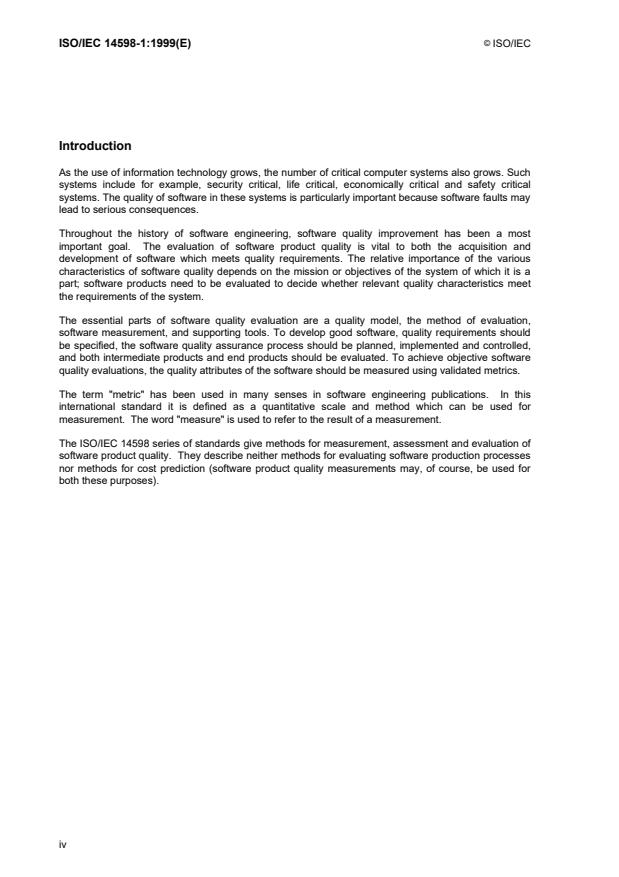

Introduction
As the use of information technology grows, the number of critical computer systems also grows. Such
systems include for example, security critical, life critical, economically critical and safety critical
systems. The quality of software in these systems is particularly important because software faults may
lead to serious consequences.
Throughout the history of software engineering, software quality improvement has been a most
important goal. The evaluation of software product quality is vital to both the acquisition and
development of software which meets quality requirements. The relative importance of the various
characteristics of software quality depends on the mission or objectives of the system of which it is a
part; software products need to be evaluated to decide whether relevant quality characteristics meet
the requirements of the system.
The essential parts of software quality evaluation are a quality model, the method of evaluation,
software measurement, and supporting tools. To develop good software, quality requirements should
be specified, the software quality assurance process should be planned, implemented and controlled,
and both intermediate products and end products should be evaluated. To achieve objective software
quality evaluations, the quality attributes of the software should be measured using validated metrics.
The term "metric" has been used in many senses in software engineering publications. In this
international standard it is defined as a quantitative scale and method which can be used for
measurement. The word "measure" is used to refer to the result of a measurement.
The ISO/IEC 14598 series of standards give methods for measurement, assessment and evaluation of
software product quality. They describe neither methods for evaluating software production processes
nor methods for cost prediction (software product quality measurements may, of course, be used for
both these purposes).
iv

---------------------- Page: 4 ----------------------
©
INTERNATIONAL STANDARD  ISO/IEC ISO/IEC 14598-1:1999(E)
Information technology — Software product evaluation —
Part 1: General overview
1 Scope
This part of ISO/IEC 14598 introduces the other parts. It provides an overview of the other parts and
explains the relationship between ISO/IEC 14598 and the quality model in ISO/IEC 9126. This part of
ISO/IEC 14598 defines the technical terms used in the other parts, contains general requirements for
specification and evaluation of software quality and clarifies the general concepts. Additionally, it
provides a framework for evaluating the quality of all types of software product and states the
requirements for methods of software product measurement and evaluation.
ISO/IEC 14598 is intended for use by developers, acquirers and independent evaluators, particularly
those responsible for software product evaluation. The evaluation results produced from the
application of ISO/IEC 14598 can be used by managers and developers/maintainers to measure
compliance to requirements and to make improvements where necessary. The evaluation results can
also be used by analysts to establish the relationships between the internal and external metrics.
Process improvement personnel can use the evaluation results to determine how processes can be
improved through study and examination of the project’s product quality information.
NOTE Much of the guidance in ISO/IEC 14598 is not specific to software, but is also applicable to other
complex products.
2 Conformance
Specification and evaluation of software conforms to this part of ISO/IEC 14598 if it uses the process in
clause 6 and a quality model as required in 8.3. Conformance to ISO/IEC 14598 as a whole shall
mean conformance to all applicable published parts of ISO/IEC 14598.
3 Normative references
The following normative documents contain provisions which, through reference in this text, constitute
provisions of this part of ISO/IEC 14598. For dated references, subsequent amendments to, or
revisions of, any of these publications do not apply. However, parties to agreements based on this part
of ISO/IEC 14598 are encouraged to investigate the possibility of applying the most recent editions of
the normative documents indicated below. For undated references, the latest edition of the normative
document referred to applies. Members of ISO and IEC maintain registers of currently valid
International Standards.
ISO/IEC 2382-1:1993, Information technology — Vocabulary — Part 1: Fundamental terms.
ISO 8402:1994,
Quality management and quality assurance — Vocabulary.
1)
ISO/IEC 9126-1:— , Information technology — Software quality characteristics and metrics — Part 1:
Quality characteristics and sub-characteristics.
ISO/IEC 12207:1995, Information technology — Software life cycle processes.
__________
1  To be published. Until this part is published ISO/IEC 9126:1991 should be used.
1

---------------------- Page: 5 ----------------------
©
ISO/IEC 14598-1:1999(E) ISO/IEC
4 Terms and definitions
For the purposes of all parts of ISO/IEC 14598, the following definitions apply.
4.1
acquirer
an organisation that acquires or procures a system, software product or software service from a
supplier
[ISO/IEC 12207:1995]
4.2
attribute
a measurable physical or abstract property of an entity
NOTE Attributes can be internal or external.
4.3
developer
an organisation that performs development activities (including requirements analysis, design, testing
through acceptance) during the software lifecycle process
[ISO/IEC 12207:1995]
4.4
direct measure
a measure of an attribute that does not depend upon a measure of any other attribute
4.5
evaluation module
a package of evaluation technology for a specific software quality characteristic or subcharacteristic
NOTE The package includes evaluation methods and techniques, inputs to be evaluated, data to be
measured and collected, and supporting procedures and tools.
4.6
external measure
an indirect measure of a product derived from measures of the behaviour of the system of which it is a
part
NOTE 1 The system includes any associated hardware, software (either custom software or off-the-shelf
software) and users.
NOTE 2 The number of failures found during testing is an external measure of the number of faults in the
program because the number of failures are counted during the operation of a computer system running the
program.
NOTE 3 External measures can be used to evaluate quality attributes closer to the ultimate objectives of the
design.
4.7
external quality
the extent to which a product satisfies stated and implied needs when used under specified conditions
4.8
failure
the termination of the ability of a product to perform a required function or its inability to perform within
previously specified limits
4.9
fault
an incorrect step, process or data definition in a computer program
NOTE This definition is taken from IEEE 610.12-1990.
2

---------------------- Page: 6 ----------------------
©
ISO/IEC ISO/IEC 14598-1:1999(E)
4.10
implied needs
needs that may not have been stated but are actual needs when the entity is used in particular
conditions
NOTE Implied needs are real needs which may not have been documented.
4.11
indicator
a measure that can be used to estimate or predict another measure
NOTE 1 The predicted measure may be of the same or a different software quality characteristic.
NOTE 2 Indicators may be used both to estimate software quality attributes and to estimate attributes of the
development process. They are imprecise indirect measures of the attributes.
4.12
indirect measure
a measure of an attribute that is derived from measures of one or more other attributes
NOTE An external measure of an attribute of a computing system (such as the response time to user input) is
an indirect measure of attributes of the software as the measure will be influenced by attributes of the computing
environment as well as attributes of the software.
4.13
intermediate software product
a product of the software development process that is used as input to another stage of the software
development process
NOTE In some cases an intermediate product may also be an end product.
4.14
internal measure
a measure of the product itself, either direct or indirect
NOTE The number of lines of code, complexity measures, the number of faults found in a walk through and
the Fog Index are all internal measures made on the product itself.
4.15
internal quality
the totality of attributes of a product that determine its ability to satisfy stated and implied needs when
used under specified conditions
NOTE 1 The term "internal quality", used in ISO/IEC 14598 to contrast with "external quality", has essentially
the same meaning as "quality" in ISO 8402.
NOTE 2 The term "attribute" is used with the same meaning as the term "characteristic" used in 4.21, as the
term "characteristic" is used in a more specific sense in ISO/IEC 9126.
4.16
maintainer
an organisation that performs maintenance activities
[ISO/IEC 12207:1995]
4.17
measure (verb)
make a measurement
4.18
measure (noun)
the number or category assigned to an attribute of an entity by making a measurement
4.19
measurement
the use of a metric to assign a value (which may be a number or category) from a scale to an attribute
of an entity
NOTE Measurement can be qualitative when using categories. For example, some important attributes of
software products, e.g. the language of a source program (ADA, C, COBOL, etc.) are qualitative categories.
3

---------------------- Page: 7 ----------------------
©
ISO/IEC 14598-1:1999(E) ISO/IEC
4.20
metric
the defined measurement method and the measurement scale
NOTE 1 Metrics can be internal or external, and direct or indirect.
NOTE 2 Metrics include methods for categorising qualitative data.
4.21
quality
the totality of characteristics of an entity that bear on its ability to satisfy stated and implied needs
NOTE 1 In a contractual environment, or in a regulated environment, such as the nuclear safety field, needs are
specified, whereas in other environments, implied needs should be identified and defined (ISO 8402 :1994, note 1).
NOTE 2 In ISO/IEC 14598 the relevant entity is a software product.
[ISO 8402:1994]
4.22
quality evaluation
systematic examination of the extent to which an entity is capable of fulfilling specified requirements
NOTE The requirements may be formally specified, as when a product is developed for a specific user under
a contract, or specified by the development organisation, as when a product is developed for unspecified users,
such as consumer software, or the requirements may be more general, as when a user evaluates products for
comparison and selection purpose.
[ISO 8402:1994]
4.23
quality in use
the extent to which a product used by specified users meets their needs to achieve specified goals with
effectiveness, productivity and satisfaction in specified contexts of use
NOTE This definition of quality in use is similar to the definition of usability in ISO 9241-11. In ISO/IEC 14598
the term usability is used to refer to the software quality characteristic described in ISO/IEC 9126-1.
4.24
quality model
the set of characteristics and the relationships between them which provide the basis for specifying
quality requirements and evaluating quality
4.25
rating
the action of mapping the measured value to the appropriate rating level. Used to determine the rating
level associated with the software for a specific quality characteristic
4.26
rating level
a scale point on an ordinal scale which is used to categorise a measurement scale
NOTE 1 The rating level enables software to be classified (rated) in accordance with the stated or implied
needs (see 10.2).
NOTE 2 Appropriate rating levels may be associated with the different views of quality i.e. ‘Users’, ‘Managers’
or ‘Developers’.
4.27
scale
a set of values with defined properties
NOTE Examples of types of scales are: a nominal scale which corresponds to a set of categories; an ordinal
scale which corresponds to an ordered set of scale points; an interval scale which corresponds to an ordered
scale with equidistant scale points; and a ratio scale which not only has equidistant scale point but also possess
an absolute zero. Metrics using nominal or ordinal scales produce qualitative data, and metrics using interval
and ratio scales produce quantitative data.
4

---------------------- Page: 8 ----------------------
©
ISO/IEC ISO/IEC 14598-1:1999(E)
4.28
software
all or part of the programs, procedures, rules, and associated documentation of an information
processing system
NOTE Software is an intellectual creation that is independent of the medium on which it is recorded.
[ISO/IEC 2382.1:1993]
4.29
software product
the set of computer programs, procedures, and possibly associated documentation and data
NOTE Products include intermediate products, and products intended for users such as developers and
maintainers.
[ISO/IEC 12207:1995]
4.30
supplier
an organisation that enters into a contract with the acquirer for the supply of a system, software
product or software service under the terms of the contract
[ISO/IEC 12207:1995]
4.31
system
an integrated composite that consists of one or more of the processes, hardware, software, facilitires
and people, that provides a capability to satisfy a stated need or objective
[ISO/IEC 12207:1995]
4.32
user
an individual that uses the software product to perform a specific function
NOTE Users may include operators, recipients of the results of the software, or developers or maintainers of
software.
4.33
validation
confirmation by examination and provision of objective evidence that the particular requirements for a
specific intended use are fulfilled
NOTE 1 In design and development, validation concerns the process of examining a product to determine
conformity with user needs.
NOTE 2 Validation is normally performed on the final product under defined operating conditions. It may be
necessary in earlier stages.
NOTE 3 "Validated" is used to designate the corresponding status.
NOTE 4 Multiple validations may be carried out if there are different intended uses.
[ISO 8402:1994]
4.34
verification
confirmation by examination and provision of objective evidence that specified requirements have been
fulfilled
NOTE 1 In design and development, verification concerns the process of examining the result of a given activity
to determine conformity with the stated requirement for that activity.
NOTE 2 "Verified" is used to designate the corresponding status.
[ISO 8402:1994]
5

---------------------- Page: 9 ----------------------
©
ISO/IEC 14598-1:1999(E) ISO/IEC
5 Overview of ISO/IEC 14598 and ISO/IEC 9126
5.1 Structure of ISO/IEC 14598 and ISO/IEC 9126
The ISO/IEC 9126 series defines a general purpose quality model, quality characteristics and gives
examples of metrics. The ISO/IEC 14598 series gives an overview of software product evaluation
processes and provides guidance and requirements for evaluation. ISO/IEC 14598-2 and
ISO/IEC 14598-6 relate to corporate or department level evaluation management and support, while
ISO/IEC 14598-3, ISO/IEC 14598-4 and ISO/IEC 14598-5 give requirements and guidance for
evaluation at the project level. Figures 1 and 2 show the relationships between these standards and
technical reports.
5.2 Evaluation process
The ISO/IEC 14598 series of International Standards provides guidance and requirements for the
evaluation process in three different situations:
• development (enhancement) (ISO/IEC 14598-3);
• acquisition (ISO/IEC 14598-4);
• independent evaluation (including third-party evaluation) (ISO/IEC 14598-5).
5.2.1 Process for developers
ISO/IEC 14598-3 should be used by organisations that are planning to develop a new product or
enhance an existing product and intending to perform product evaluation using members of its own
technical staff. It focuses on the use of those indicators that can predict end product quality by
measuring intermediate products developed during the life-cycle.
5.2.2 Process for acquirers
ISO/IEC 14598-4 should be used by organisations that are planning to acquire or reuse an existing or
pre-developed software product. It can be applied for the purposes of deciding on the acceptance of
the product or for selecting a product from among alternative products. (A product may be self
contained, a part of system, or it may be part of larger product.)
5.2.3 Process for evaluators
ISO/IEC 14598-5 should be used by evaluators carrying out an independent assessment of a software
product. This evaluation could be performed at the request of either a developer, acquirer or some
other party. This part is intended for those who perform independent evaluation. Often they work for
third party organisations.
5.3 Support for evaluation
Each of the evaluation process standards can be used in conjunction with ISO/IEC 14598-2 (Planning
and Management) and ISO/IEC 14598-6 (Documentation of evaluation modules) (Figure 1).
6

---------------------- Page: 10 ----------------------
©
ISO/IEC ISO/IEC 14598-1:1999(E)
Evaluation Supp ort
6. Documentation
2. Planning and
of Ev aluation
Management
Modules
Evaluation Process
3. Process for
4. Process for
5. Process for
Dev elopers
Acquirers
Evaluators

Figure 1 - Relationship of evaluation process to evaluation support standards
5.3.1 Planning and management
ISO/IEC 14598-2 Planning and Management contains requirements and guidance for supporting
functions for software product evaluation. The support is related to planning and management of a
software evaluation process and associated activities, including development, acquisition,
standardisation, control, transfer and feedback of evaluation expertise within the organisation. This
part of ISO/IEC 14598 can be used by managers to produce a quantitative evaluation plan.
5.3.2 Evaluation modules
ISO/IEC 14598-6 provides guidance for documenting evaluation modules. These modules contain the
specification of the quality model (i.e. characteristics, subcharacteristics and corresponding internal or
external metrics), the associated data and information about the planned application of the model and
the information about its actual application. For each evaluation appropriate evaluation modules are
selected. In some cases it may be necessary to develop new evaluation modules. This part of ISO/IEC
14598 can be used by organisations producing new evaluation modules.
5.4 Software quality characteristics and metrics
Each of the parts of ISO/IEC 14598 should be used in conjunction with the planned parts of ISO/IEC
9126 describing software quality characteristics and metrics:
• Quality Characteristics and Subcharacteristics (ISO/IEC 9126-1);
• External Metrics (ISO/IEC 9126-2);
• Internal Metrics (ISO/IEC 9126-3).
ISO/IEC 9126-1 defines quality characteristics, associated subcharacteristics and the relations
between the top three levels of the ISO/IEC 9126 quality model. ISO/IEC 9126-2 and ISO/IEC 9126-3
identify the relationships of each metric (internal and external) to their corresponding characteristics
and subcharacteristics (see Figure 2). Note that some internal metrics have corresponding external
metrics.
7

---------------------- Page: 11 ----------------------
©
ISO/IEC 14598-1:1999(E) ISO/IEC
1. Quality
characteristics and
subcharacteristics
3. Internal
2. External
Metrics
Metrics

Figure 2 - ISO/IEC 9126 Software Quality Characteristics and Metrics
5.4.1 Quality Characteristics and Subcharacteristics
ISO/IEC 9126-1 defines a set of quality characteristics and corresponding subcharacteristics. These
subcharacteristics are manifested externally when the software is used as a part of a computer
system, and are a result of internal software attributes. ISO/IEC 9126-1 is used as the foundation for
constructing the top three levels of the quality model. The overall objective of quality from the users'
perspective is quality in use.
5.4.2 External metrics
ISO/IEC 9126-2 (in preparation) describes those metrics that represent the external perspective of
software quality when the software is in use. The external measures are taken over some predefined
period while the software is in use. Values for quantities like time and effort are used as the basis for
these measures. These measures apply in both the testing and operation phases. When used during
test they are meant to be early predictors of the levels of quality that can be expected once the
software is used and operated. These measures generally represent the quality in terms that are
relevant to users.
5.4.3 Internal metrics
ISO/IEC 9126-3 (in preparation) describes those metrics that measure internal attributes of the
software related to design and code. These “early” measures are used as indicators to predict what
can be expected once the software system is in test and operation. Therefore the internal measures
are most important to development managers since they are a valuable device for forestalling down
stream problems. Internal measures are used to predict the values of corresponding external
measures. ISO/IEC 9126-3 shows which internal metrics have corresponding external metrics.
6 Evaluation process
To evaluate software quality, first establish the evaluation requirements, then specify, design and
execute the evaluation (see Figure 3). Each step is described in more detail in the clauses indicated.
This part of ISO/IEC 14598 gives an overview of the process. The other parts of ISO/IEC 14598
explain how the process is applied in different circumstances.
8

---------------------- Page: 12 ----------------------
©
ISO/IEC ISO/IEC 14598-1:1999(E)


Establis h purpose of evaluation (7 .1)
Est abl ish

eval ua ti on
Identify ty pes of product(s) (7.2)
re q u i r em en t s

Specify q uality model (7.3) 91 26 -1 Q uality
 Characteristics


91 26-2 Extern al M etrics
Select m e trics (8 .1)
91 26-3 Intern al M etrics

14 598 -6 Evaluatio n
Sp ec ify th e
Estab lis h ratin g levels for m etrics (8.2) Modules
e val u ati on

Estab lis h criteria for as ses sment (8 .3)



Des ign th e
Produce evaluation plan (9.1 )
ev a l u a t i o n



Take M easures (10.1)

Exe cute th e
Co mp are with criteria (10 .2)
ev a l u a t i o n

Ass ess re s u lts ( 10.3)

Figure 3 - Evaluation process
7 Establish evaluation requirements
7.1 Establish the purpose of evaluation
7.1.1 General
The purpose of software quality evaluation is to directly support both the development and acquisition
of software which meets user and customer needs. The ultimate objective is to ensure that the product
provides the required quality - that it meets the stated and implied needs of the users (including
operators, recipients of the results of the software, or maintainers of software).
The purpose of evaluation of intermediate product quality may be to:
• decide on the acceptance of an intermediate product from a subcontractor;
• decide on the completion of a process and when to send products to the next process;
• predict or estimate end product quality;
• collect information on intermediate products in order to control and manage the process.
The purpose of evaluation of end product quality may be to:
• decide on the acceptance of the product;
• decide when to release the product;
9

---------------------- Page: 13 ----------------------
©
ISO/IEC 14598-1:1999(E) ISO/IEC
• compare the product with competitive products;
• select a product from among alternative products;
• assess both positive and negative effect of a product when it is used;
• decide when to enhance or replace the product.
Software quality can be evaluated within a
...
