ISO 24450:2005
(Main)Laboratory glassware - Wide-necked boiling flasks
Laboratory glassware - Wide-necked boiling flasks
ISO 24450:2005 specifies requirements and dimensions for an internationally acceptable series of conical flasks and of flat-bottom and round-bottom flasks with wide neck for general laboratory purpose. The flasks are provided for direct use in laboratory, fitting together with other equipment for general laboratory purposes, and for further work up to other products. For narrow-necked boiling flasks, ISO 1773 applies. For boiling flasks with conical ground joints, see ISO 4797.
Verrerie de laboratoire — Fioles coniques et ballons à col large
L'ISO 24450:2005 spécifie les exigences et les dimensions d'une série de fioles coniques, de ballons à fond rond et à fond plat, à col large, acceptable à l'échelle internationale et satisfaisant aux besoins généraux des laboratoires. Ces fioles sont destinées à un usage direct en laboratoire, en association avec d'autres matériels de laboratoire à usage général, et à la fabrication d'autres produits. En ce qui concerne les fioles coniques et ballons à col étroit, l'ISO 1773 s'applique. Pour les fioles coniques et ballons à col muni d'un assemblage conique rodé, voir l'ISO 4797.
General Information
- Status
- Published
- Publication Date
- 30-Oct-2005
- Technical Committee
- ISO/TC 48 - Laboratory equipment
- Drafting Committee
- ISO/TC 48 - Laboratory equipment
- Current Stage
- 9060 - Close of review
- Completion Date
- 04-Jun-2030
Relations
- Effective Date
- 06-Jun-2022
Overview
ISO 24450:2005 is an international standard specifying the requirements and dimensions for wide-necked boiling flasks used in laboratories. This standard covers a series of conical, flat-bottom, and round-bottom flasks with wide necks for general laboratory use. These flasks are designed to integrate seamlessly with other laboratory equipment and support various experimental processes. The standard ensures uniformity, quality, and safety in the production and use of these essential laboratory glassware items.
Key Topics
- Scope and Applicability: ISO 24450:2005 applies specifically to wide-necked boiling flasks. For narrow-necked boiling flasks, the standard references ISO 1773, and for boiling flasks with conical ground joints, ISO 4797 provides the relevant guidelines.
- Material Requirements: Flasks must be made from borosilicate glass 3.3 according to ISO 3585. This material is selected for its durability, resistance to thermal shock, and chemical inertness.
- Standard Capacities:
- Conical flasks: 50, 100, 250, 500, 1000 ml
- Round-bottom flasks: 50, 100, 250, 500, 1000, 2000, 4000, 6000, 10000 ml
- Flat-bottom flasks: 50, 100, 250, 500, 1000, 2000 ml
- Construction and Dimensions:
- Flasks must stand stably on level surfaces without rocking or spinning.
- Necks are circular in cross-section and must maintain strength without extensive flaring.
- Specific dimensional values for overall height, external diameter, and wall thickness are detailed for each flask type and size.
- Neck length is standardized to 1 to 1.25 times the external neck diameter.
- Base radius and diameter proportions are clearly defined for stability and compatibility purposes.
- Marking and Identification:
- Each flask must be permanently marked with nominal volume, manufacturer or vendor's name/mark, and a writable area for further notation.
- The standard recommends including “ISO 24450” on the flask for traceability.
Applications
Wide-necked boiling flasks conforming to ISO 24450:2005 are widely used in chemical, pharmaceutical, and biological laboratories for purposes such as:
- Conducting chemical reactions that require heating or boiling.
- General liquid handling and mixing in experimental procedures.
- Integration with other laboratory apparatus for distillation, reflux, or synthesis.
- Preparation, storage, and measurement of liquids requiring visual volume indication.
- Providing reliable, durable glassware that meets international safety and quality norms.
Their robust design with a wide neck offers easier filling, pouring, and cleaning compared to narrow-necked flasks, beneficial in handling viscous fluids or particulate suspensions.
Related Standards
- ISO 1773: Laboratory glassware - Narrow-necked boiling flasks, focused on flasks with smaller neck diameters.
- ISO 4797: Laboratory glassware - Boiling flasks with conical ground joints, important for flasks designed for tight joint connections.
- ISO 3585: Specifies the properties of borosilicate glass 3.3, the material standard for glassware production under ISO 24450.
Adherence to these standards ensures laboratory glassware compatibility, safety, and quality across global markets.
Keywords: ISO 24450, laboratory glassware, wide-necked boiling flasks, borosilicate glass, conical flasks, flat-bottom flasks, round-bottom flasks, standard dimensions, laboratory glassware standards, ISO laboratory flasks, boiling flask safety, laboratory equipment standards.
Frequently Asked Questions
ISO 24450:2005 is a standard published by the International Organization for Standardization (ISO). Its full title is "Laboratory glassware - Wide-necked boiling flasks". This standard covers: ISO 24450:2005 specifies requirements and dimensions for an internationally acceptable series of conical flasks and of flat-bottom and round-bottom flasks with wide neck for general laboratory purpose. The flasks are provided for direct use in laboratory, fitting together with other equipment for general laboratory purposes, and for further work up to other products. For narrow-necked boiling flasks, ISO 1773 applies. For boiling flasks with conical ground joints, see ISO 4797.
ISO 24450:2005 specifies requirements and dimensions for an internationally acceptable series of conical flasks and of flat-bottom and round-bottom flasks with wide neck for general laboratory purpose. The flasks are provided for direct use in laboratory, fitting together with other equipment for general laboratory purposes, and for further work up to other products. For narrow-necked boiling flasks, ISO 1773 applies. For boiling flasks with conical ground joints, see ISO 4797.
ISO 24450:2005 is classified under the following ICS (International Classification for Standards) categories: 71.040.20 - Laboratory ware and related apparatus. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 24450:2005 has the following relationships with other standards: It is inter standard links to ISO 5832-10:1996. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ISO 24450:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 24450
First edition
2005-11-01
Laboratory glassware — Wide-necked
boiling flasks
Verrerie de laboratoire — Fioles coniques et ballons à col large
Reference number
©
ISO 2005

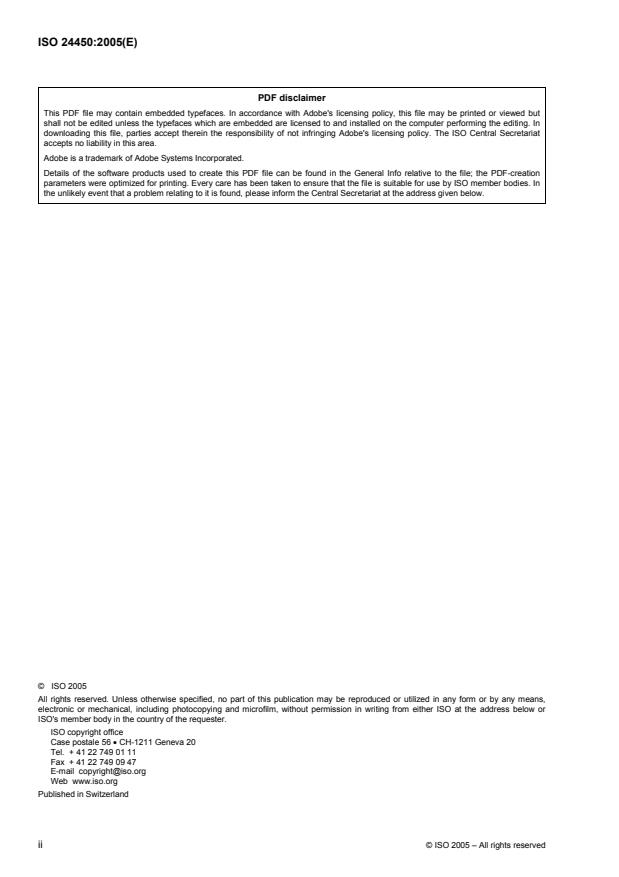

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved
Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Series and capacities . 1
4 Material . 2
5 Construction and dimensions . 2
6 Marking . 3
Bibliography . 4

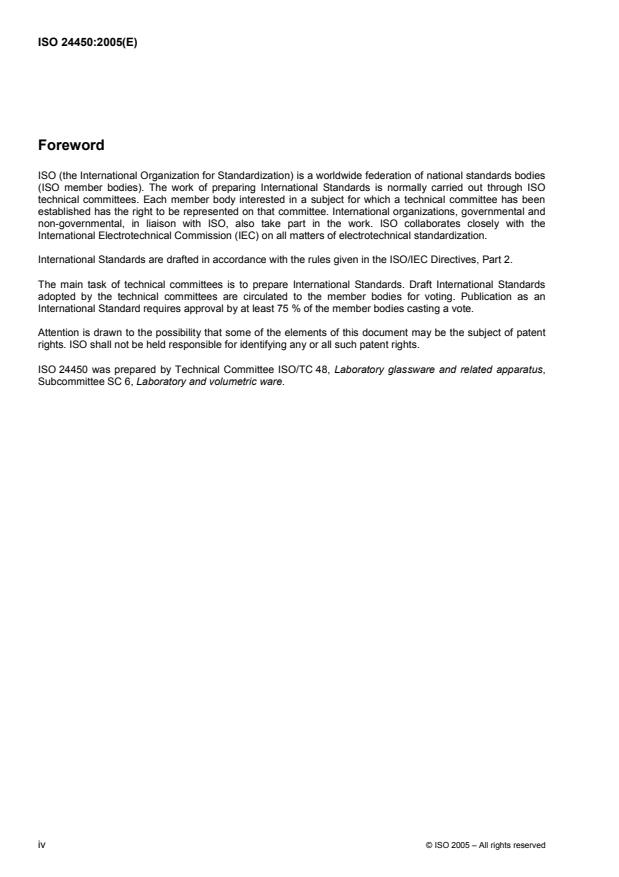

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 24450 was prepared by Technical Committee ISO/TC 48, Laboratory glassware and related apparatus,
Subcommittee SC 6, Laboratory and volumetric ware.
iv © ISO 2005 – All rights reserved
INTERNATIONAL STANDARD ISO 24450:2005(E)
Laboratory glassware — Wide-necked boiling flasks
1 Scope
This International Standard specifies requirements and dimensions for an internationally acceptable series of
conical flasks and of flat-bottom and round-bottom flasks with wide neck for general laboratory purpose. The
flasks are provided for
⎯ direct use in laboratory, fitting together with other
...
NORME ISO
INTERNATIONALE 24450
Première édition
2005-11-01
Verrerie de laboratoire — Fioles coniques
et ballons à col large
Laboratory glassware — Wide-necked boiling flasks
Numéro de référence
©
ISO 2005

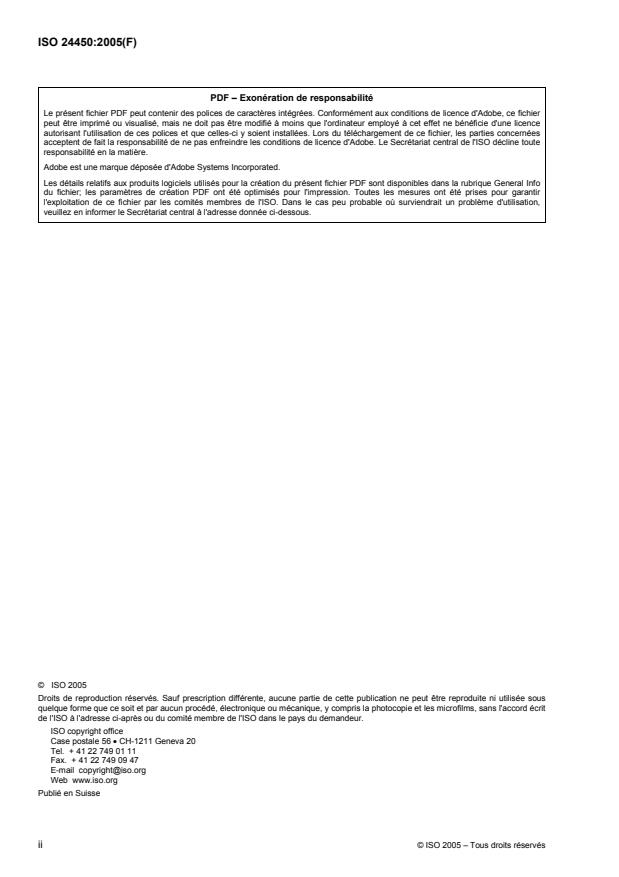

PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.
© ISO 2005
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax. + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2005 – Tous droits réservés
Sommaire Page
Avant-propos. iv
1 Domaine d'application. 1
2 Références normatives . 1
3 Séries et capacités. 1
4 Matériau . 2
5 Construction et dimensions . 2
6 Marquage . 4
Bibliographie . 5

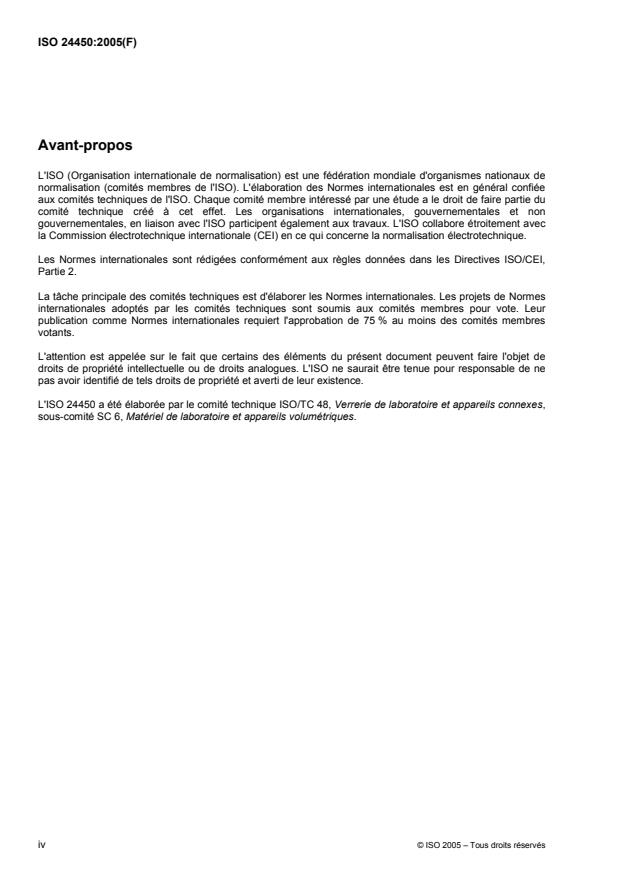

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 24450 a été élaborée par le comité technique ISO/TC 48, Verrerie de laboratoire et appareils connexes,
sous-comité SC 6, Matériel de laboratoire et appareils volumétriques.
iv © ISO 2005 – Tous droits réservés
NORME INTERNATIONALE ISO 24450:2005(F)
Verrerie de laboratoire — Fioles coniques et ballons à col large
1 Domaine d'application
La présente Norme internationale spécifie les exigences et les dimensions d'une série de fioles coniques, de
ballons à fond rond et à fond plat, à col large, acceptable à l'échelle internationale et satisfaisant aux besoins
généraux des laboratoires. Ces fioles sont destinées à
⎯ un usage direct en laboratoire, en association avec d'autres matériels de laboratoire à usage général;
⎯ la fabrication d'autres produits.
NOTE En ce qui concerne les fioles coniques
...
