Plastics — Determination of Charpy impact properties — Part 2: Instrumented impact test

1.1 This document specifies a method for determining Charpy impact properties of plastics from force-deflection diagrams. Different types of rod-shaped test specimens and test configurations, as well as test parameters depending on the type of material, the type of test specimen and the type of notch, are defined in ISO 179-1. Dynamic effects such as load-cell/striker resonance, test specimen resonance and initial-contact/inertia peaks are described in this document (see Figure 1, Curve b, and Annex A). 1.2 ISO 179-1 is suitable for characterizing the impact behaviour by the impact strength only and for using apparatus whose potential energy is matched approximately to the particular energy to break to be measured (see ISO 13802:2015, Annex E). This document is used to record a force-deflection or force-time diagram for detailed characterization of the impact behaviour, and for developing automatic apparatus, i.e. avoiding the need to match energy. The method described in this document is also suitable for: — acquiring more and different materials characteristics under impact conditions; — supervising the Charpy test procedure, as this instrumentation allows detection of typical operational mistakes, such as the specimen not being in close contact with the supports; — automatically detecting the type of break; — pendulum type instruments to avoid frequent changes of pendulum hammers; — measuring fracture mechanical properties described in other ISO standards. 1.3 For the range of materials which can be tested by this method, see ISO 179-1:2010, Clause 1. 1.4 For the general comparability of test results, see ISO 179-1:2010, Clause 1. 1.5 Information on the typical behaviour of materials can be obtained by testing at different temperatures, by varying the notch radius and/or specimen thickness and by testing specimens prepared under different conditions. It is not the purpose of this document to give an interpretation of the mechanism occurring at every point on the force-deflection diagram. These interpretations are a task for on-going scientific research. 1.6 The test results obtained with this method are comparable only if the conditions of test specimen preparation, as well as the test conditions, are the same. The impact behaviour of finished products cannot, therefore, be predicted directly from this test.

Plastiques — Détermination des caractéristiques au choc Charpy — Partie 2: Essai de choc instrumenté

1.1 Le présent document spécifie une méthode pour la détermination des propriétés des plastiques au choc Charpy à partir de diagrammes force/flèche. L'ISO 179-1 définit différents types d'éprouvettes en forme de barreau, diverses configurations d'essai, ainsi que les paramètres d'essai à adopter suivant le type de matériau, d'éprouvette et d'entaille. En outre, le présent document décrit les effets dynamiques, tels que la résonance de la cellule de charge/du percuteur, la résonance de l'éprouvette et les pics d'inertie au contact initial (voir la Figure 1, courbe b, et l'Annexe A). 1.2 L'ISO 179-1 est utilisable pour caractériser le comportement au choc, mais uniquement à partir de la résistance au choc et avec un appareil dont l'énergie potentielle est adaptée à l'énergie particulière à la rupture à mesurer (voir l'ISO 13802:2015, Annexe E). Le présent document est utilisé pour enregistrer un diagramme force/flèche ou force/temps pour caractériser le comportement au choc et pour mettre au point un appareillage automatique, c'est-à-dire un appareillage qui évite l'ajustement des énergies. La méthode décrite dans le présent document convient également pour: — acquérir davantage de caractéristiques et des caractéristiques de matériaux différents dans des conditions de choc; — superviser le mode opératoire d'essai Charpy, car ces instruments permettent la détection d'erreurs opérationnelles type, par exemple lorsque l'éprouvette n'est pas en contact étroit avec les supports; — détecter automatiquement le type de rupture; — les instruments de type à pendule pour éviter des changements fréquents de marteaux; — mesurer les propriétés mécaniques de rupture décrites dans d'autres normes ISO. 1.3 En ce qui concerne l'éventail des matériaux pouvant être soumis à l'essai au moyen de la présente méthode, voir l'ISO 179-1:2010, Article 1. 1.4 En ce qui concerne la comparabilité générale des résultats d'essai, voir l'ISO 179-1:2010, Article 1. 1.5 Des informations relatives au comportement caractéristique des matériaux peuvent être obtenues en conduisant les essais à différentes températures, en faisant varier le rayon de l'entaille et/ou l'épaisseur de l'éprouvette et en soumettant à l'essai des éprouvettes ayant été préparées dans différentes conditions. Le présent document n'a pas pour but de donner une explication du mécanisme qui intervient à chaque point particulier du diagramme force/flèche. Ces explications sont étudiées dans le cadre des recherches scientifiques actuellement en cours. 1.6 Les résultats d'essai obtenus avec cette méthode ne sont comparables qui si les conditions de préparation des éprouvettes et les conditions d'essai retenues sont les mêmes. De ce fait, le comportement au choc des produits finis ne peut pas être directement déduit de l'essai.

General Information

Status
Published
Publication Date
13-May-2020
Current Stage
9020 - International Standard under periodical review
Start Date
15-Apr-2025
Completion Date
15-Apr-2025
Ref Project

Relations

Buy Standard

Standard
ISO 179-2:2020 - Plastics -- Determination of Charpy impact properties
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 179-2:2020 - Plastics — Determination of Charpy impact properties — Part 2: Instrumented impact test Released:5/14/2020
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 179-2:2020 - Plastics -- Determination of Charpy impact properties
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 179-2:2020 - Plastiques — Détermination des caractéristiques au choc Charpy — Partie 2: Essai de choc instrumenté Released:5/14/2020
French language
23 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 179-2:2020 - Plastiques -- Détermination des caractéristiques au choc Charpy
French language
23 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


DRAFT INTERNATIONAL STANDARD
ISO/DIS 179-2
ISO/TC 61/SC 2 Secretariat: KATS
Voting begins on: Voting terminates on:
2018-08-03 2018-10-26
Plastics — Determination of Charpy impact properties —
Part 2:
Instrumented impact test
Plastiques — Détermination des caractéristiques au choc Charpy —
Partie 2: Essai de choc instrumenté
ICS: 83.080.01
THIS DOCUMENT IS A DRAFT CIRCULATED
This document is circulated as received from the committee secretariat.
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
ISO/CEN PARALLEL PROCESSING
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 179-2:2018(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2018

ISO/DIS 179-2:2018(E)
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

ISO/DIS 179-2:2018(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Principle . 7
5 Apparatus . 7
5.1 Test machine . 7
5.1.1 Basic components . 7
5.1.2 Energy carrier . 7
5.1.3 Striking edge . 8
5.1.4 Pendulum . 8
5.1.5 Test specimen supports . 8
5.1.6 Frame . 8
5.1.7 Losses due to friction . 9
5.2 Instruments for measuring force and deflection . 9
5.2.1 Force measurement . 9
5.2.2 Deflection measurement .10
5.3 Micrometers and gauges .10
6 Test specimens.10
7 Procedure.10
8 Calculation and expression of results .11
8.1 General .11
8.2 Calculation of deflection .11
8.3 Calculation of energy .12
8.4 Calculation of impact strength .12
8.4.1 Unnotched test specimens.12
8.4.2 Notched test specimens .13
8.5 Statistical parameters .13
8.6 Number of significant figures .13
9 Precision .13
10 Test report .13
[3]
Annex A (informative) Inertial peak .15
Annex B (informative) Mass of frame .18
Annex C (informative) Bibliography .19
Annex D (informative) Precision data .20
ISO/DIS 179-2:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 2,
Mechanical properties.
ISO 179 consists of the following parts, under the general title Plastics — Determination of Charpy
impact properties:
— Part 1: Non-instrumented impact test
— Part 2: Instrumented impact test
Annexes A to C of this part of ISO 179 are for information only.
Changes made relative to ISO 179-2:1997 are:
— Amendment1: 2011 has been included into this document as “Annex D Precision Statement”.
— Minor editorial changes.
— Revision of referrals to ISO 13802 according to the currently valid edition (2015) of this standard.
— Clarification of force calibration requirements (yet missing). A relative error of 1 % throughout the
measuring range appears realistic. Discussion with manufactrueres is ongoing.
iv © ISO 2018 – All rights reserved

DRAFT INTERNATIONAL STANDARD ISO/DIS 179-2:2018(E)
Plastics — Determination of Charpy impact properties —
Part 2:
Instrumented impact test
1 Scope
1.1 This part of ISO 179 specifies a method for determining Charpy impact properties of plastics from
force-deflection diagrams. Different types of rod-shaped test specimens and test configurations, as well
as test parameters depending on the type of material, the type of test specimen and the type of notch are
defined in Part 1 of ISO 179.
Dynamic effects such as load-cell/striker resonance, test specimen resonance and initial-contact/inertia
peaks are described (see Figure 1, Curve b, and Annex A).
1.2 ISO 179-1 is suitable for characterizing the impact behaviour by the impact strength only and for
using apparatus whose potential energy is matched approximately to the particular energy to break to
be measured (see ISO 13802, Annex E). This part of ISO 179 is used if a force-deflection or force-time
diagram is necessary for detailed characterization of the impact behaviour, and for developing automatic
apparatus, i.e. avoiding the need, mentioned above, to match energy.
1.3 For the range of materials which may be tested by this method, see ISO 179-1, Clause 1.
1.4 For the general comparability of test results, see ISO 179-1, Clause 1.
1.5 The method may not be used as a source of data for design calculations on components. However,
the possible use of data is not the subject of this part of ISO 179. Any application of data obtained using
this part of ISO 179 should be specified by a referring standard or agreed upon by the interested parties.
Information on the typical behaviour of materials can be obtained by testing at different temperatures,
by varying the notch radius and/or specimen thickness and by testing specimens prepared under
different conditions.
It is not the purpose of this part of ISO 179 to give an interpretation of the mechanism occurring at
every point on the force-deflection diagram. These interpretations are a task for on-going scientific
research.
1.6 The test results are comparable only if the conditions of test specimen preparation, as well as
the test conditions, are the same. Comprehensive evaluation of the reaction to impact stress requires
that determinations be made as a function of deformation rate and temperature for different material
variables such as crystallinity and moisture content. The impact behaviour of finished products cannot,
therefore, be predicted directly from this test, but test specimens may be taken from finished products
for testing by this method.
1.7 Impact strengths determined by this method may replace those determined using ISO 179-1 if
comparability has been established by previous tests.
ISO/DIS 179-2:2018(E)
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undat
...


INTERNATIONAL ISO
STANDARD 179-2
Second edition
2020-05
Plastics — Determination of Charpy
impact properties —
Part 2:
Instrumented impact test

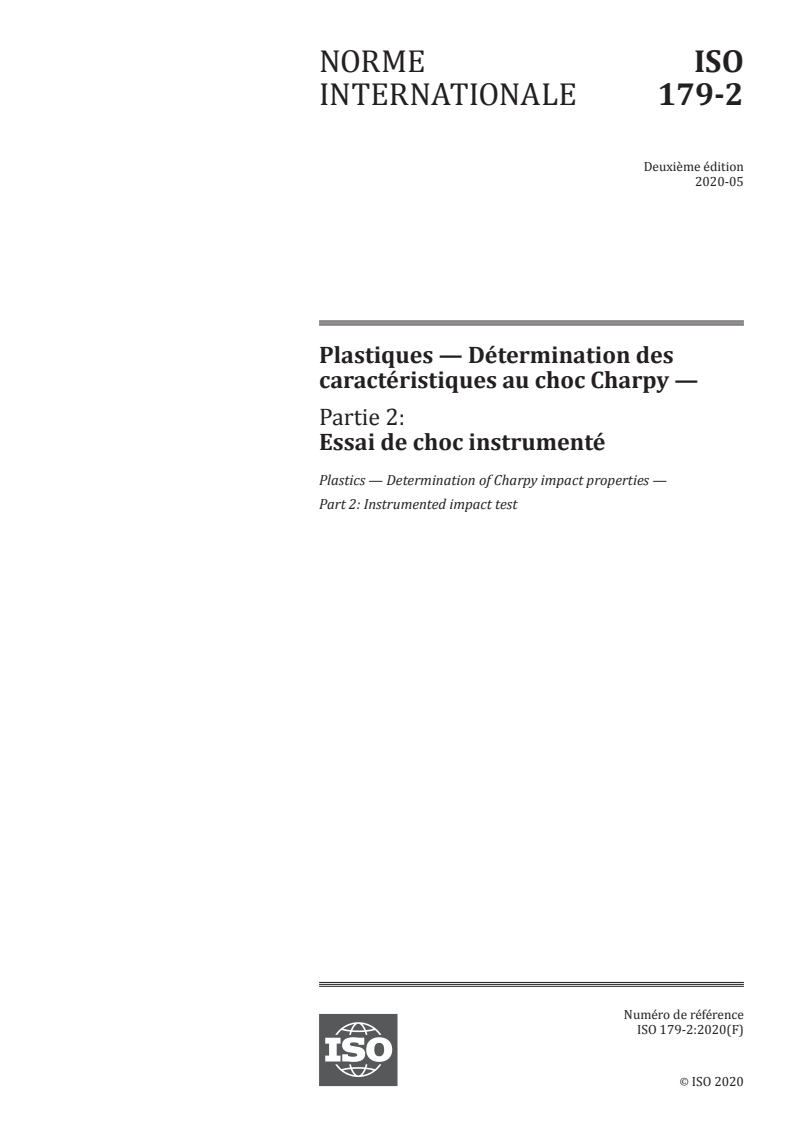

Plastiques — Détermination des caractéristiques au choc Charpy —
Partie 2: Essai de choc instrumenté
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

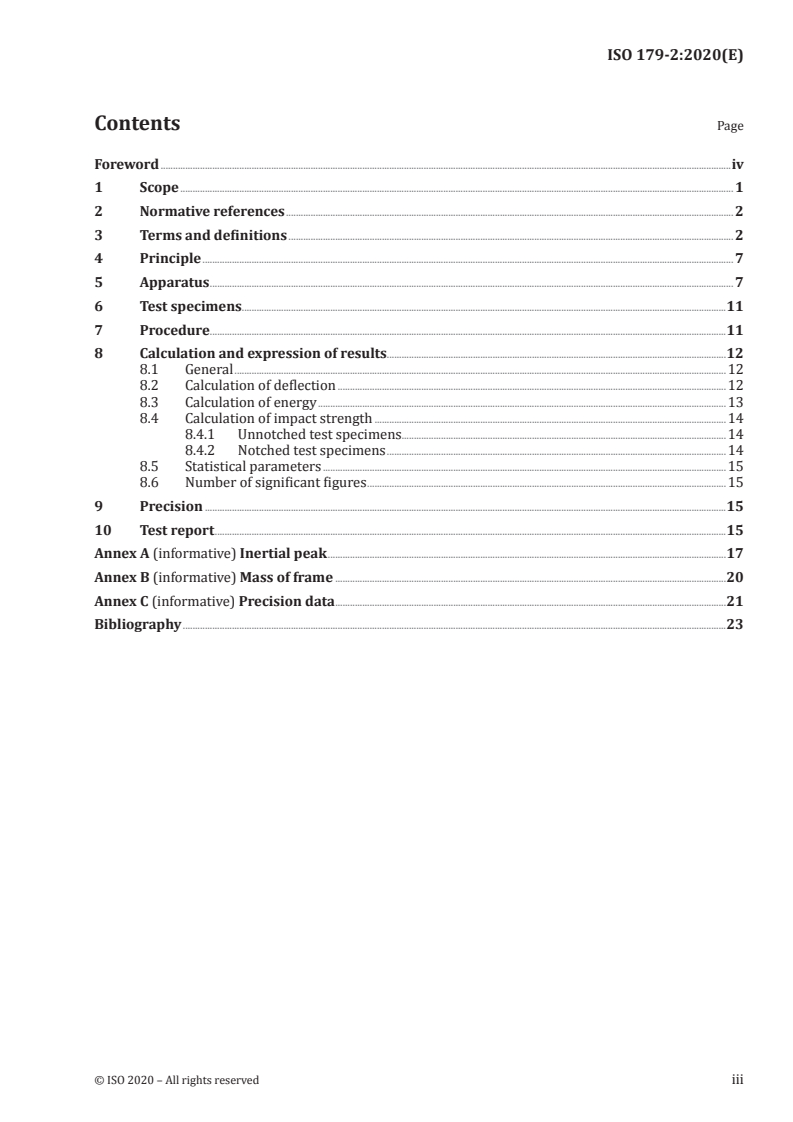

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Principle . 7
5 Apparatus . 7
6 Test specimens.11
7 Procedure.11
8 Calculation and expression of results .12
8.1 General .12
8.2 Calculation of deflection .12
8.3 Calculation of energy .13
8.4 Calculation of impact strength .14
8.4.1 Unnotched test specimens.14
8.4.2 Notched test specimens .14
8.5 Statistical parameters .15
8.6 Number of significant figures .15
9 Precision .15
10 Test report .15
Annex A (informative) Inertial peak .17
Annex B (informative) Mass of frame .20
Annex C (informative) Precision data .21
Bibliography .23

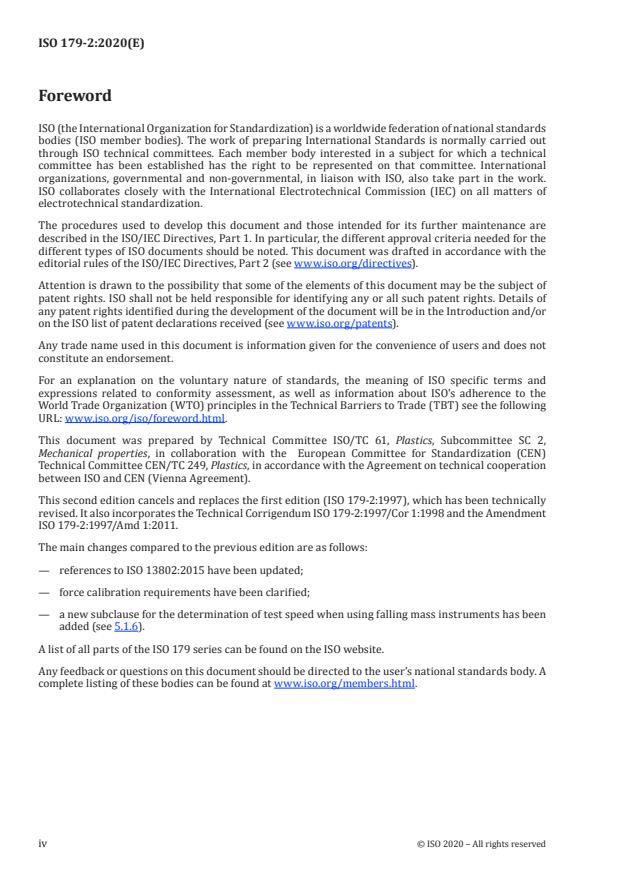

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 2,
Mechanical properties, in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 249, Plastics, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 179-2:1997), which has been technically
revised. It also incorporates the Technical Corrigendum ISO 179-2:1997/Cor 1:1998 and the Amendment
ISO 179-2:1997/Amd 1:2011.
The main changes compared to the previous edition are as follows:
— references to ISO 13802:2015 have been updated;
— force calibration requirements have been clarified;
— a new subclause for the determination of test speed when using falling mass instruments has been
added (see 5.1.6).
A list of all parts of the ISO 179 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

INTERNATIONAL STANDARD ISO 179-2:2020(E)
Plastics — Determination of Charpy impact properties —
Part 2:
Instrumented impact test
1 Scope
1.1 This document specifies a method for determining Charpy impact properties of plastics from
force-deflection diagrams. Different types of rod-shaped test specimens and test configurations, as well
as test parameters depending on the type of material, the type of test specimen and the type of notch, are
defined in ISO 179-1.
Dynamic effects such as load-cell/striker resonance, test specimen resonance and initial-contact/
inertia peaks are described in this document (see Figure 1, Curve b, and Annex A).
1.2 ISO 179-1 is suitable for characterizing the impact behaviour by the impact strength only and for
using apparatus whose potential energy is matched approximately to the particular energy to break
to be measured (see ISO 13802:2015, Annex E). This document is used to record a force-deflection or
force-time diagram for detailed characterization of the impact behaviour, and for developing automatic
apparatus, i.e. avoiding the need to match energy.
The method described in this document is also suitable for:
— acquiring more and different materials characteristics under impact conditions;
— supervising the Charpy test procedure, as this instrumentation allows detection of typical
operational mistakes, such as the specimen not being in close contact with the supports;
— automatically detecting the type of break;
— pendulum type instruments to avoid frequent changes of pendulum hammers;
— measuring fracture mechanical properties described in other ISO standards.
1.3 For the range of materials which can be tested by this method, see ISO 179-1:2010, Clause 1.
1.4 For the general comparability of test results, see ISO 179-1:2010, Clause 1.
1.5 Information on the typical behaviour of materials can be obtained by testing at different
temperatures, by varying the notch radius and/or specimen thickness and by testing specimens prepared
under different conditions.
It is not the purpose of this document to give an interpretation of the mechanism occurring at every
point on the force-deflection diagram. These interpretations are a task for on-going scientific research.
1.6 The test results obtained with this method are comparable only if the conditions of test specimen
preparation, as well as the test conditions, are the same. The impact behaviour of finished products
cannot, therefore, be predicted directly from this test.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 179-1:2010, Plastics — Determination of Charpy impact properties — Part 1: Non-instrumented
impact test
ISO 291, Plastics — Standard atmospheres for conditioning and testing
ISO 2602, Statistical interpretation of test results — Estimation of the mean — Confidence interval
ISO 16012, Plastics — Determination of linear dimensions of test specimens
ISO 13802:2015, Plastics — Verification of pendulum impact-testing machines — Charpy, Izod and tensile
impact-testing
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 179-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
impact velocity
v
I
velocity of the striker relative to the test specimen supports at the moment of impact
Note 1 to entry: It is expressed in metres per second (m/s).
3.2
inertial peak
first peak in a force-time or force-deflection diagram
Note 1 to entry: Inertial peak arises from the inertia of that part of the test specimen accelerated after the first
contact with the striker (see Figure 1, Curve b, and Annex A).
3.3
impact force
F
force exerted by the striking edge on the test specimen in the direction of impact
Note 1 to entry: It is expressed in newtons (N).
2 © ISO 2020 – All rights reserved

a) Force-deflection (N and C,t)
b) Force-time (C,b)
Key
X1 deflection (s) after impact in millimetres t time at break
B
X2 time after impact in milliseconds, ms s deflection at break
B
Y force (F) in newtons, N N no break, specimen pulled through
F maximum impact force C,t complete break, tough
M
F peak force of inertial peak C,b complete break, brittle
I
s deflection at maximum impact force F 1 5% of the maximum impact force
M M
s limiting deflection, beginning off pull-through
L
NOTE For the types of failure, see Figure 2.
Figure 1 — Typical force-deflection and force-time curves
3.4
deflection
s
displacement of the striker relative to the test specimen supports after impact, starting at first contact
between striker and test specimen
Note 1 to entry: It is expressed in millimetres (mm).
3.5
impact energy
W
energy expended in accelerating, deforming and breaking the test specimen during the deflection (3.4)
Note 1 to entry: It is expressed in joules (J).
3.6
maximum impact force
F
M
maximum value of the impact force (3.3) in a force-time or force-deflection diagram
Note 1 to entry: See Figure 1.
Note 2 to entry: It is expressed in newtons (N).
3.7
deflection at maximum impact force
s
M
deflection (3.4) at which the maximum impact fo
...


INTERNATIONAL ISO
STANDARD 179-2
Second edition
2020-05
Plastics — Determination of Charpy
impact properties —
Part 2:
Instrumented impact test
Plastiques — Détermination des caractéristiques au choc Charpy —
Partie 2: Essai de choc instrumenté
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Principle . 7
5 Apparatus . 7
6 Test specimens.11
7 Procedure.11
8 Calculation and expression of results .12
8.1 General .12
8.2 Calculation of deflection .12
8.3 Calculation of energy .13
8.4 Calculation of impact strength .14
8.4.1 Unnotched test specimens.14
8.4.2 Notched test specimens .14
8.5 Statistical parameters .15
8.6 Number of significant figures .15
9 Precision .15
10 Test report .15
Annex A (informative) Inertial peak .17
Annex B (informative) Mass of frame .20
Annex C (informative) Precision data .21
Bibliography .23
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 2,
Mechanical properties, in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 249, Plastics, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 179-2:1997), which has been technically
revised. It also incorporates the Technical Corrigendum ISO 179-2:1997/Cor 1:1998 and the Amendment
ISO 179-2:1997/Amd 1:2011.
The main changes compared to the previous edition are as follows:
— references to ISO 13802:2015 have been updated;
— force calibration requirements have been clarified;
— a new subclause for the determination of test speed when using falling mass instruments has been
added (see 5.1.6).
A list of all parts of the ISO 179 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

INTERNATIONAL STANDARD ISO 179-2:2020(E)
Plastics — Determination of Charpy impact properties —
Part 2:
Instrumented impact test
1 Scope
1.1 This document specifies a method for determining Charpy impact properties of plastics from
force-deflection diagrams. Different types of rod-shaped test specimens and test configurations, as well
as test parameters depending on the type of material, the type of test specimen and the type of notch, are
defined in ISO 179-1.
Dynamic effects such as load-cell/striker resonance, test specimen resonance and initial-contact/
inertia peaks are described in this document (see Figure 1, Curve b, and Annex A).
1.2 ISO 179-1 is suitable for characterizing the impact behaviour by the impact strength only and for
using apparatus whose potential energy is matched approximately to the particular energy to break
to be measured (see ISO 13802:2015, Annex E). This document is used to record a force-deflection or
force-time diagram for detailed characterization of the impact behaviour, and for developing automatic
apparatus, i.e. avoiding the need to match energy.
The method described in this document is also suitable for:
— acquiring more and different materials characteristics under impact conditions;
— supervising the Charpy test procedure, as this instrumentation allows detection of typical
operational mistakes, such as the specimen not being in close contact with the supports;
— automatically detecting the type of break;
— pendulum type instruments to avoid frequent changes of pendulum hammers;
— measuring fracture mechanical properties described in other ISO standards.
1.3 For the range of materials which can be tested by this method, see ISO 179-1:2010, Clause 1.
1.4 For the general comparability of test results, see ISO 179-1:2010, Clause 1.
1.5 Information on the typical behaviour of materials can be obtained by testing at different
temperatures, by varying the notch radius and/or specimen thickness and by testing specimens prepared
under different conditions.
It is not the purpose of this document to give an interpretation of the mechanism occurring at every
point on the force-deflection diagram. These interpretations are a task for on-going scientific research.
1.6 The test results obtained with this method are comparable only if the conditions of test specimen
preparation, as well as the test conditions, are the same. The impact behaviour of finished products
cannot, therefore, be predicted directly from this test.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 179-1:2010, Plastics — Determination of Charpy impact properties — Part 1: Non-instrumented
impact test
ISO 291, Plastics — Standard atmospheres for conditioning and testing
ISO 2602, Statistical interpretation of test results — Estimation of the mean — Confidence interval
ISO 16012, Plastics — Determination of linear dimensions of test specimens
ISO 13802:2015, Plastics — Verification of pendulum impact-testing machines — Charpy, Izod and tensile
impact-testing
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 179-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
impact velocity
v
I
velocity of the striker relative to the test specimen supports at the moment of impact
Note 1 to entry: It is expressed in metres per second (m/s).
3.2
inertial peak
first peak in a force-time or force-deflection diagram
Note 1 to entry: Inertial peak arises from the inertia of that part of the test specimen accelerated after the first
contact with the striker (see Figure 1, Curve b, and Annex A).
3.3
impact force
F
force exerted by the striking edge on the test specimen in the direction of impact
Note 1 to entry: It is expressed in newtons (N).
2 © ISO 2020 – All rights reserved

a) Force-deflection (N and C,t)
b) Force-time (C,b)
Key
X1 deflection (s) after impact in millimetres t time at break
B
X2 time after impact in milliseconds, ms s deflection at break
B
Y force (F) in newtons, N N no break, specimen pulled through
F maximum impact force C,t complete break, tough
M
F peak force of inertial peak C,b complete break, brittle
I
s deflection at maximum impact force F 1 5% of the maximum impact force
M M
s limiting deflection, beginning off pull-through
L
NOTE For the types of failure, see Figure 2.
Figure 1 — Typical force-deflection and force-time curves
3.4
deflection
s
displacement of the striker relative to the test specimen supports after impact, starting at first contact
between striker and test specimen
Note 1 to entry: It is expressed in millimetres (mm).
3.5
impact energy
W
energy expended in accelerating, deforming and breaking the test specimen during the deflection (3.4)
Note 1 to entry: It is expressed in joules (J).
3.6
maximum impact force
F
M
maximum value of the impact force (3.3) in a force-time or force-deflection diagram
Note 1 to entry: See Figure 1.
Note 2 to entry: It is expressed in newtons (N).
3.7
deflection at maximum impact force
s
M
deflection (3.4) at which the maximum impact fo
...


NORME ISO
INTERNATIONALE 179-2
Deuxième édition
2020-05
Plastiques — Détermination des
caractéristiques au choc Charpy —
Partie 2:
Essai de choc instrumenté
Plastics — Determination of Charpy impact properties —
Part 2: Instrumented impact test
Numéro de référence
©
ISO 2020
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2020
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
Fax: +41 22 749 09 47
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii © ISO 2020 – Tous droits réservés

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 2
3 Termes et définitions . 2
4 Principe . 7
5 Appareillage . 7
6 Éprouvettes .11
7 Mode opératoire.12
8 Calcul et expression des résultats .12
8.1 Généralités .12
8.2 Calcul de la flèche .13
8.3 Calcul de l’énergie .13
8.4 Calcul de la résistance au choc .14
8.4.1 Éprouvettes non entaillées .14
8.4.2 Éprouvettes entaillées .15
8.5 Paramètres statistiques .15
8.6 Nombre de chiffres significatifs .15
9 Fidélité .15
10 Rapport d’essai .16
Annexe A (informative) Pic d’inertie .17
Annexe B (informative) Masse du bâti .20
Annexe C (informative) Données de fidélité .21
Bibliographie .23
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/ directives).
L’attention est attirée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www .iso .org/ brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion
de l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir le lien suivant: www .iso .org/ iso/ fr/ avant -propos .html.
Le présent document a été élaboré par le comité technique ISO/TC 61, Plastiques, sous-comité SC 2,
Comportement mécanique, en collaboration avec le comité technique CEN/TC 249, Plastiques, du Comité
européen de normalisation (CEN), conformément à l’Accord de coopération technique entre l’ISO et le
CEN (Accord de Vienne).
Cette deuxième édition annule et remplace la première édition (ISO 179-2:1997), qui a fait l’objet d’une
révision technique. Elle intègre également le Corrigendum technique ISO 179-2:1997/Cor 1:1998 et
l’Amendement ISO 179-2:1997/Amd 1:2011.
Les principales modifications par rapport à l’édition précédente sont les suivantes:
— les références à l'ISO 13802:2015 ont été mises à jour;
— des exigences d’étalonnage de la force à été clarifié;
— un nouveau paragraphe sur la détermination de la vitesse d’essai en cas d’utilisation d’instruments
à masse tombante à été ajouté (voir 5.1.6).
Une liste de toutes les parties de la série ISO 179 se trouve sur le site web de l’ISO.
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes
se trouve à l’adresse www .iso .org/ fr/ members .html.
iv © ISO 2020 – Tous droits réservés

NORME INTERNATIONALE ISO 179-2:2020(F)
Plastiques — Détermination des caractéristiques au choc
Charpy —
Partie 2:
Essai de choc instrumenté
1 Domaine d’application
1.1 Le présent document spécifie une méthode pour la détermination des propriétés des plastiques au
choc Charpy à partir de diagrammes force/flèche. L’ISO 179-1 définit différents types d’éprouvettes en
forme de barreau, diverses configurations d’essai, ainsi que les paramètres d’essai à adopter suivant le
type de matériau, d’éprouvette et d’entaille.
En outre, le présent document décrit les effets dynamiques, tels que la résonance de la cellule de
charge/du percuteur, la résonance de l’éprouvette et les pics d’inertie au contact initial (voir la Figure 1,
courbe b, et l’Annexe A).
1.2 L’ISO 179-1 est utilisable pour caractériser le comportement au choc, mais uniquement à partir de
la résistance au choc et avec un appareil dont l’énergie potentielle est adaptée à l’énergie particulière à la
rupture à mesurer (voir l’ISO 13802:2015, Annexe E). Le présent document est utilisé pour enregistrer
un diagramme force/flèche ou force/temps pour caractériser le comportement au choc et pour mettre
au point un appareillage automatique, c’est-à-dire un appareillage qui évite l’ajustement des énergies.
La méthode décrite dans le présent document convient également pour:
— acquérir davantage de caractéristiques et des caractéristiques de matériaux différents dans des
conditions de choc;
— superviser le mode opératoire d’essai Charpy, car ces instruments permettent la détection d’erreurs
opérationnelles type, par exemple lorsque l’éprouvette n’est pas en contact étroit avec les supports;
— détecter automatiquement le type de rupture;
— les instruments de type à pendule pour éviter des changements fréquents de marteaux;
— mesurer les propriétés mécaniques de rupture décrites dans d’autres normes ISO.
1.3 En ce qui concerne l’éventail des matériaux pouvant être soumis à l’essai au moyen de la présente
méthode, voir l’ISO 179-1:2010, Article 1.
1.4 En ce qui concerne la comparabilité générale des résultats d’essai, voir l’ISO 179-1:2010, Article 1.
1.5 Des informations relatives au comportement caractéristique des matériaux peuvent être obtenues
en conduisant les essais à différentes températures, en faisant varier le rayon de l’entaille et/ou
l’épaisseur de l’éprouvette et en soumettant à l’essai des éprouvettes ayant été préparées dans différentes
conditions.
Le présent document n’a pas pour but de donner une explication du mécanisme qui intervient à
chaque point particulier du diagramme force/flèche. Ces explications sont étudiées dans le cadre des
recherches scientifiques actuellement en cours.
1.6 Les résultats d’essai obtenus avec cette méthode ne sont comparables qui si les conditions de
préparation des éprouvettes et les conditions d’essai retenues sont les mêmes. De ce fait, le comportement
au choc des produits finis ne peut pas être directement déduit de l’essai.
2 Références normatives
Les documents suivants cités dans le texte constituent, pour tout ou partie de leur contenu, des
exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour les
références non datées, la dernière édition du document de référence s’applique (y compris les éventuels
amendements).
ISO 179-1:2010, Plastiques — Détermination des caractéristiques au choc Charpy — Partie 1: Essai de choc
non instrumenté
ISO 291, Plastiques — Atmosphères normales de conditionnement et d’essai
ISO 2602, Interprétation statistique de résultats d’essais — Estimation de la moyenne — Intervalle de
confiance
ISO 16012, Plastiques — Détermination des dimensions linéaires des éprouvettes
ISO 13802:2015, Plastiques — Vérification des machines d’essai de choc pendulaire — Essais de choc
Charpy, Izod et de choc-traction
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés dans l’ISO 179-1 ainsi que les
suivants, s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en
normalisation, consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l’adresse http:// www .electropedia .org/
3.1
vitesse d’impact
v
I
vitesse du percuteur par rapport aux supports de l’éprouvette au moment du choc
Note 1 à l'article: Elle est exprimée en mètres par seconde (m/s).
3.2
pic d’inertie
premier pic apparaissant sur un diagramme force/temps ou force/flèche
Note 1 à l'article: Le pic d’inertie résulte de l’inertie de la partie d’éprouvette soumise à une accélération après le
premier contact avec le percuteur (voir la Figure 1, courbe b, et l’Annexe A).
3.3
force d’impact
F
force exercée par le bord du percuteur sur l’éprouvette dans le sens du choc
Note 1 à l'article: Elle est exprimée en newtons (N).
2 © ISO 2020 – Tous droits réservés

a) Force-flèche (N et C,t)
b) Force-temps (C,b)
Légende
X1 flèche (s) après la percussion, en millimètres t durée jusqu’à rupture
B
X2 durée
...


NORME ISO
INTERNATIONALE 179-2
Deuxième édition
2020-05
Plastiques — Détermination des
caractéristiques au choc Charpy —
Partie 2:
Essai de choc instrumenté
Plastics — Determination of Charpy impact properties —
Part 2: Instrumented impact test
Numéro de référence
©
ISO 2020
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2020
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
Fax: +41 22 749 09 47
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii © ISO 2020 – Tous droits réservés

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 2
3 Termes et définitions . 2
4 Principe . 7
5 Appareillage . 7
6 Éprouvettes .11
7 Mode opératoire.12
8 Calcul et expression des résultats .12
8.1 Généralités .12
8.2 Calcul de la flèche .13
8.3 Calcul de l’énergie .13
8.4 Calcul de la résistance au choc .14
8.4.1 Éprouvettes non entaillées .14
8.4.2 Éprouvettes entaillées .15
8.5 Paramètres statistiques .15
8.6 Nombre de chiffres significatifs .15
9 Fidélité .15
10 Rapport d’essai .16
Annexe A (informative) Pic d’inertie .17
Annexe B (informative) Masse du bâti .20
Annexe C (informative) Données de fidélité .21
Bibliographie .23
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/ directives).
L’attention est attirée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www .iso .org/ brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion
de l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir le lien suivant: www .iso .org/ iso/ fr/ avant -propos .html.
Le présent document a été élaboré par le comité technique ISO/TC 61, Plastiques, sous-comité SC 2,
Comportement mécanique, en collaboration avec le comité technique CEN/TC 249, Plastiques, du Comité
européen de normalisation (CEN), conformément à l’Accord de coopération technique entre l’ISO et le
CEN (Accord de Vienne).
Cette deuxième édition annule et remplace la première édition (ISO 179-2:1997), qui a fait l’objet d’une
révision technique. Elle intègre également le Corrigendum technique ISO 179-2:1997/Cor 1:1998 et
l’Amendement ISO 179-2:1997/Amd 1:2011.
Les principales modifications par rapport à l’édition précédente sont les suivantes:
— les références à l'ISO 13802:2015 ont été mises à jour;
— des exigences d’étalonnage de la force à été clarifié;
— un nouveau paragraphe sur la détermination de la vitesse d’essai en cas d’utilisation d’instruments
à masse tombante à été ajouté (voir 5.1.6).
Une liste de toutes les parties de la série ISO 179 se trouve sur le site web de l’ISO.
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes
se trouve à l’adresse www .iso .org/ fr/ members .html.
iv © ISO 2020 – Tous droits réservés

NORME INTERNATIONALE ISO 179-2:2020(F)
Plastiques — Détermination des caractéristiques au choc
Charpy —
Partie 2:
Essai de choc instrumenté
1 Domaine d’application
1.1 Le présent document spécifie une méthode pour la détermination des propriétés des plastiques au
choc Charpy à partir de diagrammes force/flèche. L’ISO 179-1 définit différents types d’éprouvettes en
forme de barreau, diverses configurations d’essai, ainsi que les paramètres d’essai à adopter suivant le
type de matériau, d’éprouvette et d’entaille.
En outre, le présent document décrit les effets dynamiques, tels que la résonance de la cellule de
charge/du percuteur, la résonance de l’éprouvette et les pics d’inertie au contact initial (voir la Figure 1,
courbe b, et l’Annexe A).
1.2 L’ISO 179-1 est utilisable pour caractériser le comportement au choc, mais uniquement à partir de
la résistance au choc et avec un appareil dont l’énergie potentielle est adaptée à l’énergie particulière à la
rupture à mesurer (voir l’ISO 13802:2015, Annexe E). Le présent document est utilisé pour enregistrer
un diagramme force/flèche ou force/temps pour caractériser le comportement au choc et pour mettre
au point un appareillage automatique, c’est-à-dire un appareillage qui évite l’ajustement des énergies.
La méthode décrite dans le présent document convient également pour:
— acquérir davantage de caractéristiques et des caractéristiques de matériaux différents dans des
conditions de choc;
— superviser le mode opératoire d’essai Charpy, car ces instruments permettent la détection d’erreurs
opérationnelles type, par exemple lorsque l’éprouvette n’est pas en contact étroit avec les supports;
— détecter automatiquement le type de rupture;
— les instruments de type à pendule pour éviter des changements fréquents de marteaux;
— mesurer les propriétés mécaniques de rupture décrites dans d’autres normes ISO.
1.3 En ce qui concerne l’éventail des matériaux pouvant être soumis à l’essai au moyen de la présente
méthode, voir l’ISO 179-1:2010, Article 1.
1.4 En ce qui concerne la comparabilité générale des résultats d’essai, voir l’ISO 179-1:2010, Article 1.
1.5 Des informations relatives au comportement caractéristique des matériaux peuvent être obtenues
en conduisant les essais à différentes températures, en faisant varier le rayon de l’entaille et/ou
l’épaisseur de l’éprouvette et en soumettant à l’essai des éprouvettes ayant été préparées dans différentes
conditions.
Le présent document n’a pas pour but de donner une explication du mécanisme qui intervient à
chaque point particulier du diagramme force/flèche. Ces explications sont étudiées dans le cadre des
recherches scientifiques actuellement en cours.
1.6 Les résultats d’essai obtenus avec cette méthode ne sont comparables qui si les conditions de
préparation des éprouvettes et les conditions d’essai retenues sont les mêmes. De ce fait, le comportement
au choc des produits finis ne peut pas être directement déduit de l’essai.
2 Références normatives
Les documents suivants cités dans le texte constituent, pour tout ou partie de leur contenu, des
exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour les
références non datées, la dernière édition du document de référence s’applique (y compris les éventuels
amendements).
ISO 179-1:2010, Plastiques — Détermination des caractéristiques au choc Charpy — Partie 1: Essai de choc
non instrumenté
ISO 291, Plastiques — Atmosphères normales de conditionnement et d’essai
ISO 2602, Interprétation statistique de résultats d’essais — Estimation de la moyenne — Intervalle de
confiance
ISO 16012, Plastiques — Détermination des dimensions linéaires des éprouvettes
ISO 13802:2015, Plastiques — Vérification des machines d’essai de choc pendulaire — Essais de choc
Charpy, Izod et de choc-traction
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés dans l’ISO 179-1 ainsi que les
suivants, s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en
normalisation, consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l’adresse http:// www .electropedia .org/
3.1
vitesse d’impact
v
I
vitesse du percuteur par rapport aux supports de l’éprouvette au moment du choc
Note 1 à l'article: Elle est exprimée en mètres par seconde (m/s).
3.2
pic d’inertie
premier pic apparaissant sur un diagramme force/temps ou force/flèche
Note 1 à l'article: Le pic d’inertie résulte de l’inertie de la partie d’éprouvette soumise à une accélération après le
premier contact avec le percuteur (voir la Figure 1, courbe b, et l’Annexe A).
3.3
force d’impact
F
force exercée par le bord du percuteur sur l’éprouvette dans le sens du choc
Note 1 à l'article: Elle est exprimée en newtons (N).
2 © ISO 2020 – Tous droits réservés

a) Force-flèche (N et C,t)
b) Force-temps (C,b)
Légende
X1 flèche (s) après la percussion, en millimètres t durée jusqu’à rupture
B
X2 durée
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
