ISO 11568-4:2007

INTERNATIONAL ISO
STANDARD 11568-4
Second edition
2007-07-01

Banking — Key management (retail) —
Part 4:
Asymmetric cryptosystems —
Key management and life cycle
Banque — Gestion de clés (services aux particuliers) —
Partie 4: Cryptosystèmes asymétriques — Gestion des clés et cycle
de vie




Reference number
ISO 11568-4:2007(E)
©
ISO 2007

---------------------- Page: 1 ----------------------
ISO 11568-4:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2007 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 11568-4:2007(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Uses of asymmetric cryptosystems in retail financial services systems. 3
4.1 General. 3
4.2 Establishment and storage of symmetric keys . 4
4.3 Storage and distribution of asymmetric public keys. 4
4.4 Storage and transfer of asymmetric private keys . 4
5 Techniques for the provision of key management services . 4
5.1 Introduction . 4
5.2 Key encipherment. 4
5.3 Public key certification. 5
5.4 Key separation techniques . 6
5.5 Key verification . 6
5.6 Key integrity techniques . 7
6 Asymmetric key life cycle . 8
6.1 Key life cycle phases. 8
6.2 Key life cycle stages — Generation. 9
6.3 Key storage . 12
6.4 Public key distribution . 14
6.5 Asymmetric key pair transfer . 14
6.6 Authenticity prior to use . 16
6.7 Use. 17
6.8 Public key revocation. 17
6.9 Replacement. 18
6.10 Public key expiration. 18
6.11 Private key destruction . 18
6.12 Private key deletion . 19
6.13 Public key archive. 19
6.14 Private key termination . 19
6.15 Erasure summary. 20
6.16 Optional life cycle processes . 20
Annex A (normative) Approved algorithms. 21
Bibliography . 22

© ISO 2007 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 11568-4:2007(E)

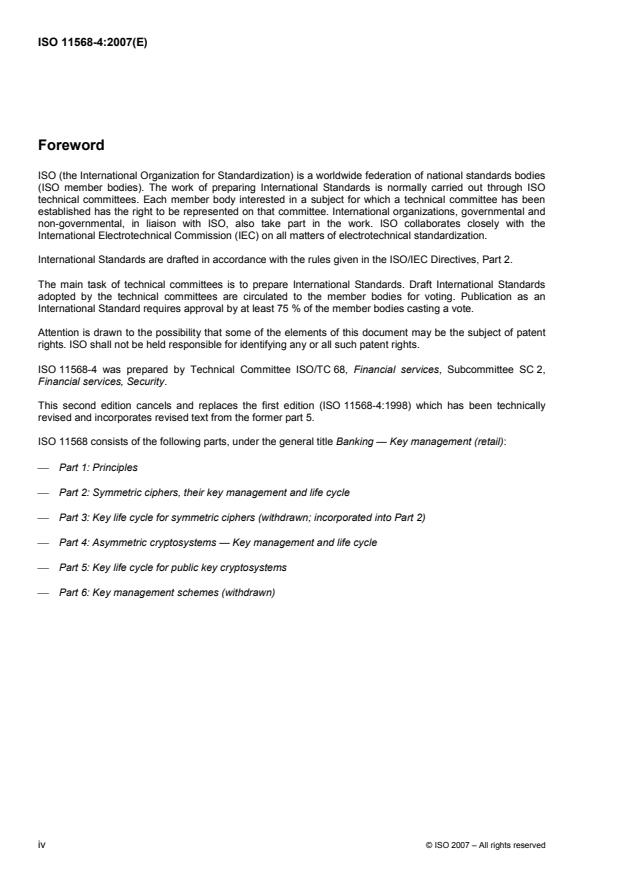

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 11568-4 was prepared by Technical Committee ISO/TC 68, Financial services, Subcommittee SC 2,
Financial services, Security.
This second edition cancels and replaces the first edition (ISO 11568-4:1998) which has been technically
revised and incorporates revised text from the former part 5.
ISO 11568 consists of the following parts, under the general title Banking — Key management (retail):
⎯ Part 1: Principles
⎯ Part 2: Symmetric ciphers, their key management and life cycle
⎯ Part 3: Key life cycle for symmetric ciphers (withdrawn; incorporated into Part 2)
⎯ Part 4: Asymmetric cryptosystems — Key management and life cycle
⎯ Part 5: Key life cycle for public key cryptosystems
⎯ Part 6: Key management schemes (withdrawn)
iv © ISO 2007 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 11568-4:2007(E)
Introduction
ISO 11568 is one of a series of International Standards describing procedures for the secure management of
cryptographic keys used to protect messages in a retail financial services environment; e.g. messages
between an acquirer and a card acceptor, or an acquirer and a card issuer.
This part of ISO 11568 addresses the key management requirements that are applicable in the domain of
retail financial services. Typical of such services are point-of-sale/point-of-service (POS) debit and credit
authorizations and automated teller machines (ATM) transactions.
ISO 11568-2 and ISO 11568-4 describe key management techniques which, when used in combination,
provide the key management services identified in ISO 11568-1. These services are:
a) key separation;
b) key substitution prevention;
c) key identification;
d) key synchronization;
e) key integrity;
f) key confidentiality;
g) key compromise detection.
This part of ISO 11568 also describes the key life cycle in the context of secure management of cryptographic
keys for asymmetric cryptosystems. It states both requirements and implementation methods for each step in
the life of such a key, utilizing the key management principles, services and techniques described herein and
in ISO 11568-1. This part of ISO 11568 does not cover the management or key life cycle for keys used in
symmetric ciphers, which are covered in ISO 11568-2.
This part of ISO 11568 is one of a series that describes requirements for security in the financial services
environment, as follows:
ISO 9564-1; ISO 9564-2; ISO 9564-3; ISO/TR 9564-4; ISO 11568; ISO 13491; ISO/TR 19038.
© ISO 2007 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 11568-4:2007(E)

Banking — Key management (retail) —
Part 4:
Asymmetric cryptosystems — Key management and life cycle
1 Scope
This part of ISO 11568 specifies techniques for the protection of symmetric and asymmetric cryptographic
keys in a retail financial services environment using asymmetric cryptosystems and the life cycle management
of the associated asymmetric keys. The techniques described in this part of ISO 11568 enable compliance
with the principles described in ISO 11568-1. For the purposes of this document, the retail financial services
environment is restricted to the interface between:
⎯ a card-accepting device and an acquirer;
⎯ an acquirer and a card issuer;
⎯ an ICC and a card-accepting device.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 9564-1, Banking — Personal Identification Number (PIN) management and security — Part 1: Basic
principles and requirements for online PIN handling in ATM and POS systems
ISO/IEC 9796-2:2002, Information technology — Security techniques — Digital signature schemes giving
message recovery — Part 2: Integer factorization based mechanisms
ISO/IEC 10116:1997, Information technology — Security techniques — Modes of operation for an n-bit block
cipher
ISO/IEC 10118 (all parts), Information technology — Security techniques — Hash functions
ISO 11568-1, Banking — Key management (retail) — Part 1: Principles
ISO 11568-2, Banking — Key management (retail) — Part 2: Symmetric ciphers, their key management and
life cycle
ISO/IEC 11770-3, Information technology — Security techniques — Key management — Part 3: Mechanisms
using asymmetric techniques
ISO 13491-1, Banking — Secure cryptographic devices (retail) — Part 1: Concepts, requirements and
evaluation methods
ISO 13491-2, Banking — Secure cryptographic devices (retail) — Part 2: Security compliance checklists for
devices used in financial transactions
© ISO 2007 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 11568-4:2007(E)
ISO/IEC 14888-3, Information technology — Security techniques — Digital signatures with appendix — Part 3:
Discrete logarithm based mechanisms
ISO 15782-1:2003, Certificate management for financial services — Part 1: Public key certificates
ISO/IEC 15946-3:2002, Information technology — Security techniques — Cryptographic techniques based on
elliptic curves — Part 3: Key establishment
ISO 16609:2004, Banking — Requirements for message authentication using symmetric techniques
ISO/IEC 18033-2, Information technology — Security techniques — Encryption algorithms — Part 2:
Asymmetric ciphers
ANSI X9.42-2003, Public Key Cryptography for the Financial Services Industry: Agreement of Symmetric Keys
Using Discrete Logarithm Cryptography
3 Terms and definitions
For the purposes of this document, the definitions in ISO 11568-1, ISO 11568-2 and the following apply.
3.1
asymmetric cipher
cipher in which the encipherment key and the decipherment key are different, and in which it is
computationally infeasible to deduce the (private) decipherment key from the (public) encipherment key
3.2
asymmetric cryptosystem
cryptosystem consisting of two complementary operations each utilizing one of two distinct but related keys,
the public key and the private key, having the property that it is computationally infeasible to determine the
private key from the public key
3.3
asymmetric key pair generator
secure cryptographic device used for the generation of asymmetric cryptographic keys
3.4
certificate
credentials of an entity, signed using the private key of the certification authority which issued it, and thereby
rendered unforgeable
3.5
certification authority
CA
entity trusted by one or more entities to create, assign and revoke or hold public key certificates
NOTE Optionally the certification authority can create and assign keys to the entities.
3.6
communicating party
party that sends or receives the public key for the communication with the party that owns the public key
3.7
computationally infeasible
property that a computation is theoretically achievable but is not feasible in terms of the time or resources
required to perform it
2 © ISO 2007 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 11568-4:2007(E)
3.8
credentials
identification data for an entity, incorporating at a minimum the entity's distinguished name and public key
NOTE Additional data can be included.
3.9
cryptoperiod
time span during which a specific key is authorized for use or in which the keys for a given system may remain
in effect
3.10
digital signature system
asymmetric cryptosystem that provides for the creation and subsequent verification of digital signatures
3.11
hash function
one-way function that maps a set of strings of arbitrary length on to a set of fixed-length strings of bits
NOTE A collision-resistant hash function is one with the property that it is computationally infeasible to construct
distinct inputs that map to the same output.
3.12
independent communication
process that allows an entity to counter-verify the correctness of a credential and identification documents
prior to producing a certificate (e.g., call-back, visual identification, etc.)
3.13
key agreement
process of establishing a shared secret key between entities in such a way that neither of them can
predetermine the value of that key
3.14
key share
one of at least two parameters related to a cryptographic key generated in such a way that a quorum of such
parameters can be combined to form the cryptographic key but such that fewer than a quorum provide no
information about the key
3.15
non-repudiation of origin
property that the originator of a message and associated cryptographic check value (i.e., digital signature) is
not able to subsequently deny, with an accepted level of credibility, having originated the message
4 Uses of asymmetric cryptosystems in retail financial services systems
4.1 General
Asymmetric cryptosystems include asymmetric ciphers, digital signature systems and key agreement systems.
In financial services systems, asymmetric cryptosystems are used predominantly for key management; firstly
for the management of the keys of symmetric ciphers, and secondly for the management of the keys of the
asymmetric cryptosystems themselves. This clause describes these applications of asymmetric cryptosystems.
Clause 5 describes the techniques employed in support of these applications relating to key management
services and certificate management. Clause 6 describes how these techniques and methods are used in
relation to the security and implementation requirements for the key pair life cycle.
© ISO 2007 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 11568-4:2007(E)
4.2 Establishment and storage of symmetric keys
Keys of a symmetric cipher may be established by key transport or by key agreement. Mechanisms for key
transport and key agreement are described in ISO/IEC 11770-3. The mechanisms used shall ensure the
authenticity of the communicating parties.
Symmetric keys shall be stored as described in ISO 11568-2.
4.3 Storage and distribution of asymmetric public keys
The public key of an asymmetric key pair needs to be distributed to, and stored by, one or more users for
subsequent use as an encipherment key and/or signature verification key, or for use in a key agreement
mechanism. Although this key need not be protected from disclosure, the distribution and storage procedures
shall ensure that key authenticity and integrity is maintained as defined in 5.6.1.
Mechanisms for the distribution of asymmetric public keys are described in ISO/IEC 11770-3.
4.4 Storage and transfer of asymmetric private keys
The private key of an asymmetric key pair does not necessarily need to be distributed to any entity. In some
cases it can be maintained only within the secure cryptographic device (SCD) that generated it.
If it must be output from the SCD that generated it (e.g., for transfer to another SCD where it is to be used, or
for backup purposes) it shall be protected from compromise by at least one of the following techniques:
⎯ encipherment with another cryptographic key as defined in 5.2;
⎯ if non-encrypted and outside an SCD, as key shares using an acceptable key segmentation algorithm
(see clause 6.3.2.3 and Bibliography [8]);
⎯ outputting into another SCD, which either is the SCD where it is to be used, or is a secure key transfer
device intended for this use; if the communications path is not fully secured, then the transfer shall only
be permitted inside a secure environment.
The integrity of the private key shall be ensured using one of the techniques defined in 5.6.2.
5 Techniques for the provision of key management services
5.1 Introduction
This clause describes the techniques that may be used, individually or in combination, to provide the key
management services introduced in ISO 11568-1. Some techniques provide multiple key management
services.
Asymmetric key pairs should not be used for multiple purposes. However, if a key pair is used for multiple
purposes, e.g. digital signatures and encipherment, then special key separation techniques shall be employed
which ensure that the system is not open to attack by transformations using the key pair. The selected
techniques shall be implemented in an SCD. The functionality of the cryptographic device shall ensure that the
implementation of a technique is such that the intended purpose of the technique is achieved.
The characteristics and management requirements for an SCD are defined in ISO 13491-1.
5.2 Key encipherment
5.2.1 General
Key encipherment is a technique whereby one key is enciphered using another key. The resulting enciphered
key may then exist securely outside of an SCD. A key used to perform such encipherment is called a key
encipherment key (KEK).
4 © ISO 2007 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 11568-4:2007(E)
Two differing cases of key encipherment involving asymmetric keys and ciphers are described here:
a) encipherment of a symmetric key using an asymmetric cipher;
b) encipherment of an asymmetric key using a symmetric cipher.
5.2.2 Encipherment of a symmetric key using an asymmetric cipher
Encipherment of a symmetric key using the public key of an asymmetric cipher is typically used for the
distribution of that key using a non-secure channel. The enciphered key may be a working key, or may itself
be a KEK. Thus, mixed key hierarchies, as described in ISO 11568-2, may be created which incorporate the
keys of both symmetric and asymmetric ciphers.
The symmetric key shall be formatted into a data block appropriate to the encipherment operation. As the
block size of asymmetric ciphers tends to be larger than the key size of symmetric ciphers, it is usually
possible to include more than one key in the data block for encipherment. Additionally, formatting information,
random padding and redundancy characters shall be incorporated in the data block (see ISO/IEC 18033-2).
5.2.3 Encipherment of an asymmetric key using a symmetric cipher
Asymmetric keys may be enciphered using a symmetric cipher.
As the keys of asymmetric cryptosystems tend to be larger than the block size of symmetric ciphers, the
asymmetric key may be formatted into multiple data blocks for encipherment. Therefore, the cipher block
chaining mode of operation (see ISO/IEC 10116) or an equivalent operation shall be used for encipherment.
Due consideration shall be paid to known attacks when assessing the equivalent strength of various
cryptographic algorithms. Generally an algorithm can be said to provide s bits of strength where the best-
s−1
known attack would take, on average, 2 T to attack, where T is the amount of time that is required to
perform one encryption of a plaintext value and comparison of the result against the corresponding ciphertext
value.
For example in ISO/IEC 10116, an attack against 112-bit TDEA is presented that requires O(k) space and
120−log k
2 operations, where k is the number of known plaintext-ciphertext pairs. As discussed in reference [11],
40
given 2 known plaintext-ciphertext pairs, this reduces the strength of two-key (112-bit) TDEA to 80 bits.
Recommended equivalent key sizes at the time of publication are given in Table 1. In assessing these
numbers, consideration must be paid to any further developments in cryptanalysis, factoring and computing
generally.
NOTE Currently, in the retail banking environment, where TDEA keys are used for protecting other keys, and are
changed such that the collection of quantities of plaintext/ciphertext pairs sufficient to significantly weaken the underlying
cipher is improbable, 112-bit TDEA can be considered to offer sufficient security for the protection of 168-bit TDEA and
2 048-bit RSA keys.
Table 1 — Encryption algorithms — Equivalent strengths
Effective strength Symmetric RSA Elliptic curve
40
80 112-bit TDEA (with 2 known pairs) 1 024 160
112-bit TDEA (with no known pairs)
112 2 048 224
168-bit TDEA
5.3 Public key certification
Key certification is a technique that, when used in accordance with ISO 15782-1, ensures the authenticity of a
public key by creating a digital signature for the key and associated validation data. Prior to using the public
key, a recipient checks its authenticity by verifying the digital signature.
© ISO 2007 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO 11568-4:2007(E)
The public key and associated validity data for the owner are together known as the owner's credentials. The
validity data typically incorporates owner and key identification data, and key validity data (e.g., expiry date). A
key certificate is issued by a trusted third party referred to as the Certification Authority. A key certificate is
created by signing the owner's credentials using a private key owned by the Certification Authority and used
only for this purpose.
An independent communication shall be used to verify that the identification of the key and its owner are
correct and authorized. This may require confirmation obtained via a different channel from the one whereby
the information was originally obtained.
During distribution to authorized recipients, or during storage in a key database, the authenticity of the public
key shall be ensured.
5.4 Key separation techniques
5.4.1 General
In order to ensure that a stored key is useable only for its intended purpose, key separation for stored keys
shall be provided by one or more of the following:
a) physically segregating stored keys as a function of their intended purpose;
b) storing a key enciphered under a key encipherment key dedicated to encipherment of a specific type of
key;
c) modifying or appending information to a key as a function of its intended purpose, prior to encipherment
of the key for storage i.e., key tagging.
5.4.2 Key tagging
5.4.2.1 General
Key tagging is a technique for identifying the type of a key existing outside a secure cryptographic facility and
the uses to which that key can be put. The key value and its privileges are bound together in a manner that
prevents undetectable modifications to either.
5.4.2.2 Explicit key tagging
Explicit key tagging involves the use of a field containing information defining the limits of privilege for the
associated key and key type. This field is bound together with the key value in a manner that prevents
undetectable modifications to either.
5.4.2.3 Implicit key tagging
Implicit key tagging does not rely on the use of an explicit field containing information defining the limits of
privilege for the associated key and key type, but rather relies on other characteristics of the system such as
the position of the key in the record, or the associated functions to determine and limit the rights and privileges
of the key.
5.5 Key verification
Key verification is a technique that allows the value of a key to be checked and verified, without exposing any
secret values and without using public key certificates. The technique utilizes a key verification code (KVC)
that is cryptographically related to the key via a collision-resistant one-way function. For example, the
reference KVC may be computed as the hash of the public or private key and associated data using an
algorithm defined in ISO/IEC 10118.
6 © ISO 2007 – All rights reserved

---------------------- Page: 11 ----------------------
ISO 11568-4:2007(E)
At any time following initial generation of the KVC, the key can again be input to the one-way function. If the
resulting KVC is identical to the initial KVC, it is assumed that the value of the key is unchanged.
Key verification can be used to establish that one or more of the following conditions have been met:
a) a key has been correctly entered into a cryptographic device;
b) a key has been correctly received over a communications channel;
c) a key has not been altered or substituted.
For public keys, as long as the KVC is distributed via an integrity-assured channel, the public key can be
distributed via a non-secure channel. Prior to installing the public key for use, the user shall validate it by re-
computing the KVC and comparing it with the reference KVC.
It shall be infeasible to modify or substitute the reference KVC and public key (and associated data) in such a
way that the recomputed KVC of the modified/substituted public key (and associated data) equals the
modified/substituted reference KVC. This can be achieved by either of the following:
⎯ by ensuring the integrity of the KVC (see ISO 16609);
or
⎯ by separately storing/distributing the reference KVC in such a way that modification/substitution of the
reference KVC cannot be coordinated with modification/substitution of the public key (and associated
data) (e.g., dual controls).
5.6 Key integrity techniques
5.6.1 Public key
One or more of the following techniques shall be used to ensure public key integrity:
⎯ sign the public key and associated data using a digital signature system
...
