ISO/TR 12888:2011

TECHNICAL ISO/TR
REPORT 12888
First edition
2011-08-01

Selected illustrations of gauge
repeatability and reproducibility studies
Illustrations choisies d'études de répétabilité et de reproductibilité par
calibre




Reference number
ISO/TR 12888:2011(E)
©
ISO 2011

---------------------- Page: 1 ----------------------
ISO/TR 12888:2011(E)

COPYRIGHT PROTECTED DOCUMENT


©  ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2011 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 12888:2011(E)
Contents Page
Foreword . iv
Introduction . v
1  Scope . 1
2  Terms and definitions . 1
3  Symbols and abbreviated terms . 2
4  Generic description of GRR studies . 3
4.1  Overview of the structure of GRR studies . 3
4.2  Overall objectives of GRR . 3
4.3  Measurement process description . 4
4.4  GRR studies methodology . 4
4.5  Sampling plan for GRR studies . 6
4.6  Data analysis (numerically and graphically) . 8
4.7  Conclusions and suggestions . 8
5  Description of Annexes A through D . 9
5.1  Comparison of the examples . 9
5.2  Example summaries . 9
Annex A (informative) GRR for automated testing of RF performance of cell phones . 10
Annex B (informative) RF Metal-ceramics semiconductor package assembly load cell GRR study . 19
Annex C (informative) GRR for motor shaft radial run-out of the axis . 28
Annex D (informative) GRR for the rip-off force of the A/B cover of charges . 34
Bibliography . 40

© ISO 2011 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 12888:2011(E)

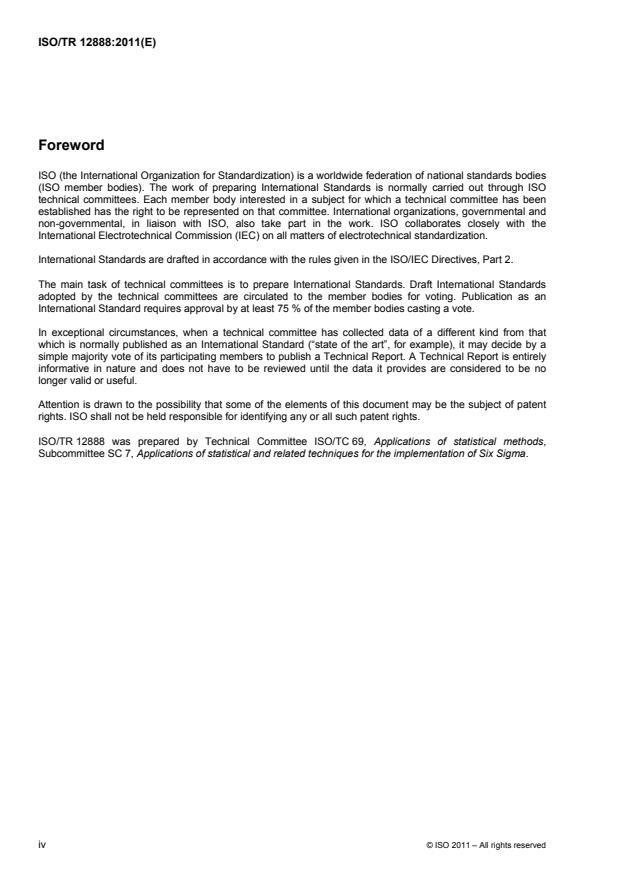

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 12888 was prepared by Technical Committee ISO/TC 69, Applications of statistical methods,
Subcommittee SC 7, Applications of statistical and related techniques for the implementation of Six Sigma.
iv © ISO 2011 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 12888:2011(E)
Introduction
1 )
The Six Sigma and international statistical standards communities share a philosophy of continuous
improvement and many analytical tools. The Six Sigma community tends to adopt a pragmatic approach
driven by time and resource constraints. The statistical standards community arrives at rigorous documents
through long-term international consensus. The disparities in time pressures, mathematical rigor, and
statistical software usage have inhibited exchanges, synergy, and mutual appreciation between the two
groups.
The present document takes one specific statistical tool (gauge repeatability and reproducibility, also known
as GRR), develops the topic somewhat generically (in the spirit of International Standards), then illustrates it
through the use of four detailed and distinct applications. The generic description focuses on the
commonalities across studies designed to assess the variability of testing equipment and measurement
systems. The annexes presenting four illustrations follow the basic framework but also identify the nuances
and peculiarities in the specific applications. Each illustration offers at least one “wrinkle” to the problem,
which is generally the case for real Six Sigma applications. It is thus hoped that practitioners can identify with
at least one of the four illustrations, if only to remind them of the basic material on GRR that was encountered
during their Six Sigma training. Each of the four illustrations is developed and analysed using statistical
software of current vintage. The explanations throughout are devoid of mathematical detail — such material
can be readily obtained from many references on GRR (such as those given in the Bibliography).


1) Six Sigma is a trade mark of Motorola, Inc.
© ISO 2011 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 12888:2011(E)

Selected illustrations of gauge repeatability and reproducibility
studies
1 Scope
This Technical Report describes the measurement process where the characteristic(s) being measured is a
continuous variable. Measurement processes where the characteristic(s) of interest is an attribute (i.e.
pass/fail) are not treated in this document.
This Technical Report provides examples of simple measurement systems and gives usable results as used
in industry where there are two major factors contributing to the variation of the measurement results, such as
variation between operators or appraisers and within operators or appraisers.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
measurement system
collection of operations, procedures, devices and other equipment, software, and personnel used to assign a
value to the characteristic being measured
NOTE This includes the complete process used to obtain measurements.
[IWA 1:2005, 3.1.9]
2.2
discrimination
ability of the measurement system to identify the infinitesimal change of the characteristic being measured
2.3
precision
closeness of agreement between independent test/measurement results obtained under stipulated conditions
NOTE 1 Precision depends only on the distribution of random errors and does not relate to the true value or the
specified value.
NOTE 2 The measure of precision is usually expressed in terms of imprecision and computed as a standard deviation
of the test results or measurement results. Less precision is reflected by a larger standard deviation.
NOTE 3 Quantitative measures of precision depend critically on the stipulated conditions. Repeatability conditions and
reproducibility conditions are particular sets of extreme stipulated conditions.
[ISO 3534-2:2006, 3.3.4]
2.4
repeatability
precision under repeatability conditions
NOTE Repeatability can be expressed quantitatively in terms of the dispersion characteristics of the results.
[ISO 3534-2:2006, 3.3.5]
© ISO 2011 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/TR 12888:2011(E)
2.5
repeatability conditions
observation conditions where independent test/measurement results are obtained with the same method on
identical test/measurement items in the same test or measuring facility by the same operator using the same
equipment within short intervals of time
NOTE Repeatability conditions include:
 the same measurement procedure or test procedure;
 the same operator;
 the same measuring or test equipment used under the same conditions;
 the same location;
 repetition over a short period of time.
[ISO 3534-2:2006, 3.3.6]
2.6
gauge reproducibility
reproducibility which represents the variation that occurs when different appraisers measure the same part
with the same equipment
NOTE 1 This term should be used only in a GRR (gauge repeatability and reproducibility) study.
NOTE 2 This definition for reproducibility differs from those in ISO 3534-2, ISO 5725-1 and ISO/IEC Guide 99. The
definition is that used in the software related to GRR calculation and other industry standards.
NOTE 3 The computer software output in the annexes given as “reproducibility” means “gauge reproducibility” as
defined here.
3 Symbols and abbreviated terms
The symbols and abbreviated terms used in this Technical Report are as follows:
ANOVA analysis of variance
DF degree of freedom
DOE design of experiments
F F-test statistic (coefficient of determination)
GRR gauge repeatability and reproducibility
MS mean of squares
MSA measurement system analysis
NDC number of distinct categories
P p-value (probability of obtaining a test statistic)
REML restricted estimation maximum likelihood
RF reference figure
SD standard deviation
2 © ISO 2011 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TR 12888:2011(E)
SS sum of squares
SV study variation
%P/T precision to tolerance ratio, in percent
%R&R repeatability and reproducibility, in percent relative to the reference figure
R reproducibility
U upper specification limit
L lower specification limit
 standard deviation
 standard deviation of measurement system
MS
 repeatability standard deviation
r
 reproducibility standard deviation
R
 standard deviation of the manufacturing process without measurement error
P
4 Generic description of GRR studies
4.1 Overview of the structure of GRR studies
This Technical Report provides general guidelines on the design, conduct and analysis of GRR studies and
illustrates the steps with four distinct applications given in Annexes A through D. Each of these four examples
follows the basic structure given in Table 1.
Table 1 — Basic steps in GRR studies
1 State the overall objectives of GRR
2 Describe the measurement process
3 Select a GRR studies method
4 Design a sampling plan for GRR studies
5 Analyse the result
6 Provide a conclusion with suggestions

The steps given in Table 1 apply to the design and analysis of GRR in general, although this Technical Report
focuses on two-factor GRR studies. Each of the six steps is explained in general in 4.2 to 4.7. Specific
explanations of the substance of these steps are provided in the examples in Annexes A through D.
4.2 Overall objectives of GRR
GRR studies are often used in Six Sigma projects. The primary motivation for GRR studies should be clearly
stated and agreed upon by all parties involved in the design, analysis and implications of the GRR studies
effort. The main purpose of GRR studies is to identify the capability of a measurement system and to judge
whether it is acceptable for a given monitored process. GRR studies determine how much of the observed
process variation is due to measurement system variation.
© ISO 2011 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/TR 12888:2011(E)
GRR studies are conducted for a variety of reasons, which include but are not limited to the following
conditions:
a) the measurement system exhibits big variation under normal maintenance conditions;
b) the measurement equipment has been modified or upgraded, such as replacement of important part(s);
c) the measurement equipment or measurement system is new;
d) different measurement systems need to be compared;
e) GRR studies are required by quality management standards such as ISO/TS 16949.
4.3 Measurement process description
This Technical Report focuses on measurement process where the characteristic(s) being measured is a
continuous variable. Measurement processes where the characteristic(s) of interest is an attribute (i.e.
pass/fail) are not treated in this document.
The measurement process should be clearly described before conducting GRR, including the name of the
equipment, its resolution, the quality characteristic(s) to be measured, measurement conditions, etc.
Instruments should be properly calibrated. For information, see ISO 10012.
If necessary, measurement process mapping may be required to identify factors that may affect the
observations. There may be many possible factors identified; however, only two-factor examples are provided
in this document. In some cases, there may be multiple characteristics of interest to be measured. For the
purpose of this document, only a single variable quality characteristic is considered in each example.
4.4 GRR studies methodology
In typical GRR studies, different appraisers (operators) are often used to capture variability within a given
measurement system because in many cases the appraiser is a significant factor affecting the measurement
data. However, in automated measurement processes appraisers are not involved in the measurement
process. In such situations, changing fixtures or software or calibrating the equipment may be considered as
changing the measurement system and potentially impacting its reproducibility.
For two-factor cases, the data collection model for GRR can be either a crossed or a nested design. Crossed
design is similar to a full factorial design in DOE. The same subgroup of parts are measured by all appraisers
for one round and then they are measured again (in a second round or more). If the subgroup size of parts
(generally 10 to 20) is n, the number of the appraisers (at least 2) is a, the number of rounds (how many times
one appraiser repeats measurement, at least 2) is b, and the total data set is na b . Nested design also
yields an nab data set, but the difference is that different appraisers measure different subgroups of parts
of same subgroup size with repetitions. Each subgroup cannot be measured by another appraiser. That is,
subgroups of parts are nested within appraisers. Crossed design and nested design are illustrated in
Figures 1 and 2, respectively.
4 © ISO 2011 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/TR 12888:2011(E)
b
b
a
n
b

Figure 1 — Crossed design in GRR studies
b
b
n
b
b
b
n
b
a
b
a
a
b
a n
b

Figure 2 — Nested design in GRR studies
© ISO 2011 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/TR 12888:2011(E)
Crossed design assumes that the parts being measured by appraisers are undamaged and can be measured
repeatedly during the measurement process. However, in some conditions, once the measurement is
obtained for a particular part, that part is no longer available for additional measurements with the same
appraiser or different appraisers; it is then appropriate to accept nested design. For destructive measurement,
if homogenous samples are available, nested design may be a good choice.
To estimate repeatability and reproducibility, several methods can be used, as illustrated in commercial
statistical software packages. The three most commonly encountered methods are described below and will
be illustrated in the annexes.
The range method is based on the estimation of repeatability standard deviation ( ), using the range of
r
multiple observations of one appraiser measuring the same part with the same equipment, and of
reproducibility standard deviation ( ), using the difference of the average of different appraisers. The ANOVA
R
method is based on the estimation of repeatability and reproducibility standard deviation using variance
component analysis. For a two-factor crossed design, the advantage of ANOVA is that it can estimate the
interaction between appraisers and parts. Many commercial statistical software packages provide alternatives
for the two methods. The REML method estimates repeatability and reproducibility by optimizing the likelihood
of the observations. This more sophisticated method is useful when other methods lead to negative estimates
of variance components.
In this Technical Report,
  denotes the standard deviation of measurement system error, where  is the square root of the
MS MS
2 2
sum of  and  ,
r R
 6 (some companies use 5,15 ) is the value of GRR (precision),
MS MS
  is the standard deviation of the manufacturing process without measurement error.
P
2 2
Thus, the observed total variance is the sum of and  . In practice, two indicators are used to measure
P MS
GRR relative to process spread and tolerance, %R&R and %P/T, where

MS
%R&R100 %
22

MS P
6
MS
%P/T100 %
UL
4.5 Sampling plan for GRR studies
The sampling plan is very important for GRR studies. Poor design can lead to a situation where the true
variation in the measurement process is underestimated or overestimated, and this will result in an overly
optimistic or pessimistic conclusion regarding measurement system capability.
Different designs adopt different tables for collecting measurement data. Tables 2 and 3 provide templates for
the basic layout for crossed and nested design respectively with 3 operators, 3 repetitions and 10 items
measured by each operator. The main difference between the two layouts is the “Item No.” column
(representing the parts being measured). For crossed design, three appraisers share the same “Item No.”
column, which means the same part subgroup is measured by different appraisers. However, for nested
design, there is a different “Item No.” column for each appraiser, which means one part is measured by only
one appraiser.
6 © ISO 2011 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/TR 12888:2011(E)
Table 2 — Layout of a generic crossed GRR design
GRR studies
Appraiser A Appraiser B Appraiser C
Item
No.
Trial 1 Trial 2 Trial 3 Range Trial 1 Trial 2 Trial 3 Range Trial 1 Trial 2 Trial 3 Range
1
2
3
4
5
6
7
8
9
10

Table 3 — Layout of a generic nested GRR design
GRR studies
Appraiser A Appraiser B Appraiser C
Item Item Item
Trial 1 Trial 2 Trial 3 Range Trial 1 Trial 2 Trial 3 Range Trial 1 Trial 2 Trial 3 Range
No. No. No.
A1   B1   C1
A2   B2   C2
A3   B3   C3
A4   B4   C4
A5   B5   C5
A6   B6   C6
A7   B7   C7
A8   B8   C8
A9   B9   C9
A10   B10  C10

In the sampling plan for GRR studies, the subgroup size of parts, the number of the appraisers and the
number of rounds should be determined. Generally speaking, three to five appraisers are selected to measure
more than ten parts with two or three trials. Note that the selected samples must come from the production
process and represent the entire production variance. (In situations where it is difficult to get ten parts or more,
although GRR can be estimated with few parts, the uncertainty of part variability can be large and thus %R&R
can be unreliable. In this case, if the process standard deviation is known, it is strongly recommended to use
the known standard deviation instead of using the process standard deviation estimated from few samples.)
In the process of measurement for GRR, randomization is a very important consideration. Randomization
means that the parts should be measured by the operator in a random order. During the experiment, the
Hawthorne effect should be avoided because appraisers with a higher degree of attention may lead to a poor
estimation of the measurement process variation.
© ISO 2011 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/TR 12888:2011(E)
4.6 Data analysis (numerically and graphically)
After choosing the most appropriate sampling plan for the experiment and collecting the measurement values,
an appropriate analysis method needs to be selected for the interpretation of the results. Although the range
method can be easily done in a spreadsheet and used to inspect whether outliers exist or not, this does not
take into account the interaction between appraisers and parts, which results in the underestimation of
measurement error. Hence, in this Technical Report, the analysis of variance (ANOVA) method and the
restricted maximum likelihood (REML) method based on a variance component analysis are used to identify
variance components for each possible variation. For GRR studies with two factors, variation factors include
parts, appraisers, interaction between parts and appraisers, and repeatability (pure error). In the GRR report,
the capability indicators of the measurement system (%R&R and %P/T) can be obtained directly from the
analysis table.
In addition to the GRR report, GRR study graphics are useful. These can be used to visually identify the main
variation sources. For a range chart by operator and part, if all ranges are randomly distributed within upper
and lower control limits, the measurement process is in control. If the range chart signals that the process is
out of control, special causes may exist. These should be identified and the corresponding part remeasured.
4.7 Conclusions and suggestions
4.7.1 The purpose of GRR studies is to determine if the variability of a measurement system is small
relative to the variability of the monitored process.
Common guidelines such as MSA indicate that if the %R&R and %P/T are both less than 10 %, the
measurement system is acceptable. If they are in the range 10 % to 30 %, the measurement system may be
acceptable depending on the importance of the application, cost of the gauge, cost of repairs, etc. If one or
two indicators are over 30 %, the measurement system is considered inadequate and immediate corrective
actions are called for.
For more information on acceptability, see MSA or the best practices available in different industries (chemical,
automotive, financial, electronics, etc.).
Either high repeatability or high reproducibility can result in high %R&R.
4.7.2 If the repeatability is high, follow the following steps.
 Go back to the range chart by appraiser to ensure that there is no point out of upper and lower control
limits.
 Check whether there is an excessive within-part variation by studying the profile of the part and collecting
appropriate data.
 Check whether the gauge is sufficiently rigid.
 Check whether the location at which the measurement is to be taken is clearly defined and understood
properly by the appraisers. If it is not, this may result in high reproducibility as well.
 Check whether the instrument requires maintenance.
 Check whether a fixture of some sort is needed to help the appraiser use the gauge more consistently.
・
If none of the above reasons are found to be valid, brainstorm and find out whether the gauge is suitable
for the intended measurement. Unsuitable gauges may also lead to high repeatability.
4.7.3 If the reproducibility is high, the following possible actions are recommended.
 Find out whether all the appraisers are adequately trained in the measurement method.
 Check whether or not the calibrations on the gauge dial are clear.
8 © ISO 2011 – All rights reserved

---------------------- Page: 13 ----------------------
ISO/TR 12888:2011(E)
 Check whether or not the location at which the measurement to be taken is clearly defined and
understood properly by the appraisers.
 Check whether or not a fixture of some sort is needed to help the appraiser use the gauge more
consistently.
 Check whether or not two or more key elements within the measurement system work under the same
conditions.
 If none of the above reasons are found to be valid, brainstorm and find out whether the gauge is suitable
for the intended measurement.
After certain actions have been taken for improving the measurement system, GRR studies should be done
again to validate whether the improved measurement system is acceptable or not.
5 Description of Annexes A through D
5.1 Comparison of the examples
Four distinct examples of GRR studies are illustrated in Annexes A to D. Each of these examples follows the
same general template given in Table 1 and follows a version of the standard design given in Tables 2 and 3.
5.2 Example summaries
Table 4 summarizes the examples detailed in the annexes and indicates aspects of the analyses that were
unique to that experiment.
Table 4 — Example summaries found by annex
Annex Experiment GRR-specific aspects
This example includes characterization of a testing process (not a piece of
A Cell phones equipment); automation of equipment (i.e. no operator effect); multiple responses;
and crossed, balanced design.
In this GRR study, the gauge is a load cell used to measure the metal cap
placement force in the assembly of a semiconductor device. Range and ANOVA
B Load cell
methods of analysis are used for comparison. The traditional crossed study
design is used.
Motor shaft radial run-out A motor manufacturer produces motors for air conditioners. Dial indicators are
C
of the axis used to measure the radial run-out of the axis. 2-factor crossed case.
In order to improve the process capability of rip-off force of chargers or precisely
Rip-off force of A/B cover
D determine if chargers are good or bad due to the rip-off force, a destructive
of charges
measurement process with one rip-off test machine. The REML method is used.

© ISO 2011 – All rights reserved 9

---------------------- Page: 14 ----------------------
ISO/TR 12888:2011(E)
Annex A
(informative)

GRR for automated testing of RF performance of cell phones
A.1 Measurement data type
Multiple responses (95 responses), all responses are continuous (variable data type).
One response, slope P1-RX1, was analysed completely. Slope P1-RX1 is one of many standardized
audio-radio frequency measurements made on cell phones to ensure the audio capability of the handsets.
These measurements are usually conducted after the final assembly of the phone and involve verifying the
audio stimulus signal over the complete radio frequency (RF) transmit-receive path. They fall into categories
such as output power, frequency response, total harmonic distortion, and many others.
Results on all the other variables are summarized.
A.2 Gauge used for measurement
Gauge name: Bank of automated radio performance testers
On each cell phone, 95 radio performance parameters are measured automatically, with different resolutions
and different tolerances depending on the parameter being measured.
A.3 Measurement process description
Cell phones, once manufactured, are tested for their radio performance before moving on to a configuration
line where software and data (specific to telecommunication carriers that are the service providers for the
radios) are loaded.
...
