ISO 15401:2000

INTERNATIONAL ISO
STANDARD 15401
First edition
2000-02-15
Ships and marine technology — Bulk
carriers — Construction quality of hull
structure
Navires et technologie maritime — Vraquiers — Qualité de construction
de la structure de la coque
Reference number
ISO 15401:2000(E)
©
ISO 2000

---------------------- Page: 1 ----------------------
ISO 15401:2000(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2000
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 15401:2000(E)
Contents Page
Foreword.v
Introduction.vi
1 Scope .1
2 Normative references .1
3 Terms and definitions .1
4 Quality control through construction.2
4.1 Steel material.2
4.2 Steel processing .2
4.3 Fitting and assembly .3
4.4 Welding.4
4.5 Tightness test.5
4.6 Coating.6
5 Hull construction accuracy.7
5.1 Steel material.7
5.2 Marking .9
5.3 Cutting .10
5.4 Bending.12
5.5 Fitting and assembly .15
5.6 Welding.21
5.7 Flatness and finishing.23
5.8 Principal dimensions and deformation .28
5.9 Draught and freeboard .29
5.10 Coating.30
6 Hull construction reports.33
7 Documentation on board .34
Table 1 — Surface defects of steel plates.7
Table 2 — Lamination of steel plate.8
Table 3 — Minus tolerance in thickness for plates of hull structure.8
Table 4 — Surface defects of casting steel.8
Table 5 — Position deviation of marking .9
Table 6 — Deviation of marking dimensions of parts and members .9
Table 7 — Deviation of marking dimension of block structure .9
Table 8 — Surface roughness of gas cutting .10
Table 9 — Notches of gas cutting.10
Table 10 — Deviation of gas cutting dimension.11
Table 11 — Deviation of shearing dimension .11
Table 12 — Deviation of planed and milled edges .12
Table 13 — Deviation of flanging .12
Table 14 — Deviation of corrugated plate.12
Table 15 — Deviation of channelled plate.13
© ISO 2000 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 15401:2000(E)

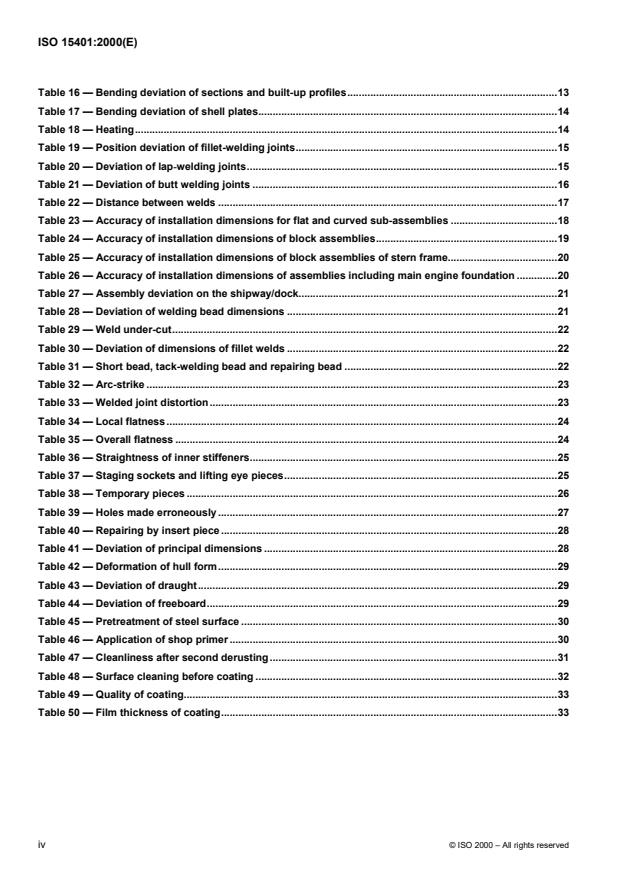

Table 16 — Bending deviation of sections and built-up profiles.13
Table 17 — Bending deviation of shell plates.14
Table 18 — Heating.14
Table 19 — Position deviation of fillet-welding joints.15
Table20—Deviation of lap-welding joints.15
Table 21 — Deviation of butt welding joints .16
Table 22 — Distance between welds .17
Table 23 — Accuracy of installation dimensions for flat and curved sub-assemblies .18
Table 24 — Accuracy of installation dimensions of block assemblies.19
Table 25 — Accuracy of installation dimensions of block assemblies of stern frame.20
Table 26 — Accuracy of installation dimensions of assemblies including main engine foundation .20
Table 27 — Assembly deviation on the shipway/dock.21
Table 28 — Deviation of welding bead dimensions .21
Table 29 — Weld under-cut.22
Table 30 — Deviation of dimensions of fillet welds .22
Table 31 — Short bead, tack-welding bead and repairing bead .22
Table 32 — Arc-strike .23
Table 33 — Welded joint distortion.23
Table 34 — Local flatness.24
Table 35 — Overall flatness .24
Table 36 — Straightness of inner stiffeners.25
Table 37 — Staging sockets and lifting eye pieces.25
Table 38 — Temporary pieces .26
Table 39 — Holes made erroneously .27
Table 40 — Repairing by insert piece .28
Table 41 — Deviation of principal dimensions .28
Table 42 — Deformation of hull form.29
Table 43 — Deviation of draught.29
Table 44 — Deviation of freeboard.29
Table 45 — Pretreatment of steel surface .30
Table 46 — Application of shop primer .30
Table 47 — Cleanliness after second derusting.31
Table 48 — Surface cleaning before coating .32
Table 49 — Quality of coating.33
Table 50 — Film thickness of coating.33
iv © ISO 2000 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 15401:2000(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 15401 was prepared by Technical Committee ISO/TC 8, Ships and marine technology,
Subcommittee SC 8, Structures.
© ISO 2000 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 15401:2000(E)
Introduction
The aim of this International Standard is to provide guidelines for good shipbuilding production conditions.
Details, where appropriate, given in this International Standard were developed with reference to applicable
International Association of Classification Societies (IACS) rules and requirements.
vi © ISO 2000 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 15401:2000(E)
Ships and marine technology — Bulk carriers — Construction
quality of hull structure
SAFETY PRECAUTIONS — It is the responsibility of the user of this International Standard to establish
appropriate safety and health practices, and determine the applicability of regulatory limitations prior to
use.
1 Scope
This International Standard specifies the quality requirements for the hull construction of steel bulk carriers. It does
not apply to double-skin bulk carriers.
Requirements for the maintenance and repair of steel bulk carriers are given in ISO 15402.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent editions of the normative documents indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 8501-1:1988, Preparation of steel substrates before application of paints and related products — Visual
assessment of surface cleanliness — Part 1: Rust grades and preparation grades of uncoated steel substrates and
of steel substrates after overall removal of previous coatings and its Informative Supplement of 1994,
Representative photographic examples of the change of appearance imparted to steel when blast-cleaned with
different abrasives.
ISO 8503-1:1988, Preparation of steel substrates before application of paints and related products — Surface
roughness characteristics of blast-cleaned steel substrates — Part 1: Specifications and definitions for ISO surface
profile comparators for the assessment of abrasive blast-cleaned surfaces.
IMO A.798 (19), Guidelines for the selection, application and maintenance of corrosion prevention systems of
dedicated seawater ballast tank.
ISO 15402, Ships and marine technology — Bulk carriers — Repair quality of hull structure.
3 Terms and definitions
For the purposes of this International Standard, the following terms and definitions apply.
3.1
bulk carrier
ship which is generally constructed with a single deck, topside tanks and hopper side tanks in cargo spaces, and is
intended primarily to carry dry cargo in bulk
3.2
length L
the definition is taken from the rules of classification societies
© ISO 2000 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 15401:2000(E)
4 Quality control through construction
4.1 Steel material
4.1.1 Upon arrival in the yard, all steel materials intended for ship construction shall be checked against quality
certificates. A visual inspection shall be carried out to confirm their quality.
4.1.2 All steel materials shall be stored according to sizes and brand and kept flat.
4.1.3 All steel materials shall be issued against material allocation sheets according to the construction plan.
4.1.4 A quality inspection shall be carried out on the steel materials before processing.
Special attention shall be paid to the following points of quality control:
a) material quality documentation;
b) size, brand, charge number and batch number;
c) minus tolerance in thickness for plates and sections;
d) lamination and surface defects;
e) any defects in large forgings and castings.
4.2 Steel processing
4.2.1 Marking and cutting
4.2.1.1 Necessary pretreatments such as: levelling, straightening, derusting and application of shop primer
shall be carried out on the plates and sections before putting them into production.
4.2.1.2 Numerical control cutting and other highly efficient high-precision cutting shall be used to the widest
possible extent to improve cutting accuracy.
4.2.1.3 Information related to material property, charge number and batch number shall be filed for important
members.
4.2.1.4 Special attention shall be paid to the following points of quality control:
a) size deviation;
b) angular deviation;
c) marks such as processing symbols, codes and technological numbers;
d) cutting accuracy;
e) dimensions of configuration.
4.2.2 Forming
4.2.2.1 Hot or cold bending of steel plates and sections shall be performed according to the applicable
technology requirements for different properties and grades of materials.
4.2.2.2 Special attention shall be paid to the following points of quality control:
a) heating temperature;
b) accuracy of bending.
2 © ISO 2000 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 15401:2000(E)
4.3 Fitting and assembly
4.3.1 Fitting and assembly of parts and members
4.3.1.1 The accuracy requirements of block assembly shall be met for the fitting and assembly of parts and
members. Protective primer shall be repaired after welding.
4.3.1.2 Special attention shall be paid to the following points of quality control:
a) geometrical dimensions of parts and members;
b) installation locations;
c) excessive gap before welding;
d) deformation.
4.3.2 Block assembly
4.3.2.1 Block assembly should generally be carried out on a platform or jig.
4.3.2.2 Pre-outfitting of parts and members shall be done according to applicable design drawings.
4.3.2.3 The accuracy that meets the requirements given in the following pages for general assembly shall also
be met for block assembly.
4.3.2.4 Block assemblies may be coated after inspection.
4.3.2.5 Special attention shall be paid to the following points of quality control:
a) marking accuracy;
b) installation accuracy of internal structure joints inside the block;
c) accuracy of block configuration and its dimensional size;
d) accuracy of block edges;
e) correctness of assembling reference lines;
f) flatness of face plate and location deviation of main engine bed;
g) installation locations of key components, such as shaft boss, rudder horn, etc.
4.3.3 Erection on shipway/dock
4.3.3.1 Marking on the shipway/dock shall be carried out with corresponding symbols and marks.
4.3.3.2 Placing the reference block in position, and then proceeding with successive blocks shall be done
according to the shipway/dock assembly schedule.
4.3.3.3 During the construction process, all temporary openings in strength members and their closing-up shall
comply with the requirements set out in the applicable construction drawings and/or standards.
4.3.3.4 Removing temporary welding pieces and lifting eyepieces shall be done according to usual practice
(refer to Table 37).
4.3.3.5 After completing shipway/dock assembly, the hull shall be coated or the (block) coating repaired
according to specified requirements before launching.
© ISO 2000 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 15401:2000(E)
4.3.3.6 Special attention shall be paid to the following points of quality control:
a) accuracy of marking on the shipway/dock;
b) correctness of location of the reference block;
c) frame spacing at block junctions;
d) alignment accuracy of structural members;
e) straightness of base line;
f) alignment accuracy of propeller shaft centreline;
g) marking accuracy of loadline and draft marks;
h) principal dimensions of the hull.
4.4 Welding
4.4.1 Preparation before welding
Welding materials, preparation of weld joints and assembly accuracy shall comply with classification society
requirements set out in quality control documents.
The welding zone shall be free of rust, scales, grease, moisture or other dirt.
The environmental condition of the welding area shall be kept in good order.
Tack welding shall be carried out according to specified technological procedures.
Wherever new materials or new welding technologies are adopted, test reports and welding procedures shall be
submitted to the classification society for approval.
4.4.2 Welding process
All welding shall be carried out according to the methods and conditions as required by the welding technology
procedures. Proper measures for minimizing welding deformation shall be taken.
4.4.3 Welding inspection
4.4.3.1 Inspection of welding shall be carried out throughout the whole process of welding including
inspections before, during and after welding, as well as the inspection of finished weldments.
4.4.3.2 All welds shall be visually examined first.
4.4.3.3 Quality inspection of welded seams shall be carried out according to specified requirements. Either
X-ray detection, ultrasonic detection or other inspection methods approved by the classification society shall be
adopted.
4.4.3.4 Leg sizes (leg length and throat depth) of fillet welds shall comply with the design plan and relevant
codes as approved by the classification society.
4.4.3.5 Welded joints on the strength deck, shell plate and interior strength members in the mid-length region
shall be inspected in accordance with the non-destructive inspection plan approved by the classification society.
4.4.3.6 Welds not conforming to the requirements of quality standards shall be rectified and repaired, and shall
be inspected again.
4 © ISO 2000 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 15401:2000(E)
4.4.4 Quality control
Special attention shall be paid to the following points of quality control:
a) qualification of welders;
b) welding materials;
c) welding codes;
d) groove sizes and seam clearance;
e) cleanness of welding region;
f) preheating and heat-retaining;
g) welding deformation;
h) sizes of welded seams;
i) integrity of all-around welds;
j) surface and inner defects in welding seam.
4.5 Tightness test
4.5.1 General requirements
4.5.1.1 The tightness test shall be conducted after the main hull and the structure are completed. All
accessories affecting the tightness should be fixed and non-destructive testing shall be correctly completed.
4.5.1.2 All welding seams related to the tightness test, shall be free of scales, slugs, coatings (excluding
primers) or any grease (refer to Table 48).
4.5.1.3 The tightness test for the hull structure shall be performed with either water jet, hydrostatic pressure,
air pressure or other equivalent methods depending on the hull strength and tightness requirement.
4.5.1.4 The tightness test may be performed on blocks.
4.5.1.5 The location and requirements for the tightness test shall be in compliance with the requirements of the
classification society.
4.5.2 Quality control
Special attention shall be paid to the following points of quality control:
a) cleaning of welded seams;
b) test pressure;
c) test procedure;
d) test duration;
e) inspection for deformation and leakage.
© ISO 2000 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 15401:2000(E)
4.6 Coating
4.6.1 Pretreatment of steel surface
Surface pretreatment of steel shall be done in general by means of shot-blasting, abrasive blasting and chemical
cleaning (shop primer shall be applied after derusting).
Surface pretreatment shall be done in accordance with the quality stipulations given in Table 45.
Shop primer shall be applied according to the quality stipulations given in Table 46.
4.6.2 Shop primer touch-up
Any damaged shop primer shall be touched up after completion of the welding process.
4.6.3 Second derusting and surface cleaning
Second derusting and surface cleaning shall be done in accordance with the quality stipulations given in Table 47
and Table 48.
4.6.4 Coating work
4.6.4.1 Precoating
Precoating shall be done for the spots and areas that cannot be easily accessed or which are difficult to reach to
obtain the required film thickness by spraying.
4.6.4.2 Coating
Coating may be done by means of either airless spraying or roller application, etc.
4.6.4.3 Quality control
Special attention shall be paid to the following points of quality control:
a) environmental conditions affecting coating operation;
b) appearance of coat;
c) wet film thickness or dry film thickness;
d) film thickness allocation.
6 © ISO 2000 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 15401:2000(E)
5 Hull construction accuracy
5.1 Steel material
5.1.1 Surface defects of steel plates shall be kept within the limits given in Table 1.
Table 1 — Surface defects of steel plates
Items Requirements
(1) Zone A is in excellent order, with very slight
surface defects less than 0,2 mm and no
repairing is required.
(2) Zone B is in good order, with a certain
amount of permissible surface defects, and no
repairing is required. Area enclosed by full line
denotes plate with thickness less than 20 mm
and area enclosed by dotted line (including
straight line) denotes plates with thickness from
20 mm to 50 mm.
Pits, flaking,
(3) Zone C is in disorder, and repairing is
scars, required, i.e. there are certain amounts of
scratches
impermissible surface defects that shall be
and air repaired according to the requirement.
bubbles
(4) Repair method for surface defects:
for d � 0,07 t, by grinding (but in any case
du 3 mm);
for 0,07 tu du 0,2 t, by built-up welding and
followed by grinding, where d is defect depth, in
millimetres; t is plate thickness, in millimetres.
When the defect depth exceeds 20 % of the
plate thickness and the defect area exceeds
2 % of the plate area, this part of the plate shall
be replaced.
© ISO 2000 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO 15401:2000(E)
5.1.2 Lamination of steel plate shall be treated according to Table 2.
Table 2 — Lamination of steel plate
Items Requirements
(1) When the range of lamination is fairly small,
it may be chipped out and built-up by welding as
given in Figure a). When the range of lamination
is fairly small and near the plate surface, it is
preferable to do built-up welding as given in
Figure b).
Local
(2) When the lamination is severe and defective,
lamination
it shall be carefully examined and repaired by
an appropriate method. If welding extending
over 20 % of the plate edges is used as a
method of repair, non-destructive testing shall
be applied to this area.
(1) It is recommended to exchange part of the
plate in case the lamination is fairly extensive.
(2) Minimum breadth or length of the part of
standard size plate to be replaced.
For shell plate or strength-deck plate:
within 0,6 L amidship — 1 600 mm;
Severe
outside
...
