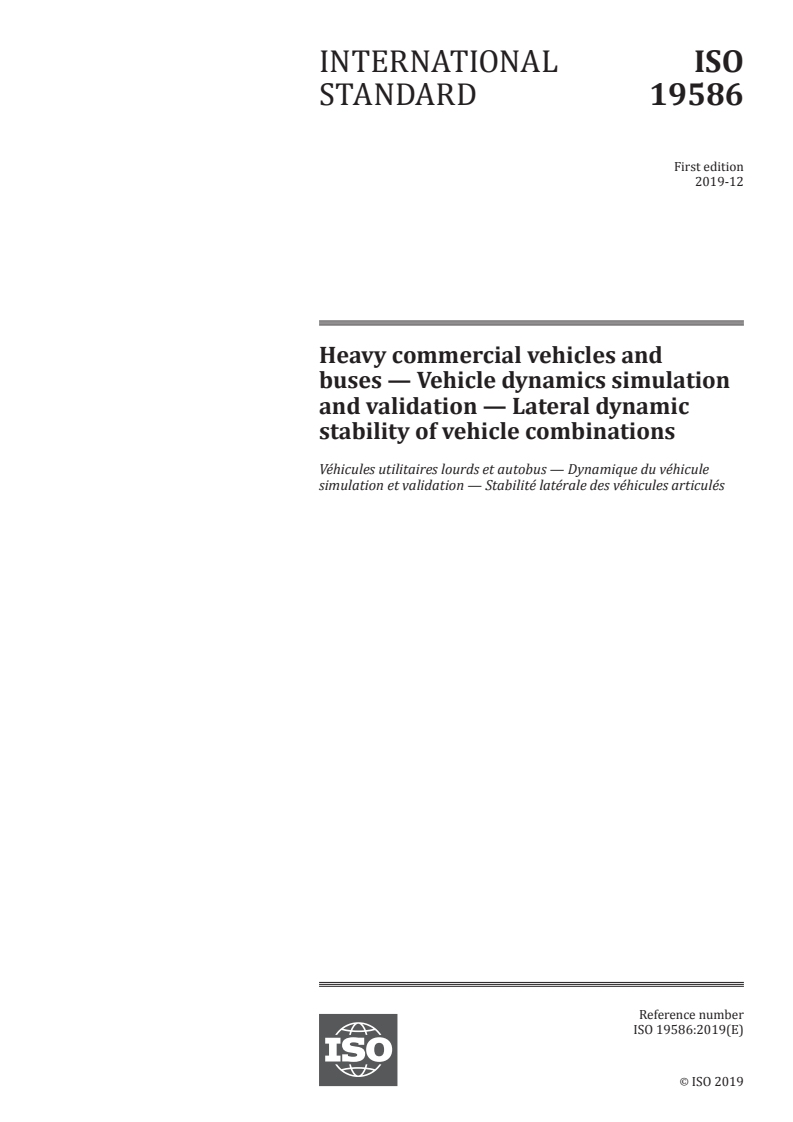

ISO 19586:2019

INTERNATIONAL ISO
STANDARD 19586
First edition
2019-12
Heavy commercial vehicles and
buses — Vehicle dynamics simulation
and validation — Lateral dynamic
stability of vehicle combinations
Véhicules utilitaires lourds et autobus — Dynamique du véhicule
simulation et validation — Stabilité latérale des véhicules articulés
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

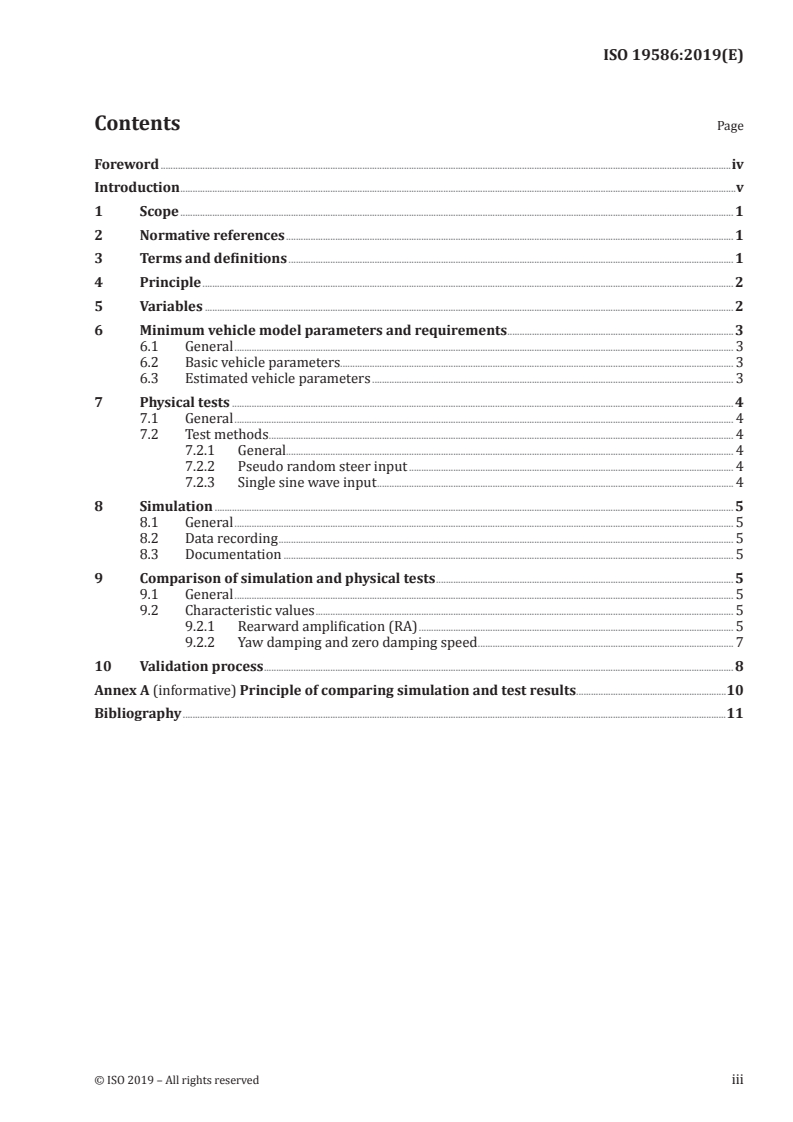

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Variables . 2
6 Minimum vehicle model parameters and requirements . 3
6.1 General . 3
6.2 Basic vehicle parameters. 3
6.3 Estimated vehicle parameters . 3
7 Physical tests . 4
7.1 General . 4
7.2 Test methods . 4
7.2.1 General. 4
7.2.2 Pseudo random steer input . 4
7.2.3 Single sine wave input . 4
8 Simulation . 5
8.1 General . 5
8.2 Data recording . 5
8.3 Documentation . 5
9 Comparison of simulation and physical tests . 5
9.1 General . 5
9.2 Characteristic values . 5
9.2.1 Rearward amplification (RA) . 5
9.2.2 Yaw damping and zero damping speed . 7
10 Validation process . 8
Annex A (informative) Principle of comparing simulation and test results .10
Bibliography .11
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 33,
Vehicle dynamics and chassis components.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2019 – All rights reserved

Introduction
The main purpose of this document is to provide repeatable and discriminatory test results.
The dynamic behaviour of a road vehicle is a most important aspect of active vehicle safety. Any given
vehicle, together with its driver and the prevailing environment constitutes a closed-loop system
which is unique. The task of evaluating the dynamic behaviour is therefore very complicated, since the
significant interaction of these driver-vehicle-road elements are each complex in themselves. A complete
and accurate description of the behaviour of the road vehicle will inevitably involve information
obtained from a number of different tests.
Since this test method quantifies only one small part of the complete handling characteristics, the
results of this test can only be considered significant for a correspondingly small part of the overall
dynamic behaviour.
Moreover, insufficient knowledge is available to correlate overall vehicle dynamic properties with
accident prevention. A substantial amount of work is necessary to acquire sufficient and reliable data on
the correlation between accident prevention and vehicle dynamic properties in general and the results
of this test in particular. Consequently, proven correlation between test results and accident statistics
is used for any application of this test method for regulation purposes.
Test conditions and tyres have a strong influence on test results. Therefore, only results obtained under
comparable test and tyre conditions are comparable.
INTERNATIONAL STANDARD ISO 19586:2019(E)
Heavy commercial vehicles and buses — Vehicle dynamics
simulation and validation — Lateral dynamic stability of
vehicle combinations
1 Scope
This document specifies a method for comparing simulation results from a vehicle model to measured
test data for an existing vehicle combination’s lateral stability according to driving tests as specified in
ISO 14791. The comparison is made for the purpose of validating the simulation model for this type of
test. A complete validation comprises the comparison for at least one tested vehicle and one variant of
this vehicle, covered by a parameter variation in the vehicle model.
The document applies to heavy vehicles, including commercial vehicles, commercial vehicle
combinations, buses and articulated buses as defined in ISO 3833 (trucks and trailers with maximum
weight above 3,5 tonnes and buses and articulated buses with maximum weight above 5 tonnes,
according to ECE and EC vehicle classification, categories M3, N2, N3, O3 and O4).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 14791:2000, Road vehicles — Heavy commercial vehicle combinations and articulated buses — Lateral
stability test methods
ISO 8855, Road vehicles — Vehicle dynamics and road-holding ability — Vocabulary
ISO 15037-2:2002, Road vehicles — Vehicle dynamics test methods — Part 2: General conditions for heavy
vehicles and buses
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8855, ISO 15037-2 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
simulation
calculation of motion variables of a vehicle from equations in a mathematical model of the vehicle system
3.2
basic vehicle parameters
parameters not subject to model fitting, which are directly and accurately measurable on the test vehicle
EXAMPLE Masses and dimensions.
3.3
estimated vehicle parameters
parameters that may be used for model fitting, which are typically hard to be determined
EXAMPLE Mass moment of inertia and tyre characteristics.
3.4
vehicle model validity range
basic vehicle parameters (3.2) which may be changed if the type of vehicle combination and tyre type
are maintained
Note 1 to entry: For example, when wheel base is modified some of the estimated parameters may need to be
updated accordingly.
4 Principle
The pseudo random and the single sine wave steering input according to ISO 14791 is used to determine
lateral stability by calculating the rearward amplification (RA) and yaw damping (D) of heavy
commercial vehicles and buses as defined in ISO 3833. Within this document, the purpose of the test is
to demonstrate that a vehicle model can predict the vehicle behaviour within specified tolerances. The
vehicle model is used to simulate a specific existing vehicle running tests as specified in ISO 14791. The
maximum lateral acceleration in the first vehicle unit is limited to a conservative value to assure linear
behaviour of the vehicle combination. The characteristic values from model results and physical testing
are compared for validating the model. In this document a tolerance is given for when the model is valid.
The tolerance depends upon t
...
