ISO/IEC 14543-5-11:2018

ISO/IEC 14543-5-11
Edition 1.0 2018-03
INTERNATIONAL
STANDARD

colour
inside
Information technology – Home electronic system (HES) architecture –
Part 5-11: Intelligent grouping and resource sharing for HES Class 2 and
Class 3 – Remote user interface


ISO/IEC 14543-5-11:2018-03(en)

---------------------- Page: 1 ----------------------

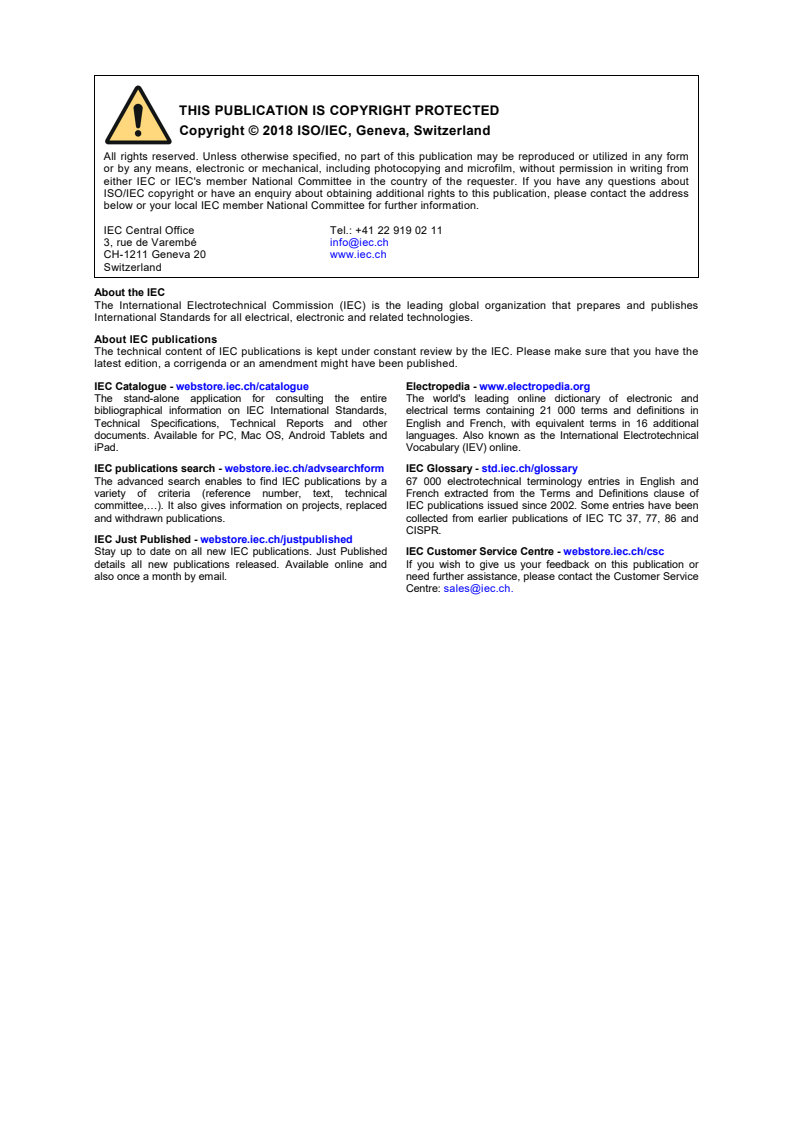

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 ISO/IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about
ISO/IEC copyright or have an enquiry about obtaining additional rights to this publication, please contact the address
below or your local IEC member National Committee for further information.


IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.

---------------------- Page: 2 ----------------------

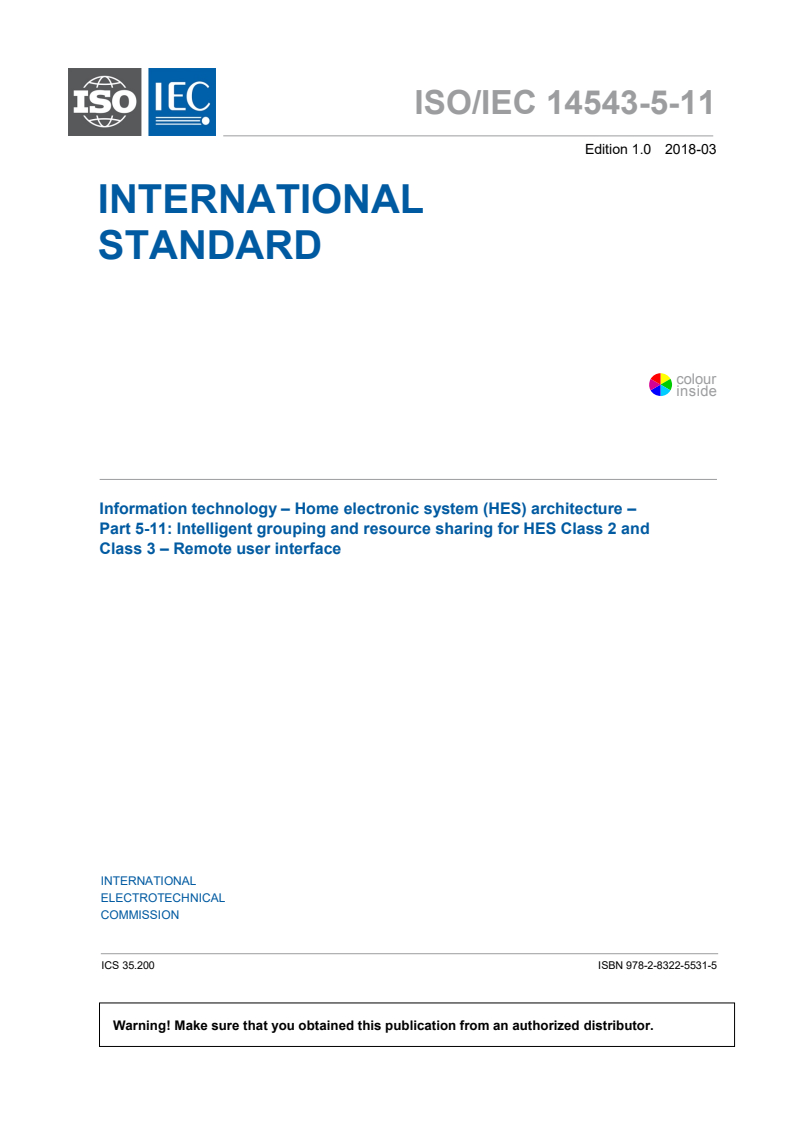

ISO/IEC 14543-5-11


Edition 1.0 2018-03




INTERNATIONAL



STANDARD








colour

inside










Information technology – Home electronic system (HES) architecture –

Part 5-11: Intelligent grouping and resource sharing for HES Class 2 and

Class 3 – Remote user interface


























INTERNATIONAL

ELECTROTECHNICAL

COMMISSION






ICS 35.200 ISBN 978-2-8322-5531-5



  Warning! Make sure that you obtained this publication from an authorized distributor.

---------------------- Page: 3 ----------------------

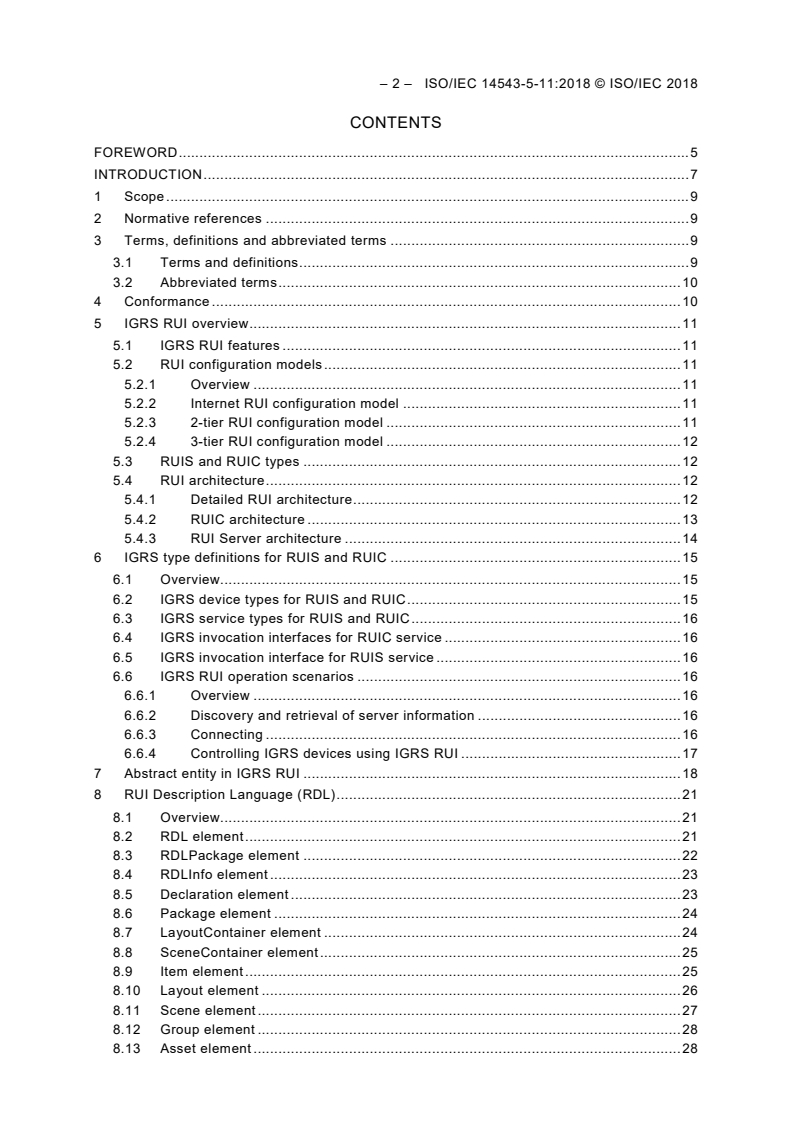

– 2 – ISO/IEC 14543-5-11:2018 © ISO/IEC 2018
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 9
2 Normative references . 9
3 Terms, definitions and abbreviated terms . 9
3.1 Terms and definitions . 9
3.2 Abbreviated terms . 10
4 Conformance . 10
5 IGRS RUI overview . 11
5.1 IGRS RUI features . 11
5.2 RUI configuration models . 11
5.2.1 Overview . 11
5.2.2 Internet RUI configuration model . 11
5.2.3 2-tier RUI configuration model . 11
5.2.4 3-tier RUI configuration model . 12
5.3 RUIS and RUIC types . 12
5.4 RUI architecture . 12
5.4.1 Detailed RUI architecture . 12
5.4.2 RUIC architecture . 13
5.4.3 RUI Server architecture . 14
6 IGRS type definitions for RUIS and RUIC . 15
6.1 Overview. 15
6.2 IGRS device types for RUIS and RUIC . 15
6.3 IGRS service types for RUIS and RUIC . 16
6.4 IGRS invocation interfaces for RUIC service . 16
6.5 IGRS invocation interface for RUIS service . 16
6.6 IGRS RUI operation scenarios . 16
6.6.1 Overview . 16
6.6.2 Discovery and retrieval of server information . 16
6.6.3 Connecting . 16
6.6.4 Controlling IGRS devices using IGRS RUI . 17
7 Abstract entity in IGRS RUI . 18
8 RUI Description Language (RDL) . 21
8.1 Overview. 21
8.2 RDL element . 21
8.3 RDLPackage element . 22
8.4 RDLInfo element . 23
8.5 Declaration element . 23
8.6 Package element . 24
8.7 LayoutContainer element . 24
8.8 SceneContainer element . 25
8.9 Item element . 25
8.10 Layout element . 26
8.11 Scene element . 27
8.12 Group element . 28
8.13 Asset element . 28

---------------------- Page: 4 ----------------------
ISO/IEC 14543-5-11:2018 © ISO/IEC 2018 – 3 –
8.14 ItemRef element . 29
8.15 LayoutRef element . 29
8.16 SceneNavigation element . 30
8.17 Annotation element . 30
8.18 Descriptor element . 30
8.19 Condition element . 31
8.20 Choice element . 32
8.21 Selection element . 32
8.22 Statement element . 33
8.23 DCCondition element . 34
Annex A (normative) RDL schema . 35
Bibliography . 43

Figure 1 – Internet RUI configuration model . 11
Figure 2 – 2-tier RUI configuration model . 12
Figure 3 – 3-tier RUI configuration model . 12
Figure 4 – Detailed RUI architecture . 13
Figure 5 – RUIC architecture . 14
Figure 6 – RUIS architecture . 15
Figure 7 – RUI retrieval from Internet RUIS . 17
Figure 8 – Example configuration of controlling IGRS device with RUI . 17
Figure 9 – Structures of major entities in an IGRS RUI application . 20
Figure 10 – RDL namespace declaration . 21
Figure 11 – RDL element definition . 22
Figure 12 – RDLPackage element definition . 22
Figure 13 – Example of an RDLPackage element. 23
Figure 14 – RDLInfo element definition . 23
Figure 15 – Declaration element definition . 23
Figure 16 – Package element definition . 24
Figure 17 – LayoutContainer element definition . 24
Figure 18 – SceneContainer element definition . 25
Figure 19 – Item element definition . 26
Figure 20 – Layout element definition . 27
Figure 21 – Scene element definition . 27
Figure 22 – Group element definition . 28
Figure 23 – Asset element definition . 29
Figure 24 – ItemRef element definition . 29
Figure 25 – LayoutRef element definition . 30
Figure 26 – SceneNavigation element definition . 30
Figure 27 – Annotation element definition . 30
Figure 28 – Descriptor element definition . 31
Figure 29 – Condition element definition . 31
Figure 30 – Choice element definition . 32
Figure 31 – Selection element definition . 33

---------------------- Page: 5 ----------------------
– 4 – ISO/IEC 14543-5-11:2018 © ISO/IEC 2018
Figure 32 – Statement element definition . 34
Figure 33 – DCCondition element definition . 34

Table 1 – RUI device type definitions . 15
Table 2 – RUI service type definitions . 16
Table 3 – Definitions of abstract entities in an IGRS RUI . 18

---------------------- Page: 6 ----------------------
ISO/IEC 14543-5-11:2018 © ISO/IEC 2018 – 5 –
INFORMATION TECHNOLOGY –
HOME ELECTRONIC SYSTEM (HES) ARCHITECTURE –

Part 5-11: Intelligent grouping and resource sharing
for HES Class 2 and Class 3 – Remote user interface

FOREWORD
1) ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission)
form the specialized system for worldwide standardization. National bodies that are members of ISO or IEC
participate in the development of International Standards through technical committees established by the
respective organization to deal with particular fields of technical activity. ISO and IEC technical committees
collaborate in fields of mutual interest. Other international organizations, governmental and non-governmental, in
liaison with ISO and IEC, also take part in the work. In the field of information technology, ISO and IEC have
established a joint technical committee, ISO/IEC JTC 1.
2) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC National Committees and ISO member bodies.
3) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted
by IEC National Committees and ISO member bodies in that sense. While all reasonable efforts are made to
ensure that the technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held
responsible for the way in which they are used or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees and ISO member bodies undertake to
apply IEC, ISO and ISO/IEC publications transparently to the maximum extent possible in their national and
regional publications. Any divergence between any ISO, IEC or ISO/IEC publication and the corresponding
national or regional publication should be clearly indicated in the latter.
5) ISO and IEC do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. ISO or IEC are not responsible
for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual experts
and members of their technical committees and IEC National Committees or ISO member bodies for any
personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for
costs (including legal fees) and expenses arising out of the publication of, use of, or reliance upon, this ISO/IEC
publication or any other IEC, ISO or ISO/IEC publications.
8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this ISO/IEC publication may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
International Standard ISO/IEC 14543-5-11 was prepared by subcommittee 25:
Interconnection of information technology equipment, of ISO/IEC joint technical committee 1:
Information technology.
This International Standard has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the second title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The list of all currently available parts of the ISO/IEC 14543 series, under the general title
Information technology – Home electronic system (HES) architecture, can be found on the
IEC and ISO websites.

---------------------- Page: 7 ----------------------
– 6 – ISO/IEC 14543-5-11:2018 © ISO/IEC 2018
In this document, the following print types are used:
• CAPITAL LETTERS: for special functions or terms
• italics: for abstract entity names in the IGRS RUI model

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.

---------------------- Page: 8 ----------------------
ISO/IEC 14543-5-11:2018 © ISO/IEC 2018 – 7 –
INTRODUCTION
The ISO/IEC 14543-5 series of standards specifies the services and protocol of the
application layer for Intelligent Grouping and Resource Sharing (IGRS) devices and services
in the Home Electronic System.
The ISO/IEC 14543-5 series includes the following parts.
• IGRS Part 5-1: Core protocol
– Specifies the TCP/IP protocol stack as the basis and the HTTP protocol as the
message-exchange framework among devices.
– Specifies a series of device and service interaction/invocation standards, including
device and service discovery protocol, device and service description, service
invocation, security mechanisms, etc.
– Specifies core protocols for a type of home network that supports streaming media and
other high-speed data transports within a home.
• IGRS Parts 5-2#: Application profile
– Based on the IGRS Core Protocol.
– Specifies a device and service interaction mechanism, as well as application interfaces
used in IGRS basic applications.
– Multiple application profiles are specified, including:
i) Part 5-21: AV profile
ii) Part 5-22: File profile
• IGRS Part 5-3: Basic application
– Includes an IGRS basic application list.
– Specifies a basic application framework.
– Specifies operation details (device grouping, service description template, etc.),
function definitions and service invocation interfaces.
• IGRS Part 5-4: Device validation
– Defines a standard method to validate an IGRS-compliant device.
• IGRS Part 5-5: Device type
– Specifies IGRS Device types used in IGRS applications.
• IGRS Part 5-6: Service type
– Specifies basic service types used in IGRS applications.
• IGRS Part 5-7: Remote access system architecture
– Specifies the architecture and framework for the remote access of IGRS devices and
services in the Home Electronic System. The remote access communications protocol
and application profiles are specified in the following parts of ISO/IEC 14543-5:
i) ISO/IEC 14543-5-8: Remote access core protocol
ii) ISO/IEC 14543-5-9: Remote access service platform
iii) ISO/IEC 14543-5-101: Remote media access profile
iv) ISO/IEC 14543-5-102: Remote universal management profile
v) ISO/IEC 14543-5-11: Remote user interface
vi) ISO/IEC 14543-5-12: Remote access test and verification
– The relationships among these parts are specified in Part 5-7.

---------------------- Page: 9 ----------------------
– 8 – ISO/IEC 14543-5-11:2018 © ISO/IEC 2018
• IGRS Part 5-8: Remote access core protocol
– Provides detailed system components, system function modules, basic concepts of
IGRS remote access elements and their relationships, message exchange mechanisms
and security related specifications.
– Specifies interfaces between IGRS Remote Access (RA) client and service platforms.
Defines co-operative procedures among IGRS RA clients.
• IGRS Part 5-9: Remote access service platform
– Specifies the IGRS RA service platform (IRSP) architectures and interfaces among
servers in the service platforms.
– Based on Part 5-8: Remote access core protocol.
• IGRS Part 5-10#: Remote access application profiles
– Defines a device and service interaction mechanism for various applications
– Based on Part 5-8: Remote access core protocol
– The following profile is under development:
1
i) Part 5-101: Remote media access profile. This part defines the common
requirements for IGRS RA media users and devices in IGRS networks.
– Remote universal management profile will form the subject of a future Part 5-102. This
part will specify a mechanism for integrating devices with both relatively high and low
processing capabilities into IGRS networks. It will also specify universal remote device
discovery and a management framework.
– Additional application profiles will be specified in the future.
• IGRS Part 5-11: Remote user interface
– Specifies adaptive user interface generation and remote device control mechanisms
suitable for different remote access applications and devices.
2
• IGRS Part 5-12: Remote access test and verification
– Defines a standard method to test and verify IGRS-RA compliant device and service
interfaces.


__________
1
 Under preparation. Stage at the time of publication: ISO/IEC DIS 14543-5-101:2017.
2
 Under preparation. Stage at the time of publication: ISO/IEC DIS 14543-5-12:2017.

---------------------- Page: 10 ----------------------
ISO/IEC 14543-5-11:2018 © ISO/IEC 2018 – 9 –
INFORMATION TECHNOLOGY –
HOME ELECTRONIC SYSTEM (HES) ARCHITECTURE –

Part 5-11: Intelligent grouping and resource sharing
for HES Class 2 and Class 3 – Remote user interface



1 Scope
This part of ISO/IEC 14543-5 specifies a remote user interface (RUI) for the ISO/IEC 14543-5
series on IGRS for HES Class 2 and Class 3. It defines the mechanisms necessary for
allowing an adaptive user interface to be displayed on and controlled by devices or control
points from a remote location.
This document is applicable to IGRS local and remote access (RA) devices.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
ISO/IEC 14543-5-1:2010, Information technology – Home electronic system (HES)
architecture – Part 5-1: Intelligent grouping and resource sharing for HES Class 2 and
Class 3 – Core protocol
ISO/IEC 14543-5-8, Information technology – Home electronic system (HES) architecture –
Part 5-8: Intelligent grouping and resource sharing for HES Class 2 and Class 3 – Remote
access core protocol
ISO/IEC 15045 (all parts), Information technology – Home electronic system (HES) gateway
IETF RFC 2045, Multipurpose Internet Mail Extensions (MIME) – Part 1: Format of Internet
Message Bodies
IETF RFC 2616, Hypertext Transfer Protocol – HTTP/1.1
IETF RFC 4648, The Base16, Base32, and Base64 Data Encodings
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

---------------------- Page: 11 ----------------------
– 10 – ISO/IEC 14543-5-11:2018 © ISO/IEC 2018
3.1.1
remote user interface
RUI
interface that is used for remote interaction with IGRS users
Note 1 to entry: The IGRS RUI can display information, play multimedia contents to the users or receive users’
inputs.
3.1.2
RUI Client
RUIC
logical device in an IGRS network that possesses RUI retrieval, rendering capabilities and
provides a user input interface to acquire messages for the RUIS
Note 1 to entry: An RUIC device may be physically a PC, a TV, a mobile phone, etc.
3.1.3
RUI Server
RUIS
logical device in an IGRS network that possesses capabilities for RUI contents storage and
for providing RUI contents to the RUICs
Note 1 to entry: An RUIS device may be physically a PC, a set-top-box, a server, etc.
3.1.4
RUI Control Point
RUICP
logical device in an IGRS network that possesses RUI discovery and control capabilities.
Note 1 to entry: An RUICP device may be physically integrated into an RUIC or RUIS, or may be a stand-alone
device.
3.2 Abbreviated terms
DC Delivery Context
IGRS Intelligent Grouping and Resource Sharing
RA Remote Access
RDL RUI Description Language
RUI Remote User Interface
RUIS RUI Server
RUIC RUI Client
RUICP RUI Control Point
SSDP Simple Service Discovery Protocol
UI User Interface
4 Conformance
For conformance to this document the following applies.
• The IGRS RUI system architecture shall conform to Clause 5.
• The device and service types of RUI Server (RUIS) and RUI Client (RUIC) shall conform to
Clause 6.
• The abstract entities in IGRS RUI shall conform to Clause 7.
• The RUI Description Language (RDL) shall conform to Clause 8.

---------------------- Page: 12 ----------------------
ISO/IEC 14543-5-11:2018 © ISO/IEC 2018 – 11 –
5 IGRS RUI overview
5.1 IGRS RUI features
The IGRS RUI supports the following features.
a) Discovery of an RUI: the RUIS lists available UIs for the user and exposes capabilities that
it requires and supports.
b) Connecting to an RUI: the RUIC can connect to an RUIS and retrieve a matching RUI.
A separate RUI Control Point (RUICP) can also set up or control this connection.
c) Presenting RUI content: an RUIS presents RUI contents to an RUIC. The condition of an
RUIC is described in RDL. This enables the RUI device to adjust the RUI contents
according to the condition of the RUIC.
5.2 RUI configuration models
5.2.1 Overview
Three basic models for RUI configuration are defined:
a) Internet RUI configuration model;
b) 2-tier RUI configuration model;
c) 3-tier RUI configuration model.
5.2.2 Internet RUI configuration model
In this configuration, the RUIS is on the Internet. An RUIC may be discoverable (stand-alone
RUICP) or non-discoverable (RUICP and RUIC in the same box). The Internet RUI
configuration model is shown in Figure 1.
LAN
HES Internet
Gateway
RUIC
with or
RUS
without SSDP
RUICP
RUICP

IEC
Figure 1 – Internet RUI configuration model
The HES gateway is specified in the ISO/IEC 15045 series (ISO/IEC 15045-1 and
ISO/IEC 15045-2 are published). The HES gateway shall be used to connect the RUIC on the
LAN and the Internet.
NOTE ISO/IEC 15045-3, under development, is expected to addres
...
