ISO/IEC 25437:2009

INTERNATIONAL ISO/IEC
STANDARD 25437
Second edition
2009-08-15


Information technology —
Telecommunications and information
exchange between systems —
WS-Session — Web services for
application session services
Technologies de l'information — Télécommunications et échange
d'information entre systèmes — Session WS — Services web pour
services de session d'application




Reference number
ISO/IEC 25437:2009(E)
©
ISO/IEC 2009

---------------------- Page: 1 ----------------------
ISO/IEC 25437:2009(E)

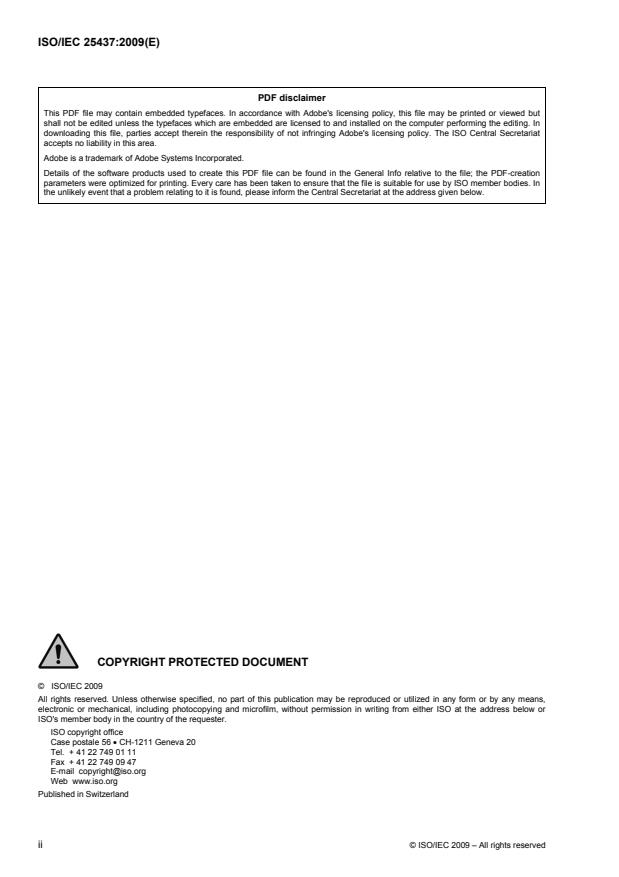

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO/IEC 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2009 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 25437:2009(E)
Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Conformance .1
3 Normative references.2
4 Terms, definitions and namespaces .2
5 Service Provider WSDL Abstract Definitions .4
6 Service Provider WSDL SOAP Binding.6
7 Event Subscription and Notification .8
Annex A (normative) Subscription Using WS-BaseNotification Option .9
Annex B (normative) Asynchronous Response to Subscription Request Option.10
Annex C (informative) Event Subscription Using WS-Eventing.11
Annex D (informative) Service Provider WSDL with SOAP/HTTP Binding .14
Annex E (informative) SOAP XML Templates for ISO/IEC 22534 (ECMA-354) Messages.15
Annex F (informative) WS-Eventing SOAP XML Message Templates.20
Annex G (informative) WS-BaseNotification SOAP XML Message Templates .23
Annex H (informative) Summary of Changes.26

© ISO/IEC 2009 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 25437:2009(E)

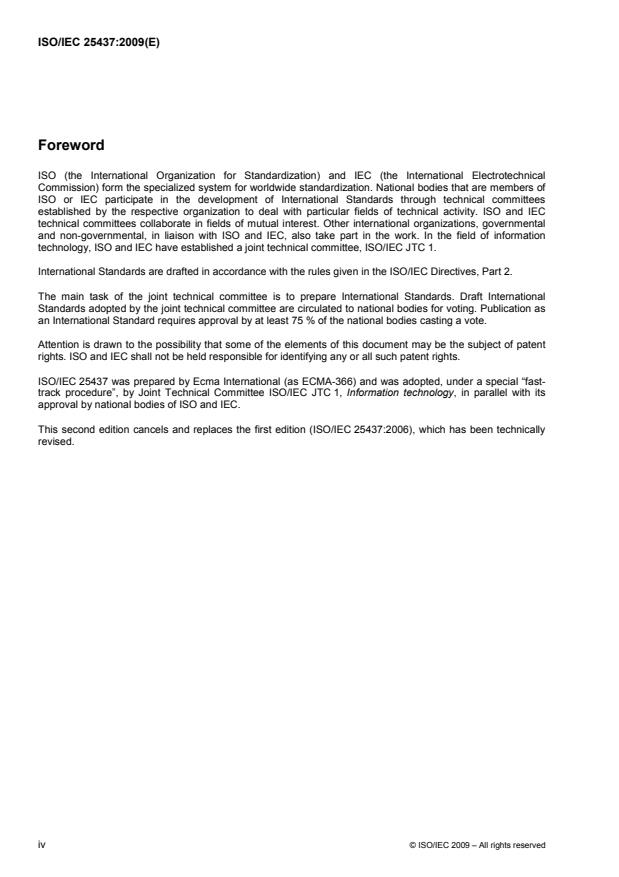

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 25437 was prepared by Ecma International (as ECMA-366) and was adopted, under a special “fast-
track procedure”, by Joint Technical Committee ISO/IEC JTC 1, Information technology, in parallel with its
approval by national bodies of ISO and IEC.
This second edition cancels and replaces the first edition (ISO/IEC 25437:2006), which has been technically
revised.

iv © ISO/IEC 2009 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 25437:2009(E)
Introduction
ISO/IEC 22534, Application Session Services, specifies XML protocols that can be used to create and
manage application sessions that are independent of the transport layer protocols. This International Standard
(WS-Session) specifies Web services for ISO/IEC 22534.
The ApplicationSessionTerminated operation of this International Standard is an outbound asynchronous
event notification. For the Service Requester to receive the event notification from the Service Provider and
from web services (e.g. ECMA-348) that use this International Standard for session management, it
standardized the WS-BaseNotification Option and illustrated the use of WS-Eventing.

© ISO/IEC 2009 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 25437:2009(E)

Information technology — Telecommunications and information
exchange between systems — WS-Session — Web services for
application session services
1 Scope
This International Standard specifies Web Services (in WSDL) and a SOAP binding for the Application
Session Services defined in ISO/IEC 22534. The Application Session Services allow Applications to create
and maintain a relationship with Servers termed Application Session. The Web services specified herein allow
Service Requesters (Applications in ISO/IEC 22534) and Service Providers (Servers in ISO/IEC 22534) to
create and maintain such Application Sessions.
This International Standard builds upon and imports the XML schema definitions from ISO/IEC 22534. The
method of making the WSDL description of the specified services available to Service Provider and Requester
is out of the scope of this International Standard.
The ApplicationSessionTerminated operation of this International Standard is an outbound asynchronous
event notification that Service Requesters receive from the Service Provider. Service Requester may also
receive the event notification from web services, e.g. ECMA-348, that use this International Standard for
session management.
This International Standard specifies the event subscription and notification behaviors.
Annex A specifies the event subscription mechanism using WS-BaseNotification Option.
Annex B specifies the asynchronous subscription response Option for the two event subscription mechanisms.
Annex C illustrates the event subscription mechanism using WS-Eventing.
Annex D shows an example WS-Session WSDL binding with SOAP/HTTP.
Annex E lists SOAP XML Templates for ISO/IEC 22534 messages.
Annex F lists some SOAP XML Templates for WS-Eventing messages.
Annex G lists some SOAP XML Templates for WS-BaseNotification messages.
Annex H provides a summary of changes.
2 Conformance
The Service Requester and Service Provider conform to the Application and Server conformance specified in
ISO/IEC 22534, using the WSDL definitions, SOAP bindings, and event subscription and notification specified
in Clauses 5, 6 and 7 respectively.
The Service Provider may implement the WS-BaseNotification event subscription Option as specified in
Annex A.
© ISO/IEC 2009 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/IEC 25437:2009(E)
The Service Provider's WSDL shall include the implemented event subscription operations in the WSDL
specified in Clause 5.
The Service Requester shall itself initiate or delegate event subscription.
The Service Provider supports synchronous responses to event subscriptions and may implement the
asynchronous response Option specified in Annex B.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 22534:2005 (ECMA-354), Information technology — Telecommunications and information exchange
between systems — Application session services
SOAP 1.1 Simple Object Access Protocol 1.1, W3C Note 08 May 2000
WSDL 1.1 Web Service Description Language 1.1, W3C Note 15 March 2001
XML Schema 1.0: XML Schema Language Part 1: Structure, W3C Recommendation 28 October 2004
XML Schema Language Part 2: Data Types, W3C Recommendation
28 October 2004
WS-Addressing 1.0 Web Services Addressing 1.0 – Core W3C Recommendation 9 May 2006
Web Services Addressing 1.0 - SOAP Binding W3C Recommendation 9 May 2006
Web Services Addressing 1.0 – Metadata, W3C Recommendation
4 September 2007
WS-BaseNotification 1.3 Web Services Base Notification 1.3 (WS-BaseNotification) OASIS Standard,
1 October 2006
4 Terms, definitions and namespaces
4.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
4.1.1
Service Requester
Web Service equivalent of Application in ISO/IEC 22534
4.1.2
Service Provider
Web Service equivalent of Server in ISO/IEC 22534
4.1.3
Application Session
association between an application and a server

2 © ISO/IEC 2009 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC 25437:2009(E)
4.2 Namespaces
This International Standard uses these Ecma prefixes and namespaces:
1. aps (http://www.ecma-international.org/standards/ecma-354/appl_session): This International
Standard imports all XML messages defined in ECMA-354 (ISO/IEC 22534) from the aps
namespace.
2. wss (http://www.ecma-international.org/standards/ecma-366/ws-session/ed2): The WSDL target
namespace for this International Standard.
This International Standard refers to these other prefixes and namespaces:
1. wsdl (http://schemas.xmlsoap.org/wsdl): This contains the W3C WSDL 1.1 schema.
2. xs (http://www.w3.org/2001/XMLSchema): This contains the W3C XML Schema definition.
3. S (http://schemas.xmlsoap.org/wsdl/soap): This contains the W3C SOAP bindings for WSDL 1.1.
4. wsa (http://www.w3.org/2005/08/addressing): The namespace for WS-Addressing 1.0.
5. wsnt (http://docs.oasis-open.org/wsn/b-2.xsd): The target namespace for WS-BaseNotification 1.3.


© ISO/IEC 2009 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/IEC 25437:2009(E)
5 Service Provider WSDL Abstract Definitions
This clause specifies the abstract WSDL definitions to support the services specified in ISO/IEC 22534.
xmlns="http://schemas.xmlsoap.org/wsdl/"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
xmlns:aps="http://www.ecma-international.org/standards/ecma-354/appl_session"
xmlns:wss="http://www.ecma-international.org/standards/ecma-366/ws-session/ed2"
targetNamespace="http://www.ecma-international.org/standards/ecma-366/ws-session/ed2">


  schemaLocation="http://www.ecma-international.org/standards/ecma-354/appl_session/start-application-session.xsd"/>
  schemaLocation="http://www.ecma-international.org/standards/ecma-354/appl_session/stop-application-session.xsd"/>
  schemaLocation="http://www.ecma-international.org/standards/ecma-354/appl_session/reset-application-session-timer.xsd"/>
  schemaLocation="http://www.ecma-international.org/standards/ecma-354/appl_session/application-session-terminated.xsd"/>


































4 © ISO/IEC 2009 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC 25437:2009(E)























© ISO/IEC 2009 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/IEC 25437:2009(E)
6 Service Provider WSDL SOAP Binding
This clause specifies the binding template of the abstract WSDL definitions in Clause 5 with SOAP Messages
without a specific transport protocol. The binding template uses XML Schema data types instead of values for
some attributes. Any actual SOAP binding to a transport shall contain elements and attributes in this binding
template where the attributes shall be substituted by permitted values.
xmlns="http://schemas.xmlsoap.org/wsdl/"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
xmlns:aps="http://www.ecma-international.org/standards/ecma-354/appl_session"
xmlns:wss="http://www.ecma-international.org/standards/ecma-366/ws-session/ed2"
targetNamespace="http://www.ecma-international.org/standards/ecma-366/ws-session/ed2">
 location="http://www.ecma-international.org/standards/ecma-366/ws-session/ed2/ws-session-wsdl-
abstract-definitions.wsdl" />











































6 © ISO/IEC 2009 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/IEC 25437:2009(E)
ISO/IEC 22534 requires Applications to include the aps:sessionID in the service requests that address the
established session. To standardize this requirement in Web services that exchange messages, the
placement of aps:sessionID shall follow these rules.
1. For any service message (e.g. Subscribe) addressed to an endpoint with WS-Addressing Endpoint
Reference, the aps:sessionID element is treated as an extension to the Endpoint Reference. When
the message is bound to SOAP, the aps:sessionID element shall be added to the SOAP message
as a header block.
2. Other SOAP messages within a session shall include the aps:sessionID as a header block.
The negative responses from Service Providers shall be bound to the SOAP 1.1 fault properties: faultcode,
faultstring and detail, using the following template.
xmlns:S="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:aps="http://www.ecma-international.org/standards/ecma-354/appl_session">


  [faultcode]
  [faultstring]
  [detail]




The contents of fault properties are defined by the following table for each type of negative response.
Table 1 — Fault names and properties for WS-Session services
Fault Name StartFault
ISO/IEC 22534 defined standard error names: invalidApplicationInfo,
faultcode
requestedProtocolVersionNotSupported, serverResourcesBusy, maxNumberSessions, or
application error name.
For ISO/IEC 22534 standard errors, it is the Description of corresponding error in Table 4-3
faultstring
of ISO/IEC 22534. Additonal text can be provided to elaborate the error message, for
example, the maximal session number allowed by the service provider. For application
errors, a proper English description shall be provided.
Element aps:StartApplicationSessionNegResponse.
detail
StopFault
Fault Name
ISO/IEC 22534 defined standard error names: invalidSessionID, or application error name.
faultcode
For ISO/IEC 22534 standard errors, it is the Description of corresponding error in Table 4-6
faultstring
of ISO/IEC 22534. Additonal text can be provided to elaborate the error message, for
example, the valid session ID format allowed by the service provider. For application errors,
a proper English description shall be provided.
Element aps:StopApplicationSessionNegResponse.
detail
ResetFault
Fault Name
ISO/IEC 22534 defined standard error names: invalidSessionID,
faultcode
serverCannotResetSessionDuration, or application error name.
ISO/IEC 22534 standard errors, it is the Description of corresponding error in Table 4-9 of
faultstring
ISO/IEC 22534. Additonal text can be provided to elaborate the error message, for example,
the duration allowed by the service provider. For application errors, a proper English
description shall be provided.
Element aps:ResetApplicationSessionTimerNegResponse.
detail
© ISO/IEC 2009 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/IEC 25437:2009(E)
7 Event Subscription and Notification
The ApplicationSessionTerminated operation is an outbound asynchronous event notification.
The Service Requester shall subscribe to receive the event notification from the Service Provider according to
the event subscription mechanism of the Service Provider. It shall provide the notification consumer URI as
defined in Annex A and B, and shall make the said notification consumer WSDL available to the Service
Provider.
The Service Requester shall subscribe to receive the ApplicationSessionTerminated event immediately after
the successful completion of the StartApplicationSession operation.
The Service Provider and Requester shall implement WS-Addressing defined by [WS-Addressing 1.0].
The subscription message shall include the unique aps:sessionID obtained from the StartApplicationSession
operation. The aps:sessionID element shall be the first level child element of the subscription endpoint
reference parameters [WS-Addressing 1.0], and the element is bound to the SOAP message as a header
block as defined in Clause 6.
The Service Requester and Provider shall support the push mode to deliver the event notification. The Service
Provider shall send event notifications to each of the valid notification consumer endpoints declared in the
event subscription message.
The event notification message from the Service Provider shall include the notification consumer endpoint
reference parameters, if any, so that the Service Requester can correlate the event notification obtained from
the Service Provider using those parameters.
If the application session terminates abnormally, before the ApplicationSessionTerminated event can be
subscribed to, the subsequent subscription of ApplicationSessionTerminated event by the Service Requester
shall result in a SOAP fault message as defined by the subscription protocol.
When a session terminates, any subscription associated with the session is deemed invalid.


8 © ISO/IEC 2009 – All rights reserved

---------------------- Page: 13 ----------------------
ISO/IEC 25437:2009(E)
Annex A
(normative)

Subscription Using WS-BaseNotification Option
The Service Provider shall implement the wsnt:Subscribe operation defined in the NotificationProducer
portType of WS-BaseNotification WSDL and may implement other operations, such as wsnt:Unsubscribe,
defined in the SubscriptionManager portType [WS-BaseNotification 1.3].
The Service Requester shall use wsnt:Subscribe operation to subscribe to the events of Service Provider. The
subscription request for wrapped or unwrapped (a.k.a. raw in WS-BaseNotification) event delivery mode shall
follow WS-BaseNotification specification.
If the Service Provider does not support the requested event delivery mode, it shall return the fault message
wsnt:UnsupportedPolicyRequestFault as specified by WS-BaseNotification.
If the aps:sessionID [sessionID] in the request is invalid, the Service Provider shall return a SOAP 1.1 fault
message with these properties:
• [faultcode]=”wsrf-rw:ResourceUnknownFault”
• [faultstring]=”The session [sessionID] is invalid”
• [detail]=invalidSessionID:[sessionID]
A.1 Wrapped Delivery Mode Notification Consumer WSDL for Service Requester and
Its SOAP Binding
Service Requesters shall implement WS-BaseNotification wrapped Notification Consumer WSDL and its
SOAP binding to specify its wrapped notification consumer interface.
A.2 Unwrapped Delivery Mode Notification Consumer WSDL for Service Requester
and Its SOAP Binding
Service Requesters shall implement unwrapped notification consumer WSDL and its SOAP binding specified
in this annex to specify its unwrapped notification consumer interface.
© ISO/IEC 2009 – All rights reserved 9

---------------------- Page: 14 ----------------------
ISO/IEC 25437:2009(E)
Annex B
(normative)

Asynchronous Response to Subscription Request Option
The Service Provider and Requester shall follow WS-Addressing [WS-Addressing 1.0] to annotate and
correlate event subscription messages for asynchronous message exchange. The request SOAP message
from Service Requester intended for an asynchronous response shall include at least the following WS-
Addressing headers: wsa:To, wsa:Action, wsa:MessageID, and wsa:ReplyTo (wsa:FaultTo) whose value is
defined by the Service Requester. In particular, the Service Requester shall provide a valid non-anonymous
URI in wsa:ReplyTo field in its service request messages.
The asynchronous response or fault SOAP message shall include at least the following WS-Addressing
headers: wsa:To, wsa:Action, and wsa:RelatesTo, whose values shall be formulated according to WS-
Addressing specificiation [WS-Addressing 1.0 Core]. If the Service Provider only supports synchronous
response, it shall return a SOAP fault message with faultcode set to wsa:OnlyAnonymousAddressSupported
[WS-Addressing 1.0 SOAP Binding].
An asynchronous event subscription SOAP message template is shown below.
xmlns:S="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:wsa="http://www.w3.org/2005/08/addressing"
xmlns:aps="http://www.ecma-international.org/standards/ecma-354/appl_session">

 xs:anyURI
 xs:string
 [message_id]
 [reply_address]
 xs:anyURI
 xs:any*

…


The template for the reply message (response or fault) is shown below.
xmlns:S="http://schemas.xmlsoap.org/soap/envelope/"
xmlns:wsa="http://www.w3.org/2005/08/addressing"
xmlns:aps="http://www.ecma-international.org/standards/ecma-354/appl_session">

 [reply_address]
 [message_id]
 xs:anyURI
 xs:any*

…




10 © ISO/IEC 2009 – All rights reserved

---------------------- Page: 15 ----------------------
ISO/IEC 25437:2009(E)
Annex C
(informative)

Event Subscription Using WS-Eventing
WS-Eventing can be found at http://www.w3.org/Submission/WS-Eventing/.
wse is the target namespace prefix for WS-Eventing at
http://schemas.xmlsoap.org/ws/2004/08/eventing.
WS-Eventing uses “event sink” to mean “notification consumer” defined in WS-BaseNotification. For
consistency, we use “notification consumer” throughout this Standard.
The target namespace of the wrapped notification consumer WSDL: gsk
(http://www.ecma-international.org/standards/ecma-366/ws-session/ed2/generic_sink).
The Service Provider may implement the wse:SubscribeOp operation defined in the EventSource portType of
WS-Eventing WSDL and may implement other operations, such as wse:UnsubscribeOp, defined in the
SubscriptionManager portType. The Service Provider should use WS-Addressing 1.0 with WS-Eventing.
The Service Requester shall use wse:SubscribeOp operation to subscribe to the events. The subscription
message from the Service Requester shall conform to the requirements of WS-Eventing.
To request wrapped event delivery mode, the Service Requester shall use the following URI in its event
subscription request according to WS-Eventing:
http://schemas.xmlsoap.org/ws/2004/08/eventing/DeliveryModes/Wrap
To request unwrapped event delivery mode, the Service Requester shall use the following URI in its event
subscription request according to WS-Eventing:
http://www.ecma-international.org/standards/ecma-366/ws-session/ed2/typed_sink
If the Service Provider does not support the requested event delivery mode, it shall return the fault message
wse:DeliveryModeRequestedUnavailable as specified by WS-Eventing.
If the aps:sessionID [sessionID] in the request is invalid, the Service Provider
...
