ISO/IEC 26132:2024

International
Standard
ISO/IEC 26132
First edition
Information technology — OpenID
2024-10
connect — OpenID connect discovery
1.0 incorporating errata set 2
Reference number
© ISO/IEC 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO/IEC 2024 – All rights reserved
ii
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
The procedures used to develop this document and those intended for its further maintenance
are described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed
for the different types of document should be noted (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had
not received notice of (a) patent(s) which may be required to implement this document. However,
implementers are cautioned that this may not represent the latest information, which may be obtained
from the patent database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall
not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html. In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by the OpenID Foundation (OIDF) (as OpenID Connect Discovery 1.0
incorporating errata set 2) and drafted in accordance with its editorial rules. It was adopted, under the
JTC 1 PAS procedure, by Joint Technical Committee ISO/IEC JTC 1, Information technology.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html and www.iec.ch/national-
committees.
© ISO/IEC 2024 – All rights reserved
iii

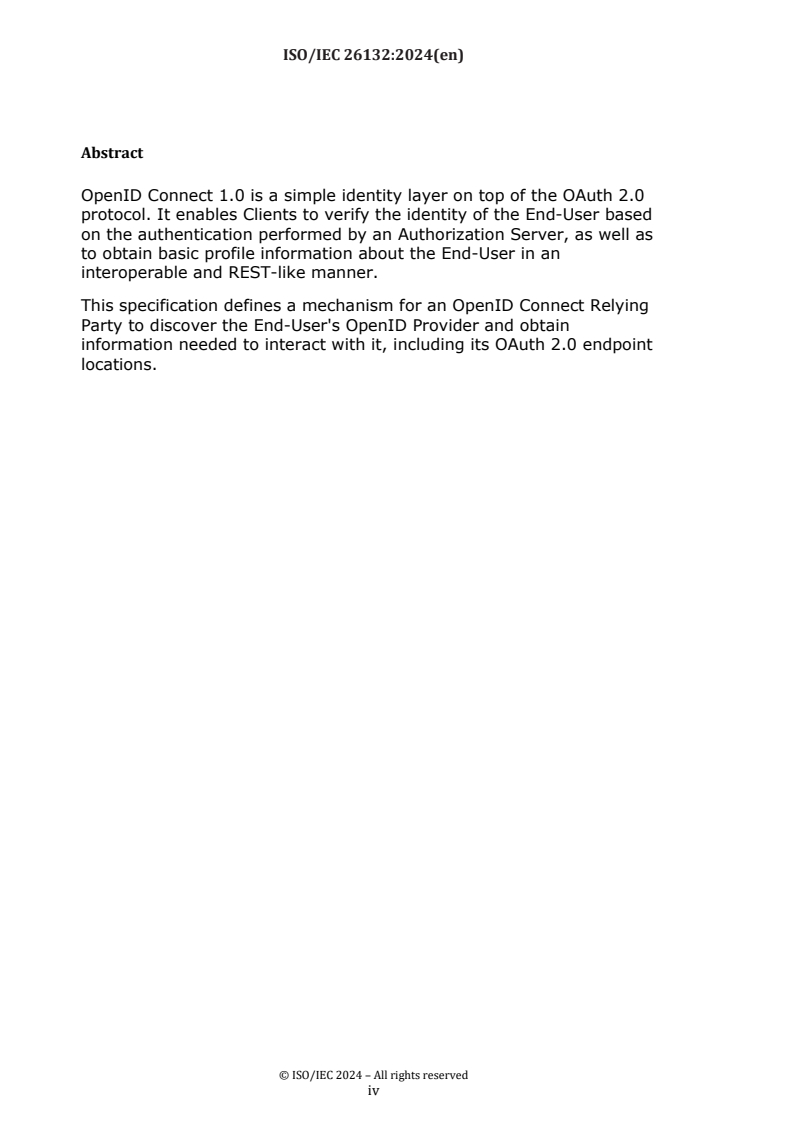

Abstract
OpenID Connect 1.0 is a simple identity layer on top of the OAuth 2.0
protocol. It enables Clients to verify the identity of the End-User based
on the authentication performed by an Authorization Server, as well as
to obtain basic profile information about the End-User in an
interoperable and REST-like manner.
This specification defines a mechanism for an OpenID Connect Relying
Party to discover the End-User's OpenID Provider and obtain
information needed to interact with it, including its OAuth 2.0 endpoint
locations.
© ISO/IEC 2024 – All rights reserved
iv
Table of Contents
1. Introduction
1.1. Requirements Notation and Conventions
1.2. Terminology
2. OpenID Provider Issuer Discovery
2.1. Identifier Normalization
2.1.1. User Input Identifier Types
2.1.2. Normalization Steps
2.2. Non-Normative Examples
2.2.1. User Input using E-Mail Address Syntax
2.2.2. User Input using URL Syntax
2.2.3. User Input using Hostname and Port Syntax
2.2.4. User Input using "acct" URI Syntax
3. OpenID Provider Metadata
4. Obtaining OpenID Provider Configuration
Information
4.1. OpenID Provider Configuration Request
4.2. OpenID Provider Configuration Response
4.3. OpenID Provider Configuration Validation
5. String Operations
6. Implementation Considerations
6.1. Compatibility Notes
7. Security Considerations
7.1. TLS Requirements
7.2. Impersonation Attacks
8. IANA Considerations
8.1. Well-Known URI Registry
8.1.1. Registry Contents
8.2. OAuth Authorization Server Metadata Registry
8.2.1. Registry Contents
9. References
9.1. Normative References
9.2. Informative References
© ISO/IEC 2024 – All rights reserved
v
Information technology — OpenID Connect — OpenID
Connect Discovery 1.0 incorporating errata set 2
TOC
1. Introduction
OpenID Connect 1.0 is a simple identity layer on top of the OAuth 2.0
[RFC6749] protocol. It enables Clients to verify the identity of the End-
User based on the authentication performed by an Authorization Server,
as well as to obtain basic profile information about the End-User in an
interoperable and REST-like manner.
In order for an OpenID Connect Relying Party to utilize OpenID Connect
services for an End-User, the RP needs to know where the OpenID
Provider is. OpenID Connect uses WebFinger [RFC7033] to locate the
OpenID Provider for an End-User. This process is described in Section 2.
Once the OpenID Provider has been identified, the configuration
information for that OP is retrieved from a well-known location as a
JSON [RFC8259] document, including its OAuth 2.0 endpoint locations.
This process is described in Section 4.
The previous versions of this specification are:
• OpenID Connect Discovery 1.0 incorporating errata set 1
[OpenID.Discovery.Errata1]
• OpenID Connect Discovery 1.0 (final)
[OpenID.Discovery.Final]
TOC
1.1. Requirements Notation and Conventions
The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL
NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "NOT
RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be
interpreted as described in RFC 2119 [RFC2119].
In the .txt version of this specification, values are quoted to indicate
that they are to be taken literally. When using these values in protocol
messages, the quotes MUST NOT be used as part of the value. In the
HTML version of this specification, values to be taken literally are
indicated by the use of this fixed-width font.
© ISO/IEC 2024 – All rights reserved
All uses of JSON Web Signature (JWS) [JWS] and JSON Web Encryption
(JWE) [JWE] data structures in this specification utilize the JWS
Compact Serialization or the JWE Compact Serialization; the JWS JSON
Serialization and the JWE JSON Serialization are not used.

TOC
1.2. Terminology
This specification uses the terms "Authorization Code", "Authorization
Endpoint", "Authorization Server", "Client", "Client Authentication",
"Client Secret", "Grant Type", "Response Type", and "Token Endpoint"
defined by OAuth 2.0 [RFC6749], the terms "Claim Name", "Claim
Value", and "JSON Web Token (JWT)" defined by JSON Web Token
(JWT) [JWT], and the terms defined by OpenID Connect Core 1.0
[OpenID.Core] and OAuth 2.0 Multiple Response Type Encoding
Practices [OAuth.Responses].
This specification also defines the following terms:
Resource
Entity that is the target of a request in WebFinger.
Host
Server where a WebFinger service is hosted.
Identifier
Value that uniquely characterizes an Entity in a specific
context.
NOTE: This specification defines various kinds of Identifiers,
designed for use in different contexts. Examples include
URLs using the https scheme and e-mail addresses.
IMPORTANT NOTE TO READERS: The terminology definitions in this
section are a normative portion of this specification, imposing
requirements upon implementations. All the capitalized words in the
text of this specification, such as "Identifier", reference these defined
terms. Whenever the reader encounters them, their definitions found in
this section must be followed.

© ISO/IEC 2024 – All rights reserved
TOC
2. OpenID Provider Issuer Discovery
OpenID Provider Issuer discovery is the process of determining the
location of the OpenID Provider.
Issuer discovery is OPTIONAL; if a Relying Party knows the OP's Issuer
location through an out-of-band mechanism, it can skip this step and
proceed to Section 4.
The following information is needed to perform issuer discovery using
WebFinger [RFC7033]:
resource
Identifier for the target End-User that is the subject of the
discovery request.
host
Server where a WebFinger service is hosted.
rel
URI identifying the type of service whose location is being
requested.
OpenID Connect uses the following discoverable rel value in WebFinger
[RFC7033]:
Rel Type URI
OpenID Connect Issuer http://openid.net/specs/connect/1.0/issuer

To start discovery of OpenID endpoints, the End-User supplies an
Identifier to the Relying Party. Any Web input form MUST employ Cross-
Site Request Forgery (CSRF) prevention [OWASP.CSRF].
The RP applies normalization rules to the Identifier to determine the
Resource and Host. Then it makes an HTTP GET request to the Host's
WebFinger [RFC7033] endpoint with the resource parameter to obtain
the location of the requested service. Use of the rel parameter in the
request with a value of
http://openid.net/specs/connect/1.0/issuer is also
RECOMMENDED to narrow the response to the specific link relation type
needed.
© ISO/IEC 2024 – All rights reserved
All WebFinger communication MUST utilize TLS in the manner described
in Section 7.1. The WebFinger endpoint SHOULD support the use of
Cross-Origin Resource Sharing (CORS) [CORS] and/or other methods as
appropriate to enable JavaScript Clients and other Browser-Based
Clients to access it.
The Issuer location MUST be returned in the WebFinger response as the
value of the href member of a links array element with rel member
value http://openid.net/specs/connect/1.0/issuer. (Per Section 7
of WebFinger [RFC7033], obtaining the WebFinger response may first
involve following some redirects.)
The returned Issuer location MUST be a URI RFC 3986 [RFC3986] with a
scheme component that MUST be https, a host component, and
optionally, port and path components and no query or fragment
components. Note that since the Host and Resource values determined
from the user input Identifier, as described in Section 2.1, are used as
input to a WebFinger request, which can return an Issuer value using a
completely different scheme, host, port, and path, no relationship can
be assumed between the user input Identifier string and the resulting
Issuer location.
TOC
2.1. Identifier Normalization
The purpose of Identifier normalization is to determine normalized
Resource and Host values from the user input Identifier. These are then
used as WebFinger request parameters to discover the Issuer location.
The user input Identifier SHOULD be a URL or URI relative reference
defined in RFC 3986 [RFC3986]. The user input Identifier MUST include
the authority component.
NOTE: A URI relative reference includes a string that looks like an e-
mail address in the form of userinfo@host. This is a valid authority
component of a URI but excludes various possible extra strings allowed
in addr-spec syntax of RFC 5322 [RFC5322].
The Identifier normalization rules MAY be extended by additional
specifications to enable other identifier types such as telephone
numbers or XRIs [XRI_Syntax_2.0] to also be used.
© ISO/IEC 2024 – All rights reserved
TOC
2.1.1. User Input Identifier Types
A user input Identifier can be categorized into the following types, which
require different normalization processes:
1. User input Identifiers starting with the XRI
[XRI_Syntax_2.0] global context symbols ('=','@', and
'!') are RESERVED. Processing of these identifiers is out
of scope for this specification.
2. All other user input Identifiers MUST be treated as a URI
in one of the forms scheme "://" authority path-
abempty [ "?" query ] [ "#" fragment ] or
authority path-abempty [ "?" query ] [ "#"
fragment ] or scheme ":" path-rootless, per RFC
3986 [RFC3986].
NOTE: The user input Identifier MAY be in the form of userinfo@host.
For the End-User, this would normally be perceived as being an e-mail
address. However, it is also a valid userpart "@" host section of an acct
URI [RFC7565], and this specification treats it such as to exclude
various extra strings allowed in addr-spec of RFC 5322 [RFC5322].

TOC
2.1.2. Normalization Steps
A string of any other type is interpreted as a URI in one of the forms
scheme "://" authority path-abempty [ "?" query ] [ "#"
fragment ] or authority path-abempty [ "?" query ] [ "#"
fragment ] or scheme ":" path-rootless per RFC 3986 [RFC3986]
and is normalized according to the following rules:
1. If the user input Identifier does not have an RFC 3986
[RFC3986] scheme component, the string is interpreted
as [userinfo "@"] host [":" port] path-
abempty [ "?" query ] [ "#" fragment ] per
RFC 3986 [RFC3986]. Examples are example.com,
joe@example.com, example.com/joe, and
example.com:8080.
© ISO/IEC 2024 – All rights reserved
2. If the userinfo and host components are present and all
of the scheme, path, query, port, and fragment
components are absent, the acct scheme is assumed. In
this case, the normalized URI is formed by prefixing
acct: to the string as the scheme. Per The 'acct' URI
Scheme [RFC7565], if there is an at-sign character ('@')
in the userinfo component, it needs to be percent-
encoded, as described in RFC 3986 [RFC3986]. Examples
are joe@example.com and Jane.Doe@example.com.
3. For all other inputs without a scheme component, the
https scheme is assumed, and the normalized URI is
formed by prefixing https:// to the string as the
scheme. Examples are example.com,
example.com/joe, example.com:8080, and
joe@example.com:8080.
4. When the input contains an explicit scheme such as acct
or https that matches the RFC 3986 scheme ":"
path-rootless syntax, no input normalization is
performed. Examples are https://example.com,
https://example.com/joe,
https://joe@example.com:8080, and
acct:joe@example.com.
5. If the resulting URI contains a fragment component, it
MUST be stripped off, together with the fragment
delimiter character "#".
The WebFinger [RFC7033] Resource in this case is the resulting URI,
and the WebFinger Host is the authority component.
NOTE: Since the definition of authority in RFC 3986 [RFC3986] is [
userinfo "@" ] host [ ":" port ], it is legal to have a user input
identifier like userinfo@host:port, e.g., alice@example.com:8080.
© ISO/IEC 2024 – All rights reserved
TOC
2.2. Non-Normative Examples
TOC
2.2.1. User Input using E-Mail Address Syntax
To find the Issuer for the given user input in the form of an e-mail
address joe@example.com, the WebFinger parameters are as follows:
WebFinger Parameter Value
resource acct:joe@example.com
host example.com
rel http://openid.net/specs/connect/1.0/issuer

Note that in this case, the acct: scheme [RFC7565] is prepended to the
Identifier.
The RP would make the following WebFinger request to discover the
Issuer location (with line wraps within lines for display purposes only):

GET /.well-known/webfinger
?resource=acct%3Ajoe%40example.com

&rel=http%3A%2F%2Fopenid.net%2Fspecs%2Fconnect%2F1.0%2Fi
ssuer
HTTP/1.1
Host: example.com
HTTP/1.1 200 OK
Content-Type: application/jrd+json

{
"subject": "acct:joe@example.com",
"links":
[
{
"rel":
"http://openid.net/specs/connect/1.0/issuer",
"href": "https://server.example.com"
© ISO/IEC 2024 – All rights reserved
}
]
}
TOC
2.2.2. User Input using URL Syntax
To find the Issuer for the given URL, https://example.com/joe, the
WebFinger parameters are as follows:
WebFinger Parameter Value
resource https://example.com/joe
host example.com
rel http://openid.net/specs/connect/1.0/issuer

The RP would make the following WebFinger request to discover the
Issuer location (with line wraps within lines for display purposes only):

GET /.well-known/webfinger
?resource=https%3A%2F%2Fexample.com%2Fjoe

&rel=http%3A%2F%2Fopenid.net%2Fspecs%2Fconnect%2F1.0%2Fi
ssuer
HTTP/1.1
Host: example.com
HTTP/1.1 200 OK
Content-Type: application/jrd+json

{
"subject": "https://example.com/joe",
"links":
[
{
"rel":
"http://openid.net/specs/connect/1.0/issuer",
"href": "https://server.example.com"
}
]
}
© ISO/IEC 2024 – All rights reserved
TOC
2.2.3. User Input using Hostname and Port Syntax
If the user input is in the form of host:port, e.g., example.com:8080,
then it is assumed as the authority component of the URL.
To find the Issuer for the given hostname, example.com:8080, the
WebFinger parameters are as follows:
WebFinger Parameter Value
resource https://example.com:8080/
host example.com:8080
rel http://openid.net/specs/connect/1.0/issuer

The RP would make the following WebFinger request to discover the
Issuer location (with line wraps within lines for display purposes only):

GET /.well-known/webfinger
?resource=https%3A%2F%2Fexample.com%3A8080%2F

&rel=http%3A%2F%2Fopenid.net%2Fspecs%2Fconnect%2F1.0%2Fi
ssuer
HTTP/1.1
Host: example.com:8080
HTTP/1.1 200 OK
Content-Type: application/jrd+json

{
"subject": "https://example.com:8080/",
"links":
[
{
"rel":
"http://openid.net/specs/connect/1.0/issuer",
"href": "https://server.example.com"
}
]
}
© ISO/IEC 2024 – All rights reserved
TOC
2.2.4. User Input using "acct" URI Syntax
To find the Issuer for the given user input in the form of an account URI
acct:juliet%40capulet.example@shopping.example.com, the
WebFinger parameters are as follows:
WebFinger Parameter Value
resource acct:juliet%40capulet.example@shopping.example.com
host shopping.example.com
rel http://openid.net/specs/connect/1.0/issuer

The RP would make the following WebFinger request to discover the
Issuer location (with line wraps within lines for display purposes only):

GET /.well-known/webfinger
?resource=acct%3Ajuliet%2540capulet.example%40shopping.e
xample.com
&rel=http%3A%2F%2Fopenid.net%2Fspecs%2Fconnect%2F1.0%2Fi
ssuer
HTTP/1.1
Host: shopping.example.com
HTTP/1.1 200 OK
Content-Type: application/jrd+json

{
"subject":
"acct:juliet%40capulet.example@shopping.example.com",
"links":
[
{
"rel":
"http://openid.net/specs/connect/1.0/issuer",
"href": "https://server.example.com"
}
]
}
© ISO/IEC 2024 – All rights reserved
NOTE: It is common for sites to use e-mail addresses as local identifiers
for accounts at those sites, even though the domain in the e-mail
address is not one controlled by the site. For instance, the site
example.org might have a local account named joe@example.com. This
specification uses acct: URIs as defined by [RFC7565] to represent
such accounts during WebFinger discovery. Such an example is
acct:joe%40example.com@example.org. End-Users MAY input values
like joe@example.com@example.org to initiate discovery on such
accounts.
TOC
3. OpenID Provider Metadata
OpenID Providers have metadata describing their configuration. These
OpenID Provider Metadata values are used by OpenID Connect:
issuer
REQUIRED. URL using the https scheme with no query or
fragment components that the OP asserts as its Issuer
Identifier. If Issuer discovery is supported (see Section 2),
this value MUST be identical to the issuer value returned by
WebFinger. This also MUST be identical to the iss Claim
value in ID Tokens issued from this Issuer.
authorization_endpoint
REQUIRED. URL of the OP's OAuth 2.0 Authorization
Endpoint [OpenID.Core]. This URL MUST use the https
scheme and MAY contain port, path, and query parameter
components.
token_endpoint
URL of the OP's OAuth 2.0 Token Endpoint [OpenID.Core].
This is REQUIRED unless only the Implicit Flow is used. This
URL MUST use the https scheme and MAY contain port,
path, and query parameter components.
userinfo_endpoint
RECOMMENDED. URL of the OP's UserInfo Endpoint
[OpenID.Core]. This URL MUST use the https scheme and
MAY contain port, path, and query parameter components.
© ISO/IEC 2024 – All rights reserved
jwks_uri
REQUIRED. URL of the OP's JWK Set [JWK] document, which
MUST use the https scheme. This contains the signing
key(s) the RP uses to validate signatures from the OP. The
JWK Set MAY also contain the Server's encryption key(s),
which are used by RPs to encrypt requests to the Server.
When both signing and encryption keys are made available,
a use (public key use) parameter value is REQUIRED for all
keys in the referenced JWK Set to indicate each key's
intended usage. Although some algorithms allow the same
key to be used for both signatures and encryption, doing so
is NOT RECOMMENDED, as it is less secure. The JWK x5c
parameter MAY be used to provide X.509 representations of
keys provided. When used, the bare key values MUST still
be present and MUST match those in the certificate. The JWK
Set MUST NOT contain private or symmetric key values.
registration_endpoint
RECOMMENDED. URL of the OP's Dynamic Client
Registration Endpoint [OpenID.Registration], which MUST
use the https scheme.
scopes_supported
RECOMMENDED. JSON array containing a list of the OAuth
2.0 [RFC6749] scope values that this server supports. The
server MUST support the openid scope value. Servers MAY
choose not to advertise some supported scope values even
when this parameter is used, although those defined in
[OpenID.Core] SHOULD be listed, if supported.
response_types_supported
REQUIRED. JSON array containing a list of the OAuth 2.0
response_type values that this OP supports. Dynamic
OpenID Providers MUST support the code, id_token, and
the id_token token Response Type values.
response_modes_supported
OPTIONAL. JSON array containing a list of the OAuth 2.0
response_mode values that this OP supports, as specified
in OAuth 2.0 Multiple Response Type Encoding Practices
[OAuth.Responses]. If omitted, the default for Dynamic
OpenID Providers is ["query", "fragment"].
© ISO/IEC 2024 – All rights reserved
grant_types_supported
OPTIONAL. JSON array containing a list of the OAuth 2.0
Grant Type values that this OP supports. Dynamic OpenID
Providers MUST support the authorization_code and
implicit Grant Type values and MAY support other Grant
Types. If omitted, the default value is
["authorization_code", "implicit"].
acr_values_supported
OPTIONAL. JSON array containing a list of the Authentication
Context Class References that this OP supports.
subject_types_supported
REQUIRED. JSON array containing a list of the Subject
Identifier types that this OP supports. Valid types include
pairwise and public.
id_token_signing_alg_values_supported
REQUIRED. JSON array containing a list of the JWS signing
algorithms (alg values) supported by the OP for the ID
Token to encode the Claims in a JWT [JWT]. The algorithm
RS256 MUST be included. The value none MAY be supported
but MUST NOT be used unless the Response Type used
returns no ID Token from the Authorization Endpoint (such
as when using the Authorization Code Flow).
id_token_encryption_alg_values_supported
OPTIONAL. JSON array containing a list of the JWE
encryption algorithms (alg values) supported by the OP for
the ID Token to encode the Claims in a JWT [JWT].
id_token_encryption_enc_values_supported
OPTIONAL. JSON array containing a list of the JWE
encryption algorithms (enc values) supported by the OP for
the ID Token to encode the Claims in a JWT [JWT].
userinfo_signing_alg_values_supported
OPTIONAL. JSON array containing a list of the JWS [JWS]
signing algorithms (alg values) [JWA] supported by the
UserInfo Endpoint to encode the Claims in a JWT [JWT]. The
value none MAY be included.
© ISO/IEC 2024 – All rights reserved
userinfo_encryption_alg_values_supported
OPTIONAL. JSON array containing a list of the JWE [JWE]
encryption algorithms (alg values) [JWA] supported by the
UserInfo Endpoint to encode the Claims in a JWT [JWT].
userinfo_encryption_enc_values_supported
OPTIONAL. JSON array containing a list of the JWE
encryption algorithms (enc values) [JWA] supported by the
UserInfo Endpoint to encode the Claims in a JWT [JWT].
request_object_signing_alg_values_supported
OPTIONAL. JSON array containing a list of the JWS signing
algorithms (alg values) supported by the OP for Request
Objects, which are described in Section 6.1 of OpenID
Connect Core 1.0 [OpenID.Core]. These algorithms are used
both when the Request Object is passed by value (using the
request parameter) and when it is passed by reference
(using the request_uri parameter). Servers SHOULD
support none and RS256.
request_object_encryption_alg_values_supported
OPTIONAL. JSON array containing a list of the JWE
encryption algorithms (alg values) supported by the OP for
Re
...
