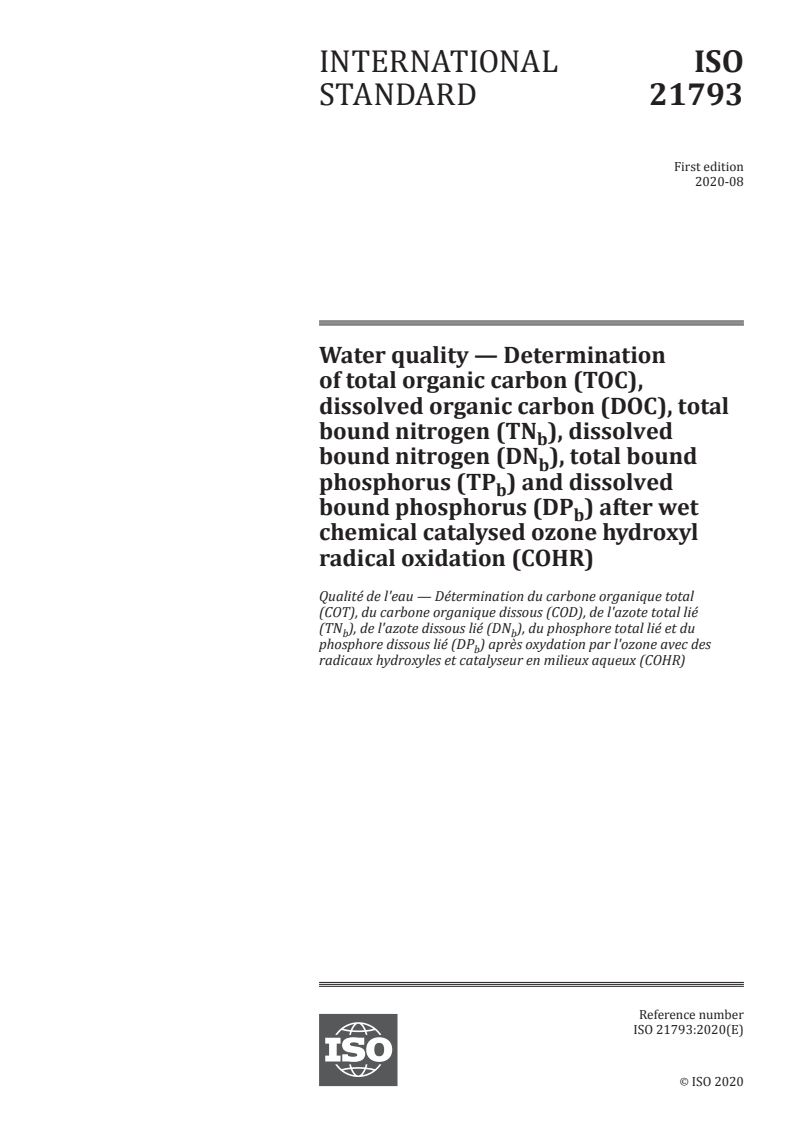

ISO 21793:2020

INTERNATIONAL ISO
STANDARD 21793
First edition
2020-08
Water quality — Determination
of total organic carbon (TOC),
dissolved organic carbon (DOC), total
bound nitrogen (TN ), dissolved
b
bound nitrogen (DN ), total bound
b
phosphorus (TP ) and dissolved
b
bound phosphorus (DP ) after wet
b
chemical catalysed ozone hydroxyl
radical oxidation (COHR)
Qualité de l'eau — Détermination du carbone organique total
(COT), du carbone organique dissous (COD), de l'azote total lié
(TN ), de l'azote dissous lié (DN ), du phosphore total lié et du
b b
phosphore dissous lié (DP ) après oxydation par l'ozone avec des
b
radicaux hydroxyles et catalyseur en milieux aqueux (COHR)
Reference number
ISO 21793:2020(E)
©
ISO 2020

---------------------- Page: 1 ----------------------
ISO 21793:2020(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 21793:2020(E)

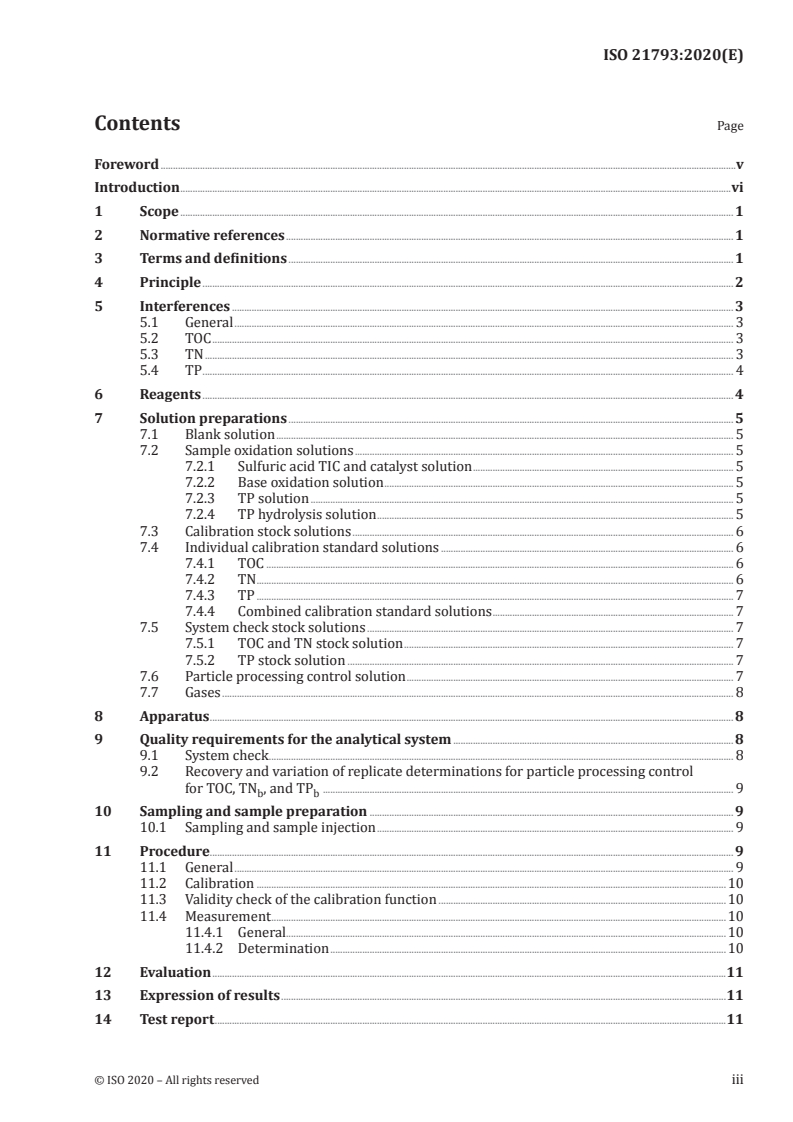

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Interferences . 3
5.1 General . 3
5.2 TOC . 3
5.3 TN . 3
5.4 TP . 4
6 Reagents . 4
7 Solution preparations . 5
7.1 Blank solution . 5
7.2 Sample oxidation solutions . 5
7.2.1 Sulfuric acid TIC and catalyst solution . 5
7.2.2 Base oxidation solution . 5
7.2.3 TP solution . 5
7.2.4 TP hydrolysis solution . 5
7.3 Calibration stock solutions . 6
7.4 Individual calibration standard solutions . 6
7.4.1 TOC . 6
7.4.2 TN . . 6
7.4.3 TP . 7
7.4.4 Combined calibration standard solutions . 7
7.5 System check stock solutions . 7
7.5.1 TOC and TN stock solution . 7
7.5.2 TP stock solution . 7
7.6 Particle processing control solution . 7
7.7 Gases . 8
8 Apparatus . 8
9 Quality requirements for the analytical system . 8
9.1 System check . 8
9.2 Recovery and variation of replicate determinations for particle processing control
for TOC, TN , and TP . 9
b b
10 Sampling and sample preparation . 9
10.1 Sampling and sample injection . 9
11 Procedure. 9
11.1 General . 9
11.2 Calibration .10
11.3 Validity check of the calibration function .10
11.4 Measurement .10
11.4.1 General.10
11.4.2 Determination .10
12 Evaluation .11
13 Expression of results .11
14 Test report .11
© ISO 2020 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 21793:2020(E)

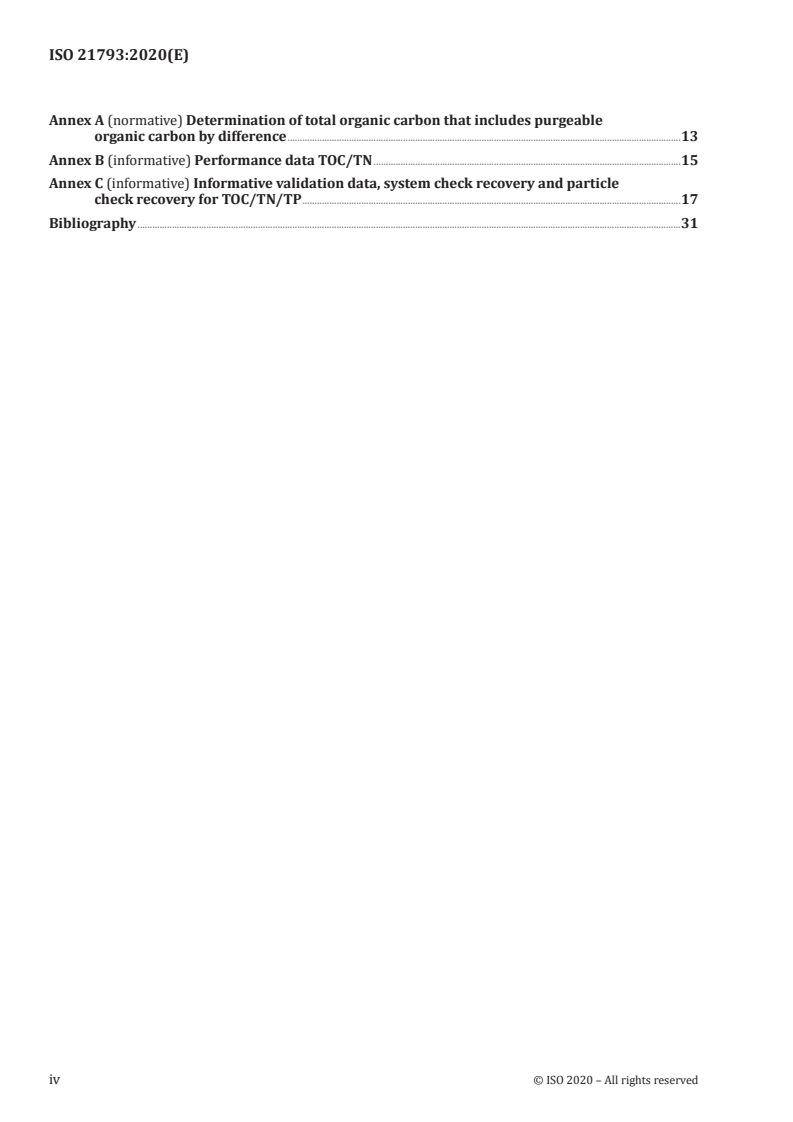

Annex A (normative) Determination of total organic carbon that includes purgeable
organic carbon by difference .13
Annex B (informative) Performance data TOC/TN .15
Annex C (informative) Informative validation data, system check recovery and particle
check recovery for TOC/TN/TP .17
Bibliography .31
iv © ISO 2020 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 21793:2020(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 147, Water quality, Subcommittee SC 2,
Physical, chemical and biochemical methods.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2020 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 21793:2020(E)

Introduction
Total organic carbon (TOC), dissolved organic carbon (DOC), total bound nitrogen (TN ), dissolved
b
bound nitrogen (DN ), total bound phosphorus (TP ) and dissolved bound phosphorus (DP ) are an
b b b
analytical convention, the respective result of which is a parameter used for water quality control
purposes. These parameters represent the sum of organically bound carbon, the sum of inorganic and
organic nitrogen, and the sum of inorganic and organic phosphorus. These parameters can be dissolved
in water or bonded to dissolved or suspended matter under specified conditions. If the sample is not
filtered the parameter is associated with suspended matter. This document does not give information
on the nature of the substances.
vi © ISO 2020 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 21793:2020(E)
Water quality — Determination of total organic carbon
(TOC), dissolved organic carbon (DOC), total bound
nitrogen (TN ), dissolved bound nitrogen (DN ), total
b b
bound phosphorus (TP ) and dissolved bound phosphorus
b
(DP ) after wet chemical catalysed ozone hydroxyl radical
b
oxidation (COHR)
WARNING — Persons using this document should be familiar with normal laboratory practices.
This document does not purport to address all safety problems, if any, associated with its use. It
is the responsibility of the user to establish appropriate safety and health practices.
IMPORTANT — It is essential that tests conducted in accordance with this document be carried
out by suitably qualified staff.
1 Scope
This document specifies a multi-parameter method for the determination of total organic carbon (TOC),
total nitrogen (TN ) and total phosphorus (TP) in drinking water, raw water, ground water, surface
b
water, sea water, saline water, process water, domestic and industrial wastewater, after a chemical
oxidation process. It is applicable to both dissolved and bound suspended materials.
The method allows for determination of TOC, TN and TP. The lower and upper working ranges for
these parameters are dependent upon instrument conditions (for example sample volume, reaction
chemistry amounts) and can be adjusted for a wider range. Typical measurement ranges are shown in
Figures C.1 to C.3.
The analysis procedure is carried out instrumentally by a single oxidation process.
Dissolved nitrogen gas is not included in the TN measurement in this method. When present in the
b
sample, elemental carbon, cyanate and thiocyanate will be included in the TOC result.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 5725-2, Accuracy (trueness and precision) of measurement methods and results — Part 2: Basic method
for the determination of repeatability and reproducibility of a standard measurement method
ISO 8245, Water quality — Guidelines for the determination of total organic carbon (TOC) and dissolved
organic carbon (DOC)
ISO 8466-1, Water quality — Calibration and evaluation of analytical methods and estimation of
performance characteristics — Part 1: Statistical evaluation of the linear calibration function
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
© ISO 2020 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 21793:2020(E)

ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org ./ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
total carbon
TC
sum of organically and inorganically bound carbon present in water
3.2
total inorganic carbon
TIC
sum of inorganic carbon present in water measured under the conditions of this method
Note 1 to entry: TIC is measured as CO originating only from carbonates, hydrogen carbonates and dissolved
2
carbon dioxide.
3.3
total organic carbon
TOC
sum of organically bound carbon present in water, bonded to dissolved or suspended matter, including
cyanate, thiocyanate, and elemental carbon measured
3.4
purgeable organic carbon
POC
organic carbon present in water which can be purged under the conditions of this method
3.5
non purgeable organic carbon
NPOC
organic carbon present in water which is not purged
3.6
total nitrogen
TN
sum of organically and inorganically bound nitrogen present in water or suspended matter
3.7
total phosphorus
TP
sum of organically and inorganically bound phosphorus present in water and suspended matter
measured under the conditions of this method
4 Principle
Wet chemical oxidation of the sample by hydroxyl radicals, and catalysed ozone for the measurement of
TOC, TN , and TP .
b b
Organic carbon (TOC) is oxidized to carbon dioxide (CO ). For the determination of total organic carbon
2
that includes purgeable organic carbon by difference, the procedure shall be as specified in Annex A.
Detection is by nondispersive infrared (NDIR) spectrometry.
Detection is by photometric analysis in the ultraviolet wavelength range 200 nm to 220 nm. Detection
is by colorimetric analysis using a photometer under the visible spectra between 380 nm and 470 nm
wavelengths.
2 © ISO 2020 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 21793:2020(E)

This document can be applied for the determination of TOC, TN and TP separately, or for simultaneous
b b
analysis, which consists of a non-dispersive infrared carbon dioxide analyser and a visible and UV
photometer.
Quality control is necessary to verify the validity of the calibration function. Replicate determinations
can be necessary, depending on the matrix. The method of standard addition can be used if matrix
interferences are expected.
Inorganic carbon is removed by acidification and purging with a carrier gas (see 11.4).
Performance results from the interlaboratory trial is provided in Annex B. Supplemental single
laboratory performance data is provided in Annex C.
5 Interferences
5.1 General
Depending on concentration and analysis range, interferences with the determination of TOC, TN
b
and TP can arise from possible sample carry over effects. In some cases, replicate injections can be
b
necessary. When carryover is suspected, insert a reagent blank in the analytical run, immediately after
the suspect sample.
Interferences can arise from memory effects. Replicate injections maybe necessary (11.4.1).
Samples with high pH values, highly buffered samples and samples with high chloride content can cause
interference.
Large suspended particles can lead to a loss of quality of the analytical result. If a homogenized sample
containing suspended particles produces results (obtained from replicate measurements) which
deviate by more than 10 %, an accurate TOC TN and TP result cannot be obtained on the sample.
b b
Seek advice from the manufacturer to resolve these interferences. Particles in general can cause
interference with sample injection. To mitigate particle interference, samples can be homogenized or
filtered using filters and screen meshes. When the sample is filtered through a 0,45 µm membrane
filter, the TOC result represents dissolved organic carbon (DOC) and dissolved TN and TP as specified
d d
in ISO 8245, results from samples analysed without filtration are reported as TOC, TN and TP .
b b
If a homogenized sample containing large suspended material produces results (obtained from replicate
measurements) which deviate by more than 10 % from each other, an accurate and precise TOC, TN , or
b
TP result cannot be quantified.
b
5.2 TOC
Inorganic carbon (for example CO or ions of carbonic acid) present in the sample can interfere with
2
the determination of TOC or DOC. Inorganic carbon is removed by acidification and sparging prior to
sample oxidation.
NOTE Purgeable organic carbon (POC) compounds, such as benzene, toluene, cyclohexane and chloroform,
can partly escape during the acidification and sparging of the TIC. In the presence of these substances, the TOC
concentration can be determined by applying the TC-TIC method (see Annex A).
Interference from chloride can occur at chloride concentrations greater than 3 %. If chloride
interference is suspected, dilute the sample and re-analyse.
5.3 TN
Depending on sample matrix conditions, interferences may occur with the measurement of TN .
b
If interferences are suspected, perform a suitable sample dilution, or by applying standard addition
techniques.
© ISO 2020 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 21793:2020(E)

Interference from chloride can occur at chloride concentrations greater than 3 %. If chloride
interference is suspected, dilute the sample and re-analyse.
5.4 TP
Depending on sample matrix conditions, interferences can occur with the measurement of TP . If
b
interferences are suspected, perform a suitable sample dilution, or by applying standard addition
techniques.
Interference from chloride can occur at chloride concentrations greater than 3 %. If chloride
interference is suspected, dilute the sample and re-analyse.
6 Reagents
Use only reagents of analytical grade.
Dry all solid reagents for at least 1 h at (105 ± 5) °C. Store the dried solid in a desiccator before weighing.
NOTE There is no need to dry cellulose before usage.
Prepare concentrations and volumes of solutions as described in the manufacturers’ instrument
manuals. Alternatively, use commercially available stock solutions at the required concentration.
6.1 Water.
The contents of bound nitrogen, phosphorus, and carbon in water being used for the preparation of
samples and solutions shall be sufficiently low to be negligible in comparison with the lowest TOC, TN
b
and TP concentrations to be determined.
b
6.2 Sulfuric acid, H SO , ρ = 1,84 g/ml.
2 4
6.3 Manganese sulfate monohydrate, MnSO ·H O, ≥99 %.
4 2
6.4 Sodium hydroxide, NaOH, ≥97 %.
6.5 Hydrochloric acid, w(HCl) = 37 %.
6.6 Ammonium heptamolybdate tetrahydrate, [(NH ) Mo O ·4H O], ≥99 %.
4 6 7 24 2
6.7 Ammonium metavanadate, NH VO , ≥99 %.
4 3
6.8 Potassium hydrogen phthalate, (C H KO ), ≥99,7 %.
8 5 4
6.9 Sodium nitrate, NaNO , ≥99 %.
3
6.10 Potassium dihydrogen phosphate, KH PO , ≥99 %.
2 4
6.11 Nicotinic acid, C H NO , >99,5 %.
6 5 2
6.12 Triethyl phosphate, (C₂H₅)₃PO₄.
6.13 Cellulose, (C H O ) , microcrystalline, of particle size ranging from 0,02 mm to 0,1 mm.
6 10 5 n
4 © ISO 2020 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 21793:2020(E)

7 Solution preparations
7.1 Blank solution
Use water (6.1) as the blank solution.
7.2 Sample oxidation solutions
7.2.1 Sulfuric acid TIC and catalyst solution
Prepare the sulfuric acid TIC and catalyst by slowly adding 49,9 ml of sulfuric acid (6.2) to 800 ml
of water (6.1) in a 1 000 ml volumetric flask. Dilute to volume with water (6.1) and cool to room
temperature. Add 0,04 g of manganese sulfate (6.3) to the sulfuric acid/water mixture. Determine the
acid normality and adjust to (1,80 N ± 0,01N) H SO .
2 4
NOTE For higher sulfuric acid TIC and catalyst oxidation concentration, maintain an acid to base
concentration (7.2.2) ratio of 3:2, keeping the amount of manganese sulfate at 0,04 g.
The range of sulfuric acid normality should be 1,8 N to 2,5 N.
7.2.2 Base oxidation solution
Prepare the sodium hydroxide solution by slowly adding 48 g of NaOH (6.4) to a 1 000 ml volumetric
flask containing approximately 500 ml of water (6.1). Mix the solution until the NaOH has dissolved,
then stopper the flask and allow the solution to come to room temperature. Bring solution to volume
with water (6.1).
For higher sodium hydroxide concentrations, maintain an acid (7.2.1) to base concentration ratio of 3:2.
The range of sodium hydroxide molarity should be 1,2 M to 1,7 M.
7.2.3 TP solution
7.2.3.1 Prepare the hydrochloric acid reagent (solution A) by slowly adding 494 ml of concentrated
HCl (6.5) to 500 ml of water (6.1) in a 1 000 ml volumetric flask. Mix gently and allow the solution to
come to room temperature. Bring the solution to volume with water (6.1), then stopper the flask.
7.2.3.2 Prepare the ammonium heptamolybdate tetrahydrate reagent (solution B) by adding 25 g
of ammonium heptamolybdate tetrahydrate (6.6) to 300 ml of water (6.1) in a 500 ml beaker. Stir to
dissolve.
7.2.3.3 Prepare the ammonium metavanadate reagent (solution C) by adding 2,5 g of ammonium
metavanadate (6.7) to 300 ml of water (6.1) in a 500 ml beaker. Dissolve by bringing the solution to a
boil. Cool to room temperature.
7.2.3.4 While stirring, slowly add solution C (7.2.3.3) to 330 ml of solution A (7.2.3.1) in a 1 000 ml
volumetric flask. Cool to room temperature.
7.2.3.5 Finally while stirring, slowly pour the content of solution B (7.2.3.2) into the volumetric flask
that contains the mixture of solution A and solution C (7.2.3.4) and bring to volume with water (6.1).
7.2.4 TP hydrolysis solution
Prepare the hydrochloric acid solution by adding 249 ml of concentrated HCl (6.5) to an empty 1 000 ml
volumetric flask. Slowly add 600 ml water (6.1) to the flask. Mix gently and allow the solution to come
to room temperature. Bring the solution to volume with water (6.1), then stopper the flask.
© ISO 2020 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 21793:2020(E)

7.3 Calibration stock solutions
7.3.1 Potassium hydrogen phthalate stock solution, ρ(C) = 1 000 mg/l.
Place 2,125 g of potassium hydrogen phthalate (6.8) in a 1 000 ml volumetric flask. Dissolve and dilute
to volume with water (6.1). The solution is stable for six months if stored in a tightly stoppered glass
bottle at (3 ± 2) °C.
7.3.2 Sodium nitrate stock solution, ρ(N) = 1 000 mg/l.
Place 6,07 g of NaNO (6.9) in a 1 000 ml volumetric flask. Dissolve and dilute to volume with water (6.1).
3
The solution is stable for one month if stored at (3 ± 2) °C.
7.3.3 Potassium dihydrogen phosphate stock solution, ρ(P) = 1 000 mg/l.
Prepare a 1 000 mg/l TP stock solution using potassium dihydrogen phosphate (K H PO ). Place 4,43 g
2 4
of K H PO (6.10) in a 1 000 ml volumetric flask. Dissolve and dilute to volume with water (6.1).
2 4
The solution is stable for one month if stored at (3 ± 2) °C.
7.4 Individual calibration standard solutions
7.4.1 TOC
Depending on the TOC or DOC concentration expected in the sample, use the potassium hydrogen
phthalate stock solution (7.3.1) to prepare 5 to 10 calibration solutions distributed over the expected
working range as evenly as possible (see Annex C).
For example, proceed as follows for the range 1,0 mg/l C to 10 mg/l C.
Pipette the following volumes into a series of 1 000 ml volumetric flasks: 1,0 ml, 2,0 ml, 3,0 ml,
4,0 ml, 5,0 ml, 6,0 ml, 7,0 ml, 8,0 ml, 9,0 ml and 10,0 ml of the potassium hydrogen phthalate stock
solution (7.3.1) and dilute to volume with water (6.1).
The concentrations of carbon in these calibration solutions are: 1 mg/l, 2 mg/l, 3 mg/l, 4 mg/l, 5 mg/l,
6 mg/l, 7 mg/l, 8 mg/l, 9 mg/l and 10 mg/l, respectively.
Prepare the calibration solutions on the day of use.
7.4.2 TN
Depending on the nitrogen con
...
