ISO 19846:2017
(Main)Reclaimed rubber - Coding and classification system
Reclaimed rubber - Coding and classification system
ISO 19846:2017 specifies: - a coding system of reclaimed natural rubber and reclaimed isobutylene-isoprene (IIR) rubber; - a numeric system to classify reclaimed rubber.
Caoutchouc régénéré — Codage et système de classification
ISO 19846:2017 spécifie: - un système de codage du caoutchouc naturel régénéré et du caoutchouc isobutylène-isoprène (IIR) régénéré; - un système numérique pour classifier le caoutchouc régénéré.
General Information
- Status
- Published
- Publication Date
- 11-May-2017
- Drafting Committee
- ISO/TC 45/SC 3/WG 5 - Synthetic and reclaimed rubber
- Current Stage
- 9092 - International Standard to be revised
- Start Date
- 11-Feb-2025
- Completion Date
- 13-Dec-2025
Overview
ISO 19846:2017 defines a standardized coding and numeric classification system for reclaimed rubber, covering reclaimed natural rubber and reclaimed isobutylene‑isoprene (IIR) rubber. The standard enables consistent identification of reclaimed rubber grades by specifying code elements based on measured properties. Classification relies on test results determined in accordance with ISO/TS 16095 (natural rubber) or ISO/TS 16096 (reclaimed IIR).
Key topics and technical requirements
- Scope: Coding system for reclaimed natural rubber and reclaimed IIR; numeric classes to communicate quality ranges.
- Measured parameters used for classification:
- Mooney viscosity (ML(1+4) at 100 °C) - coded MVA, MVB, MVC, MVD, MVE, MVF with defined MV ranges.
- Tensile strength (MPa) - coded TA, TB, TC, TD, TE with specified TS ranges.
- Rubber hydrocarbon content (%) - coded RH1, RH2, RH3, RH4 with defined RHC thresholds.
- Acetone extract (%) - coded AE1, AE2, AE3, AE4 with AE ranges.
- Classification output: A compound code that begins with a type identifier (1 = reclaimed natural rubber, 2 = reclaimed IIR) followed by the four property codes. Example designations from the standard:
- 1 MVC TC RH2 AE2
- 2 MVB TC RH2 AE1
- Testing references: Property values used for coding must be determined per ISO/TS 16095 or ISO/TS 16096; ISO 19846 contains no additional normative references.
Applications and practical value
- Procurement and specification: Enables buyers and suppliers to unambiguously specify reclaimed rubber grades for compound formulations and manufacturing.
- Quality control and traceability: Standardized codes help quality labs and production teams track incoming reclaimed material and match it to expected performance.
- Material selection: Compounders and R&D teams can quickly compare reclaimed rubber lots by Mooney viscosity, tensile strength, hydrocarbon content and extractables, simplifying blend design and process adjustments.
- Recycling and circular economy: Facilitates consistent reuse of reclaimed rubber in downstream products by creating a common language for reclaimed material quality.
Who should use this standard
- Reclaimed rubber suppliers and recyclers
- Rubber compounders and manufacturers (including automotive, industrial and consumer rubber products)
- Quality assurance and testing laboratories
- Procurement specialists and material engineers seeking consistent reclaimed-rubber specifications
Related standards
- ISO/TS 16095 - Evaluation procedure for reclaimed rubber derived mainly from natural rubber
- ISO/TS 16096 - Evaluation procedure for reclaimed IIR rubber
Keywords: ISO 19846:2017, reclaimed rubber coding, reclaimed natural rubber, reclaimed IIR rubber, Mooney viscosity, acetone extract, rubber hydrocarbon content, ISO/TS 16095, ISO/TS 16096, rubber classification.
Frequently Asked Questions
ISO 19846:2017 is a standard published by the International Organization for Standardization (ISO). Its full title is "Reclaimed rubber - Coding and classification system". This standard covers: ISO 19846:2017 specifies: - a coding system of reclaimed natural rubber and reclaimed isobutylene-isoprene (IIR) rubber; - a numeric system to classify reclaimed rubber.
ISO 19846:2017 specifies: - a coding system of reclaimed natural rubber and reclaimed isobutylene-isoprene (IIR) rubber; - a numeric system to classify reclaimed rubber.
ISO 19846:2017 is classified under the following ICS (International Classification for Standards) categories: 83.040.10 - Latex and raw rubber. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase ISO 19846:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 19846
First edition
2017-05
Reclaimed rubber — Coding and
classification system
Caoutchouc régénéré — Codage et système et de classification
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification system . 1
Bibliography . 3

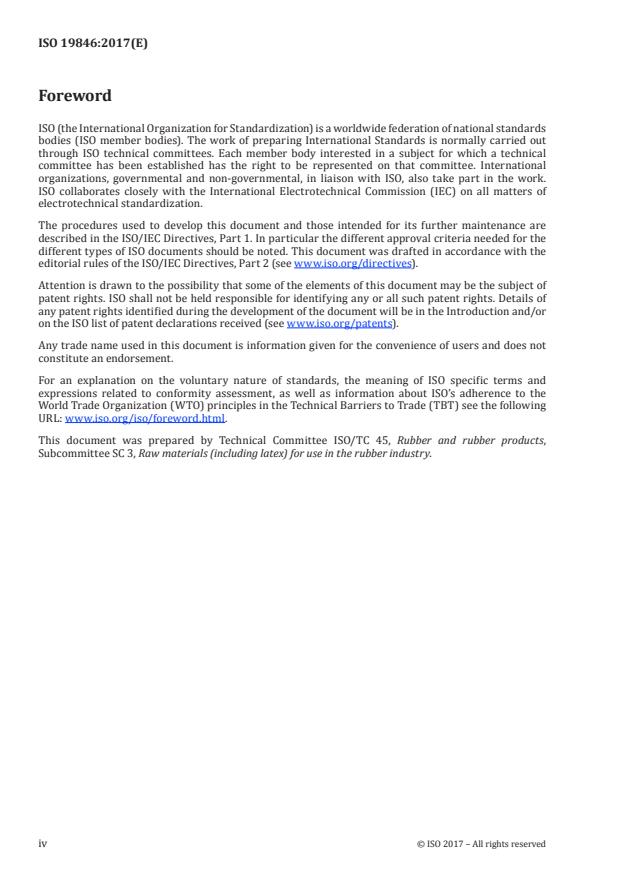

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the developmen
...
NORME ISO
INTERNATIONALE 19846
Première édition
2017-05
Caoutchouc régénéré — Codage et
système de classification
Reclaimed rubber — Coding and classification system
Numéro de référence
©
ISO 2017

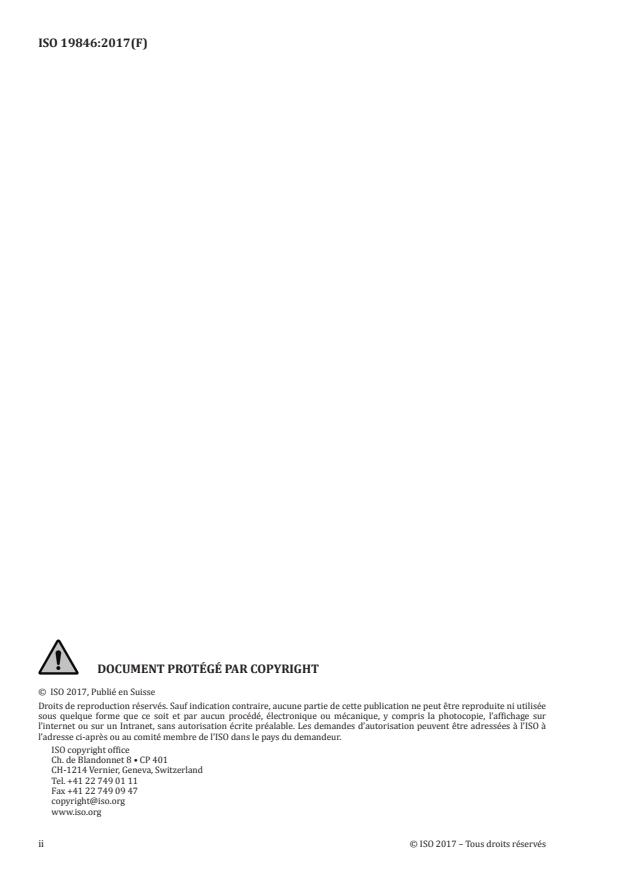

DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2017, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – Tous droits réservés
Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Système de classification . 1
Bibliographie . 3

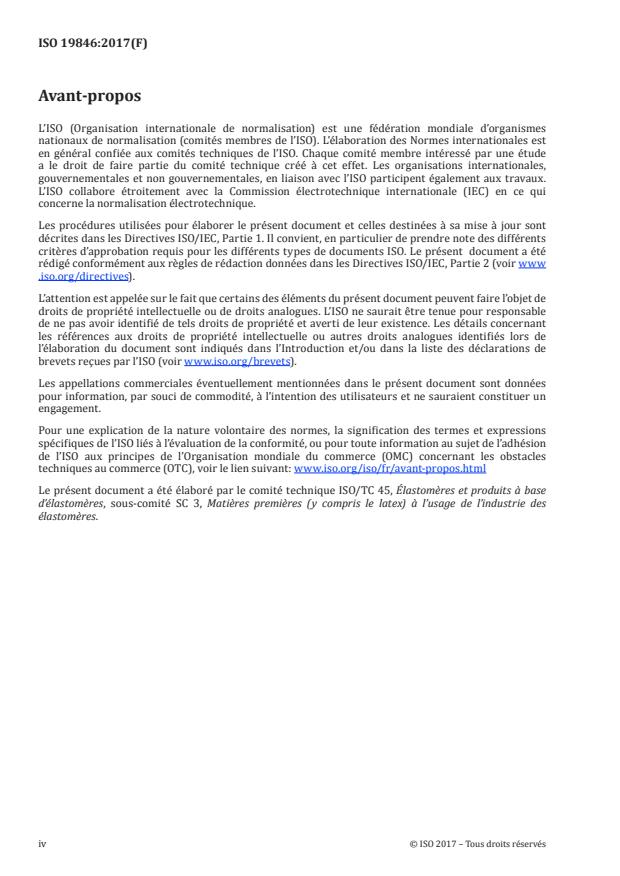

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/ directives).
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www .iso .org/ brevets).
Les
...
