ISO 24070-2:2021
(Main)Building and civil engineering sealants - Determination of cured thickness of one-component sealant - Part 2: Cylindrical cup test method
Building and civil engineering sealants - Determination of cured thickness of one-component sealant - Part 2: Cylindrical cup test method
This document specifies a method for the determination of the cured thickness of one-component sealants using a cylindrical cup test method.
Titre manque — Partie 2: Titre manque
General Information
- Status
- Published
- Publication Date
- 28-Apr-2021
- Technical Committee
- ISO/TC 59/SC 8 - Sealants
- Drafting Committee
- ISO/TC 59/SC 8/WG 22 - Cure properties
- Current Stage
- 6060 - International Standard published
- Start Date
- 29-Apr-2021
- Due Date
- 14-May-2022
- Completion Date
- 29-Apr-2021
Overview
ISO 24070-2:2021 - "Building and civil engineering sealants - Determination of cured thickness of one‑component sealant - Part 2: Cylindrical cup test method" specifies a laboratory method to measure the cured thickness of one‑component sealants using a cylindrical cup. The standard defines specimen preparation, conditioning, test procedure, measurement and reporting requirements to produce reproducible cured‑thickness data for quality control, product development and specification compliance.
Key topics and technical requirements
- Test principle: fill an anti‑adherent cylindrical cup with sealant, tool flush, cure under specified conditions, remove cured disk and measure thickness at the centre.
- Cylindrical cup dimensions: inner diameter 35–75 mm; depth (along wall) 35–50 mm; wall thickness 1–3 mm. (Disposable HDPE/PP cartridge plungers are commonly used.)
- Tooling and measurement tools: scraper (width ≥ cup diameter + 20 mm) to level the sealant; thickness calliper with reading accuracy of 0.1 mm.
- Conditioning: cups and sealant conditioned for a minimum of 16 h at (23 ± 2) °C and (50 ± 10) % RH.
- Specimens: prepare three specimens per cure duration (e.g., 8 h, 24 h, 48 h, 72 h, 96 h, 168 h).
- Curing and testing climate: standard conditions (23 ± 2) °C and (50 ± 10) % RH) unless otherwise agreed; note that ventilation and proximity to other curing sealants can affect cure rate.
- Result expression: report cured thickness in millimetres at the centre of the cured disk. For time to reach 2.00 mm cured thickness, determine via linear interpolation between adjacent data points.
- Test report items: laboratory name/date, reference to ISO 24070-2:2021, sealant identification (name/type/colour/batch), cup dimensions/material, curing climate, measured thickness(es) and any deviations.
Applications and users
ISO 24070-2:2021 is practical for:
- Sealant manufacturers - product development, cure profiling and batch quality control.
- Independent test laboratories - standardized measurement for certification and comparisons.
- Specifiers, architects and contractors - verifying cure performance against project requirements.
- R&D and materials engineers - evaluating cure kinetics and formulation changes.
This method provides consistent, comparable cured thickness data used to assess sealant performance in joints, ensure compliance with specifications and inform application guidance.
Related standards
- ISO 6927 - vocabulary for buildings and civil engineering sealants (normative reference).
- ISO 24070 series - other parts in this series cover complementary test methods and should be consulted where applicable.
Keywords: ISO 24070-2:2021, cured thickness, cylindrical cup test method, one-component sealants, building sealants, sealant testing, thickness calliper, cure duration.
Frequently Asked Questions
ISO 24070-2:2021 is a standard published by the International Organization for Standardization (ISO). Its full title is "Building and civil engineering sealants - Determination of cured thickness of one-component sealant - Part 2: Cylindrical cup test method". This standard covers: This document specifies a method for the determination of the cured thickness of one-component sealants using a cylindrical cup test method.
This document specifies a method for the determination of the cured thickness of one-component sealants using a cylindrical cup test method.
ISO 24070-2:2021 is classified under the following ICS (International Classification for Standards) categories: 91.100.50 - Binders. Sealing materials. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 24070-2:2021 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

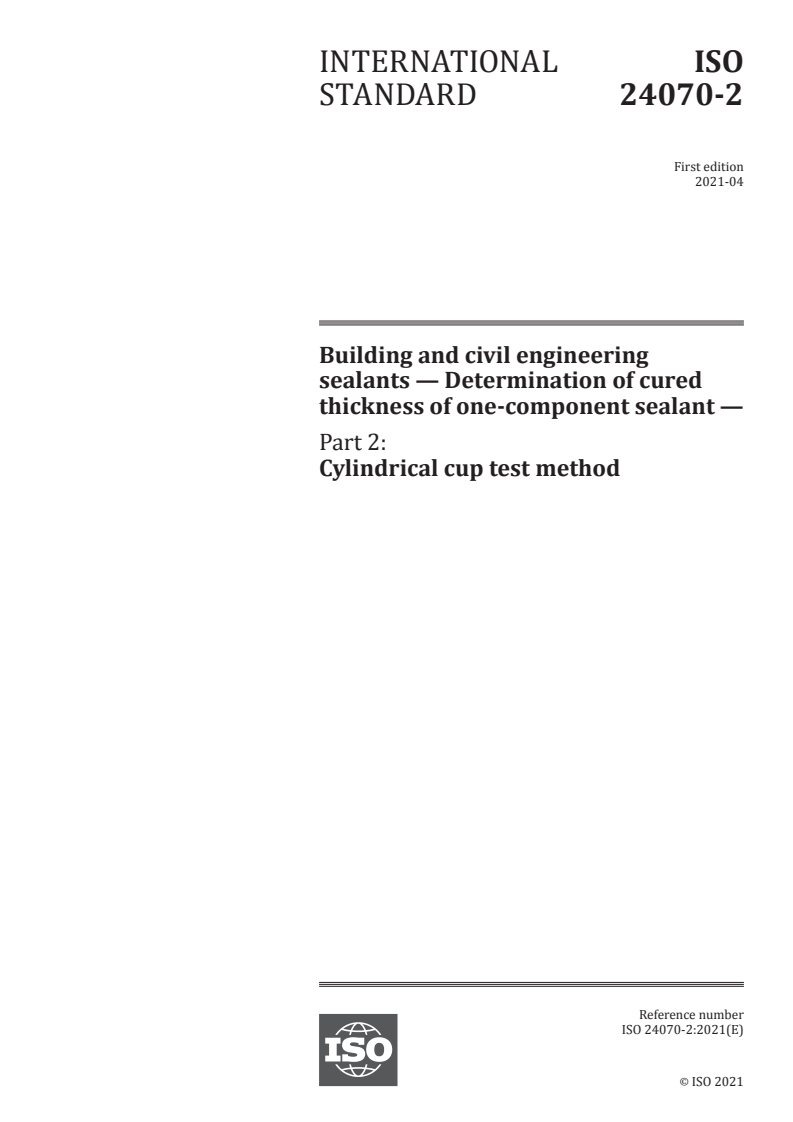

INTERNATIONAL ISO
STANDARD 24070-2
First edition
2021-04
Building and civil engineering
sealants — Determination of cured
thickness of one-component sealant —
Part 2:
Cylindrical cup test method
Reference number
©
ISO 2021
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved

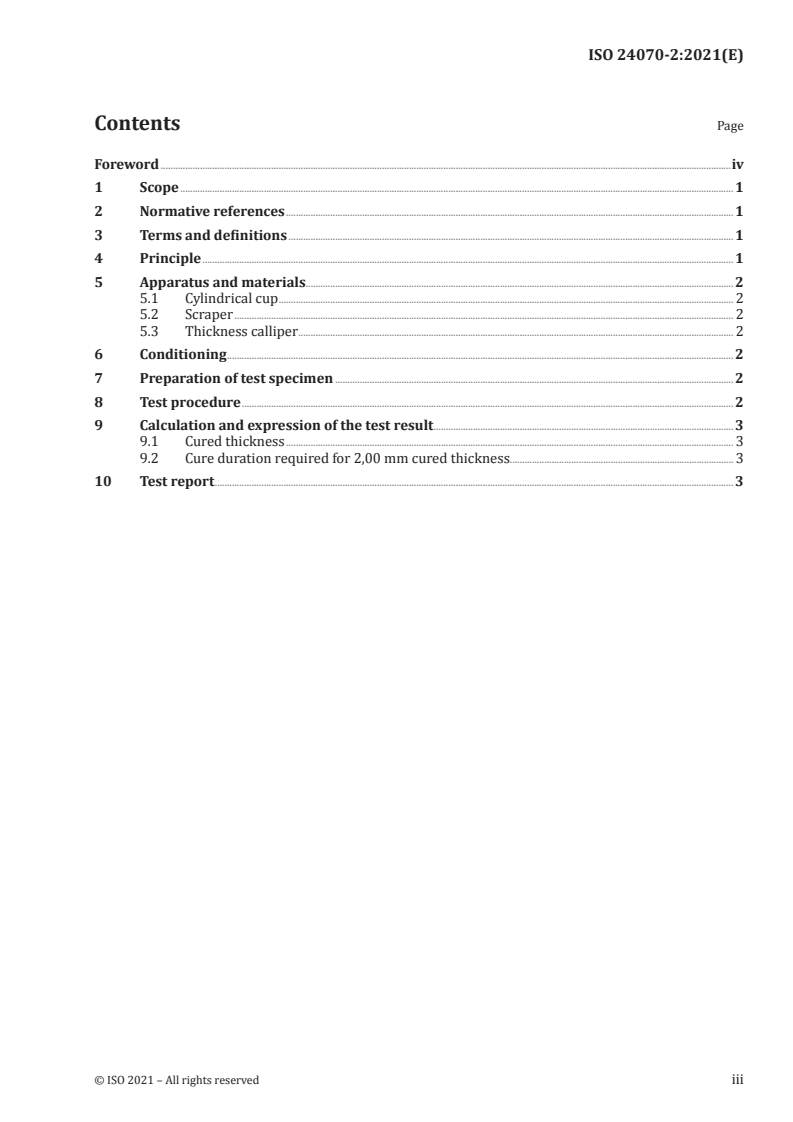

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Apparatus and materials. 2
5.1 Cylindrical cup . 2
5.2 Scraper . 2
5.3 Thickness calliper . 2
6 Conditioning . 2
7 Preparation of test specimen . 2
8 Test procedure . 2
9 Calculation and expression of the test result . 3
9.1 Cured thickness . 3
9.2 Cure duration required for 2,00 mm cured thickness. 3
10 Test report . 3

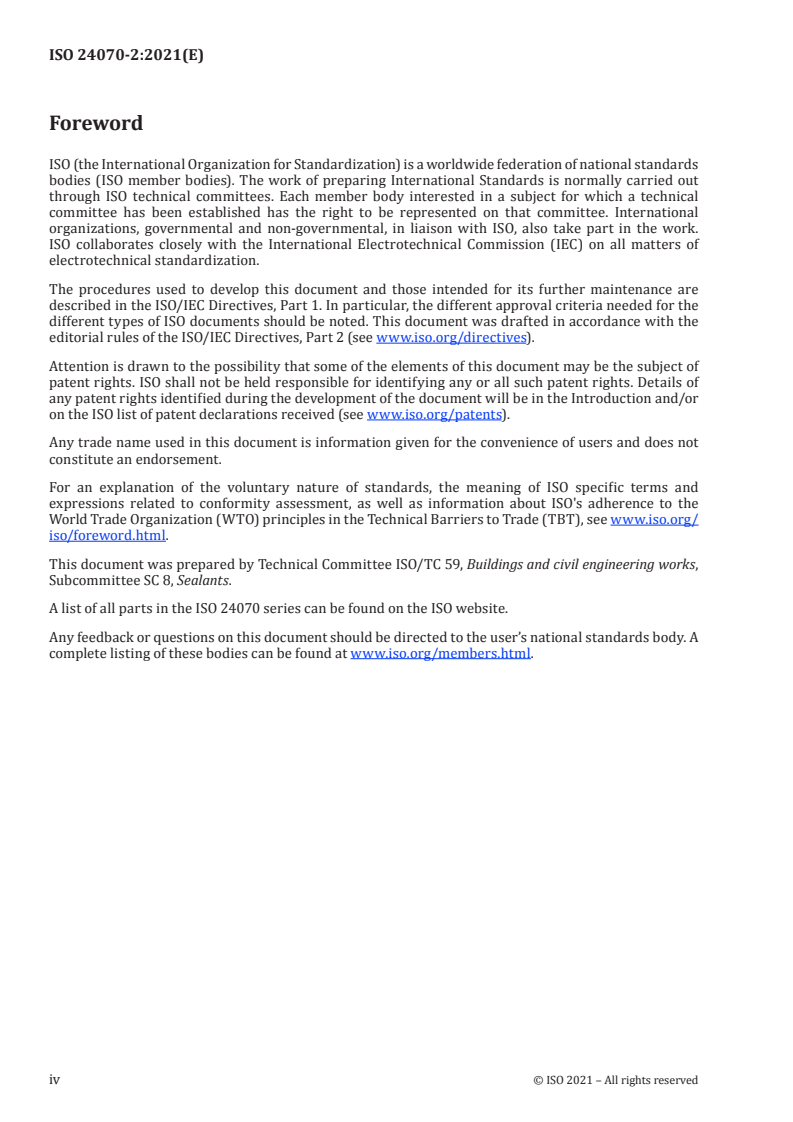

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 59, Buildings
...
