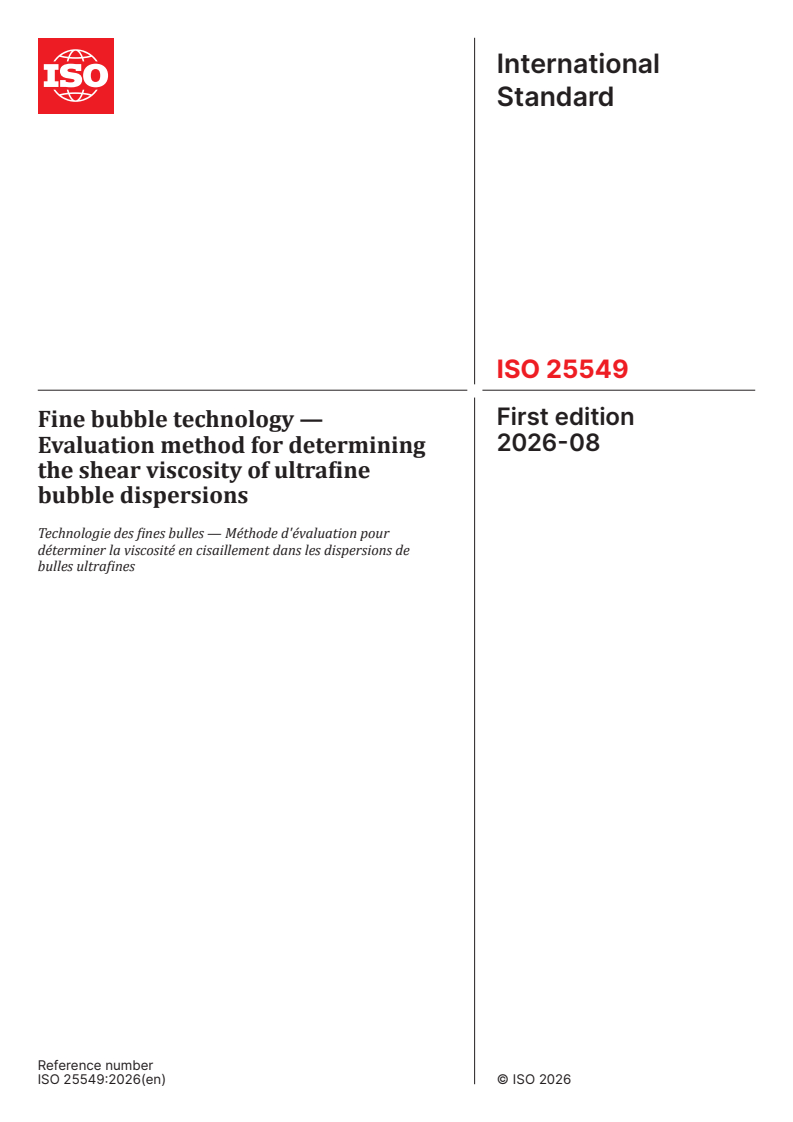

ISO 25549:2026

International
Standard
ISO 25549
First edition
Fine bubble technology —
2026-08
Evaluation method for determining
the shear viscosity of ultrafine
bubble dispersions
Technologie des fines bulles — Méthode d'évaluation pour
déterminer la viscosité en cisaillement dans les dispersions de
bulles ultrafines
Reference number
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

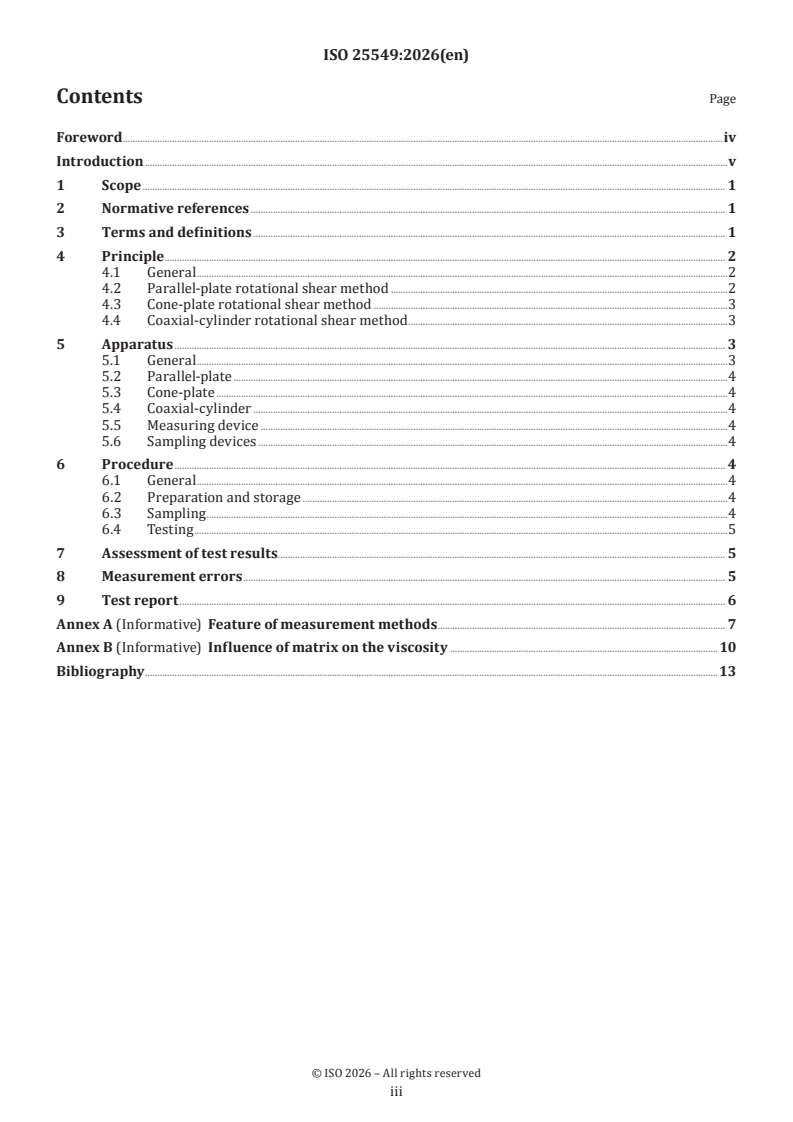

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
4.1 General .2
4.2 Parallel-plate rotational shear method .2
4.3 Cone-plate rotational shear method .3
4.4 Coaxial-cylinder rotational shear method .3
5 Apparatus . 3
5.1 General .3
5.2 Parallel-plate .4
5.3 Cone-plate .4
5.4 Coaxial-cylinder .4
5.5 Measuring device .4
5.6 Sampling devices .4
6 Procedure . 4
6.1 General .4
6.2 Preparation and storage .4
6.3 Sampling .4
6.4 Testing .5
7 Assessment of test results. 5
8 Measurement errors . 5
9 Test report . 6
Annex A (Informative) Feature of measurement methods . 7
Annex B (Informative) Influence of matrix on the viscosity .10
Bibliography .13

iii

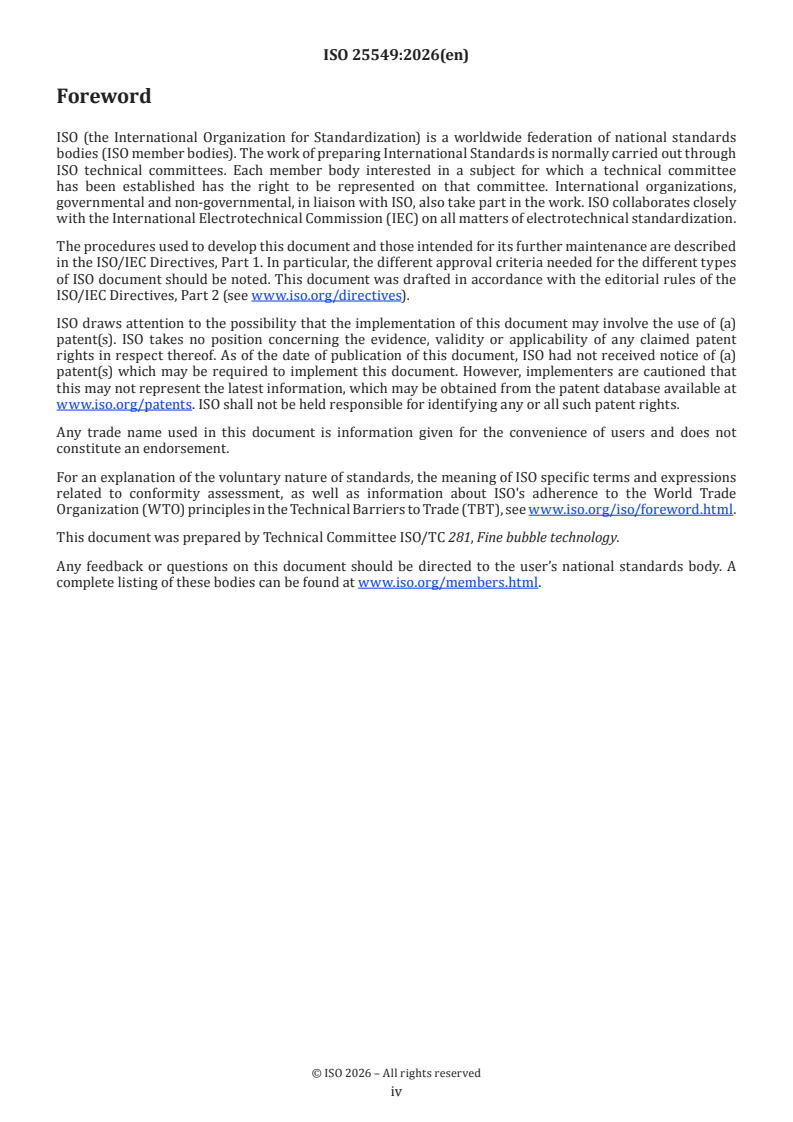

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 281, Fine bubble technology.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Ultrafine bubble dispersions are used in a wide range of applications such as wastewater/groundwater
treatment, froth flotation, drag reduction, agriculture, and healthcare. Determining the fluid properties
and dynamic behaviours of ultrafine bubble dispersions can help to achieve precise control of them. In
practice, however, the interaction between the ultrafine bubbles and the liquid can change the flow field,
thus affecting the drag forces. This leads to significant variations in the macroscopic mechanical properties,
especially the shear viscosity, of the ultrafine bubble dispersions. Research has demonstrated that the
[1-3]
presence of ultrafine bubbles can significantly reduce the viscosity of a matrix . In some highly viscous
[3]
matrices, this reduction can be as high as 90 % . Furthermore, the extent of viscosity reduction depends
on many factors such as shear rate, bubble content, and storage time, as detailed in Annex A and References,
[2], [4] and [5].
Conventional shear viscosity measurement standards are not well suited for ultrafine bubble dispersions
due to the special properties of ultrafine bubbles, such as strong hydrogen bonding, negatively charged,
electrical double layers, hydrophobicity, adsorption, etc. Meanwhile, due to the sensitivity of gas solubility
to pressure, the sample extraction and transfer specifications are different from those for pure materials
or other multiphase fluids in general. Commonly used methods such as injection and stirring and mixing
should be avoided as much as possible. Without considering the above issues, the measurement of the shear
viscosity of ultrafine bubble dispersions can be questionable, and the results from different experiments can
be incomparable and inconsistent. An inaccurate viscosity measurement will seriously affect the assessment
of the flow process and flow state, which can involve all aspects of production, transport and application.
Therefore, a standardized method for evaluating the shear viscosity of ultrafine bubble dispersions is of
critical importance.
This document is intended to specify the evaluation method of shear viscosity of ultrafine bubble dispersions:
parallel-plate rotational shear, cone-plate rotational shear, and coaxial-cylinder rotational shear, which have
been selected from the methods most widely used in industry. In general, these rotational shear methods
allow for a wide range of adjustable shear strengths, and they also provide a higher degree of measurement
accuracy. Standardized measurement methods allow the measurement of the shear viscosity of a dispersion
of ultrafine bubbles in different liquids, as well as a variety of shear behaviours such as steady state and
oscillatory.
v
International Standard ISO 25549:2026(en)
Fine bubble technology — Evaluation method for determining
the shear viscosity of ultrafine bubble dispersions
1 Scope
This document specifies a method for evaluating the shear viscosity of ultrafine bubble (UFB) dispersions.
The method is based on any of the three measurement devices, namely parallel-plate rotational shear, cone-
plate rotational shear and coaxial-cylinder rotational shear. The average effective shear viscosity of the
ultrafine bubble dispersion is calculated from the measured stress (or strain rate) and the strain rate (or
stress) applied to the sample. There are commercially available instruments based on these measurement
methods in the market. This document applies to UFB produced using different methods of production.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 3219-1, Rheology — Part 1: Vocabulary and symbols for rotational and oscillatory rheometry
ISO 3219-2, Rheology — Part 2: General principles of rotational and oscillatory rheometry
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 3219-1 and ISO 3219-2 and the
following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
matrix
liquid media containing ultrafine bubbles
3.2
generation time
running time of the bubble generator, which is positively correlated with the bubble content in the dispersion
3.3
storage time
time interval between the moment when the preparation of ultrafine bubble dispersion is completed and the
moment when the test starts
4 Principle
4.1 General
The effective shear viscosity of the ultrafine bubble dispersion is determined by Newton's law of internal
friction (Formulae (1) and (2)).

  (1)

u

  (2)
h
where
µ is equivalent shear viscosity of the ultrafine bubble dispersion (Pa⋅s ),
τ is the shear stress (Nm/ ),
−1
γ is the shear rate (s ),
∆u is the velocity difference between the fast and slow fluid layers (ms/ ),
∆h is the distance between the fast and slow fluid layers ( m ).
The three devices, parallel-plate, cone-plate and coaxial-cylinder, correspond to different shear styles, as
shown in Figure 1. Therefore, there are different ways of calculating the shear stress τ and shear rate γ for
the three measurement methods. Comparisons of their measurement results are shown in Annex A.
(a) Parallel-Plate (b) Cone-Plate (c) Coaxial-Cylinder
Figure 1 — Different Devices of Shear Viscosity Measurement.
4.2 Parallel-plate rotational shear method
For parallel-plate rotational shear, the shear stress and shear rate are determined by the following
formulae (3) and (4), yielding
2M
  (3)
R
R

  (4)
h
where
M is the torque of the rotor (Nm⋅ ),
R is the maximum radius of the rotor ( m ),
ω is the angular velocity of rotation of the rotor (rads/ ).
4.3 Cone-plate rotational shear method
For cone-plate rotational shear, the shear stress and shear rate are determined by the following formulae (5)
and (6), yielding
3M
  (5)
2R


  (6)

where,β is the angle between the cone of the rotor and the fixed flat plate (rad ).
4.4 Coaxial-cylinder rotational shear method
For coaxial-cylinder rotational shear, the shear stress and shear rate are determined by the following
formulae (7) and (8), yielding
M
  (7)
2LR
b
RR

cb

  (8)
2 RR

cb
where,
R is the inner radius of the annular gap ( m ),
b
R is the outer radius of the annular gap ( m ),
c
L is the measuring section length of coaxial-cylinder ( m ).
5 Apparatus
5.1 General
Parallel-plate measuring devices are a fixed plate and a circular plate rotor, cone-plate measuring devices
are a fixed plate and a cone plate rotor, and coaxial-cylinder measuring devices are two coaxial cylinders,
one fixed and the other rotating.
Due to the charge and adsorption properties of ultrafine bubbles, all parts of the measuring devices that are
in direct contact
...
