ISO 11618:2015

INTERNATIONAL ISO
STANDARD 11618
First edition
2015-08-15
Buildings and Civil Engineering
Works — Sealants — Classification
and requirements for pedestrian
walkway sealants
Construction immobilière — - Mastics — Classification et exigences
pour les mastics des voies pédestres
Reference number
ISO 11618:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 11618:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 11618:2015(E)

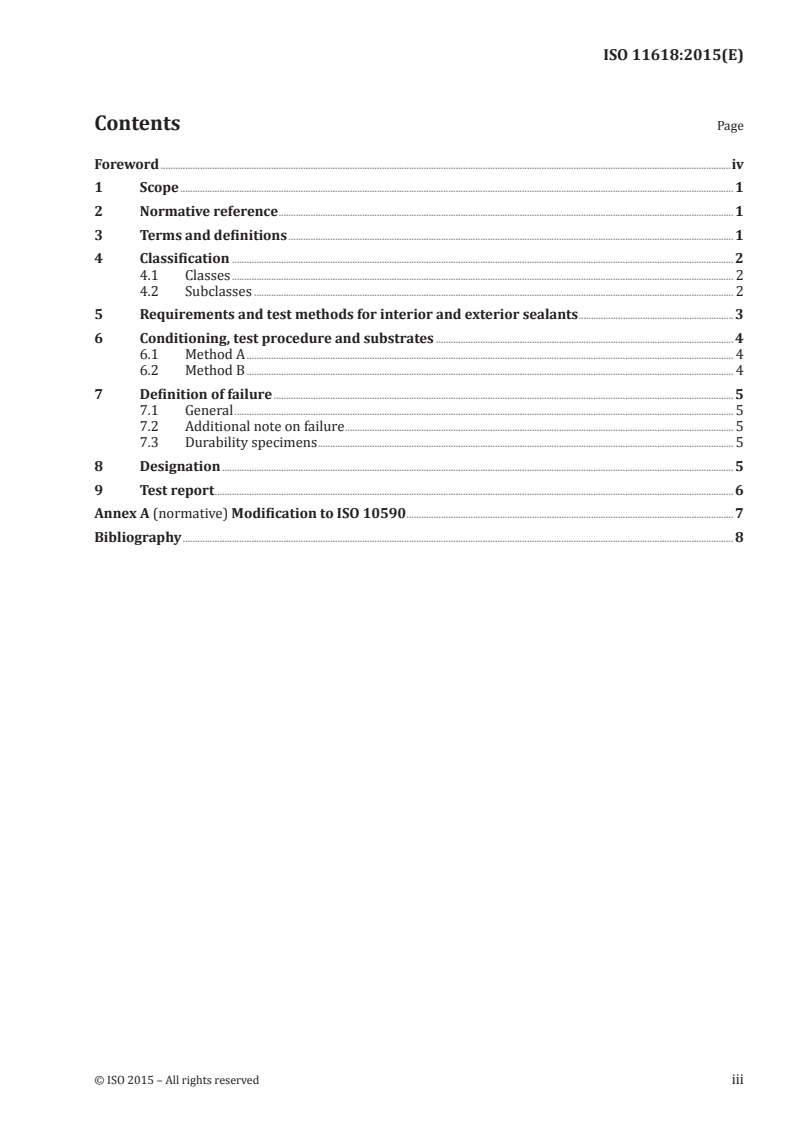

Contents Page
Foreword .iv
1  Scope . 1
2  Normative reference . 1
3  Terms and definitions . 1
4  Classification . 2
4.1 Classes . 2
4.2 Subclasses . 2
5 Requirements and test methods for interior and exterior sealants .3
6  Conditioning, test procedure and substrates . 4
6.1 Method A . 4
6.2 Method B . 4
7  Definition of failure . 5
7.1 General . 5
7.2 Additional note on failure . 5
7.3 Durability specimens . 5
8 Designation . 5
9 Test report . 6
Annex A (normative) Modification to ISO 10590 . 7
Bibliography . 8
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 11618:2015(E)

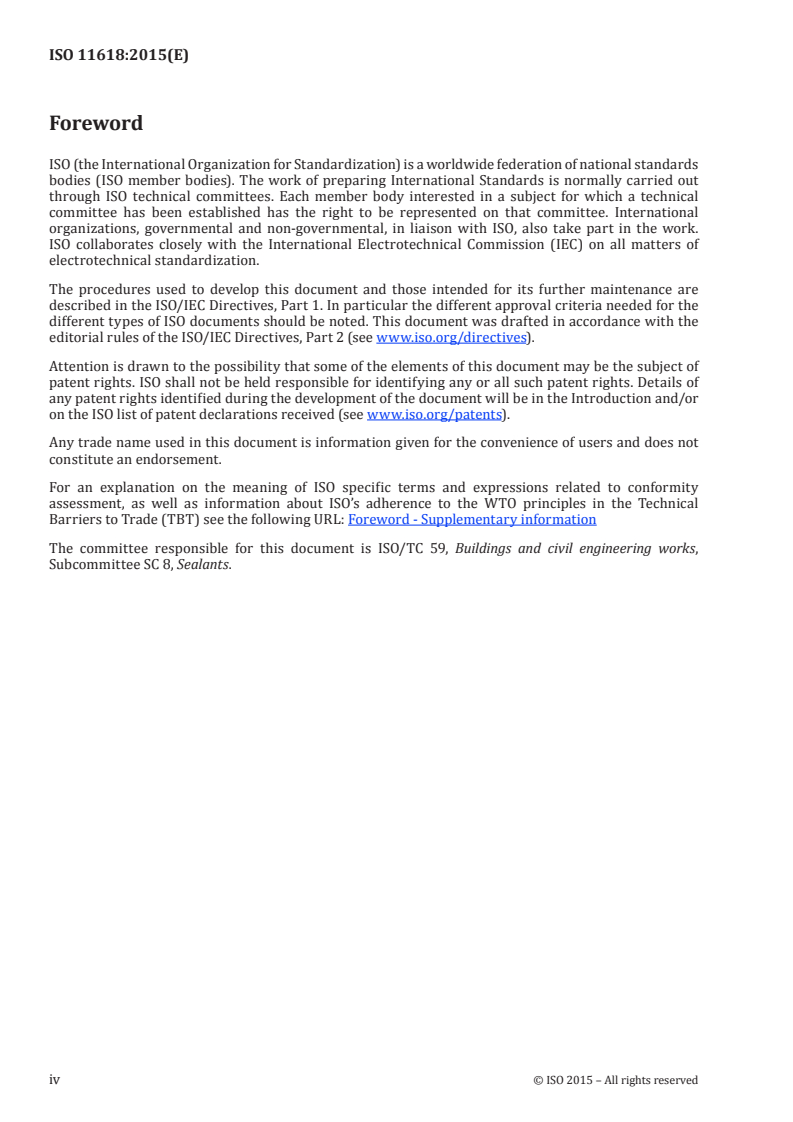

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 59, Buildings and civil engineering works,
Subcommittee SC 8, Sealants.
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 11618:2015(E)
Buildings and Civil Engineering Works — Sealants —
Classification and requirements for pedestrian walkway
sealants
1  Scope
This International Standard applies to sealants used for pedestrian walkways, public areas, movement
joints between concrete slabs, areas with pedestrian load, areas which are used with trolleys, parking
garages, walkable floors, balconies, terraces, and warehouses.
This International Standard specifies the types and classes of elastic sealants used in building
construction pedestrian walkways according to their performance characteristics. Sealant may be
either non-sag or self-leveling as declared by the manufacturer. Areas of application are floor joints
which have been designed.
Chemical containment, cold applied joint sealants for concrete pavements to be used in roads, airfields,
and sewage treatment plants are excluded.
Local regulations may be required in addition to this International Standard based on local laws and
codes.
2  Normative reference
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 6927, Buildings and civil engineering works — Sealants — Vocabulary
ISO 7389, Building construction — Jointing products — Determination of elastic recovery of sealants
ISO 8339, Building construction — Sealants — Determination of tensile properties (Extension to break)
ISO 8340, Building construction — Sealants — Determination of tensile properties at maintained extension
ISO 9047, Building construction — Jointing products — Determination of adhesion/cohesion properties of
sealants at variable temperatures
ISO 10563, Building construction — Sealants — Determination of change in mass and volume
ISO 10590, Building construction — Sealants — Determination of tensile properties of sealants at
maintained extension after immersion in water
ISO 13640, Building construction — Jointing products — Specifications for test substrates
ISO 19861, Buildings and civil engineering works — Sealants — Determination of Curing rate behavior
ISO 19862, Buildings and civil engineering works — Sealants — Durability to extension compression cycling
under accelerated weathering
ISO 19863, Buildings and civil engineering works — Sealants — Determination of tear resistance
3  Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 6927 apply.
© ISO 2015 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 11618:2015(E)

4  Classification
4.1 Classes
Sealants are classified according to their ability to fulfill sealing functions in joints with movement
parameters as given in Table 1.
a
Table 1 — Sealant classes
Class Test amplitude %
25 ±25
20 ±20
12,5 ±12,5
a
For the correct interpretation and application of movement capability to the design of joints, relevant national
standards and advisory documents should be considered.
4.2  Subclasses
4.2.1 Sealants of class 25 and 20 are additionally sub-classified according to their secant tensile modulus.
Low modulus: code LM.
High modulus: code HM.
If the measured secant tensile modulus value at 100% strain exceeds the values specified below for
either or both temperatures, the sealant shall be classified as high modulus. Specified values (see
Table 2 and Table 3) are as follows:
2 °
0,4 N/mm at + 23 C (1)
2 °
0,6 N/mm at – 20C (2)
The secant modulus shall be the mean value of the three measured values. Round the mean value to one
decimal place.
2 2 2 2
EXAMPLE Measured values: 0,43 N/mm , 0,40 N/mm , and 0,46 N/mm . Mean value: 0,43 N/mm . Rep
...
