ISO 3677:2024
(Main)Filler metal for brazing - Designation
Filler metal for brazing - Designation
This document specifies designations for filler materials for brazing on the basis of their chemical composition. The designation includes their solidus/liquidus temperatures. This document applies to the metallic part of filler materials used in brazing products, for example foils, wires, rods, pastes, flux-coated rods or wires and flux-cored rods or wires.
Métaux d'apport de brasage fort — Désignation
Le présent document spécifie les désignations pour les métaux d'apport de brasage fort d’après leur composition chimique. La désignation inclut leurs températures de solidus/liquidus. Le présent document s'applique à la partie métallique des métaux d'apport utilisés pour les produits de brasage fort, par exemple feuillards, fils, baguettes, pâtes, fils ou baguettes enrobés de flux et fils ou baguettes fourrés de flux.
General Information
- Status
- Published
- Publication Date
- 26-Apr-2024
- Technical Committee
- ISO/TC 44/SC 13 - Brazing materials and processes
- Drafting Committee
- ISO/TC 44/SC 13 - Brazing materials and processes
- Current Stage
- 6060 - International Standard published
- Start Date
- 27-Apr-2024
- Due Date
- 09-Dec-2024
- Completion Date
- 27-Apr-2024
Relations
- Effective Date
- 24-Dec-2022
- Effective Date
- 10-Dec-2022
Overview
ISO 3677:2024 - "Filler metal for brazing - Designation" defines a standardized naming system for the metallic part of brazing filler materials based on chemical composition and melting range. It applies to metallic filler components used in foils, wires, rods, pastes, flux‑coated rods/wires and flux‑cored rods/wires. The designation explicitly includes solidus and liquidus temperatures to support process control and material selection.
Key topics and requirements
- Designation structure: three parts separated by dashes:
- First part: the letter B (for brazing).
- Second part: group of chemical symbols and nominal mass percentages indicating alloy constituents.
- Third part: solidus/liquidus temperatures in °C, separated by a slash.
- Composition rules:
- Major element chemical symbol first, followed by its nominal mass percentage (whole number, ±1 accuracy).
- When an element has a specified range, use the mean rounded to the nearest whole number (round-even on ties); if only a minimum is given, use the rounded minimum.
- Other elements listed in decreasing nominal percentage; ties resolved by decreasing atomic number.
- Elements with nominal values <1% are omitted unless they are functional; functional minor elements are shown in parentheses.
- Only the first six constituents are indicated in the designation.
- Temperature reporting: solidus temperature first, then liquidus (e.g., S 970 °C–L 1 105 °C shown as 970/1105 in the designation).
- Examples:
- B-Ag72Cu-780 (72 % Ag, 28 % Cu, melting at 780 °C)
- B-Ag72Cu(Li)-780 (with <1 % Li functional)
- B-Ni63WCrFeSiB-970/1105
Applications
ISO 3677:2024 is used for:
- Standardized labelling and specification of brazing filler alloys on product data sheets and material certificates.
- Procurement and contract documents requiring unambiguous identification of filler metal composition and melting range.
- Process selection and quality control in brazing operations where melting range (solidus/liquidus) affects joint integrity, heating cycles, and base‑metal compatibility.
- Communicating alloy content between manufacturers, suppliers and end users in industries such as HVAC, automotive, aerospace, electronics and general joining/fabrication.
Who should use this standard
- Welding and brazing engineers, materials and quality managers
- Filler‑metal manufacturers and distributors
- Specification writers, purchasers and testing labs
- Standards committees and regulatory bodies involved in brazing materials
Related standards
- ISO 9453 (soldering materials designations) - soldering designations were removed from ISO 3677:2024 and are now covered separately by ISO/TC 44/SC 12.
Keywords: ISO 3677:2024, filler metal for brazing, brazing filler designation, solidus liquidus, brazing alloys, brazing materials.
Frequently Asked Questions
ISO 3677:2024 is a standard published by the International Organization for Standardization (ISO). Its full title is "Filler metal for brazing - Designation". This standard covers: This document specifies designations for filler materials for brazing on the basis of their chemical composition. The designation includes their solidus/liquidus temperatures. This document applies to the metallic part of filler materials used in brazing products, for example foils, wires, rods, pastes, flux-coated rods or wires and flux-cored rods or wires.
This document specifies designations for filler materials for brazing on the basis of their chemical composition. The designation includes their solidus/liquidus temperatures. This document applies to the metallic part of filler materials used in brazing products, for example foils, wires, rods, pastes, flux-coated rods or wires and flux-cored rods or wires.
ISO 3677:2024 is classified under the following ICS (International Classification for Standards) categories: 25.160.50 - Brazing and soldering. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 3677:2024 has the following relationships with other standards: It is inter standard links to ISO/TR 23846:2022, ISO 3677:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 3677:2024 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
International
Standard
ISO 3677
Fourth edition
Filler metal for brazing -
2024-04
Designation
Métaux d'apport de brasage fort — Désignation
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and requirements . 1
4.1 General .1
4.2 First part .1
4.3 Second part .1
4.4 Third part .2
5 Examples . 2
iii

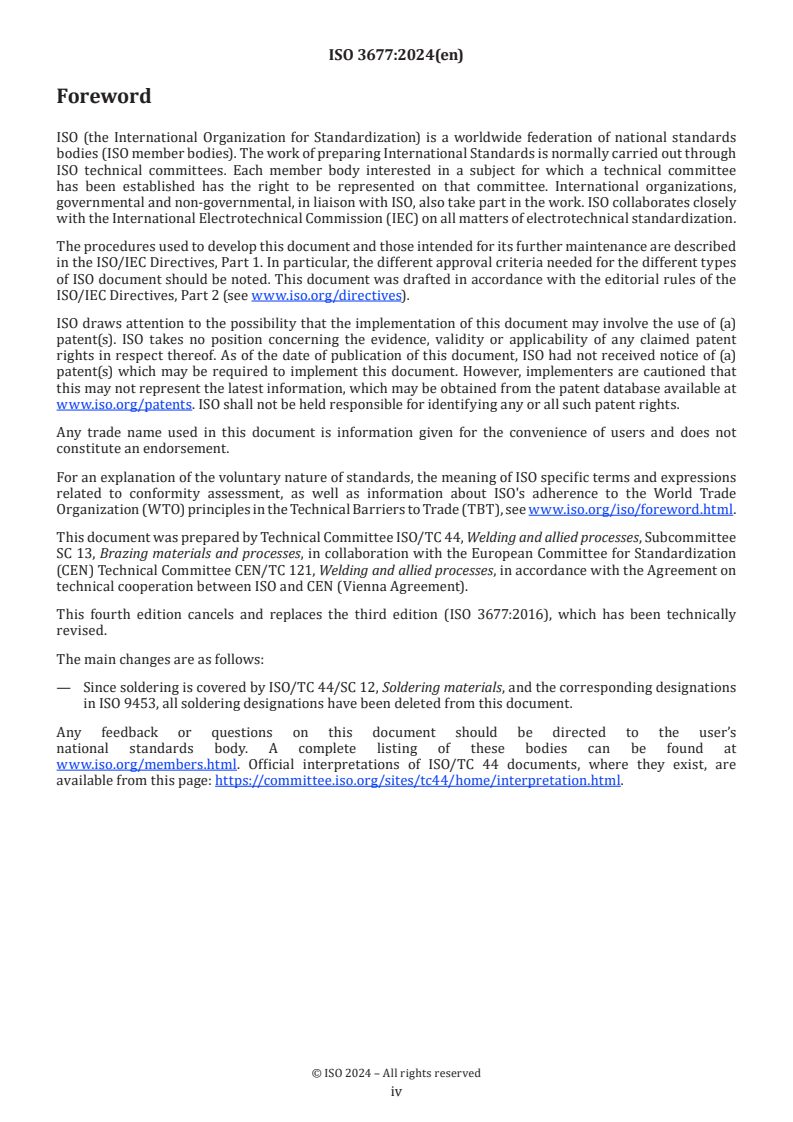

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment
...
Norme
internationale
ISO 3677
Quatrième édition
Métaux d'apport de brasage fort —
2024-04
Désignation
Filler metal for brazing - Designation
Numéro de référence
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2024
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii
Sommaire Page
Avant-propos .iv
1 Domaine d'application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Symboles et exigences . 1
4.1 Généralités .1
4.2 Première partie .1
4.3 Deuxième partie .1
4.4 Troisième partie .2
5 Exemples . 2
iii
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux
de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général
confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a
été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir
www.iso.org/directives).
L’ISO attire l’attention sur le fait que la mise en application du présent document peut entraîner l’utilisation
d’un ou de plusieurs brevets. L’ISO ne prend pas position quant à la preuve, à la validité et à l’applicabilité de
tout droit de propriété revendiqué à cet égard. À la date de publication du présent document, l’ISO n'avait pas
reçu notification qu’un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois,
il y a lieu d’avertir les responsables de la mise en application du présent document que des informations
plus récentes sont susceptibles de figurer dans la base de données de brevets, disponible à l'adresse
www.iso.org/brevets. L’ISO ne saurait être tenue pour responsable de ne pas avoir identifié tout ou partie de
tels droits de propriété.
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion de
l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir www.iso.org/avant-propos.
Le
...
