ISO/IEC 29362:2008

INTERNATIONAL ISO/IEC
STANDARD 29362
First edition
2008-06-15
Corrected version
2008-10-01
Information technology — Web Services
Interoperability — WS-I Attachments
Profile Version 1.0
Technologies de l'information — Interopérabilité des services
du Web — Profil des fichiers joints WS-I, version 1.0

Reference number
©
ISO/IEC 2008

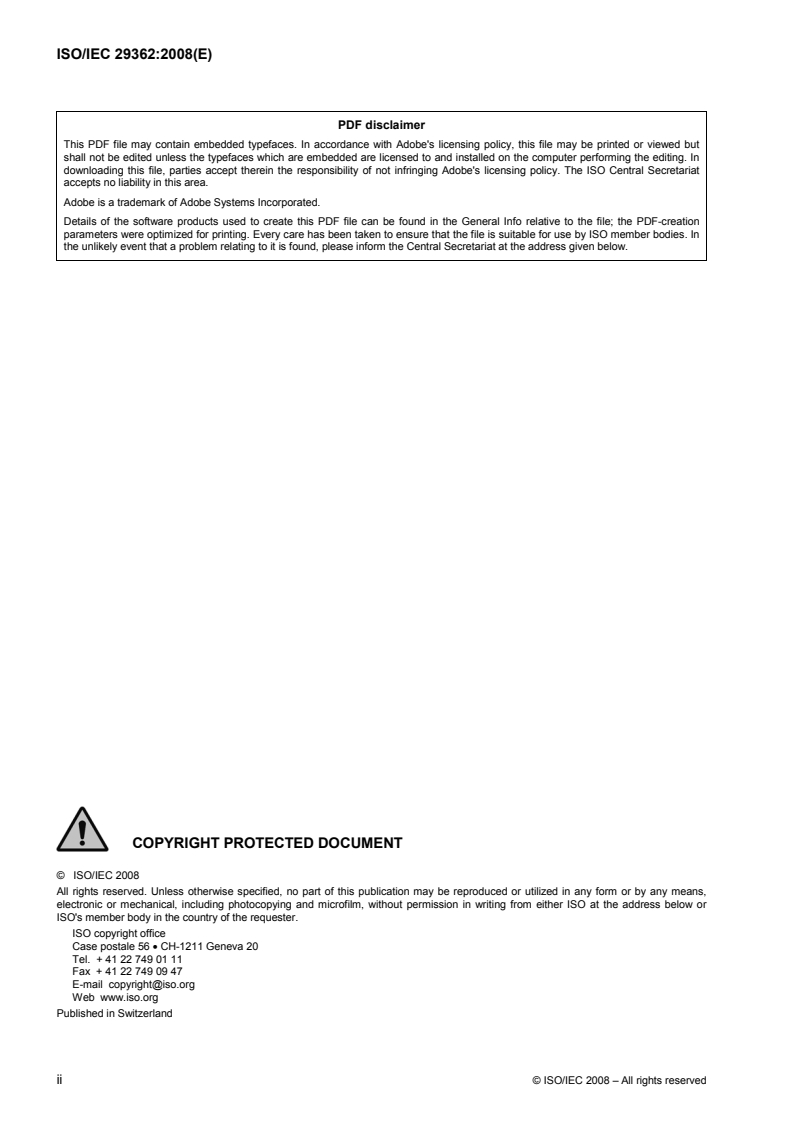

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2008 – All rights reserved

Contents
Foreword . v
1 Scope and introduction.1
1.1 Scope.1
1.2 Relationship to other Profiles .1
1.3 Notational Conventions.1
1.4 Profile Identification and Versioning.3
2 Profile Conformance.3
2.1 Conformance Requirements .3
2.2 Conformance Targets .4
2.3 Conformance Scope .5
2.4 Claiming Conformance .5
3 Attachments Packaging.6
3.1 Root Part .6
3.2 Encoding of Root Part .7
3.3 Media Type of Message .7
3.4 Messages with No Attachments .7
3.5 Dereferencing Attachments.9
3.6 Carrying Additional SOAP Envelopes .9
3.7 Fault Messages with Attachments.9
3.8 Value-space of Content-Id Header.9
3.9 Ordering of MIME Parts.10
3.10 Position of Root Part .11
3.11 Content-Transfer-Encoding .11
© ISO/IEC 2008 – All rights reserved iii

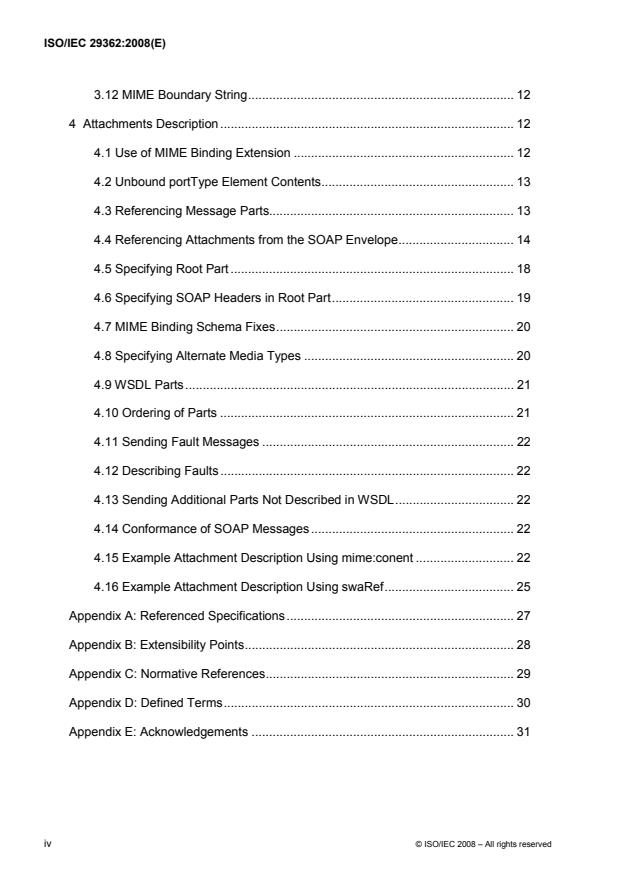

3.12 MIME Boundary String. 12
4 Attachments Description. 12
4.1 Use of MIME Binding Extension . 12
4.2 Unbound portType Element Contents. 13
4.3 Referencing Message Parts. 13
4.4 Referencing Attachments from the SOAP Envelope. 14
4.5 Specifying Root Part . 18
4.6 Specifying SOAP Headers in Root Part. 19
4.7 MIME Binding Schema Fixes. 20
4.8 Specifying Alternate Media Types . 20
4.9 WSDL Parts. 21
4.10 Ordering of Parts . 21
4.11 Sending Fault Messages . 22
4.12 Describing Faults. 22
4.13 Sending Additional Parts Not Described in WSDL. 22
4.14 Conformance of SOAP Messages. 22
4.15 Example Attachment Description Using mime:conent . 22
4.16 Example Attachment Description Using swaRef. 25
Appendix A: Referenced Specifications. 27
Appendix B: Extensibility Points. 28
Appendix C: Normative References. 29
Appendix D: Defined Terms. 30
Appendix E: Acknowledgements . 31

iv © ISO/IEC 2008 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also
take part in the work. In the field of information technology, ISO and IEC have established a joint
technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives,
Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft
International Standards adopted by the joint technical committee are circulated to national bodies
for voting. Publication as an International Standard requires approval by at least 75 % of the
national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights.
ISO/IEC 29362 was prepared by the Web Services Interoperability Organization (WS-I) and was
adopted, under the PAS procedure, by Joint Technical Committee ISO/IEC JTC 1, Information
technology, in parallel with its approval by national bodies of ISO and IEC.
This corrected version of ISO/IEC 29362:2008 includes characters which were missing from the
sample code in 3.1, 3.4 and 4.4 of the original version.

© ISO/IEC 2008 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 29362:2008(E)

Information technology — Web Services
Interoperability — WS-I Attachments Profile
Version 1.0
1 Scope and introduction
1.1 Scope
This International Standard defines the WS-I Attachments Profile 1.0 (hereafter,
"Profile"), consisting of a set of non-proprietary Web services specifications, along
with clarifications to and amplifications of those specifications that are intended to
promote interoperability. This profile complements the WS-I Basic Profile 1.1 to
add support for conveying interoperable SOAP Messages with Attachments-based
attachments with SOAP messages.
SOAP Messages with Attachments (SwA) defines a MIME multipart/related
structure for packaging attachments with SOAP messages. This profile
complements the WS-I Basic Profile 1.1 to add support for conveying interoperable
SwA-based attachments with SOAP messages.
Section 1 introduces the Profile, and explains its relationships to other profiles.
Section 2, "Profile Conformance," explains what it means to be conformant to the
Profile.
Each subsequent section addresses a component of the Profile, and consists of
two parts: an overview detailing the component specifications and their
extensibility points, followed by subsections that address individual parts of the
component specifications.
1.2 Relationship to other Profiles
This Profile adds support for SOAP with Attachments and MIME bindings, and is
intended to be used in combination with the Basic Profile 1.1.
1.3 Notational Conventions
The keywords "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT",
"SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this
document are to be interpreted as in RFC2119.
Normative statements of requirements in the Profile (i.e., those impacting
conformance, as outlined in "Conformance Requirements") are presented in the
following manner:
© ISO/IEC 2008 – All rights reserved 1

RnnnnStatement text here.
where "nnnn" is replaced by a number that is unique among the requirements in
the Profile, thereby forming a unique requirement identifier.
Requirement identifiers can be considered to be namespace qualified, in such a
way as to be compatible with QNames from Namespaces in XML. If there is no
explicit namespace prefix on a requirement's identifier (e.g., "R9999" as opposed
to "bp10:R9999"), it should be interpreted as being in the namespace identified by
the conformance URI of the document section it occurs in. If it is qualified, the
prefix should be interpreted according to the namespace mappings in effect, as
documented below.
Some requirements clarify the referenced specification(s), but do not place
additional constraints upon implementations. For convenience, clarifications are
annotated in the following manner: C
Some requirements are derived from ongoing standardization work on the
referenced specification(s). For convenience, such forward-derived statements are
annotated in the following manner: xxxx, where "xxxx" is an identifier for the
specification (e.g., "WSDL20" for WSDL Version 2.0). Note that because such
work was not complete when this document was published, the specification that
the requirement is derived from may change; this information is included only as a
convenience to implementers.
Extensibility points in underlying specifications (see "Conformance Scope") are
presented in a similar manner:
EnnnnExtensibility Point Name - Description
where "nnnn" is replaced by a number that is unique among the extensibility points
in the Profile. As with requirement statements, extensibility statements can be
considered namespace-qualified.
This specification uses a number of namespace prefixes throughout; their
associated URIs are listed below. Note that the choice of any namespace prefix is
arbitrary and not semantically significant.
• soap - "http://schemas.xmlsoap.org/soap/envelope/"
• xsi - "http://www.w3.org/2001/XMLSchema-instance"
• xsd - "http://www.w3.org/2001/XMLSchema"
• soapenc - "http://schemas.xmlsoap.org/soap/encoding/"
• wsdl - "http://schemas.xmlsoap.org/wsdl/"
• soapbind - "http://schemas.xmlsoap.org/wsdl/soap/"
• mime - "http://schemas.xmlsoap.org/wsdl/mime/"
• uddi - "urn:uddi-org:api_v2"
• wsi - "http://www.ws-i.org/schemas/conformanceClaim"
• ref - "http://ws-i.org/profiles/basic/1.1/xsd"
2 © ISO/IEC 2008 – All rights reserved

1.4 Profile Identification and Versioning
This document is identified by a name (in this case, Attachments Profile) and a
version number (here, 1.0). Together, they identify a particular profile instance.
Version numbers are composed of a major and minor portion, in the form
"major.minor". They can be used to determine the precedence of a profile
instance; a higher version number (considering both the major and minor
components) indicates that an instance is more recent, and therefore supersedes
earlier instances.
Instances of profiles with the same name (e.g., "Example Profile 1.1" and
"Example Profile 5.0") address interoperability problems in the same general
scope (although some developments may require the exact scope of a profile to
change between instances).
One can also use this information to determine whether two instances of a profile
are backwards-compatible; that is, whether one can assume that conformance to
an earlier profile instance implies conformance to a later one. Profile instances
with the same name and major version number (e.g., "Example Profile 1.0" and
"Example Profile 1.1") MAY be considered compatible. Note that this does not
imply anything about compatibility in the other direction; that is, one cannot
assume that conformance with a later profile instance implies conformance to an
earlier one.
2 Profile Conformance
Conformance to the Profile is defined by adherence to the set of requirements
defined for a specific target, within the scope of the Profile. This section explains
these terms and describes how conformance is defined and used.
2.1 Conformance Requirements
Requirements state the criteria for conformance to the Profile. They typically refer
to an existing specification and embody refinements, amplifications, interpretations
and clarifications to it in order to improve interoperability. All requirements in the
Profile are considered normative, and those in the specifications it references that
are in-scope (see "Conformance Scope") should likewise be considered
normative. When requirements in the Profile and its referenced specifications
contradict each other, the Profile's requirements take precedence for purposes of
Profile conformance.
Requirement levels, using RFC2119 language (e.g., MUST, MAY, SHOULD)
indicate the nature of the requirement and its impact on conformance. Each
requirement is individually identified (e.g., R9999) for convenience.
For example;
R9999 WIDGETs SHOULD be round in shape.
© ISO/IEC 2008 – All rights reserved 3

This requirement is identified by "R9999", applies to the target WIDGET (see
below), and places a conditional requirement upon widgets; i.e., although this
requirement must be met to maintain conformance in most cases, there are some
situations where there may be valid reasons for it not being met (which are
explained in the requirement itself, or in its accompanying text).
Each requirement statement contains exactly one requirement level keyword (e.g.,
"MUST") and one conformance target keyword (e.g., "MESSAGE"). The
conformance target keyword appears in bold text (e.g. "MESSAGE"). Other
conformance targets appearing in non-bold text are being used strictly for their
definition and NOT as a conformance target. Additional text may be included to
illuminate a requirement or group of requirements (e.g., rationale and examples);
however, prose surrounding requirement statements must not be considered in
determining conformance.
Definitions of terms in the Profile are considered authoritative for the purposes of
determining conformance.
None of the requirements in the Profile, regardless of their conformance level,
should be interpreted as limiting the ability of an otherwise conforming
implementation to apply security countermeasures in response to a real or
perceived threat (e.g., a denial of service attack).
2.2 Conformance Targets
Conformance targets identify what artifacts (e.g., SOAP message, WSDL
description, UDDI registry data) or parties (e.g., SOAP processor, end user)
requirements apply to.
This allows for the definition of conformance in different contexts, to assure
unambiguous interpretation of the applicability of requirements, and to allow
conformance testing of artifacts (e.g., SOAP messages and WSDL descriptions)
and the behavior of various parties to a Web service (e.g., clients and service
instances).
Requirements' conformance targets are physical artifacts wherever possible, to
simplify testing and avoid ambiguity.
The following conformance targets are used in the Profile:
• MESSAGE - protocol elements that transport the ENVELOPE (e.g.,
SOAP/HTTP messages) (from ISO/IEC 29361)
• ENVELOPE - the serialization of the soap:Envelope element and its content
(from ISO/IEC 29361)
• DESCRIPTION - descriptions of types, messages, interfaces and their
concrete protocol and data format bindings, and the network access points
associated with Web services (e.g., WSDL descriptions) (from
ISO/IEC 29361)
4 © ISO/IEC 2008 – All rights reserved

• INSTANCE - software that implements a wsdl:port or a
uddi:bindingTemplate (from ISO/IEC 29361)
• CONSUMER - software that invokes an INSTANCE (from ISO/IEC 29361)
• SENDER - software that generates a message according to the protocol(s)
associated with it (from ISO/IEC 29361)
• RECEIVER - software that consumes a message according to the
protocol(s) associated with it (e.g., SOAP processors) (from
ISO/IEC 29361)
2.3 Conformance Scope
The scope of the Profile delineates the technologies that it addresses; in other
words, the Profile only attempts to improve interoperability within its own scope.
Generally, the Profile's scope is bounded by the specifications referenced by it.
The Profile's scope is further refined by extensibility points. Referenced
specifications often provide extension mechanisms and unspecified or open-ended
configuration parameters; when identified in the Profile as an extensibility point,
such a mechanism or parameter is outside the scope of the Profile, and its use or
non-use is not relevant to conformance.
Note that the Profile may still place requirements on the use of an extensibility
point. Also, specific uses of extensibility points may be further restricted by other
profiles, to improve interoperability when used in conjunction with the Profile.
Because the use of extensibility points may impair interoperability, their use should
be negotiated or documented in some fashion by the parties to a Web service; for
example, this could take the form of an out-of-band agreement.
The Profile's scope is defined by the referenced specifications in Appendix A, as
refined by the extensibility points in Appendix B.
2.4 Claiming Conformance
Claims of conformance to the Profile can be made using the following
mechanisms, as described in Conformance Claim Attachment Mechanisms, when
the applicable Profile requirements associated with the listed targets have been
met:
• WSDL 1.1 Claim Attachment Mechanism for Web Services Instances -
MESSAGE DESCRIPTION INSTANCE RECEIVER
• WSDL 1.1 Claim Attachment Mechanism for Description Constructs -
DESCRIPTION
• UDDI Claim Attachment Mechanism for Web Services Instances -
MESSAGE DESCRIPTION INSTANCE RECEIVER
The conformance claim URI for this Profile is "http://ws-
i.org/profiles/attachments/1.0" .
© ISO/IEC 2008 – All rights reserved 5

3 Attachments Packaging
This section of the Profile incorporates the following specifications by reference,
and defines extensibility points within them:
• SOAP Messages with Attachments
Extensibility points:
o E0001 - MIME parts - SOAP Messages with Attachments places no
restriction on the type of any non-root part in a multipart/related
message.
• Extensible Markup Language (XML) 1.0 (Second Edition)
• Namespaces in XML 1.0
• RFC2557 MIME Encapsulation of Aggregate Documents, such as HTML
(MHTML)
• RFC2045 Multipurpose Internet Mail Extensions (MIME) Part One: Format
of Internet Message Bodies
• RFC2046 Multipurpose Internet Mail Extensions (MIME) Part Two: Media
Types
• RFC2392 Content-ID and Message-ID Uniform Resource Locators
SOAP Messages with Attachments defines a MIME multipart/related structure
for packaging SOAP envelope with attachments. The Profile mandates the use of
that structure, and places the following constraints on its use:
3.1 Root Part
R2931 The entity body of the root part of multipart/related
MESSAGE MUST be a soap:Envelope.
R2945 The Content-Type HTTP header field-value in a MESSAGE
MUST be either "multipart/related" or "text/xml". C
R2932 If the Content-Type HTTP header field-value in a
MESSAGE has a media-type of "multipart/related" then
the Content-Type HTTP header field-value in that
message MUST have the type parameter with a value of
"text/xml". C
Any MIME part may contain a soap:Envelope, but only the entity body of the root-
part of the MIME package is treated as the primary SOAP envelope. Non-root
parts are referred to as attachments.
For example,
CORRECT:
In the message below the the Content-Type HTTP header field-value has
a media-type of 'Multipart/Related' and a parameter 'type' with value of
'text/xml'.
MIME-Version: 1.0
Content-Type: Multipart/Related; boundary=MIME_boundary; type=text/xml;
Content-Description: This is the optional message description.

6 © ISO/IEC 2008 – All rights reserved

--MIME_boundary
Content-Type: text/xml; charset=UTF-8
Content-Transfer-Encoding: 8bit
Content-ID:



...

--MIME_boundary
...
--MIME_boundary--
3.2 Encoding of Root Part
R2915 The entity body of the root part of a multipart/related
MESSAGE MUST be serialized using either UTF-8 or
UTF-16 character encoding.
R2916 Non-root parts of a multipart/related MESSAGE MAY
use any character encoding.
3.3 Media Type of Message
R2925 If the WSDL description lists at least one non-root MIME
part, the corresponding MESSAGE MUST have a
Content-Type HTTP header field-value with a media-type
of "multipart/related".
3.4 Messages with No Attachments
If a receiver expects zero or more attachments in a message, the sender of that
message can use the text/xml media type for a message that has no attachments.
R2917 A MESSAGE containing zero attachment parts MUST be
sent using a content-type of either "text/xml" as though a
SOAP HTTP binding were used or "multipart/related"
when the WSDL description for the message specifies the
mime:multipartRelated element on the corresponding
wsdl:input or wsdl:output element in its wsdl:binding.
R2902 A SENDER MUST NOT send a message using SOAP with
Attachments if the corresponding wsdl:input or
wsdl:output element in the wsdl:binding does not
specify the WSDL MIME Binding.
This can happen only when the WSDL description specifies a
mime:multipartRelated that has only one mime:part child element containing
soapbind:body.
© ISO/IEC 2008 – All rights reserved 7

For example,
CORRECT:
A WSDL Description that is as follows:
xmlns:soapbind="http://schemas.xmlsoap.org/wsdl/soap/"
xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"
xmlns:mime="http://schemas.xmlsoap.org/wsdl/mime/"
targetNamespace="http://example.com/mimewsdl"
xmlns:tns="http://example.com/mimewsdl">

...

transport="http://schemas.xmlsoap.org/soap/http"/>





namespace="http://example.com/mimetypes"/>




namespace="http://example.com/mimetypes"/>




may result in an input message which uses the SOAP HTTP Binding as
follows:




...



must not result in an output message which uses the MIME Binding as
follows:
MIME-Version: 1.0
Content-Type: Multipart/Related; boundary=MIME_boundary; type=text/xml;
start=""
Content-Description: This is the optional message description.

--MIME_boundary
Content-Type: text/xml; charset=UTF-8
Content-Transfer-Encoding: 8bit
Content-ID:


xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">


...



--MIME_boundary--
8 © ISO/IEC 2008 – All rights reserved

3.5 Dereferencing Attachments
Applications using Web services can use URIs in a variety of ways, including as a
means of fetching content from a network. Although attachments can be used to
provide content which is identified with a URI, implementations are not required to
prefer attached content, to use it exclusively, or to use it at all. Likewise,
applications may choose to ignore the specified dereference function of a URI
(e.g., fetching content from a network) and only use attached content.
When using the CID URI scheme, the syntax and rules defined in RFC 2392 apply.
R2918 A RECEIVER MAY ignore a URI reference to an
attachment in an envelope.
3.6 Carrying Additional SOAP Envelopes
The Profile places no constraints on the content of attachment parts. Additional
XML documents that contain a soap:Envelope may be sent as attachments, but
only the root-part of the MIME message should be treated as the primary soap
envelope in a MIME package.
R2919 A MESSAGE MAY contain soap:Envelopes carried as
attachments in parts that are not the root part of the
message.
3.7 Fault Messages with Attachments
R2920 An INSTANCE MAY send a fault with attachments if and
only if the wsdl:output element is described using the
WSDL MIME binding.
3.8 Value-space of Content-Id Header
Definition: content-id part encoding
The "content-id part encoding" consists of the
concatenation of:
• The value of the name attribute of the wsdl:part
element referenced by the mime:content, in which
characters disallowed in content-id headers (non-
ASCII characters as represented by code points
above 0x7F) are escaped as follows:
o Each disallowed character is converted to
UTF-8 as one or more bytes.
o Any bytes corresponding to a disallowed
character are escaped with the URI
escaping mechanism (that is, converted to
%HH, where HH is the hexadecimal
notation of the byte value).
o The original character is replaced by the
resulting character sequence.
• The character '=' (0x3D).
© ISO/IEC 2008 – All rights reserved 9

• A globally unique value such as a UUID.
• The character '@' (0x40).
• A valid domain name under the authority of the
entity constructing the message.
R2933 If a description binds a wsdl:message part to a
mime:content element, then the corresponding MIME
part's content-id field-value in a MESSAGE MUST
conform to the content-id part encoding.
For example,
CORRECT:
In the WSDL fragment below, the name of the part bound to the
mime:content is the value appended to the content-id value.





...
...








...

Here's a fragment of the multipart package containing the fooPart binary
stream highlighting how the "name" attribute of wsdl:part is incorporated
into the content-id value.
...
--MIME_boundary
Content-Type: application/octet-stream
Content-Transfer-Encoding: 8bit
Content-ID:
...
3.9 Ordering of MIME Parts
It is possible that intermediaries might reorder the parts in a multipart/related
message. Hence semantics should be neither given to, nor implied by the ordering
of parts in a message.
R2921 A RECEIVER MUST NOT infer any semantics from the
ordering of non-root MIME parts in a message.
R2929 A MESSAGE MAY have its MIME parts in any order
provided that the identity of the root part is maintained.
10 © ISO/IEC 2008 – All rights reserved

A receiver must not assume that the order of mime:part elements specified in a
WSDL description is the same as the order of MIME parts in the message. The
order of MIME parts specified in a WSDL description must be considered
independent of the order of MIME parts in the message.
3.10 Position of Root Part
If the start parameter is present, then the value of the start parameter is the
content-ID of the root part of the message. In the absence of a start parameter,
the root part is the first body part in the package, as defined by RFC 2387 Section
3.2.
R2922 If the Content-Type HTTP header field-value in a message
does not have a start parameter, a RECEIVER MUST
treat the first body part of the MIME package as the root
part. C
For example,
CORRECT:
In the message below the first MIME part (which has the Content-ID
header of "") is the root part.
MIME-Version: 1.0
Content-Type: Multipart/Related; boundary=MIME_boundary; type=text/xml;
Content-Description: This is the optional message description.

--MIME_boundary
Content-Type: text/xml; charset=UTF-8
Content-Transfer-Encoding: 8bit
Content-ID:





.

cid:claimphoto@example.com




--MIME_boundary
Content-Type: application/octet-stream
Content-Transfer-Encoding: binary
Content-ID:

...binary photograph...
--MIME_boundary--
3.11 Content-Transfer-Encoding
Content-Transfer-Encodings allow messages to be sent across transports that do
not support binary content; for example, some e-mail systems are only capable of
transferring character-based messages. Because Web services messages may
originate on or be destined for such systems, the Profile allows this mechanism's
use.
© ISO/IEC 2008 – All rights reserved 11

If Content-Transfer-Encoding field of a part in mime multipart message is not
present, the body of that part must conform to 7 bit ascii encoding as specified
RFC 2045.
R2934 The Content-Transfer-Encoding field of a part in a
multipart/related MESSAGE MUST have a value of "7bit",
"8bit", "binary", "quoted-printable" or "base64".
R2935 The encoding of the body of a part in a multipart/related
MESSAGE MUST conform to the encoding indicated by
the Content-Transfer-Encoding field-value, as specified
by RFC2045. C
The Profile restricts its legal values to those that are well-known to improve
interoperability.
3.12 MIME Boundary String
Certain implementations have been shown to produce messages in which the
MIME encapsulation boundary string is not preceded with a CRLF (carriage-return
line-feed). This creates problems for implementations which correctly expect that
the encapsulation boundary string is preceded by a CRLF.
R2936 In a MESSAGE, all MIME encapsulation boundary strings
MUST be preceded with the ascii characters CR (13) and
LF (10) in that sequence. C
RFC2046 section 5.5.1 clearly requires that all encapsulation boundaries must be
preceded with a CRLF (carriage-return line-feed).
4 Attachments Description
This section of the Profile incorporates the following specifications by reference:
• WSDL 1.1, Section 5.0
WSDL 1.1 section 5 defines the MIME binding. The Profile permits the use of the
WSDL MIME binding, but limits it to the SOAP Messages with Attachments
protocol. The Profile places the following constraints on its use:
4.1 Use of MIME Binding Extension
There may be use cases where a sender might be capable of sending a message
using SOAP with Attachments yet incapable of receiving and processing such a
message.
R2901 A DESCRIPTION MUST use either the WSDL MIME
Binding as described in WSDL 1.1 Section 5 or WSDL
SOAP binding as described in WSDL 1.1 Section 3 on
each of the wsdl:input or wsdl:output elements of a
wsdl:binding.
12 © ISO/IEC 2008 – All rights reserved

4.2 Unbound portType Element Contents
WSDL 1.1 is not explicit about whether it is permissible for a wsdl:binding to leave
the binding for portions of the content defined by a wsdl:portType unspecified.
R2941 A wsdl:binding in a DESCRIPTION SHOULD bind every
wsdl:part of a wsdl:message in the wsdl:portType to
which it refers to one of soapbind:body, soapbind:header,
soapbind:fault , soapbind:headerfault, or
mime:content.
A portType defines an abstract contract with a named set of operations and
associated abstract messages. Although not disallowed, it is expected that every
part of the abstract input, output and fault messages specified in a portType is
bound to soapbind:body or soapbind:header (and so forth) or a mime:content as
appropriate when using the MIME binding as defined in WSDL 1.1 Section 5. Un-
bound wsdl:parts should be ignored by a consumer.
4.3 Referencing Message Parts
A message part in WSDL can be bound to a particular MIME part (using
mime:content).Unlike a soapbind:header which may reference parts contained in a
message that is not part of the contract defined by the wsdl:porttype, a
mime:content must not reference a wsdl:part that is not defined in the
wsdl:message referenced by the wsdl:operation. Additionally, message parts in
WSDL are considered to be an indivisible unit. Components of a message part
which is of complex content cannot be selectively bound to a particular MIME part.
R2903 A mime:content element in a DESCRIPTION MUST NOT
reference a wsdl:part that is not present in the
respective wsdl:input or wsdl:output of the
corresponding wsdl:operation of the corresponding
wsdl:portType.
R2904 A mime:content element in a DESCRIPTION MUST NOT
be bound to a sub-component of an element or type
referenced by a wsdl:part.
R2946 In a DESCRIPTION, a mime:content element MUST
include the part attribute.
For example,
INCORRECT:


targetNamespace="http://example.org/foo"
xmlns:ns="http://example.org/foo">










...
© ISO/IEC 2008 – All rights reserved 13










...














...



4.4 Referencing Attachments from the SOAP Envelope
One of the advantages of having attachments is the ability to include data in a
separate MIME part and refer to it from the SOAP envelope contained in the root
part of the same MIME package.
This Profile defines a schema type ref:swaRef which can be used in a WSDL
description to define a message part. When a message part is described using the
ref:swaRef type, in its instance document, the URI points to an attachment in the
same MIME package. This type is offered to application/tool/platform developers
as an interoperable way to mark references to attachments in the descriptions.
Nevertheless, use of other mechanisms does not make the description non-
conformant.
The XML Schema for the type used to refer to attachments from the SOAP
envelope is:

xmlns:xsd="http://www.w3.org/2001/XMLSchema">




As a convenience, WS-I has published the schema for this schema type at:
http://ws-i.org/profiles/basic/1.1/swaref.xsd
Please note that there is no way in a WSDL1.1 description to correlate an
attachment reference (defined using swaRef) with an attachment (defined using a
wsdl:part bound to mime:content). As a best practice, the Profile recommends that
when ref:swaRef is used, the corresponding attachment should not be described,
and vice versa.
R2940 In a DESCRIPTION, a wsdl:part defined with the
ref:swaRef schema type SHOULD only be bound to a
soapbind:body, or a soapbind:header in a MIME binding.
14 © ISO/IEC 2008 – All rights reserved

R2928 In an ENVELOPE, a URI reference that is typed using the
ref:swaRef schema type MUST resolve to a MIME part in
the same message as the envelope.
The swaRef type can be used to represent a reference to an attachment either as
an element (as shown in the example below) or an attribute. There is no preferred
approach.
For example,
CORRECT:
WSDL description for rpc/literal binding:

xmlns:ref="http://ws-i.org/profiles/basic/1.1/xsd"
xmlns:xsd="http://www.w3.org/2001/XMLSchema"
xmlns:soapbind="http://schemas.xmlsoap.org/wsdl/soap/"
xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"
xmlns:mime="http://schemas.xmlsoap.org/wsdl/mime/"
targetNamespace="http://example.com/mimewsdl"
xmlns:tns="http://example.com/mimewsdl">


xmlns:xsd="http://www.w3.org/2001/XMLSchema">
























transport="http://schemas.xmlsoap.org/soap/http"/>





parts="ClaimDetail"
namespace="http://example.com/mimetypes"/>
© ISO/IEC 2008 – All rights reserved 15



type="image/jpeg"/>




namespace="http://example.com/mimetypes"/>




Resulting input message for "SendClaim" rpc/literal operation:
MIME-Version: 1.0
Content-Type: Multipart/Related; boundary=MIME_boundary; type=text/xml;
start=""
Content-Description: This is the optional message description.

--MIME_boundary
Content-Type: text/xml; charset=UTF-8
Content-Transfer-Encoding: 8bit
Content-ID:


xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/">
...
