Connectors for optical fibres and cables - Part 14-1: Detail specification for fibre optic connector type SC/PC standard terminated to multimode fibre type A1a, A1b

General Information

Status
Published
Publication Date
09-Jun-1997
Current Stage
PPUB - Publication issued
Start Date
10-Jun-1997
Completion Date
31-May-1997

Overview

IEC 60874-14-1:1997 is a detail specification for the SC‑PC fibre optic connector terminated to multimode fibre types A1a and A1b. It defines mechanical, optical and quality requirements for SC (push‑pull, plug‑adaptor‑plug) connectors used in patchcord arrangements and datacom installations (referenced to ISO/IEC 11801). The document sets dimensional tolerances, ferrule geometry and material, performance limits (attenuation), and qualification and inspection test schedules to ensure reliable, interoperable multimode connections.

Key topics and technical requirements

  • Connector configuration and coupling
    • SC type, push‑pull coupling, resilient sleeve alignment, optical coupling by butting.
  • Mechanical and dimensional controls
    • Detailed plug mating‑face dimensions and tolerances (figures and tables in the standard).
    • Ferrule geometry and endface form (spherical polish eccentricity < 50 μm).
    • Ferrule material: zirconia (variants specify BG diameter ranges 1.76–2.26 mm or 1.90–2.26 mm).
    • Ferrule compression force: 7.8 N to 11.8 N when ferrule compressed to H = 7 ± 0.1 mm.
    • Buffer diameters accommodated: 250 ±15 μm, 500 ±30 μm, 900 ±50 μm.
    • Preferred component colour: beige (RAL 1013).
  • Optical performance
    • Attenuation in random connection: < 0.75 dB (97% probability); average < 0.35 dB.
  • Environmental & reliability classes
    • Climatic category 10/60/4, environmental category 4, assessment level A.
  • Qualification and inspection
    • Fixed-sample qualification tests and lot-by-lot and periodic quality conformance inspection schedules.
    • Tests reference IEC 60874-1 and IEC 61300 series methods: visual, dimensional, attenuation (Method No. 7), cold, dry heat, damp heat, vibration, mechanical endurance, drop, engagement/separation force, cable pull/torsion, ferrule/fibre retention.

Applications

  • Ensures interoperable multimode SC‑PC patchcords for data centers, LANs, telecom and enterprise cabling.
  • Used where controlled attenuation and robust mechanical performance are required (patch panels, cross‑connects, structured cabling).
  • Basis for manufacturing specifications, assembly procedures and acceptance testing of SC multimode connectors.

Who should use this standard

  • Connector and ferrule manufacturers
  • Optical cable and patchcord assemblers
  • Test laboratories and quality‑assurance teams
  • Network designers, cabling installers and procurement/specification engineers
  • Certification bodies verifying conformance to multimode SC connector requirements

Related standards

  • IEC 60874-1 (generic specification references)
  • IEC 61300 series (test methods)
  • IEC 60793-2 (multimode fibre characteristics)

Keywords: IEC 60874-14-1, SC‑PC connector, multimode A1a A1b, zirconia ferrule, attenuation, fibre optic connector specification, connector qualification tests.

Buy Documents

Standard

IEC 60874-14-1:1997 - Connectors for optical fibres and cables - Part 14-1: Detail specification for fibre optic connector type SC/PC standard terminated to multimode fibre type A1a, A1b

English language (17 pages)
sale 15% off
Preview
sale 15% off
Preview

Get Certified

Connect with accredited certification bodies for this standard

TL 9000 QuEST Forum

Telecommunications quality management system.

ANAB United States Verified

ANCE

Mexican certification and testing association.

EMA Mexico Verified

Intertek Slovenia

Intertek testing, inspection, and certification services in Slovenia.

UKAS Slovenia Verified

Sponsored listings

Frequently Asked Questions

IEC 60874-14-1:1997 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Connectors for optical fibres and cables - Part 14-1: Detail specification for fibre optic connector type SC/PC standard terminated to multimode fibre type A1a, A1b". This standard covers: Connectors for optical fibres and cables - Part 14-1: Detail specification for fibre optic connector type SC/PC standard terminated to multimode fibre type A1a, A1b

Connectors for optical fibres and cables - Part 14-1: Detail specification for fibre optic connector type SC/PC standard terminated to multimode fibre type A1a, A1b

IEC 60874-14-1:1997 is classified under the following ICS (International Classification for Standards) categories: 33.180.20 - Fibre optic interconnecting devices. The ICS classification helps identify the subject area and facilitates finding related standards.

IEC 60874-14-1:1997 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)

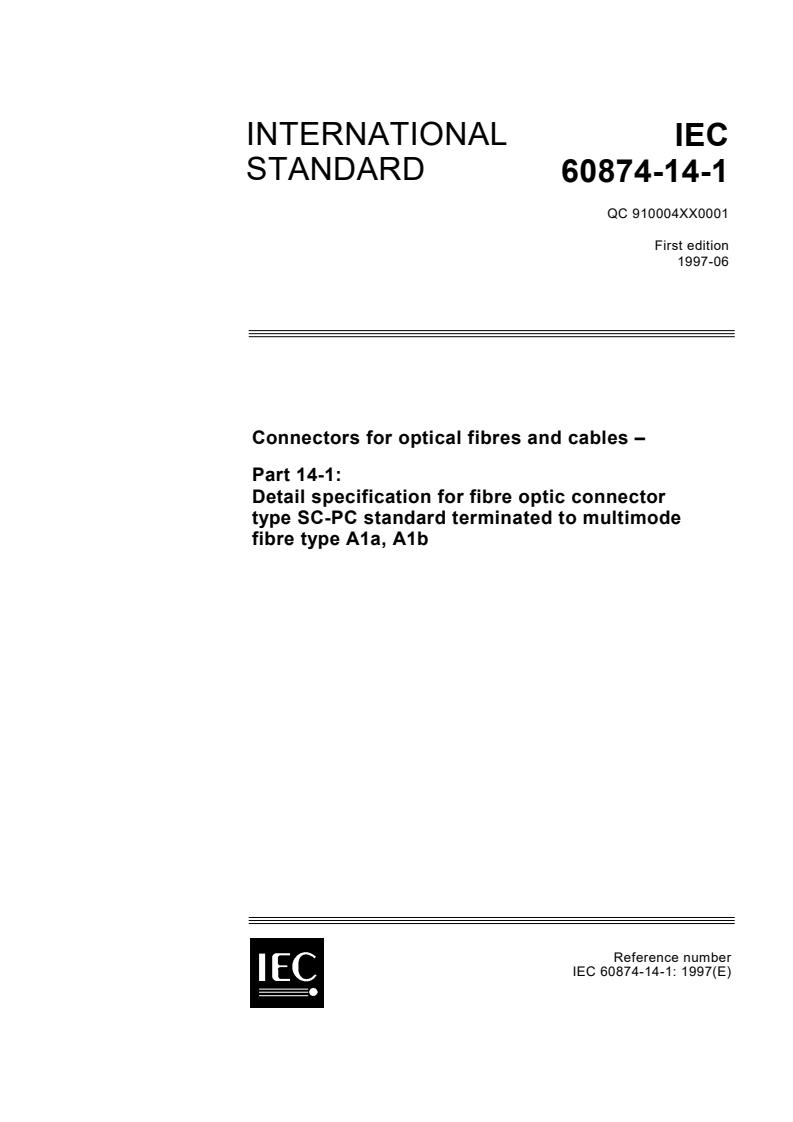

INTERNATIONAL
IEC
STANDARD
60874-14-1
QC 910004XX0001
First edition
1997-06
Connectors for optical fibres and cables –
Part 14-1:
Detail specification for fibre optic connector
type SC-PC standard terminated to multimode
fibre type A1a, A1b
Reference number
IEC 60874-14-1: 1997(E)
Validité de la présente publication Validity of this publication
Le contenu technique des publications de la CEI est The technical content of IEC publications is kept under
constamment revu par la CEI afin qu'il reflète l'état constant review by the IEC, thus ensuring that the
actuel de la technique. content reflects current technology.
Des renseignements relatifs à la date de Information relating to the date of the reconfirmation
reconfirmation de la publication sont disponibles of the publication is available from the IEC Central
auprès du Bureau Central de la CEI. Office.
Les renseignements relatifs à ces révisions, à Information on the revision work, the issue of revised
l'établissement des éditions révisées et aux editions and amendments may be obtained from IEC
amendements peuvent être obtenus auprès des National Committees and from the following IEC
Comités nationaux de la CEI et dans les documents sources:
ci-dessous:
• Bulletin de la CEI • IEC Bulletin
• Annuaire de la CEI • IEC Yearbook
Publié annuellement Published yearly
• Catalogue des publications de la CEI • Catalogue of IEC publications
Publié annuellement et mis à jour régulièrement Published yearly with regular updates
Terminologie Terminology
En ce qui concerne la terminologie générale, le lecteur For general terminology, readers are referred to
se reportera à la CEI 60050: Vocabulaire IEC 60050: International Electrotechnical Vocabulary
Electrotechnique International (VEI), qui se présente (IEV), which is issued in the form of separate chapters
sous forme de chapitres séparés traitant chacun d'un each dealing with a specific field. Full details of the
sujet défini. Des détails complets sur le VEI peuvent IEV will be supplied on request. See also the IEC
être obtenus sur demande. Voir également le Multilingual Dictionary.
dictionnaire multilingue de la CEI.
Les termes et définitions figurant dans la présente The terms and definitions contained in the present
publication ont été soit tirés du VEI, soit publi-cation have either been taken from the IEV or
spécifiquement approuvés aux fins de cette have been specifically approved for the purpose of this
publication. publication.
Symboles graphiques et littéraux Graphical and letter symbols
Pour les symboles graphiques, les symboles littéraux For graphical symbols, and letter symbols and signs
et les signes d'usage général approuvés par la CEI, le approved by the IEC for general use, readers are
lecteur consultera: referred to publications:
– IEC 60027: Letter symbols to be used in electrical
– la CEI 60027: Symboles littéraux à utiliser en
technology;
électrotechnique;
– IEC 60417: Graphical symbols for use on
– la CEI 60417: Symboles graphiques utilisables sur
equipment. Index, survey and compilation of the
le matériel. Index, relevé et compilation des feuilles
individuelles; single sheets;
Symboles graphiques pour schémas; – IEC 60617: Graphical symbols for diagrams;
– la CEI 60617:
and for medical electrical equipment,
et pour les appareils électromédicaux,
– IEC 60878: Graphical symbols for electromedical
– la CEI 60878: Symboles graphiques pour
equipment in medical practice.
équipements électriques en pratique médicale.
Les symboles et signes contenus dans la présente The symbols and signs contained in the present
publication ont été soit tirés de la CEI 60027, de la publication have either been taken from IEC 60027,
IEC 60417, IEC 60617 and/or IEC 60878, or have
CEI 60417, de la CEI 60617 et/ou de la CEI 60878,
been specifically approved for the purpose of this
soit spécifiquement approuvés aux fins de cette
publication.
publication.
Publications de la CEI établies par le IEC publications prepared by the same
même comité d'études technical committee
The attention of readers is drawn to the end pages of
L'attention du lecteur est attirée sur les listes figurant
this publication which list the IEC publications issued
à la fin de cette publication, qui énumèrent les
by the technical committee which has prepared the
publications de la CEI préparées par le comité
present publication.
d'études qui a établi la présente publication.

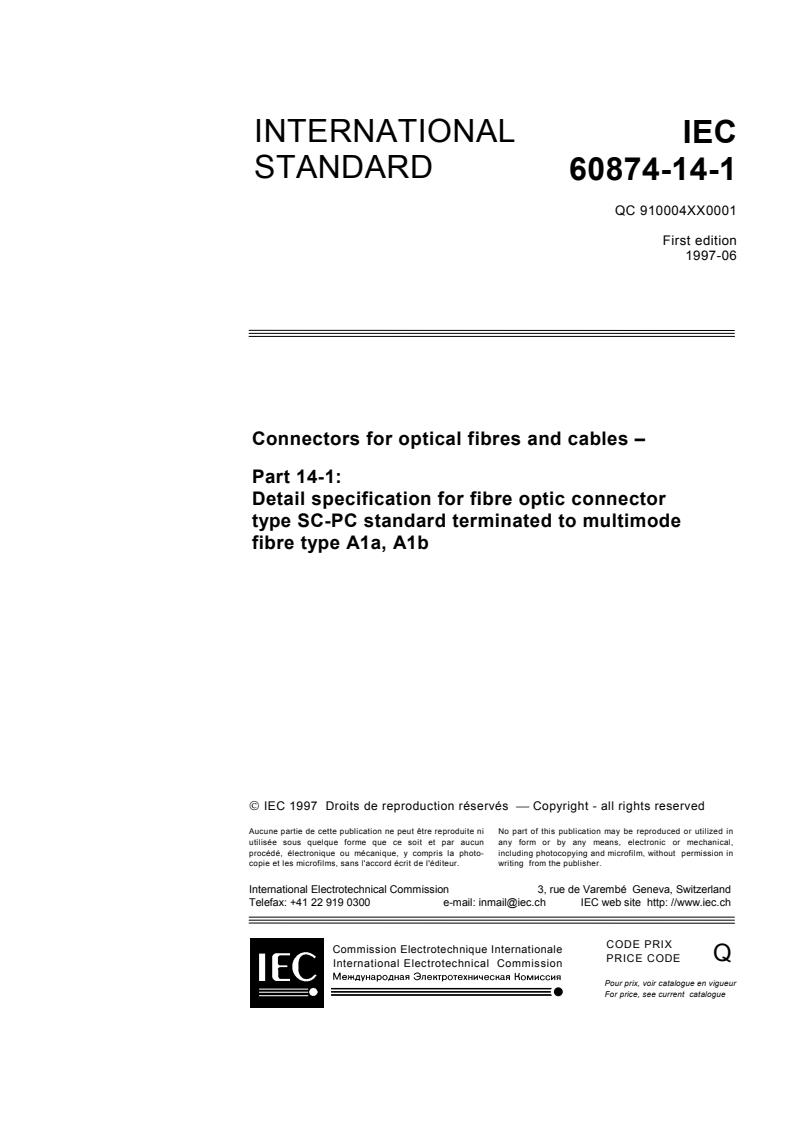

INTERNATIONAL
IEC
STANDARD
60874-14-1
QC 910004XX0001
First edition
1997-06
Connectors for optical fibres and cables –
Part 14-1:
Detail specification for fibre optic connector
type SC-PC standard terminated to multimode
fibre type A1a, A1b
 IEC 1997 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun any form or by any means, electronic or mechanical,
procédé, électronique ou mécanique, y compris la photo- including photocopying and microfilm, without permission in
copie et les microfilms, sans l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http: //www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
PRICE CODE Q
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue

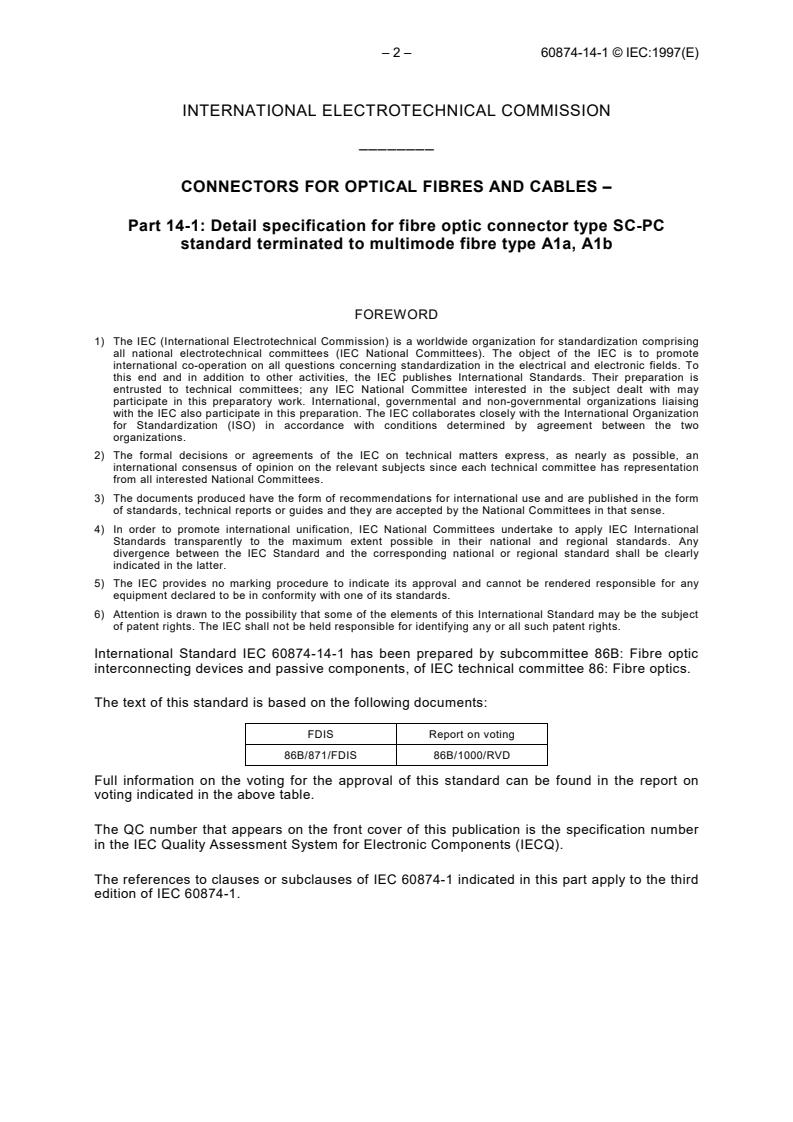

– 2 – 60874-14-1 © IEC:1997(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
––––––––
CONNECTORS FOR OPTICAL FIBRES AND CABLES –
Part 14-1: Detail specification for fibre optic connector type SC-PC
standard terminated to multimode fibre type A1a, A1b
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International Organization
for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical reports or guides and they are accepted by the National Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60874-14-1 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/871/FDIS 86B/1000/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The QC number that appears on the front cover of this publication is the specification number
in the IEC Quality Assessment System for Electronic Components (IECQ).
The references to clauses or subclauses of IEC 60874-1 indicated in this part apply to the third
edition of IEC 60874-1.
60874-14-1 © IEC:1997(E) – 3 –
CONNECTORS FOR OPTICAL FIBRES AND CABLES
Part 14-1: Detail specification for fibre optic connector type SC-PC standard terminated
to multimode fibre type A1a, A1b
NATIONAL STANDARDS ORGANIZATION: .
Date: .
DETAIL SPECIFICATION IEC QC 910004XX0001.
FIBRE OPTIC COMPONENT OF ASSESSED QUALITY IN ACCORDANCE WITH
• GENERIC SPECIFICATION: QC 910000 (IEC 60874-1)
• BLANK DETAIL SPECIFICATION: QC 910001 (IEC 60874-1-1)
CONNECTOR SET FOR OPTICAL FIBRES AND CABLES
CLASSIFICATION:
Type: Name: SC
For use in datacom applications as specified in ISO/IEC International Standard 11801:
“Generic cabling for customer premises”
Configuration: plug-adaptor-plug
Coupling: push-pull
Control dimensions:
– Plug: see figures 1, 2 and 3
– Adaptor: See IEC 60874-14-1
Arrangement: Patchcord arrangement
Style: Fibre retention: as required
Cable retention: as required
Optical coupling: butting
Alignment: resilient sleeve alignment
Variants: see page 7
Climatic category: 10/60/4
Environmental category: 4
Assessment level: A
QUALIFICATION PROCEDURE: Fixed sample procedure
SAFETY WARNING: Take care when handling small diameter optical fibre to prevent puncturing the skin,
especially in the eye area. Direct viewing of the end of an optical fibre when it is propagating energy is not
recommended unless prior assurance is obtained as to the safe energy output level.
Applicable fibre cable information
Mode field diameter In accordance with IEC 60793-2
Cladding diameter In accordance with IEC 60793-2
Core/cladding concentricity error In accordance with IEC 60793-2
Buffer diameter
250 ± 15, 500 ± 30, 900 ± 50 μm
Jacket outer diameter As required per variant
Additional information
– Attenuation in random connection:
• less than 0,75 dB (97 % probability)
less than 0,35 dB (average)

– 4 – 60874-14-1 © IEC:1997(E)
IEC  647/97
Figure 1 – Plug mating face dimensions

60874-14-1 © IEC:1997(E) – 5 –
Dimensions
Reference Notes
Minimum Maximum
A 2,498 mm 2,500 mm
B 4,8 mm 4,9 mm
C 6,8 mm 7,4 mm
D 4,9 mm 5,3 mm
E 6,7 mm 6,8 mm
F 19° 23°
G 25° 35°
H 7,15 mm 7,50 mm 1, 2
I 0,8 mm 1,2 mm
J 5,3 mm 5,5 mm
K - 0,1 mm 0,05 mm 3
L
2,11 mm 2,5 mm
M 2,0 mm 2,8 mm
N 6,6 mm 6,8 mm
O 1,6 mm 1,8 mm
P 8,89 mm 8,99 mm
Q 0,8 mm 1,0 mm
R 7,29 mm 7,39 mm
rS 0,8 mm 0,9 mm radius
T 4,05 mm 4,15 mm
U 5,4 mm 5,6 mm
V 0 mm 0,5 mm
cBC 0 mm 0,5 mm chamfer
NOTES
1 Ferrule compression force shall be from 7,8 N to 11,8 N, when the ferrule is
compressed to a point where H is 7 ± 0,1 mm.
2 This value shows the dimension after the ferrule is polished and in the
unmated condition.
3 The negative dimension refers to the position of the inside bottom plane left-
direction relative to the mechanical reference plane.
4 Where a tolerance of form is not specified, the limits of the dimensions for a
feature control the form as well as the size.
5 Where interrelated features of size (features shown with a common axis or
centre plane) have no geometric tolerance of location or run out specified, the
limits of the dimensions for a feature control the location tolerance as well as
the size.
6 Where perpendicular features (features shown at right angles) have no
geometric tolerance of orientation or run out specified, the limits of the
dimensions for a feature control the orientation tolerance as well as the size.
Figure 1 – Plug mating face dimensions (continued)

– 6 – 60874-14-1 © IEC:1997(E)
IEC  648/97
Dimensions
Reference Notes
Minimum Maximum
rBF 10 mm 25 mm 1, radius
BK –0,0001 mm see graph 2
BG 1,76 mm 2,26 mm diameter, 4
BG 1,90 mm 2,26 mm diameter, 5
BI 25° 35°
NOTES
1 Eccentricity of a spherical polished ferrule endface is less than 50 μm.
2 The negative dimension refers to the fibre protrusion.
3 Break edge.
4 This value is applicable to the variant numbers 1001, 1002, 1003, 1005 and 1007.
5 This value is applicable to the variant numbers 1002, 1004, 1006 and 1008.
Figure 2a – Ferrule endface geometry after termination
IEC  649/97
3 2
Allowable undercut = –0,02*Radius + 1,3*Radius – 31*Radius + 325
Figure 2b – Allowable undercut BK versus radius rBF

60874-14-1 © IEC:1997(E) – 7 –
IEC  650/97
Dimensions
mm
Reference Notes
Minimum Maximum
BD 60
BE 2,2 1
BE 2,6 2
BE 2,9 3
BE 3,2 4
NOTES
1 This value is applicable to the variant numbers –1001 and 1002.
2 This value is applicable to the variant numbers –1003 and 1004.
3 This value is applicable to the variant numbers –1005 and 1006.
4 This value is applicable to the variant numbers –1007 and 1008.
Figure 3 – Plug dimension
– 8 – 60874-14-1 © IEC:1997(E)
VARIANT IDENTIFICATION NUMBERS
Number: QC 910X01/0002-ZZZZ
ZZZZ Variant feature
Applicable cable jacket diameter Ferrule material Dimension BG
1001 Plug 2,0 mm Zirconia 1,76 – 2,26
1002 Plug 2,0 mm Zirconia 1,90 – 2,26
1003 Plug 2,4 mm Zirconia 1,76 – 2,26
1004 Plug 2,4 mm Zirconia 1,90 – 2,26
1005 Plug 2,7 mm Zirconia 1,76 – 2,26
1006 Plug 2,7 mm Zirconia 1.90 – 2,26
1007 Plug 3,0 mm Zirconia 1,76 – 2,26
1008 Plug 3,0 mm Zirconia 1,90 – 2,26
SUPPLEMENTARY INFORMATION
Preferred colour:
Colour of the coupling sleeve and boot shall be beige. According to RAL 1013.
Component marking:
The name and/or manufacturer’s identification mark may be permanently identified. Figure 4 shows an
example of the location of the component marking.
IEC  651/97
Figure 4 – Example of component marking

60874-14-1 © IEC:1997(E) – 9 –
TABLE 1
FIXED SAMPLE TEST SCHEDULE FOR QUALIFICATION APPROVAL
Test sequence Reference IEC 60874-1 n
(IEC 61300)
Group 0
– Visual examination 4.4.1 (3-1) 20
– Dimensions 4.4.2 (3-1)
– Ferrule compression force (3-22)
Group 1
– Attenuation 4.4.7 (3-4) 20
Group 2
–Cold 4.5.17 (2-17)
– Dry heat 4.5.18 (2-18) 6
– Damp heat, steady state 4.5.19 (2-19)
Group 3
–Drop 4.5.14 (2-12)
– Engagement and separation force 4.4.5 (3-11) 6
– Mechanical endurance 4.5.32 (2-2)
Group 4
–Vibration 4.5.1 (2-1) 4
– Change of temperature (test Nb) 4.5.22 (2-22)
Group 5
– Strength of coupling mechanism 4.5.6 (2-6) 4
– Cable pulling 4.5.4 (2-4)
– Cable torsion 4.5.5 (2-5)
Group 6
– Fibre or ferrule retention 4.5.2 (2-4) NA
NOTES
1 n = sample size (number of plugs).
2 To satisfy the qualification approval requirements of the detail specification there shall be no failures
of any in the sample groups for any test parameter. If a failure
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

Loading comments...
