IEC 61753-021-2:2007
(Main)Fibre optic interconnecting devices and passive components performance standard - Part 021-2: Grade C/3 single-mode fibre optic connectors for category C - Controlled environment
Fibre optic interconnecting devices and passive components performance standard - Part 021-2: Grade C/3 single-mode fibre optic connectors for category C - Controlled environment
This part of IEC 61753 defines C/3 minimum initial test and measurement requirements and severities which a single-mode connector/cable assembly must satisfy in order to be categorized as meeting the IEC standard category C (controlled environment), as defined in Clause A.2 of IEC 61753-1. The standard has been updated to reflect changes made to IEC 61753-1.
Norme de qualité de fonctionnement des dispositifs d'interconnexion et composants passifs à fibres optiques - Partie 021-2: Connecteurs à fibres optiques unimodales de classe C/3 pour la catégorie C - Environnement contrôlé
La présente partie de la CEI 61753 définit les exigences d'essais et de mesures et les sévérités initiales minimales C/3 auxquels un assemblage câble/connecteur unimodaux doit satisfaire, afin d'être considéré comme satisfaisant aux critères de la catégorie C (environnements contrôlés) des normes CEI définis dans l'Article A.2 de la CEI 61753-1. Cette norme a été mise à jour afin de prendre en compte des modifications effectuées dans la CEI 61753-1.
General Information
- Status
- Replaced
- Publication Date
- 06-Dec-2007
- Technical Committee
- SC 86B - Fibre optic interconnecting devices and passive components
- Current Stage
- DELPUB - Deleted Publication
- Start Date
- 06-Oct-2023
- Completion Date
- 30-Jun-2021
Relations
- Effective Date
- 05-Sep-2023
- Effective Date
- 05-Sep-2023
Get Certified
Connect with accredited certification bodies for this standard
TL 9000 QuEST Forum
Telecommunications quality management system.

ANCE
Mexican certification and testing association.

Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
Sponsored listings
Frequently Asked Questions
IEC 61753-021-2:2007 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Fibre optic interconnecting devices and passive components performance standard - Part 021-2: Grade C/3 single-mode fibre optic connectors for category C - Controlled environment". This standard covers: This part of IEC 61753 defines C/3 minimum initial test and measurement requirements and severities which a single-mode connector/cable assembly must satisfy in order to be categorized as meeting the IEC standard category C (controlled environment), as defined in Clause A.2 of IEC 61753-1. The standard has been updated to reflect changes made to IEC 61753-1.
This part of IEC 61753 defines C/3 minimum initial test and measurement requirements and severities which a single-mode connector/cable assembly must satisfy in order to be categorized as meeting the IEC standard category C (controlled environment), as defined in Clause A.2 of IEC 61753-1. The standard has been updated to reflect changes made to IEC 61753-1.
IEC 61753-021-2:2007 is classified under the following ICS (International Classification for Standards) categories: 33.180.20 - Fibre optic interconnecting devices. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 61753-021-2:2007 has the following relationships with other standards: It is inter standard links to IEC 61753-021-02:2023, IEC 61753-021-2:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 61753-021-2:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 61753-021-2
Edition 2.0 2007-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components performance
standard –
Part 021-2: Grade C/3 single-mode fibre optic connectors for category C –
Controlled environment
Norme de qualité de fonctionnement des dispositifs d'interconnexion et
composants passifs à fibres optiques –
Partie 021-2: Connecteurs à fibres optiques unimodales de classe C/3 pour la
catégorie C – Environnement contrôlé
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61753-021-2
Edition 2.0 2007-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components performance
standard –
Part 021-2: Grade C/3 single-mode fibre optic connectors for category C –
Controlled environment
Norme de qualité de fonctionnement des dispositifs d'interconnexion et
composants passifs à fibres optiques –
Partie 021-2: Connecteurs à fibres optiques unimodales de classe C/3 pour la
catégorie C – Environnement contrôlé
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
P
CODE PRIX
ICS 33.180.20 ISBN 2-8318-9465-4
– 2 – 61753-021-2 © IEC:2007

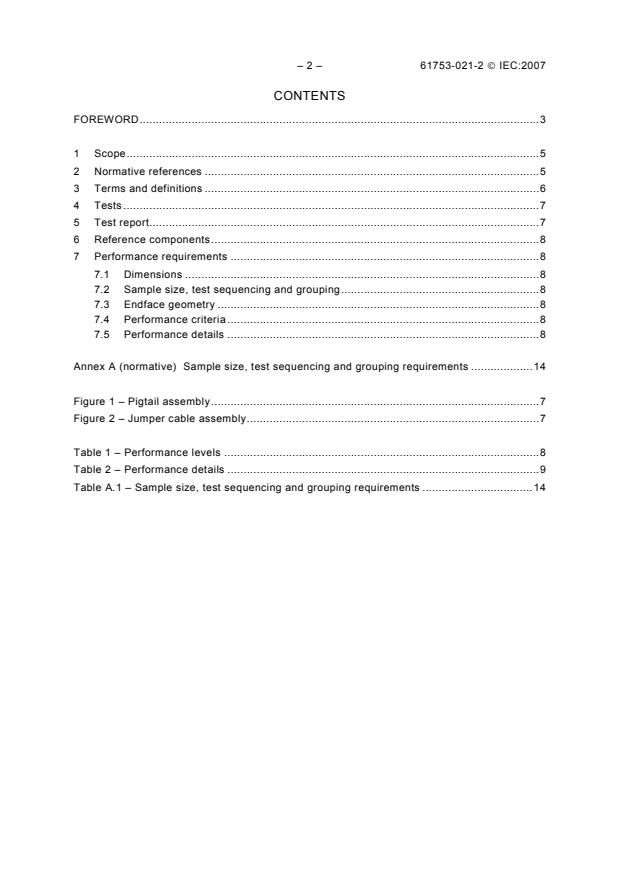

CONTENTS
FOREWORD.3
1 Scope.5
2 Normative references .5
3 Terms and definitions .6
4 Tests .7
5 Test report.7
6 Reference components.8
7 Performance requirements .8
7.1 Dimensions .8
7.2 Sample size, test sequencing and grouping.8
7.3 Endface geometry .8
7.4 Performance criteria .8
7.5 Performance details .8
Annex A (normative) Sample size, test sequencing and grouping requirements .14
Figure 1 – Pigtail assembly.7
Figure 2 – Jumper cable assembly.7
Table 1 – Performance levels .8
Table 2 – Performance details .9
Table A.1 – Sample size, test sequencing and grouping requirements .14
61753-021-2 © IEC:2007 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS PERFORMANCE STANDARD –
Part 021-2: Grade C/3 single-mode fibre optic connectors for category C –
Controlled environment
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61753-021-2 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
This second edition cancels and replaces the first edition published in 2002 and constitutes a
technical revision. The standard has been updated to reflect changes made to IEC 61753-1.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/2602/FDIS 86B/2655/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
– 4 – 61753-021-2 © IEC:2007
A list of all parts of the IEC 61753 series, published under the general title Fibre optic
interconnecting devices and passive components performance standard, can be found on the
IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
61753-021-2 © IEC:2007 – 5 –
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS PERFORMANCE STANDARD –
Part 021-2: Grade C/3 single-mode fibre optic connectors for category C –
Controlled environment
1 Scope
This part of IEC 61753 defines C/3 minimum initial test and measurement requirements and
severities which a single-mode connector/cable assembly must satisfy in order to be
categorized as meeting the IEC standard category C (controlled environment), as defined in
Clause A.2 of IEC 61753-1.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
class B single-mode fibres
IEC 61300-2-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-1: Tests – Vibration (sinusoidal)
IEC 61300-2-2, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-2: Tests – Mating durability
IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-4: Tests – Fibre/cable retention
IEC 61300-2-6, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-6: Tests – Tensile strength of coupling mechanism
IEC 61300-2-12, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-12: Tests – Impact
IEC 61300-2-17, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-17: Tests – Cold
IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-18: Tests – Dry heat – High temperature endurance
IEC 61300-2-19, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-19: Tests – Damp heat (steady state)
IEC 61300-2-22, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-22: Tests – Change of temperature
IEC 61300-2-42, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-42: Tests – Static side load for connectors
– 6 – 61753-021-2 © IEC:2007
IEC 61300-2-44, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-44: Tests – Flexing of the strain relief of fibre optic
devices
IEC 61300-3-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-1: Examinations and measurements – Visual examination
IEC 61300-3-3, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-3: Examinations and measurements – Active monitoring of
changes in attenuation and return loss
IEC 61300-3-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-4: Examinations and measurements – Attenuation
IEC 61300-3-6, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-6: Examinations and measurements – Return loss
IEC 61300-3-28, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-28: Examinations and measurements – Transient loss
IEC 61300-3-34, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-34: Examinations and measurements – Attenuation of
random mated connectors
IEC 61753-1:2007 Fibre optic interconnecting devices and passive components performance
standard – Part 1: General and guidance for performance standards
IEC 61754 (all parts), Fibre optic connector interfaces
IEC 61755 (all parts), Fibre optic connector optical interfaces
IEC 61755-3 (all parts) Fibre optic connector optical interfaces – Part 3: Optical interface
ISO 11801, Information technology – Generic cabling for customer premises
3 Terms and definitions
For the purposes of this document, the following definitions apply.
3.1
change in attenuation
peak-to-peak variation
3.2
sample
complete set of connector components required to provide demountable coupling between
one or more pairs of optical fibres
3.3
pigtail assembly
two connector plugs mated with an adapter with unterminated leads, as shown in Figure 1.
NOTE Each of the unterminated leads should be at least 3 m long so that the splices may be located outside of
the environmental test chamber.
61753-021-2 © IEC:2007 – 7 –
Adapter
Connector
IEC 1967/07
Figure 1 – Pigtail assembly
3.4
jumper cable assembly
jumper cable terminated with plugs on each end connected with adapters to two additional
connector plugs with unterminated leads on either end, as shown in Figure 2. The jumper
cable should be 5 m ± 0,5 m. Each of the unterminated leads should be long enough so that
the splices may be located outside of the environmental test chamber.
Adapter Adapter
Connector
Unterminated
Cable Unterminated
lead
lead
IEC 2315/07
Figure 2 – Jumper cable assembly
4 Tests
All test methods are in accordance with the relevant parts of IEC 61300 as defined in 7.4 and
7.5.
The connectors under test shall be terminated onto single-mode fibre per type B1.1 or B1.3 of
IEC 60793-2-50, in either secondary coated or cable format. The connector interface standard
shall meet the dimensions of IEC 61754 and the connector optical interface standard shall
meet the relevant requirements of IEC 61755.
The optical connector requirements shall be met in order to be in accordance with IS0 11801.
Each test defines the number of samples to be evaluated. The sample set used for the first
test is to be composed of randomly selected and previously unstressed new samples.
The optical criteria for each test shall be as defined in 7.4.
5 Test report
Fully documented test reports and supporting evidence shall be prepared and available for
inspection as evidence that the tests have been carried out and the results are satisfactory.
– 8 – 61753-021-2 © IEC:2007
6 Reference components
No reference components are required to perform the tests in this standard.
7 Performance requirements
7.1 Dimensions
Dimensions shall comply with the appropriate IEC interface standard as defined in IEC 61754.
7.2 Sample size, test sequencing and grouping
For the purposes of this standard, a sample is composed of pigtail assemblies and jumper
cable assemblies (see Clause 3). The sample sizes to be used for the tests shall be as
defined in Annex A. There is no defined sequence or grouping in which the tests shall be run.
Samples for the first test (attenuation) are to be randomly selected and randomly mated new
products. Samples for the second test (return loss) are the same plugs selected and mated for the
first test. Samples for subsequent tests may be randomly selected and randomly mated new
products or the same plugs.
7.3 Endface geometry
The connector endface shall comply with the endface geometry requirements of the applicable
IEC optical interface standard as defined in 61755-3. Compliance with the appropriate optical
interface standard shall be confirmed on all samples before the start of testing and after all of
the tests have been completed. Non-compliance with the endface geometry requirements of
the applicable optical interface standard on any connector tested results in a failure of this
performance standard.
7.4 Performance criteria
The optical performance levels shall meet the requirements of Grade C/3 as defined in
Table A.12 of IEC 61753-1. See Table.1
Table 1 – Performance levels
Performance Test name Initial During and after test
level
≤0,25 dB mean
Attenuation
≤0,50 dB max. for ≥97 % of
IEC 61300-3-34
samples
Return loss ≥35 dB Return loss ≥35 dB during and
IEC 61300-3-6
after test
C/3
Maximum variation ≤0,2 dB during
Monitoring change in
and after test for pigtails
attenuation and in return
Maximum variation ≤0,5 dB
loss (multiple path
during and ≤0,4 dB after test for
IEC 61300-3-3)
patchcords
7.5 Performance details
Performance details are specified in Table 2.
61753-021-2 © IEC:2007 – 9 –
Table 2 – Performance details
No Test Requirements Details
1 Attenuation Grade C performance level: IEC 61300-3-4
Mean ≤ 0,25
(Method C) Device under test (DUT) type 5, Insertion method
Maximum = 0,50 dB
(C)
Test wavelengths:
Launch mode conditions: only the fundamental
1 310 nm ± 30 nm and
mode shall propagate at the connector interface
1 550 nm ± 30 nm (launch condition
and at the detector.
S4 and S5)
Source characteristics reference to
IEC 61300-3-4 (attenuation)
Specimen shall be optically functioning.
Preconditioning procedure: clean plug and
adapter according to manufacturer’s instructions.
2 Return loss Grade 3 performance level: IEC 61300-3-6 Method branching devices
Minimum > 35 dB
Launch fibre length: L > 2 m
Test wavelengths:
Source stability: ±0,20 dB over the measuring
1 310 nm ± 20 nm and 1 550 nm
period or at least 1 h
± 20 nm
Detector linearity: within 5 % of the power levels
to be measured
Directivity: >65 dB
Specimen shall be optically functioning.
Preconditioning procedure: clean plug and
adapter according to manufacturer’s instructions.
Alternative method: IEC 61300-3-6 Method OTDR
Launch fibre length: L1 ≥ 500 m, L2 ≥ 6 m,
L3 ≥ 6 m
Pulse duration: ≤10 ns
Specimen shall be optically functioning.
Preconditioning procedure: clean plug and
adapter according to manufacturer’s instructions.
3 IEC 61300-2-1
Vibration Attenuation:
(sinusoidal) All attenuation measurements shall
Frequency range: 10 Hz to 55 Hz
meet the criteria specified in 7.4.
Change in frequency: 1 oct/min
Return loss:
Endurance duration per axis: 0,5 h
All return loss measurements shall
meet the criteria specified in 7.4.
Number of axes: three orthogonal
Test wavelengths:
Number of sweeps per axis: 15
1 550 nm ± 20 nm
Vibration amplitude: 0,75 mm
Sampling rate: before, during and after each axis.
The measurement interval during the test shall be
< 2 ms and transient monitoring shall be
performed according to IEC 61300-3-28.
Sampling rate note: Attenuation and return loss
decrease is the difference between any
measurement and the initial measurement, and
applies to all measurements. Maximum
attenuation and return loss criteria apply to all
measurements.
Method of mounting: an adapter shall be mounted
rigidly to the mounting fixture.
Specimen shall be optically functioning.
Preconditioning procedure: clean plug and
adapter according to manufacturer’s instructions.
The connector samples shall not be uncoupled or
cleaned anytime during the test.
– 10 – 61753-021-2 © IEC:2007
Table 2 (continued)
No Test Requirements Details
4 Cold Attenuation: IEC 61300-2-17
All attenuation measurements shall
Temperature: –10 °C ± 2 °C
meet the criteria specified in 7.4.
Duration of exposure: 96 h
Return loss:
All return loss measurements shall
Length of the cable on each side of the connector
meet the criteria specified in 7.4.
inside the chamber: 1,5 m minimum
Test wavelengths:
Sampling rate: before and after test and at a
1 550 nm ± 20 nm
maximum interval of 1 h during the test.
Preconditioning procedure: before test,
specimens shall be maintained in room
temperature condition for 2 h. Clean plug and
adapter according to manufacturer’s instructions.
Recovery procedure: after test, specimens shall
be maintained in room temperature condition for
2 h.
The connector samples shall not be uncoupled or
cleaned anytime during the test.
5 Dry heat - Attenuation: IEC 61300-2-18
high All attenuation measurements shall
Temperature: +60 °C ± 2 °C
temperature meet the criteria specified in 7.4.
endurance
Duration of exposure: 96 h
Return loss:
All return loss measurements shall
Length of the cable on each side of the connector
meet the criteria specified in 7.4.
inside the chamber:1,5 m minimum
Test wavelengths:
Sampling rate: before and after test and at a
1 550 nm ± 20 nm
maximum interval of 1 h during the test
Preconditioning procedure: before test,
specimens shall be maintained in room
temperature condition for 2 h. Clean plug and
adapter according to manufacturer’s instructions.
Recovery procedure: after test, specimens shall
be maintained in room temperature condition for
2 h.
The connector samples shall not be uncoupled or
cleaned anytime during the test.
6 Damp heat Attenuation: IEC 61300-2-19
(steady All attenuation measurements shall
Temperature: +40 °C ± 2 °C
state) meet the criteria specified in 7.4.
+2
Return Loss:
Relative humidity: 93 % %
–3
All return loss measurements shall
meet the criteria specified in 7.4.
Duration of exposure: 96 h
Test wavelengths:
Length of the cable on each side of the connector
1 550 nm ± 20 nm
inside the chamber: 1,5 m minimum
Sampling rate: before and after test and at a
maximum interval of 1 h during the test
Preconditioning procedure: before test,
specimens shall be maintained in room
temperature condition for 2 h. Clean plug and
adapter according to manufacturer’s instructions.
Recovery procedure: after test, specimens shall
be maintained in room temperature condition for
2 h.
The connector samples shall not be uncoupled or
cleaned anytime during the test.
61753-021-2 © IEC:2007 – 11 –
Table 2 (continued)
No Test Requirements Details
7 Change of Attenuation: IEC 61300-2-22, Test Nb
temperature All attenuation measurements shall
High temperature dwell: +60 °C ± 2 °C
meet the criteria specified in 7.4.
Low temperature dwell: –10 °C ± 2 °C
Return loss:
All return loss measurements shall
Duration at each dwell temperature: 1 h
meet the criteria specified in 7.4.
Ramp time = 1 °C/minute
Test wavelengths:
1 550 nm ± 20 nm
Number of cycles: 5
Length of the cable on each side of the connector
inside the chamber: 1,5 m minimum
Specimen shall be optically functioning.
Sampling rate: initially at room ambient, after
1/2 h during each dwell (measurements to be
completed during dwell) and at the end of the test
at room ambient.
Preconditioning procedure: before test,
specimens shall be maintained in room
temperature condition for 2 h.
Recovery procedure: after test, specimens shall
be maintained in room temperature condition for
2 h.
The connector samples shall not be uncoupled or
cleaned anytime during the test.
8 Flexing of Attenuation: IEC 61300-2-44
the strain All attenuation measurements shall
Magnitude of the tensile load: 2 N for connectors
relief of fibre meet the criteria specified in 7.4.
with reinforced cable
optic devices
Return loss:
Cycle: 0° to +90° to 0° to –90° to 0° (continuous
All return loss measurements shall
with reversing at ±90°)
meet the criteria specified in 7.4.
Number of cycles: 100
Test wavelengths:
1 310 nm ± 20 nm and 1 550 nm ±
Rate of application of the tensile load: 1 N/s for
20 nm
reinforced cable
NOTE This test does not apply to
Point of application of tensile load: 220 mm -
connectors without reinforced cable.
280 mm from cable entrance to plug
Sampling rate: initially, during and at the end of
the test. Measurement interval during the test
shall be <2 msec and transient monitoring shall
be performed according to IEC 61300-3-28.
Method of mounting: an adapter shall be mounted
rigidly to the test fixture.
Preconditioning procedure: clean plug and
adapter according to manufacturer’s instructions.
The connector samples shall not be uncoupled or
cleaned at anytime during the test.
– 12 – 61753-021-2 © IEC:2007
Table 2 (continued)
No Test Requirements Details
9 Fibre cable Attenuation: IEC 61300-2-4
retention All attenuation measurements shall
Magnitude and rate of application of the load for
meet the criteria specified in 7.4.
reinforced cables: 50 N ± 2 N at 5 N/s
Return loss:
Duration for reinforced cables: 120 s
All return loss measurements shall
meet the criteria specified in 7.4.
Magnitude and rate of application of the load for
secondary coated fibres: 5,0 N ± 0,5 N at 5 N/s
Test wavelengths:
1 550 nm ± 20 nm
Duration for buffered fibres: 60 s
Magnitude and rate of application of the load for
primary coated fibres: 2,0 N ± 0,5 N at 5 N/s
Duration for buffered fibres: 60 s
Point of application of tensile load: 0,3 m from the
end face of the connector
Sampling rate: Initially and after the load has
reached its maximum level and been maintained
for a minimum of 30 s
Specimen shall be optically functioning.
Preconditioning procedure: clean plug and
adapter according to manufacturer’s instructions.
10 Impact Attenuation: IEC 61300-2-12 Method A
All attenuation measurements shall
Number of drops: 5 for each plug
meet the criteria specified in 7.4.
Drop height: 1,5 m
Return loss:
All return loss measurements shall
Sampling rate: Initially and after the last drop
meet the criteria specified in 7.4.
Specimen shall be unmated during drop cycles.
Test wavelengths:
Preconditioning procedure: clean plug and
1 550 nm ± 20 nm
adapter according to manufacturer’s instructions.
Place a dust cap over the ferrule to protect the
fibre endface.
Recovery procedure: the connector may be
cleaned after each drop before measurement.
11 Tensile Attenuation: IEC 61300-2-6
strength of All attenuation measurements shall
Magnitude and rate of application of the load:
coupling meet the criteria specified in 7.4.
40 N ± 1 N at 2 N/s
mechanism
Return loss:
Duration: 60 s
All return loss measurements shall
meet the criteria specified in 7.4.
Sampling rate: Initially and after the load has
reached its maximum level and been maintained
Test wavelengths:
for a minimum of 30 s
1 550 nm ± 20 nm
Specimen shall be optically functioning.
Preconditioning procedure: clean plug and
adapter according to manufacturer’s instructions.
61753-021-2 © IEC:2007 – 13 –
Table 2 (continued)
No Test Requirements Details
12 Static side Attenuation: IEC 61300-2-42
load All attenuation measurements shall
Magnitude of the load for reinforced cables: 1 N
meet the criteria specified in 7.4.
Duration for reinforced cables: 1 h
Return loss:
All return loss measurements shall
Magnitude of the load for buffered fibres: 0,2 N
meet the criteria specified in 7.4.
Duration for buffered fibres: 5 min
Test wavelengths:
Static side load shall be applied in two mutually
1 550 nm ± 20 nm
perpendicular directions.
Sampling rate: Initially and 3 min maximum
intervals
Specimen shall be optically functioning.
Preconditioning procedure: clean plug and
adapter according to manufacturer’s instructions.
13 Mating Attenuation: IEC 61300-2-2
durability All attenuation measurements shall
Coupling mechanism to be cycled:
meet the criteria specified in 7.4.
plug-adapter
Return loss:
Cycling rate: not less than 3 s between each
All return loss measurements shall
engagement and separation
meet the criteria specified in 7.4.
Number of cycles: 500 minimum
Test wavelengths:
1 550 nm ± 20 nm
Specimen shall be optically functioning.
In the event that the attenuation
Preconditioning procedure: clean plug and
increases above the allowable limit,
adapter according to manufacturer’s instructions.
the connector may be cleaned as
Recovery procedure: the mechanical and optical
necessary but not more than 25 times
alignment parts of the specimen may be cleaned
during the course of the test. (The
according to manufacturer’s instructions up to 2
measurements at which the cleaning
times after the final mating cycle.
takes place shall be discounted from
the test results).
14 Visual The connector plugs and adapters IEC 61300-3-1
inspection shall be inspected for damage that
might impair the performance. This
inspection shall include:
− distortion of housing parts, as
indicated by difficulty in
insertion, improper snap-fits,
etc.;
− distortion of ferrules and
sleeves, as indicated by change
in mating force, changes in
endface geometry, etc.;
− housing cracks;
− presence of debris, shavings,
etc.;
− corrosion or residue;
− ferrule end-face cracks chips or
scratches;
− other potentially service-affecting
damage.
– 14 – 61753-021-2 © IEC:2007
Annex A
(normative)
Sample size, test sequencing and grouping requirements
The tests in Table A.1 are intended to be performed individually on products selected as
defined in 7.2, although products from a previous test may be used if desired. The tests may
also be performed in any order providing the product is selected as defined.
Table A.1 – Sample size, test sequencing and grouping requirements
Test Sample size Source
Test No. Pigtail Jumper Cable
Assembly Assembly
1 Attenuation (random mate) 20 5 New
2 Return loss (random mate) 20 5 Test 1
3 Vibration 5 -- Test 2
4 Cold 5 5 Test 2
5 Dry heat - high temperature endurance 5 5 Test 2
6 Damp heat (steady state) 5 5 Test 2
7 Change of temperature 5 5 Test 2
8 Flexing of the strain relief of fibre optic 5 5 Test 2
devices
9 Fibre cable retention 5 -- Test 2
10 Impact 5 -- Test 2
11 Tensile strength of coupling 5 -- Test 2
12 Static side load 5 -- Test 2
13 Mating durability 5 -- Test 2
14 Visual Inspection 5 -- All
___________
– 16 – 61753-021-2 © CEI:2007
SOMMAIRE
AVANT-PROPOS.17
1 Domaine d'application .19
2 Références normatives.19
3 Termes et définitions .20
4 Essais .21
5 Rapport d'essais.22
6 Composants de référence.22
7 Prescriptions de performances .22
7.1 Dimensions .22
7.2 Nombre d'échantillons, séquences et groupements d’essais.22
7.3 Géométrie de l’extrémité .22
7.4 Critères d’aptitude à la fonction .22
7.5 Détails de qualité de fonctionnement.23
Annexe A (normative) Exigences relatives au nombre d'échantillons, aux séquences
et aux groupements d’essais.30
Figure 1 – Assemblage de fibres-amorces .21
Figure 2 – Assemblage de jarretières.21
Tableau 1 – Niveaux de qualité de fonctionnement .23
Tableau 2 – Détails de qualité de fonctionnement .23
Tableau A.1 – Exigences relatives au nombre d'échantillons, aux séquences et aux
groupements d’essais .30
61753-021-2 © CEI:2007 – 17 –
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
NORME DE QUALITÉ DE FONCTIONNEMENT DES DISPOSITIFS
D'INTERCONNEXION ET COMPOSANTS PASSIFS À FIBRES OPTIQUES –
Partie 021-2: Connecteurs à fibres optiques
unimodales de classe C/3 pour la catégorie C –
Environnement contrôlé
AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a
pour objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les
domaines de l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent
également aux travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses publications; la CEI ne peut pas être tenue responsable
de l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de la CEI s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de la CEI dans leurs publications
nationales et régionales. Toutes divergences entre toutes Publications de la CEI et toutes publications
nationales ou régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) La CEI n’a prévu aucune procédure de marquage valant indication d’approbation et n'engage pas sa
responsabilité pour les équipements déclarés conformes à une de ses Publications.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsabilité ne doit être imputée à la CEI, à ses administrateurs, employés, auxiliaires ou
mandataires, y compris ses experts particuliers et les membres de ses comités d'études et des Comités
nationaux de la CEI, pour tout préjudice causé en cas de dommages corporels et matériels, ou de tout autre
dommage de quelque nature que ce soit, directe ou indirecte, ou pour supporter les coûts (y compris les frais
de justice) et les dépenses découlant de la publication ou de l'utilisation de cette Publication de la CEI ou de
toute autre Publication de la CEI, ou au crédit qui lui est accordé.
8) L'attention est attirée sur les références normatives citées dans cette publication. L'utilisation de publications
référencées est obligatoire pour une application correcte de la présente publication.
9) L’attention est attirée sur le fait que certains des éléments de la présente Publication de la CEI peuvent faire
l’objet de droits de propriété intellectuelle ou de droits analogues. La CEI ne saurait être tenue pour
responsable de ne pas avoir identifié de tels droits de propriété et de ne pas avoir signalé leur existence.
La Norme internationale CEI 61753-021-2 a été établie par le sous-comité 86B: Dispositifs
d'interconnexion et composants passifs à fibres optiques, du comité d'études 86 de la CEI:
Fibres optiques.
Cette deuxième édition annule et remplace la première édition parue en 2002 et constitue une
révision technique. Cette norme a été mise à jour afin de prendre en compte des
modifications effectuées dans la CEI 61753-1.
– 18 – 61753-021-2 © CEI:2007
Le texte de cette norme est issu des documents suivants:
FDIS Rapport de vote
86B/2602/FDIS 86B/2655/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cette norme.
Cette publication a été rédigée selon les Directives ISO/CEI, Partie 2.
Une liste de toutes les parties de la CEI 60601, sous le titre général: Norme de qualité de
fonctionnement des dispositifs d'interconnexion et composants passifs à fibres optiques, est
disponible sur le site web de la CEI.
Le comité a décidé que le contenu de cette publication ne sera pas modifié avant la date de
maintenance indiquée sur le site web de la CEI sous "http://webstore.iec.ch" dans les
données relatives à la publication recherchée. A cette date, la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
61753-021-2 © CEI:2007 – 19 –
NORME DE QUALITÉ DE FONCTIONNEMENT DES DISPOSITIFS
D'INTERCONNEXION ET COMPOSANTS PASSIFS À FIBRES OPTIQUES –
Partie 021-2: Connecteurs à fibres optiques
unimodales de classe C/3 pour la catégorie C –
Environnement contrôlé
1 Domaine d'application
La présente partie de la CEI 61753 définit les exigences d'essais et de mesures et les
sévérités initiales minimales C/3 auxquels un assemblage câble/connecteur unimodaux doit
satisfaire, afin d'être considéré comme satisfaisant aux critères de la catégorie C
(environnements contrôlés) des normes CEI définis dans l'Article A.2 de la CEI 61753-1.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent
document. Pour les références datées, seule l'édition citée s'applique. Pour les références
non datées, la dernière édition du document de référence s'applique (y compris les éventuels
amendements).
CEI 60793-2-50, Fibres optiques – Partie 2-50: Spécifications de produits – Spécification
intermédiaire pour les fibres unimodales de classe B
CEI 61300-2-1, Dispositifs d'interconnexion et composants passifs à fibres optiques –
Méthodes fondamentales d'essais et de mesures – Partie 2-1: Essais – Vibrations
(sinusoïdales)
CEI 61300-2-2, Dispositifs d'interconnexion et composants passifs à fibres optiques –
Méthodes fondamentales d'essais et de mesures – Partie 2-2: Essais – Durabilité de
...
