Specifications for particular types of winding wires –
Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60317-67 ®
Edition 1.1 2024-03
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Specifications for particular types of winding wires –
Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.060.10 ISBN 978-2-8322-8684-5
REDLINE VERSION – 2 – IEC 60317-67:2017+AMD1:2024 CSV
© IEC 2024

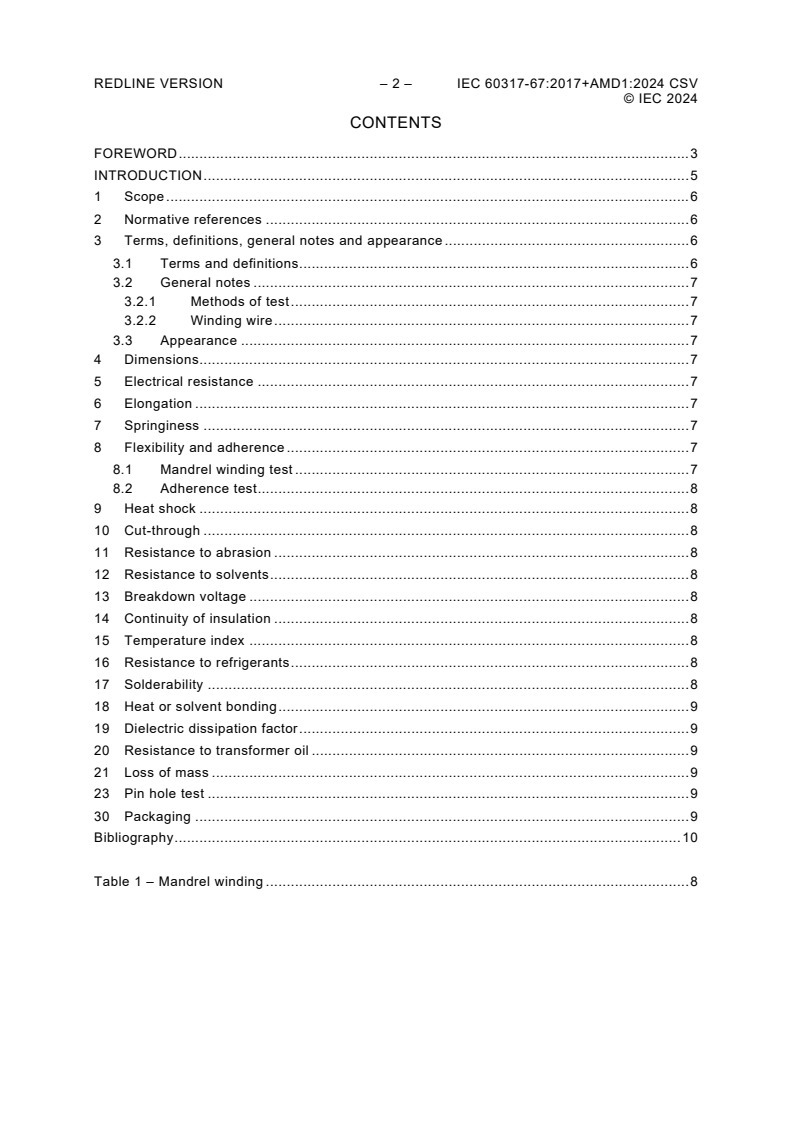

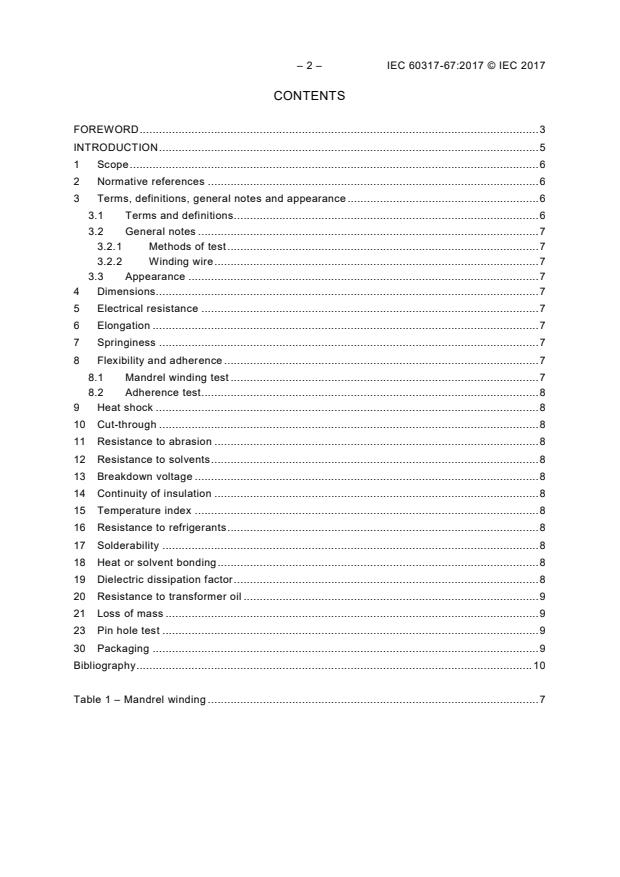

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 7
3.2.1 Methods of test . 7
3.2.2 Winding wire . 7
3.3 Appearance . 7
4 Dimensions. 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
8.1 Mandrel winding test . 7
8.2 Adherence test . 8
9 Heat shock . 8
10 Cut-through . 8
11 Resistance to abrasion . 8
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 8
18 Heat or solvent bonding . 9
19 Dielectric dissipation factor . 9
20 Resistance to transformer oil . 9
21 Loss of mass . 9
23 Pin hole test . 9
30 Packaging . 9
Bibliography . 10

Table 1 – Mandrel winding . 8

© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 60317-67 edition 1.1 contains the first edition (2017-01) [documents 55/1569/CDV
and 55/1590/RVC] and its amendment 1 (2024-03) [documents 55/1975/CDV and
55/2009/RVC].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
REDLINE VERSION – 4 – IEC 60317-67:2017+AMD1:2024 CSV
© IEC 2024
International Standard IEC 60317-67 has been prepared by IEC technical committee 55:
Winding wires.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This International Standard is to be read in conjunction with IEC 60317-0-9:2015.
A list of all parts in the IEC 60317, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The numbering of clauses in this standard is not continuous from Clauses 21 through 30 in
order to reserve space for possible future wire requirements prior to those for wire packaging.
The committee has decided that the contents of this document and its amendment will remain
unchanged until the stability date indicated on the IEC website under webstore.iec.ch in the
data related to the specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
© IEC 2024
INTRODUCTION
This part of IEC 60317 forms an element of a series of standards which deals with insulated
wires used for windings in electrical equipment. The series has three groups describing:
1) Winding wires – Test methods (IEC 60851 series);
2) Specifications for particular types of winding wires (IEC 60317 series);
3) Packaging of winding wires (IEC 60264 series).

REDLINE VERSION – 6 – IEC 60317-67:2017+AMD1:2024 CSV
© IEC 2024
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105

1 Scope
This part of IEC 60317 specifies the requirements of enamelled rectangular aluminium
winding wire of class 105 with a sole coating based on polyvinyl acetal or polyvinyl formal
resin, which may can be modified providing it retains the chemical identity of the original resin
and meets all specified wire requirements.
NOTE 1 A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance of application characteristics.
NOTE 2 Polyvinyl acetal is a general name for a family of thermoplastic vinyl resins produced by the
condensation of polyvinyl alcohol with an aldehyde. Examples are polyvinyl acetal, polyvinyl formal and polyvinyl
butyral.
The range of nominal conductor dimensions covered by this standard is:
Minimum Maximum
Width 2,0 mm 16,0 mm
Thickness 0,80 mm 5,60 mm
Wires of grade 1 and grade 2 are included in this part of IEC 60317 and apply to the complete
range of conductors.
The specified combinations of width and thickness as well as the specific ratio width/thickness
are given in IEC 60317-0-9.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60317-0-9:2015, Specifications for particular types of winding wires – Part 0-9: General
requirements – Enamelled rectangular aluminium wire
IEC 60317-0-9:2015/AMD1:2024
IEC 60851-4:2016, Winding wires – Test methods – Part 4: Chemical properties
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60317-0-9:2015
apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
© IEC 2024
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 General notes
3.2.1 Methods of test
Subclause 3.2.1 of IEC 60317-0-9:2015 and IEC 60317-0-9:2015/AMD1:2024 applies.
In case of inconsistencies between IEC 60317-0-9 and this part of IEC 60317 document, the
latter IEC 60317-67 shall prevail.
3.2.2 Winding wire
Class 105 is a thermal class that requires a minimum temperature index of 105 and a heat
shock resistance of at least 155 °C.
The temperature in degrees Celsius corresponding to the temperature index is not necessarily
that at which it is recommended that the wire be operated and this will depend on many
factors, including the type of equipment involved.
3.3 Appearance
See 3.3 of IEC 60317-0-9:2015.
4 Dimensions
Clause 4 of IEC 60317-0-9:2015 applies.
5 Electrical resistance
Clause 5 of IEC 60317-0-9:2015 and IEC 60317-0-9:2015/AMD1:2024 applies.
6 Elongation
Clause 6 of IEC 60317-0-9:2015 applies.
7 Springiness
Test appropriate but no requirements specified.
8 Flexibility and adherence
8.1 Mandrel winding test
The coating shall show no crack after the wire has been bent flatwise and edgewise on a
mandrel with a diameter as specified in Table 1.

REDLINE VERSION – 8 – IEC 60317-67:2017+AMD1:2024 CSV
© IEC 2024
Table 1 – Mandr
...

IEC 60317-67 ®
Edition 1.0 2017-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105

Spécifications pour types particuliers de fils de bobinage –
Partie 67: Fil d’aluminium de section rectangulaire émaillé d’acétal de polyvinyle,
classe 105
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60317-67 ®
Edition 1.0 2017-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105

Spécifications pour types particuliers de fils de bobinage –

Partie 67: Fil d’aluminium de section rectangulaire émaillé d’acétal de polyvinyle,

classe 105
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-4723-5

– 2 – IEC 60317-67:2017 © IEC 2017
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 7
3.2.1 Methods of test . 7
3.2.2 Winding wire . 7
3.3 Appearance . 7
4 Dimensions. 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
8.1 Mandrel winding test . 7
8.2 Adherence test . 8
9 Heat shock . 8
10 Cut-through . 8
11 Resistance to abrasion . 8
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 8
18 Heat or solvent bonding . 8
19 Dielectric dissipation factor . 8
20 Resistance to transformer oil . 9
21 Loss of mass . 9
23 Pin hole test . 9
30 Packaging . 9
Bibliography . 10

Table 1 – Mandrel winding . 7

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60317-67 has been prepared by IEC technical committee 55:
Winding wires.
This bilingual version (2017-08) corresponds to the monolingual English version, published in
2017-01.
The text of this standard is based on the following documents:
CDV Report on voting
55/1569/CDV 55/1590/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
The French version of this standard has not been voted upon.

– 4 – IEC 60317-67:2017 © IEC 2017
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This International Standard is to be read in conjunction with IEC 60317-0-9:2015.
A list of all parts in the IEC 60317, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The numbering of clauses in this standard is not continuous from Clauses 21 through 30 in
order to reserve space for possible future wire requirements prior to those for wire packaging.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
This part of IEC 60317 forms an element of a series of standards which deals with insulated
wires used for windings in electrical equipment. The series has three groups describing:
1) Winding wires – Test methods (IEC 60851 series);
2) Specifications for particular types of winding wires (IEC 60317 series);
3) Packaging of winding wires (IEC 60264 series).

– 6 – IEC 60317-67:2017 © IEC 2017
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105

1 Scope
This part of IEC 60317 specifies the requirements of enamelled rectangular aluminium
winding wire of class 105 with a sole coating based on polyvinyl acetal resin, which may be
modified providing it retains the chemical identity of the original resin and meets all specified
wire requirements.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance of application characteristics.
The range of nominal conductor dimensions covered by this standard is:
Minimum Maximum
Width 2,0 mm 16,0 mm
Thickness 0,80 mm 5,60 mm
Wires of grade 1 and grade 2 are included in this part of IEC 60317 and apply to the complete
range of conductors.
The specified combinations of width and thickness as well as the specific ratio width/thickness
are given in IEC 60317-0-9.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60317-0-9:2015, Specifications for particular types of winding wires – Part 0-9: General
requirements – Enamelled rectangular aluminium wire
IEC 60851-4:2016, Winding wires – Test methods – Part 4: Chemical properties
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60317-0-9:2015
apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

3.2 General notes
3.2.1 Methods of test
Subclause 3.2 of IEC 60317-0-9:2015 applies. In case of inconsistencies between
IEC 60317-0-9 and this part of IEC 60317, the latter sh
...
