Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures –
Part 2-5: Tests – Torsion
Dispositifs d’interconnexion et composants passifs à fibres optiques –
Méthodes fondamentales d’essais et de mesures –
Partie 2-5: Essais – Torsion
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and
a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or need CISPR.

further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,
webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en
La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues
en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire
comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.

projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary
IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais
Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des
Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées
Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org

IEC 61300-2-5 ®
Edition 3.0 2009-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Basic test and

measurement procedures –
Part 2-5: Tests – Torsion
Dispositifs d’interconnexion et composants passifs à fibres optiques –

Méthodes fondamentales d’essais et de mesures –

Partie 2-5: Essais – Torsion
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-8772-9

– 2 – IEC 61300-2-5:2009  IEC 2009

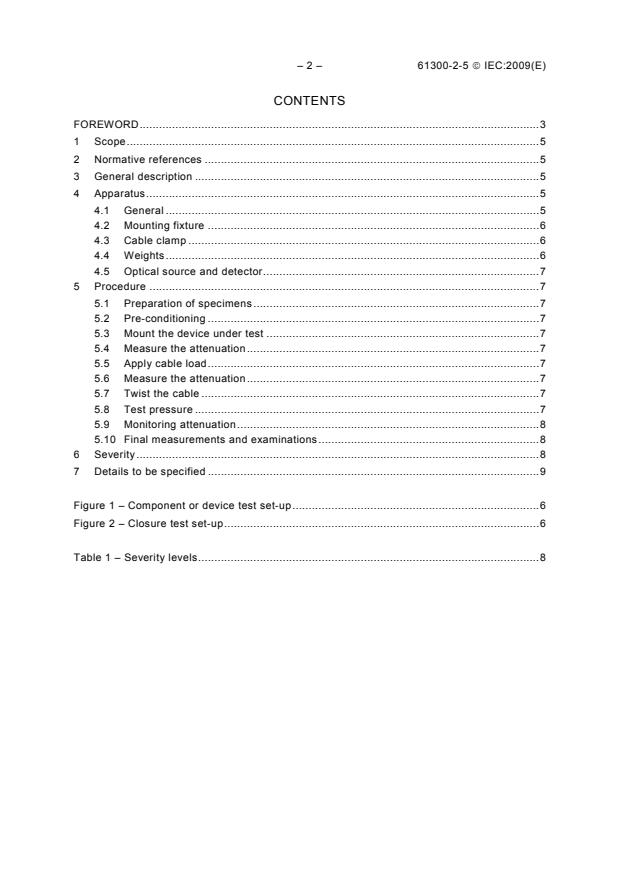

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 General description . 5
4 Apparatus . 5
4.1 General . 5
4.2 Mounting fixture . 6
4.3 Cable clamp . 6
4.4 Weights . 6
4.5 Optical source and detector . 7
5 Procedure . 7
5.1 Preparation of specimens . 7
5.2 Pre-conditioning . 7
5.3 Mount the device under test . 7
5.4 Measure the attenuation . 7
5.5 Apply cable load . 7
5.6 Measure the attenuation . 7
5.7 Twist the cable . 7
5.8 Test pressure . 7
5.9 Monitoring attenuation . 8
5.10 Final measurements and examinations . 8
6 Severity . 8
7 Details to be specified . 9

Figure 1 – Component or device test set-up . 6
Figure 2 – Closure test set-up . 6

Table 1 – Severity levels . 8

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –

Part 2-5: Tests – Torsion
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61300-2-5 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
This third edition cancels and replaces the second edition, published in 2002 and constitutes
a technical revision. Specific technical changes from the previous edition are as follows:
– the title was changed;
– the procedure was reconsidered;
– the figure of closure test set-up was added;
– the severity of the test was reconsidered according to the component.

– 4 – IEC 61300-2-5:2009  IEC 2009
The text of this standard is based on the following documents:
FDIS Report on voting
86B/2774/FDIS 86B/2806/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61300 series, published under the general title Fibre optic
interconnecting devices and passive components – Basic test and measurement procedures
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –

Part 2-5: Tests – Torsion
1 Scope
The purpose of this part of IEC 61300 is to determine the ability of the cable attachment
element of the device under test to withstand torsional loads, while under tension, as might be
experienced during installation and normal service. The scope of the test also includes those
elements designed for ribbon cables.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61300-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 1: General guidance
IEC 61300-3-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-1: Examinations and measurements – Visual examination
IEC 61300-3-3, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-3: Examinations and measurements – Active monitoring of
changes in attenuation and return loss
IEC 61300-3-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-4: Examinations and measurements – Attenuation
IEC 61300-3-6, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-6: Examinations and measurements – Return loss
3 General description
The cable-to-device interface, while under a specified tension, is subjected to a torsional load
or twisting action to determine the effects of this action on the physical and optical properties
of the device.
4 Apparatus
4.1 General
The test apparatus shall be capable of applying simultaneously both tension and a torsional
load or twisting action to the cable-to-device interface. Figures 1 and 2 show the basic parts
of a test apparatus for component and closure test set-ups, respectively.

– 6 – IEC 61300-2-5:2009  IEC 2009
4.2 Mounting fixture
Use a fixture to rigidly mount the device under test and hold it in proper alignment throughout
the test. The fixture shall allow the device under test to be connected to an optical source and
detector for monitoring attenuation.
4.3 Cable clamp
The cable clamp is the point at which the torsional load is applied. The cable clamp shall be
capable of grasping and securing the cable so that it does not turn or slip in the holder when
loads are applied. The clamp shall not crush the optical fibres or cause a change in the
attenuation. The cable clamp may consist of a mandrel around which several turns of cable
are wrapped and secured.
4.4 Weights
Weights or another mechanism for applying a tensile load to the cable clamp are required.
Values of recommended loads are given in Table 1.

To optical source
Device
Mounting fixture (secure
under test
to prevent movement)
Weights, if specified
400 mm-1 000 mm
(See 5.3)
Cable clamp
(should facilitate
addition of weights To optical detector
if specified)
Twist in both directions
IEC  2300/08
Figure 1 – Component or device test set-up

Closure
Clamping distance
Cable
3 1
Cable seal
Sample fixation
IEC  2301/08
Figure 2 – Closure test set-up

4.5 Optical source and detector
The optical source and detector used to measure changes in attenuation shall comply with
that specified in IEC 61300-3-4.
5 Procedure
5.1 Preparation of specimens
Prepare the specimens according to the manufacturer’s instructions or as specified in the
relevant specification. The device under test shall be terminated onto a sufficient length of
fibre cable to facilitate interfacing with the optical source and detector.
5.2 Pre-conditioning
Pre-condition the device under test for 2 h at the standard test conditions specified in
IEC 61300-1, unless otherwise specified in the relevant specification. Measure and record the
attenuation of the device under test.
5.3 Mount the device under test
The body of the specimen shall be rigidly mounted to a holding plate which is secured in a
fixed position (see Figure 1). The clamp to which the load can be applied shall be fastened to
the cable in such a manner that the optical fibre or cable is not crushed. The top of the cable
clamp shall be 400 mm from the end of the strain relief, if used (see Figure 1). For cable
diameters larger than 25 mm, the top of the cable clamp shall be 1 000 mm from the end of
the strain relief. If there is no strain relief, the end of the specimen nearest the cable clamp
shall be the reference.
5.4 Measure the attenuation
Re-measure the attenuation to ensure that the fixturing and cable clamping have not affected
the cable's attenuation.
5.5 Apply cable load
Gradually apply the tensile load, as recommended in Table 1 or as specified in the relevant
specification, to the cable clamping fixture, being careful to avoid any sudden jerking or
straining of the cable.
5.6 Measure the attenuation
After the load is applied, re-measure the attenuation of the specimen. This value shall be
recorded and used as a reference to determine the effects of the twisting motion.
5.7 Twist the cable
Apply a twisting motion to the cable-clamping device, being careful to control the vertical and
horizontal motion of the load. One twist cycle shall consist of a twist angle (as indicated in
Table 1 or in the relevant specification) in one direction, a return to the original position, a
twist angle (as indicatead in Table 1 or in the relevant specification) in the opposite direction
and a final return to the original position. Repeat the twist cycle as many times as specified in
Table 1, or in the relevant specification.
5.8 Test pressure
For Category S closures, use a test pressure: 40 kPa ± 2 kPa over-pressure at test
temperature. For products used in pressurized networks, all testing should be carried out at
98,0 kPa ± 9,8 kPa over-pressure instead of 40 kPa over-pressure.

– 8 – IEC 61300-2-5:2009  IEC 2009
5.9 Monitoring attenuation
The attenuation of the specimen shall be monitored during the test, as described in
IEC 61300-3-3, unless otherwise specified in the relevant specification. Any deviation in the
device attenuation from that measured in IEC 61300-3-6 shall be considered attributable to
the cable/device interface, fibre-to-fibre interfaces or fibre-to-source/detector interfaces in the
device.
NOTE If there are unacceptable changes in attenuation and it is questionable whether the cable itself may be at
fault, a control test to determine cable contribution shall be performed in the same manner using a piece of cable
and two cable clamps.
5.10 Final measurements and examinations
After completion of the cable twist cycling, remove all fixtures and make a final attenuation
measurement to ensure that there is no permanent damage to the device under test. The
results of the final measurement shall be within the limit established in the relevant
specification.
Remove the device from the mounting fixture and, unless otherwise specified, visually
examine the specimens in accordance with IEC 61300-3-1. Check for evidence of any
degradation in the specimen. Th
...
