IEC 61753-082-2:2008

IEC 61753-082-2
Edition 1.0 2008-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components performance
standard –
Part 082-2: Pigtailed single-mode fibre optic 1,31/1,55 μm WWDM devices for
category C – Controlled environment

Norme de qualité de fonctionnement des dispositifs d’interconnexion et
composants passifs à fibres optiques –
Partie 082-2: Dispositifs WWDM 1,31/1,55 μm à fibres optiques unimodales
munies d’amorce pour la catégorie C – Environnement contrôlé

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61753-082-2
Edition 1.0 2008-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components performance
standard –
Part 082-2: Pigtailed single-mode fibre optic 1,31/1,55 μm WWDM devices for
category C – Controlled environment

Norme de qualité de fonctionnement des dispositifs d’interconnexion et
composants passifs à fibres optiques –
Partie 082-2: Dispositifs WWDM 1,31/1,55 μm à fibres optiques unimodales
munies d’amorce pour la catégorie C – Environnement contrôlé

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
P
CODE PRIX
ICS 33.180.10 ISBN 2-8318-9795-5

– 2 – 61753-082-2 © IEC:2008

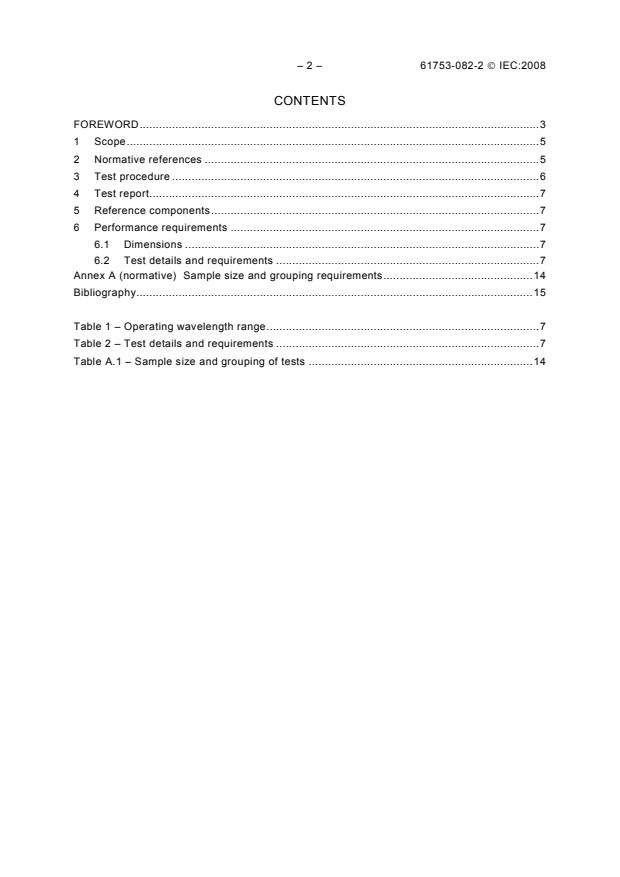

CONTENTS
FOREWORD.3
1 Scope.5
2 Normative references .5
3 Test procedure .6
4 Test report.7
5 Reference components.7
6 Performance requirements .7
6.1 Dimensions .7
6.2 Test details and requirements .7
Annex A (normative) Sample size and grouping requirements.14
Bibliography.15

Table 1 – Operating wavelength range.7
Table 2 – Test details and requirements .7
Table A.1 – Sample size and grouping of tests .14

61753-082-2 © IEC:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES AND
PASSIVE COMPONENTS PERFORMANCE STANDARD –

Part 082-2: Pigtailed single-mode fibre optic
1,31/1,55 μm WWDM devices for category C –
Controlled environment
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61753-082-2 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/2697/FDIS 86B/2714/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 61753-082-2 © IEC:2008
A list of all parts of the IEC 61753 series, published under the general title Fibre optic
interconnecting devices and passive components performance standard, can be found on the
IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
61753-082-2 © IEC:2008 – 5 –
FIBRE OPTIC INTERCONNECTING DEVICES AND
PASSIVE COMPONENTS PERFORMANCE STANDARD –

Part 082-2: Pigtailed single-mode fibre optic
1,31/1,55 μm WWDM devices for category C –
Controlled environment
1 Scope
This part of IEC 61753 contains the minimum initial test and measurement requirements and
severities which a fibre optic 1,31/1,55 μm WWDM (wide wavelength division multiplexing)
device shall satisfy in order to be categorised as meeting the IEC standard, category C,
controlled environment. The requirements cover devices with single-mode pigtails.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60793-2-50, Optical fibres – Part 2-50:Product specifications – Sectional specification for
class B single-mode fibres
IEC 61300 (all parts), Fibre optic interconnecting devices and passive components – Basic
test and measurement procedures
IEC 61300-2-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-1: Tests – Vibration (sinusoidal)
IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-4: Tests – Fibre/cable retention
IEC 61300-2-9, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-9: Tests – Shock
IEC 61300-2-14, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-14: Tests – Optical power handling and damage
threshold characterisation
IEC 61300-2-17, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-17: Tests – Cold
IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-18: Tests – Dry heat – High temperature endurance
IEC 61300-2-19, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-19: Tests – Damp heat (steady state)
IEC 61300-2-22, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-22: Tests – Change of temperature

– 6 – 61753-082-2 © IEC:2008
IEC 61300-2-42, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-42: Tests – Static side load for connectors
IEC 61300-2-44, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-44: Tests – Flexing of the strain relief of fibre optic
devices
IEC 61300-3-2, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-2: Examinations and measurements – Polarization
dependence of attenuation in a single-mode fibre optic device
IEC 61300-3-3, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-3: Examinations and measurements – Active monitoring of
changes in attenuation and return loss
IEC 61300-3-7, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-7: Examinations and measurements – Wavelength
dependence of attenuation and return loss
IEC 61300-3-20, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-20: Examinations and measurements – Directivity of
fibre optic branching devices
IEC 61753-021-2, Fibre optic interconnecting devices and passive components performance
standard – Part 021-2: Grade C/3 single-mode fibre optic connectors for category C –
Controlled environment
3 Test procedure
Unless otherwise specified, all test methods are in accordance with IEC 61300 series
standard. Each test defines the number of samples to be evaluated. The samples used for
each test are intended to be previously unstressed new samples but may also be selected
from previously used samples if desired. The samples shall be terminated onto single-mode
fibres as per IEC 60793-2-50, Type B 1.1, in either coated fibres (primary and secondary) or
reinforced cable format. All measurements shall be carried out at normal room conditions,
unless otherwise stated.
All tests are to be carried out to validate performance over the required operating wavelength
range. All tests shall be carried out over the complete optical wavelength range.
The operating wavelength ranges are different for different variants of WWDM and may vary
depending on the application. The operating wavelength ranges for used WWDM are pointed
out in Table 1.
61753-082-2 © IEC:2008 – 7 –
Table 1 – Operating wavelength range
Operating wavelength Operating
range wavelength range
Variant 1 1290 nm – 1330 nm 1530 nm – 1570 nm
Variant 2 1270 nm – 1350 nm 1510 nm – 1590 nm

NOTE Other variants with different nominal channel central wavelengths and operating wavelength ranges can be
defined similarly in accordance with IEC/PAS 62074-1.
4 Test report
Fully documented test reports and supporting evidence shall be prepared and be available for
inspection as evidence that the tests have been carried out and complied with.
5 Reference components
The testing for these components does not require the use of reference components.
6 Performance requirements
6.1 Dimensions
Dimensions shall comply with either an appropriate IEC interface standard or with those given
in appropriate manufacturers drawings, where the IEC interface standard does not exist or
cannot be used.
6.2 Test details and requirements
The requirements are given only for pigtailed WDM devices. The connector performances
shall be in compliance with IEC 61753-021-2.
Table 2 – Test details and requirements
No Tests Requirement Details
1 Attenuation
≤ 1,3 dB Launch
≥ 2 m
patchcord
IEC 61300-3-7
Attenuation shall be met over
length:
the operating wavelength range
according to Table 1 Source type: Unpolarised

Launch The wavelength of the source
conditions: shall be longer than cut-off
wavelength of the fibre
Other Test results should be
requirements: obtained under measurement
uncertainty of ± 0,1 dB
2 Wavelength Isolation
≥ 15 dB (Type A) Launch ≥ 2 m
IEC 61300-3-7
patchcord
≥ 40 dB (Type B)
length:
Wavelength isolation shall be
met over the operating Source type: Unpolarised
wavelength range according to
Launch The wavelength of the source
Table 1
conditions: shall be longer than cut-off

wavelength of the fibre
Other Test results should be
requirements: obtained under measurement
uncertainty of ± 0,1 dB
– 8 – 61753-082-2 © IEC:2008
No Tests Requirement Details
3 Out of band
≥ 20 dB Launch ≥ 2 m
attenuation
patchcord
Out of band attenuation shall
length:
IEC 61300-3-7
be met over the operating
wavelength range according to Source type: Unpolarised
Table 1
Launch The wavelength of the source
conditions: shall be longer than cut-off
wavelength of the fibre
Other Test results should be
requirements: obtained under measurement
uncertainty of ± 0,1 dB
4 Directivity
≥ 35 dB Class T Source: LD
IEC 61300-3-20
≥ 60 dB Class V
Other Test results should be
requirements: obtained under measurement

Directivity shall be met over the
uncertainty of ± 1 dB
operating wavelength range
according to Table 1
All ports not under test shall
be terminated to avoid
unwanted reflections
contributing to the
measurement
The directivity shall be
measured between any pair of
input or output ports
NOTE Because of the high cost
of this test, the buyer and the
manufacturer may agree to
discard it. However, the potential
negative effect of this parameter
on system performance must not
be neglected.
5 Return Loss
≥ 35 dB Type T Source: LD
IEC 61300-3-7
≥ 60 dB Type V Other Test results should be
requirements: obtained under measurement
Return loss shall be met over
uncertainty of ± 1 dB
the operating wavelength range
according to Table 1
All ports not under test shall
be terminated to avoid
unwanted reflections
contributing to the
measurement
NOTE Because of the high cost
of this test, the buyer and
manufacturer may agree to
discard it. However, the potential
negative effect of this parameter
on system performance must not
be neglected.
Polarisation ≤ 0,2 dB Launch ≥ 2 m
dependent loss patchcord
PDL shall be met over the
length:
IEC 61300-3-2 operating wavelength range
according to Table 1 Source type: LD
Other Test results should be
requirements: obtained under measurement
uncertainty of ± 0,05 dB
61753-082-2 © IEC:2008 – 9 –
No Tests Requirement Details
Optical power ≥100 mW Source type: LD
handling and
After the test the attenuation Max. total input + 20 dBm
damage threshold
limits of test No. 1 shall be met power to be
characterisation
applied:
After the test the isolation limits
IEC 61300-2-14
of test No.2 shall be met
Max. channel + 6 dBm
input power to
After the test the out of band
be applied:
attenuation limits of test No.3
shall be met
Power 3 dB
increments:
After the test the return loss
limits of test No.5 shall be met
Test duration: 30 min at each power level
Other Test results should be
requirements: obtained under attenuation
measurement uncertainty of
± 0,1 dB
Test results should be
obtained under return loss
measurement uncertainty of
± 1 dB
Cold During the test the attenuation Temperature:
- 10 °C ± 2 °C
value shall be measured at a
IEC 61300-2-17
Duration of the 96 h
maximum interval of 1 h
exposure:
During and after the test the
Maximum 1 h
attenuation limits of test No.1
sampling
shall be met, and the
interval during
attenuation shall be within
the test:
±0,5 dB of the original value.
During the test monitoring shall
Measurements Attenuation shall be
be according to IEC 61300-3-3
required: measured before, during
and after the test
After the test the isolation limits
of test No.2 shall be met
Return loss shall be
measured before, during
After the test the out of band
and after the test
attenuation limits of test No.3
shall be met
After the test the return loss
limits of test No.5 shall be met

– 10 – 61753-082-2 © IEC:2008
No Tests Requirement Details
9 Dry Heat – High
During the test the attenuation Temperature: + 60 °C ± 2 °C
Temperature
value shall be measured at
Endurance Duration of the 96 h
maximum interval of 1 h during
exposure:
the first 16 h, and thereafter at
IEC 61300-2-18
a maximum interval of 24 h
Maximum 1 h
until completion of the test
sampling
interval during
During and after the test the
the test:
attenuation limits of test No.1
shall be met, and the
Measurements Attenuation shall be
attenuation shall be within
required: measured before, during
±0,5 dB of the original value.
and after the test
During the test monitoring shall
Return loss shall be
be according to IEC 61300-3-3
measured before, during
After the test the isolation limits
and after the test
of test No.2 shall be met
After the test the out of band
attenuation limits of test No.3
shall be met
After the test the return loss
limits of test No.5 shall be met
10 Change of
During the test the attenuation High + 60 °C ± 2 °C
Temperature
value shall be measured at temperature:
maximum interval of 30 min
IEC 61300-2-22,
Low
- 10 °C ± 2 °C
test Nb
During the test, the attenuation temperature:
limits of test No.1 shall be met.

Number of 5
During and after the test the
cycles:
attenuation shall be within
±0,5 dB of the original value at
Rate of 1 °C/min … 2 °C/min
ambient conditions. During the
temperature
test monitoring shall be
change:
according to IEC 61300-3-3
Duration at 1 h
After the test the isolation limits
extreme
of test No.2 shall be met.
temperatures:
After the test the out of band
Maximum
30 min
attenuation limits of test No.3
sampling
shall be met
interval during
the test:
After the test the return loss
limits of test No.5 shall be met
Measurements Attenuation shall be
required: measured before, during
and after the test
Return loss shall be
measured before, during
and after the test
61753-082-2 © IEC:2008 – 11 –
No Tests Requirement Details
11 Damp Heat (Steady
During the test the attenuation Temperature: + 40 °C ± 2 °C
State)
value shall be measured at
Humidity:
93 % RH ± 2 % RH
maximum interval of 1 h
IEC 61300-2-19
Duration of the 96 h
During and after the test the
exposure:
attenuation limits of test No.1
shall be met, and the
Maximum 1 h
attenuation shall be within
sampling
±0,5 dB of the original value.
interval during
During the test monitoring shall
the test:
be according to IEC 61300-3-3
Measurements Attenuation shall be
After the test the isolation limits
required: measured before, during
of test No.2 shall be met
and after the test
After the test the out of band
Return loss shall be
attenuation limits of test No.3
measured before, during
shall be met
and after the test
After the test the return loss
limits of test No.5 shall be met
Vibration After the test the attenuation Frequency 10 Hz – 55 Hz
limits of test No.1 shall be met, range:
IEC 61300-2-1
and the attenuation shall be
Constant 0,75 mm
within ±0,5 dB of the original

vibration
value
amplitude:
After the test the isolation limits
Number of 15
of test No.2 shall be met
cycles
After the test the out of band
(10 Hz - 55 Hz
attenuation limits of test No.3
-10 Hz):
shall be met
Frequency 1 octave/minute
After the test the return loss
change:
limits of test No.5 shall be met
Number of 3 orthogonal
axes:
Duration per 30 min
axis:
Measurements Attenuation shall be
required: measured before and after
the test
Return loss shall be
measured before and after
the test
– 12 – 61753-082-2 © IEC:2008
No Tests Requirement Details
13 Shock
After the test the attenuation Acceleration 500 G
limits of test No.1 shall be met, force:
IEC 61300-2-9
and the attenuation shall be
Number of 3 main axes, perpendicular
within ±0,5 dB of the original
axes: on each other
value at ambient conditions
Duration shock: 1 ms
After the test the isolation limits
of test No.2 shall be met
Pulse: Half sine
After the test the out of band
Number of 2 per axis (each in different
attenuation limits of test No.3
shocks: direction)
shall be met
Measurements Attenuation shall be
After the test the return loss
required: measured before, after each
limits of test No.5 shall be met
axis and after the test.
Return loss shall be
measured before and after
the test.
14 Fibre/Cable retention
During the test the attenuation Magnitude of
10 N ± 1 N for reinforced
limits of test No.1 shall be met. the load:
cable
IEC 61300-2-4
During and after the test the
5,0 N ± 0,5 N for secondary
attenuation shall be within
coated fibre
±0;5 dB of the original value at
ambient conditions. During the
2,0 N ± 0,2 N at 0,5 N/s for
test monitoring shall be
primary coated fibre
according to IEC 61300-3-3
Load 0,3 m from the end of device
After the test the isolation limits
application
of test No.2 shall be met
point:
After the test the out of band
Load rate: 5 N/s for reinforced cable
attenuation limits of test No.3
0,5 N/s for coated fibre
shall be met
After the test the return loss Duration of the 120 s at 10 N
limits of test No.5 shall be met
load:
60 s at 5 N and 2 N
Measurements Attenuation shall be
required: measured before and after
the test
Return loss shall be
measured before and after
the test
15 Flexing of the strain
During the test the attenuation Magnitude of
2,0 N ± 0,2 N for reinforced
relief of fibre optic
limits of test No.1 shall be met. the load:
cable
devices
During and after the test the
Rate of load 0,5 N/s for reinforced cable
attenuation shall be within +/-
IEC 61300-2-44
application:
0.5 dB of the original value at

ambient conditions. During the
Load 0,2 m from end of device
test monitoring shall be
application
according to IEC 61300-3-3
point:
After the test the isolation limits
Number of 30 cycles
of test No.2 shall be met
cycles:
After the test the out of band
Measurements Attenuation shall be
attenuation limits of test No.3
required: measured before and after
shall be met
the test
After the test the return loss
Return loss shall be
limits of test No.5 shall be met
measured before and after
the test
61753-082-2 © IEC:2008 – 13 –
No Tests Requirement Details
16 Static side load
During the test the attenuation Magnitude of 1,0 N ± 0,1 N for reinforced
limits of test No.1 shall be met. the load:
cable
IEC 61300-2-42
During and on completion of
0,2 N ± 0,1 N for secondary
the test the attenuation shall be
coated fibres
within ±0,5dB of the original
value at ambient conditions.
Load 0,3 m from the end of device
During the test monitoring shall
application
be according to IEC 61300-3-3
point:
After the test the isolation limits
Load rate: 0,5 N/s
of test No.2 shall be met
Duration of the 1 h at 1 N
After the test the out of band
load:
attenuation limits of test No.3 5 min at 0,2 N
shall be met
Measurements Attenuation shall be
After the test the return loss required: measured before and after
limits of test No.5 shall be met the test
Return loss shall be
measured before and after
the test
– 14 – 61753-082-2 © IEC:2008
Annex A
(normative)
Sample size and grouping requirements

Test groups shall be performed individually or in sequential order. The samples are sourced
as defined.
When testing in sequential order all the samples undergo tests 1 to 7. After completion of the
group 1 tests, the 12 specimens are divided into groups of samples; each one is subjected to
the tests of one of the different remaining groups in the order presented in Table A.1.
Table A.1 – Sample size and grouping of tests
Sequence
Test Sample size Group
number
1 Attenuation 12 1
2 Wavelength isola
...
