IEC 60317-0-9:2015

IEC 60317-0-9 ®
Edition 1.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 0-9: General requirements – Enamelled rectangular aluminium wire

Spécifications pour types particuliers de fils de bobinage –
Partie 0-9: Exigences générales – Fil de section rectangulaire émaillé en
aluminium
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60317-0-9 ®
Edition 1.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 0-9: General requirements – Enamelled rectangular aluminium wire

Spécifications pour types particuliers de fils de bobinage –

Partie 0-9: Exigences générales – Fil de section rectangulaire émaillé en

aluminium
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-2667-4

– 2 – IEC 60317-0-9:2015 © IEC 2015

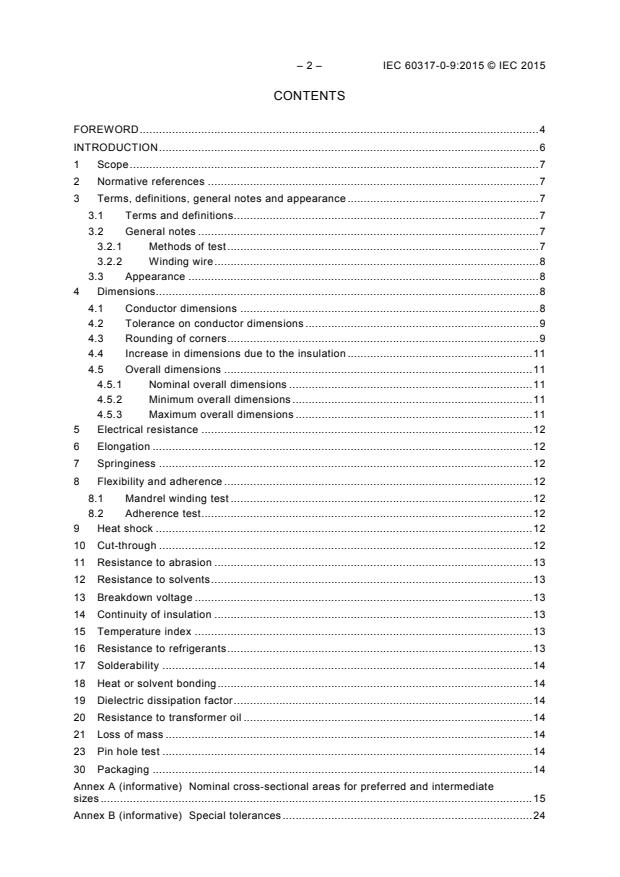

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, general notes and appearance . 7
3.1 Terms and definitions . 7
3.2 General notes . 7
3.2.1 Methods of test . 7
3.2.2 Winding wire . 8
3.3 Appearance . 8
4 Dimensions. 8
4.1 Conductor dimensions . 8
4.2 Tolerance on conductor dimensions . 9
4.3 Rounding of corners . 9
4.4 Increase in dimensions due to the insulation . 11
4.5 Overall dimensions . 11
4.5.1 Nominal overall dimensions . 11
4.5.2 Minimum overall dimensions . 11
4.5.3 Maximum overall dimensions . 11
5 Electrical resistance . 12
6 Elongation . 12
7 Springiness . 12
8 Flexibility and adherence . 12
8.1 Mandrel winding test . 12
8.2 Adherence test . 12
9 Heat shock . 12
10 Cut-through . 12
11 Resistance to abrasion . 13
12 Resistance to solvents . 13
13 Breakdown voltage . 13
14 Continuity of insulation . 13
15 Temperature index . 13
16 Resistance to refrigerants . 13
17 Solderability . 14
18 Heat or solvent bonding . 14
19 Dielectric dissipation factor . 14
20 Resistance to transformer oil . 14
21 Loss of mass . 14
23 Pin hole test . 14
30 Packaging . 14
Annex A (informative) Nominal cross-sectional areas for preferred and intermediate
sizes . 15
Annex B (informative) Special tolerances . 24

Bibliography . 25

Table 1– Conductor tolerances . 9
Table 2 – Nominal cross-sectional areas of preferred sizes . 10
Table 3 – Corner radii . 11
Table 4 – Increases in dimensions . 11
Table 5 – Mandrel winding . 12
Table 6 – Breakdown voltage . 13
Table A.1 – Nominal cross-sectional areas (1 of 9) . 15
Table B.1 – Overall dimensional tolerances for grade 2 . 24

– 4 – IEC 60317-0-9:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 0-9: General requirements – Enamelled rectangular aluminium wire

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60317-0-9 has been prepared by IEC technical committee 55:
Winding wires.
The text of this standard is based on the following documents:
FDIS Report on voting
55/1519/FDIS 55/1525/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The numbering of clauses in this standard is not continuous from Clauses 21 through 30 in
order to reserve space for possible future wire requirements prior to those for wire packaging.

A list of all parts in the IEC 60317 series, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 60317-0-9:2015 © IEC 2015
INTRODUCTION
This part of IEC 60317 is one of a series which deals with insulated wires used for windings in
electrical equipment. The series has three groups describing:
1) Winding wires – Test methods (IEC 60851 series);
2) Specifications for particular types of winding wires (IEC 60317 series);
3) Packaging of winding wires (IEC 60264 series).

SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 0-9: General requirements – Enamelled rectangular aluminium wire

1 Scope
This part of IEC 60317 specifies the general requirements of enamelled rectangular
aluminium winding wires.
The range of nominal conductor dimensions is given in the relevant specification sheet.
When reference is made to a winding wire according to a standard of the IEC 60317 series
mentioned under Clause 2, the following information is given in the description:
– reference to IEC specification;
– nominal conductor dimensions in millimetres (width × thickness);
– grade.
EXAMPLE IEC 60317-16 – 4,00 x 1,00 Grade 1
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60172 , Test procedure for the determination of the temperature index of enamelled and
tape wrapped winding wires
IEC 60317-0-1, Specifications for particular types of winding wires – Part 0-1: General
requirements – Enamelled round copper wire
IEC 60851 (all parts), Winding wires – Test methods
ISO 3, Preferred numbers – Series of preferred numbers
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60317-0-1 apply.
3.2 General notes
3.2.1 Methods of test
All methods of test to be used for this standard are given in IEC 60851.
___________
Fourth edition to be published.

– 8 – IEC 60317-0-9:2015 © IEC 2015
The clause numbers used in this standard are identical to the corresponding test numbers in
the IEC 60851 series of standards.
In case of inconsistencies between the publication on methods of test and this standard,
IEC 60317-0-9 shall prevail.
Where no specific range of nominal conductor dimensions is given for a test, the test applies
to all nominal conductor dimensions covered by the specification sheet.
Unless otherwise specified, all tests shall be carried out at a temperature from 15 °C to 35 °C
and a relative humidity from 45 % to 75 %. Before measurements are made, the specimens
shall be preconditioned under these atmospheric conditions for a time sufficient to allow the
specimens to reach stability.
The wire to be tested shall be removed from the packaging in such a way that the wire will not
be subjected to tension or unnecessary bends. Before each test, sufficient wire should be
discarded to ensure that any damaged wire is not included in the test specimens.
3.2.2 Winding wire
When reference is made to a winding wire according to a standard of the IEC 60317 series
mentioned under Clause 2, the following information is given in the description:
– reference to IEC specification;
– nominal conductor dimensions in millimetres (width × thickness);
– grade.
EXAMPLE IEC 60317-18 – 4,00 × 1,00 Grade 1
3.3 Appearance
The film coating shall be smooth and continuous, free from streaks, blisters and foreign
material when examined with normal vision, as wound on the original spool or reel.
4 Dimensions
4.1 Conductor dimensions
The dimensions for widths and thickness of conductors of winding wires with rectangular
cross-section recommended in this standard are taken from the R 20 and R 40 series
according to ISO 3.
Preferred sizes are combinations of width and thickness both according to the R 20 series.
Intermediate sizes are combinations of width or thickness according to the R 20 series with
the other dimension according to the R 40 series.
This standard covers:
– widths from 2,00 mm up to and including 16,00 mm;
– thicknesses from 0,80 mm up to and including 5,60 mm.
For thicknesses over 5,600 mm up to and including 10 mm and for widths over 16 mm up
to and including 25 mm where, for technical reasons, additional sizes may be needed, the
R 40 series shall be used. The ratio width/thickness shall be within the specified limits and
combinations of R 40 by R 40 are not allowed in the case of additional sizes.

The ratio width/thickness shall be greater than or equal to 1,4:1 and shall not exceed 8:1.
The actual values of dimensions are given in Table 2.
The nominal cross-sectional areas for preferred sizes are given in Table 2, and the nominal
cross-sectional areas for intermediate sizes are given in Table A.1.
4.2 Tolerance on conductor dimensions
The conductor dimensions shall not differ from the nominal values by more than the tolerance
given in Table 1.
Table 1– Conductor tolerances
Nominal width or thickness of the conductor Tolerance
mm
± mm
Over Up to and including
– 3,15 0,030
3,15 6,30 0,050
6,30 12,50 0,070
12,50 16,00 0,100
4.3 Rounding of corners
The arc shall merge smoothly into the flat surfaces of the conductor and the strip shall be free
from sharp, rough and projecting edges. The conductor shall have radiused corners complying
with Table 3. The specified radii shall be maintained within ±25 %.

– 10 – IEC 60317-0-9:2015 © IEC 2015

Table 2 – Nominal cross-sectional areas of preferred sizes
Thickness
mm 0,80 0,90 1,00 1,12 1,25 1,40 1,60 1,80 2,00 2,24 2,50 2,80 3,15 3,55 4,00 4,50 5,00 5,60
Corner radius (0,5 mm*) Corner radius (0,5 mm*) Corner radius (0,65 mm*) Corner radius (0,80 mm*) Corner radius (1,0 mm*)
2,00 1,463 1,626 1,785 2,025 2,285 2,585
2,24 1,655 1,842 2,205 2,294 2,582 2,921 3,369
2,50 1,863 2,076 2,285 2,585 2,910 3,285 3,785 4,137
Not recommended
Ratio width-thickness smaller than 1,4:1
2,80 2,103 2,346 2,585 2,921 3,285 3,705 4,265 4,677 5,237
3,15 2,383 2,661 2,935 3,313 3,723 4,195 4,825 5,307 5,937 6,693
3,55 2,703 3,021 3,335 3,761 4,223 4,755 5,465 6,027 6,737 7,589 8,326
4,00 3,063 3,426 3,785 4,265 4,785 5,385 6,185 6,831 7,637 8,597 9,451 10,65
4,50 3,463 3,876 4,285 4,825 5,410 6,085 6,85 7,737 8,631 9,717 10,70 12,05 13,63
5,00 3,863 4,326 4,785 5,385 6,035 6,785 7,785 8,637 9,637 10,84 12,18 13,45 15,20 17,20
5,60 4,363 4,866 5,385 6,057 6,785 7,625 8,745 9,717 10,84 12,18 13,45 15,13 17,09 19,33 21,54
6,30 4,903 5,496 6,085 6,841 7,660 8,605 9,865 10,98 12,24 13,75 15,20 17,09 19,30 21,82 24,34 27,49
7,10 6,216 6,885 7,737 8,660 9,725 11,15 12,42 13,84 15,54 17,20 19,33 21,82 24,66 27,54 31,09 34,64
8,00  7,785 8,745 9,785 10,99 12,59 14,04 15,64 17,56 19,45 21,85 24,65 27,85 31,14 35,14 39,14 43,94
9,00  9,865 11,04 12,39 14,19 15,84 17,64 19,80 21,95 24,65 27,80 31,40 35,14 39,64 44,14 49,54
10,0   12,29 13,79 15,79 17,64 19,64 22,04 24,45 27,45 30,95 34,95 39,14 44,14 49,14 55,14
11,2   15,47 17,71 19,80 22,04 24,79 27,46 30,81 34,73 39,21 43,94 49,54 55,14 61,86
Not recommended
12,5    19,79 22,14 24,64 27,64 30,70 34,45 38,83 43,83 49,14 55,39 61,64 69,14
Ratio width-thickness over 8:1
14,0    24,84 27,64 31,00 34,45 38,65 43,55 49,15 55,14 62,14 69,14 77,54
16,0     31,64 35,48 39,45 44,25 49,85 56,25 63,14 71,14 79,14 88,74
* Nominal thickness
Width
Table 3 – Corner radii
Nominal thickness of conductor
Corner radius
mm
Over Up to and including
± mm
– 1,00 0,50 nominal thickness
1,00 1,60 0,50*
1,60 2,24 0,65**
2,24 3,55 0,80
3,55 5,60 1,00
NOTE If agreed between purchaser and supplier, the corner radii for wires with a width greater than 4,8 mm
may be:
* 0,50 nominal thickness
** 0,80 mm
4.4 Increase in dimensions due to the insulation
The increase in width or thickness due to the insulation shall be as given in Table 4.
Table 4 – Increases in dimensions
Increase in dimensions
Grade mm
Minimum Nominal Maximum
1 0,06 0,085 0,11
2 0,12 0,145 0,17
4.5 Overall dimensions
4.5.1 Nominal overall dimensions
The nominal overall dimensions shall be calculated as the sum of the nominal bare conductor
and the nominal increase in dimension due to the insulation.
4.5.2 Minimum overall dimensions
The minimum overall dimensions shall be calculated as the sum of the minimum bare
conductor and the minimum increase in dimension due to the insulation. See also note under
4.5.3.
4.5.3 Maximum overall dimensions
The maximum overall dimensions shall be calculated as the sum of the maximum bare
conductor and the maximum increase in dimension due to the insulation.
NOTE When agreed between purchaser and supplier, special tolerances for grade 2 as given in Annex B have
been established to calculate special maximum and minimum dimensions.

– 12 – IEC 60317-0-9:2015 © IEC 2015
5 Electrical resistance
The resistance of the wire shall be expressed as the d.c. resistance at 20 °C. The method
used shall provide an accuracy of 0,5 %.
The maximum value of resistance shall be not greater than the value calculated for the
minimum tolerated cross-sectional area of the conductor resulting from the minimum
dimensions in thickness and width and the maximum for the corner radius, and with a
² –1
resistivity of 1/35,85 (0,027 894) Ω∙mm ·m .
One measurement shall be made.
6 Elongation
The minimum elongation at fracture shall be 15 %.
7 Springiness
Test appropriate but no requirements specified.
8 Flexibility and adherence
8.1 Mandrel winding test
The coating shall show no crack after the wire has been bent flatwise and edgewise on a
mandrel with a diameter as specified in Table 5.
Table 5 – Mandrel winding
Wire bent on Mandrel diameter
Sizes up to and including 10 mm 4width
Width
Sizes over 10 mm
5 × width
Thickness All sizes
4 × thickness
8.2 Adherence test
The wire shall be stretched by 15 %. The distance of loss of adhesion shall be less than one
time the width.
9 Heat shock
The coating shall show no crack after the wire has been bent flatwise on a mandrel with a
diameter of six times the thickness.
The minimum heat shock temperature is given in the relevant specification sheet.
10 Cut-through
Test inappropriate.
11 Resistance to abrasion
Test inappropriate.
12 Resistance to solvents
Following immersion in standard solvent, the coating shall not be removed using a pencil of
hardness "H".
13 Breakdown voltage
When tested at room temperature at least four of the five specimens tested shall not break
down at a voltage less than or equal to that given in Table 6, and the fifth shall not break
down at less than 50 % of the values specified.
When required by the purchaser, the wire shall be tested at elevated temperature.
The elevated temperature is given in the relevant specification sheet.
Table 6 – Breakdown voltage
Minimum breakdown voltage (r.m.s.)
Grade
V
Room temperature Elevated temperature
1 1 000 750
2 2 000 1 500
14 Continuity of insulation
Test inappropriate.
15 Temperature index
The test shall be carried out on a rectangular wire according to IEC 60172, unless otherwise
agreed between purchaser and supplier.
When required by a purchaser, the supplier of the enamelled wire shall supply evidence that
the wire meets the requirements for the temperature index.
NOTE 1 The temperature index requirement based on an extrapolated life of 20 000 h relates to enamelled wires
tested unvarnished and not as part of an insulation system.
NOTE 2 Temperature in degrees Celsius corresponding to the temperature index is not necessarily that at which
it is recommended that the wire be operated and this will depend on many factors, including the type of equipment
involved.
16 Resistance to refrigerants
Test inappropriate.
– 14 – IEC 60317-0-9:2015 © IEC 2015
17 Solderability
Test inappropriate.
18 Heat or solvent bonding
Test inappropriate.
19 Dielectric dissipation factor
For requirements, see the relevant specification sheet.
20 Resistance to transformer oil
For requirements, see the relevant specification sheet.
21 Loss of mass
Test inappropriate.
23 Pin hole test
Test inappropriate.
30 Packaging
The kind of packaging may influence certain properties of the wire, for example springback.
Therefore the kind of packaging for example, the type of spool, shall be agreed between
purchaser and supplier.
The wire shall be evenly and compactly wound on spools or placed in containers. No spool or
container shall contain more than one length of wire unless agreed to by purchaser and
supplier. Marking of the label when there is more than one length and/or identification of the
separate lengths in the package shall be agreed to by purchaser and supplier.
Where wires are delivered in coils, the dimensions and the maximum weights of such coils
shall be agreed between purchaser and supplier. Any additional protection for coils shall also
be agreed between purchaser and supplier.
Labels shall be attached to each packaging unit as agreed between supplier and user and
shall include the following information:
a) manufacturer name and/or trade mark;
b) type of wire and insulation, for instance trade name and/or IEC specification number;
c) net mass of wire;
d) nominal dimension(s) of wire and grade of insulation;
e) date of manufacture.
Annex A
(informative)
Nominal cross-sectional areas for preferred and intermediate sizes
Table A.1 provides nominal cross-sectional areas for preferred and intermediate sizes of
rectangular aluminium bare conductors, from which the user may select intermediate sizes
only for technical reasons.
Table A.1 – Nominal cross-sectional areas (1 of 9)
Nominal Nominal Radius on Nominal Nominal Nominal Radius on Nominal
width thickness corners cross- width thickness corners cross-
section section
area area
2 2
mm mm mm mm mm mm mm mm
2,00 0,80 * 1,463 2,50 1,25 0,5 2,910
0,85 * 1,545  1,32 0,5 3,085
0,90 * 1,626  1,40 0,5 3,285
0,95 * 1,706  1,50 0,5 3,535
1,00 * 1,785  1,60 0,5 3,785
1,06 0,5 1,905  1,70 0,65 3,887
1,12 0,5 2,025  1,80 0,65 4,137
1,18 0,5 2,145
1,25 0,5 2,285 2,65 0,80 * 1,983
1,32 0,5 2,425  0,90 * 2,211
1,40 0,5 2,585  1,00 * 2,435
2,12 0,80 * 1,559  1,12 0,5 2,753
0,90 * 1,734  1,25 0,5 3,098
1,00 * 1,905  1,40 0,5 3,495
1,60 0,5 4,025
1,12 0,5 2,160
1,25 0,5 2,435  1,80 0,65 4,407
1,40 0,5 2,753
2,80 0,80 * 2,103
2,24 0,80 * 1,655  0,85 * 2,225
0,85 * 1,749  0,90 * 2,346
0,90 * 1,842  0,95 * 2,466
0,95 * 1,934  1,00 * 2,585
1,00 * 2,025
1,06 0,5 2,753
1,06 0,5 2,160  1,12 0,5 2,921
1,12 0,5 2,294  1,18 0,5 3,089
1,18 0,5 2,429  1,25 0,5 3,285
1,25 0,5 2,585  1,32 0,5 3,481
1,32 0,5 2,742  1,40 0,5 3,705
1,40 0,5 2,921  1,50 0,5 3,985
1,50 0,5 3,145  1,60 0,5 4,265
1,60 0,5 3,369
1,70 0,65 4,397
2,36 0,80 * 1,751  1,80 0,65 4,677

– 16 – IEC 60317-0-9:2015 © IEC 2015
Table A.1 (2 of 9)
Nominal Nominal Radius on Nominal Nominal Nominal Radius on Nominal
width thickness corners cross- width thickness corners cross-
section section
area area
2 2
mm mm mm mm mm mm mm mm
0,90 * 1,950  1,90 0,65 4,957
1,00 * 2,145  2,00 0,65 5,237

1,12 0,5 2,429 3,00 0,80 * 2,263
1,25 0,5 2,735  0,90 * 2,526
1,40 0,5 3,089  1,00 * 2,785
1,60 0,5 3,561
1,12 0,5 3,145
2,50 0,80 * 1,863  1,25 0,5 3,535
0,85 * 1,970  1,40 0,5 3,985
0,90 * 2,076  1,60 0,5 4,585
0,95 * 2,181
1,00 * 2,285  1,80 0,65 5,037
2,00 0,65 5,637
1,06 0,5 2,435
1,12 0,5 2,585 3,15 0,80 * 2,383
1,18 0,5 2,736  0,85 * 2,522
3,15 0,90 * 2,661 3,75 0,80 * 2,863
0,95 * 2,799  0,90 * 3,201
1,00 * 2,935  1,00 * 3,535
1,06 0,5 3,124  1,12 0,5 3,985
1,12 0,5 3,313  1,25 0,5 4,473
1,18 0,5 3,502  1,40 0,5 5,035
1,25 0,5 3,723  1,60 0,5 5,785
1,32 0,5 3,943
1,40 0,5 4,195  1,80 0,65 6,387
1,50 0,5 4,510  2,00 0,65 7,137
1,60 0,5 4,825  2,24 0,65 8,037

1,70 0,65 4,992  2,50 0,8 8,826
1,80 0,65 5,307
1,90 0,65 5,622 4,00 0,80 * 3,063
2,00 0,65 5,937  0,85 * 3,245
2,12 0,65 6,315  0,90 * 3,426
2,24 0,65 6,693  0,95 * 3,606
1,00 * 3,785
3,35 0,80 * 2,543
0,90 * 2,841  1,06 0,5 4,025
1,00 * 3,135  1,12 0,5 4,265
1,18 0,5 4,505
1,12 0,5 3,537  1,25 0,5 4,785
1,25 0,5 3,973  1,32 0,5 5,065
1,40 0,5 4,475  1,40 0,5 5,385
1,60 0,5 5,145  1,50 0,5 5,785
1,60 0,5 6,185
1,80 0,65 5,667
Table A.1 (3 of 9)
Nominal Nominal Radius on Nominal Nominal Nominal Radius on Nominal
width thickness corners cross- width thickness corners cross-
section section
area area
2 2
mm mm mm mm mm mm mm mm
2,00 0,65 6,337  1,70 0,65 6,437
2,24 0,65 7,141  1,80 0,65 6,837
1,90 0,65 7,237
3,55 0,80 * 2,703  2,00 0,65 7,637
0,85 * 2,862  2,12 0,65 8,117
0,90 * 3,021  2,24 0,65 8,597
0,95 * 3,179
1,00 * 3,335  2,36 0,8 8,891
2,50 0,8 9,451
1,06 0,5 3,548  2,65 0,8 10,05
1,12 0,5 3,761  2,80 0,8 10,65
1,18 0,5 3,974
1,25 0,5 4,223 4,25 0,80 * 3,263
1,32 0,5 4,471  0,90 * 3,651
1,40 0,5 4,755  1,00 * 4,035
1,50 0,5 5,110
1,60 0,5 5,465  1,12 0,5 4,545
1,25 0,5 5,098
1,70 0,65 5,672  1,40 0,5 5,735
1,80 0,65 6,027  1,60 0,5 6,585
1,90 0,65 6,382
2,00 0,65 6,737  1,80 0,65 7,287
2,12 0,65 7,163  2,00 0,65 8,137
2,24 0,65 7,589  2,24 0,65 9,157

2,36 0,8 7,829  2,50 0,8 10,08
2,50 0,8 8,326  2,80 0,8 11,35

4,50 0,80 * 3,463 5,00 1,70 0,65 8,137
0,85 * 3,670  1,80 0,65 8,637
0,90 * 3,876  1,90 0,65 9,137
0,95 * 4,081  2,00 0,65 9,637
1,00 * 4,285  2,12 0,65 10,24
2,24 0,65 10,84
1,06 0,5 4,555
1,12 0,5 4,825  2,36 0,8 11,25
1,18 0,5 5,095  2,50 0,8 11,95
1,25 0,5 5,410  2,65 0,8 12,70
1,32 0,5 5,725  2,80 0,8 13,45
1,40 0,5 6,085  3,00 0,8 14,45
1,50 0,5 6,535  3,15 0,8 15,20
1,60 0,5 6,985  3,35 0,8 16,20
3,55 0,8 17,20
1,70 0,65 7,287
1,80 0,65 7,737 5,30 0,80 * 4,103
1,90 0,65 8,187  0,90 * 4,596
2,00 0,65 8,637  1,00 * 5,085
2,12 0,65 9,177
– 18 – IEC 60317-0-9:2015 © IEC 2015
Table A.1 (4 of 9)
Nominal Nominal Radius on Nominal Nominal Nominal Radius on Nominal
width thickness corners cross- width thickness corners cross-
section section
area area
2 2
mm mm mm mm mm mm mm mm
2,24 0,65 9,717  1,12 0,5 5,721
1,25 0,5 6,410
2,36 0,8 10,07  1,40 0,5 7,205
2,50 0,8 10,70  1,60 0,5 8,265
2,65 0,8 11,38
2,80 0,8 12,05  1,80 0,65 9,177
3,00 0,8 12,95  2,00 0,65 10,24
3,15 0,8 13,63  2,24 0,65 11,51

4,75 0,80 * 3,663  2,50 0,8 12,70
0,90 * 4,101  2,80 0,8 14,29
1,00 * 4,535  3,15 0,8 16,15
3,55 0,8 18,27
1,12 0,5 5,105
1,25 0,5 5,723 5,60 0,80 * 4,343
1,40 0,5 6,435  0,85 * 4,605
1,60 0,5 7,385  0,90 * 4,866
0,95 * 5,126
1,80 0,65 8,188  1,00 * 5,385
2,00 0,65 9,137
2,24 0,65 10,28  1,06 0,5 5,721
1,12 0,5 6,057
2,50 0,8 11,33  1,18 0,5 6,393
2,80 0,8 12,75  1,25 0,5 6,785
3,15 0,8 14,41  1,32 0,5 7,177
1,40 0,5 7,625
5,00 0,80 * 3,863  1,50 0,5 8,185
0,85 * 4,095  1,60 0,5 8,745
0,90 * 4,326
0,95 * 4,556  1,70 0,65 9,157
1,00 * 4,785  1,80 0,65 9,717
1,90 0,65 10,28
1,06 0,5 5,085  2,00 0,65 10,84
1,12 0,5 5,385  2,12 0,65 11,51
1,18 0,5 5,685  2,24 0,65 12,18
1,25 0,5 6,035
1,32 0,5 6,385  2,36 0,8 12,67
1,40 0,5 6,785  2,50 0,8 13,45
1,50 0,5 7,285  2,65 0,8 14,29
1,60 0,5 7,785  2,80 0,8 15,13

5,60 3,00 0,8 16,25 6,30 3,75 1,0 22,77
3,15 0,8 17,09  4,00 1,0 24,34
3,35 0,8 18,21  4,25 1,0 25,92
3,55 0,8 19,33  4,50 1,0 27,49

3,75 1,0 20,14 6,70 0,90 * 5,856
4,00 1,0 21,54  1,00 * 6,485
Table A.1 (5 of 9)
Nominal Nominal Radius on Nominal Nominal Nominal Radius on Nominal
width thickness corners cross- width thickness corners cross-
section section
area area
2 2
mm mm mm mm mm mm mm mm
6,00 0,80 * 4,663  1,12 0,5 7,289
0,90 * 5,226  1,25 0,5 8,160
1,00 * 5,785  1,40 0,5 9,165
1,60 0,5 10,51
1,12 0,5 6,505
1,25 0,5 7,285  1,80 0,65 11,70
1,40 0,5 8,185  2,00 0,65 13,04
1,60 0,5 9,385  2,24 0,65 14,65

1,80 0,65 10,44  2,50 0,8 16,20
2,00 0,65 11,64  2,80 0,8 28,21
2,24 0,65 13,08  3,15 0,8 20,56
3,55 0,8 23,24
2,50 0,8 14,45
2,80 0,8 16,25  4,00 1,0 25,94
3,15 0,8 18,35  4,50 1,0 29,29
3,55 0,8 20,75
7,10 0,90 * 6,216
4,00 1,0 23,14  0,95 * 6,551
1,00 * 6,885
6,30 0,80 * 4,903
0,85 * 5,200  1,06 0,5 7,311
0,90 * 5,496  1,12 0,5 7,737
0,95 * 5,791  1,18 0,5 8,163
1,00 * 6,085  1,25 0,5 8,660
1,32 0,5 9,157
1,06 0,5 6,463  1,40 0,5 9,725
1,12 0,5 6,841  1,50 0,5 10,44
1,18 0,5 7,219  1,60 0,5 11,15
1,25 0,5 7,660
1,32 0,5 8,101  1,70 0,65 11,71
1,40 0,5 8,605  1,80 0,65 12,42
1,50 0,5 9,235  1,90 0,65 13,13
1,60 0,5 9,865  2,00 0,65 13,84
2,12 0,65 14,69
1,70 0,65 10,35  2,24 0,65 15,54
1,80 0,65 10,98
1,90 0,65 11,61  2,36 0,8 16,21
2,00 0,65 12,24  2,50 0,8 17,20
2,12 0,65 12,99  2,65 0,8 18,27
2,24 0,65 13,75  2,80 0,8 19,33
3,00 0,8 20,75
2,36 0,8 14,32  3,15 0,8 21,82
2,50 0,8 15,20  3,35 0,8 23,24
2,65 0,8 16,15  3,55 0,8 24,66
2,80 0,8 17,09
3,00 0,8 18,35  3,75 1,0 25,77

– 20 – IEC 60317-0-9:2015 © IEC 2015
Table A.1 (6 of 9)
Nominal Nominal Radius on Nominal Nominal Nominal Radius on Nominal
width thickness corners cross- width thickness corners cross-
section section
area area
2 2
mm mm mm mm mm mm mm mm
3,15 0,8 19,30  4,00 1,0 27,54
3,35 0,8 20,56  4,25 1,0 29,32
3,55 0,8 21,82
7,10 4,50 1,0 31,09 8,50 1,12 0,5 9,305
4,75 1,0 32,87  1,25 0,5 10,41
5,00 1,0 34,64  1,40 0,5 11,69
1,60 0,5 13,39
7,50 1,00 * 7,285
1,80 0,65 14,94
1,12 0,5 8,185  2,00 0,65 16,64
1,25 0,5 9,160  2,24 0,65 18,68
1,40 0,5 10,29
1,60 0,5 11,79  2,50 0,8 20,70
2,80 0,8 23,25
1,80 0,65 13,14  3,15 0,8 26,23
2,00 0,65 14,64  3,55 0,8 29,63
2,24 0,65 16,44
4,00 1,0 33,14
2,50 0,8 18,20  4,50 1,0 37,39
2,80 0,8 20,45  5,00 1,0 41,64
3,15 0,8 23,08  5,60 1,0 46,74
3,55 0,8 26,08
9,00 1,12 0,5 9,865
4,00 1,0 29,14  1,18 0,5 10,41
4,50 1,0 32,89  1,25 0,5 11,04
5,00 1,0 36,64  1,32 0,5 11,67
1,40 0,5 12,39
8,00 1,00 * 7,785  1,50 0,5 13,29
1,60 0,5 14,19
1,06 0,5 8,265
1,12 0,5 8,745  1,70 0,65 14,94
1,18 0,5 9,225  1,80 0,65 15,84
1,25 0,5 9,785  1,90 0,65 16,74
1,32 0,5 10,35  2,00 0,65 17,64
1,40 0,5 10,99  2,12 0,65 18,72
1,50 0,5 11,79  2,24 0,65 19,80
1,60 0,5 12,59
2,36 0,8 20,69
1,70 0,65 13,24  2,50 0,8 21,95
1,80 0,65 14,04  2,65 0,8 23,30
1,90 0,65 14,84  2,80 0,8 24,65
2,00 0,65 15,64  3,00 0,8 26,45
2,12 0,65 16,60  3,15 0,8 27,80
2,24 0,65 17,56  3,35 0,8 29,60
3,55 0,8 31,40
2,36 0,8 18,33
2,50 0,8 19,45  3,75 1,0 32,89

Table A.1 (7 of 9)
Nominal Nominal Radius on Nominal Nominal Nominal Radius on Nominal
width thickness corners cross- width thickness corners cross-
section section
area area
2 2
mm mm mm mm mm mm mm mm
2,65 0,8 20,65  4,00 1,0 35,14
2,80 0,8 21,85  4,25 1,0 37,39
3,00 0,8 23,45  4,50 1,0 39,64
3,15 0,8 24,65  4,75 1,0 41,89
3,35 0,8 26,25  5,00 1,0 44,14
3,55 0,8 27,85  5,30 1,0 46,84
5,60 1,0 49,54
3,75 1,0 29,14
4,00 1,0 31,14 9,50 1,25 0,5 11,66
4,25 1,0 33,14  1,40 0,5 13,09
4,50 1,0 35,14  1,60 0,5 14,99
4,75 1,0 37,14
5,00 1,0 39,14  1,80 0,65 16,74
5,30 1,0 41,54  2,00 0,65 18,64
5,60 1,0 43,94  2,24 0,65 20,92
9,50 2,50 0,8 23,20 11,20 1,70 0,65 18,68
2,80 0,8 26,05  1,80 0,65 19,80
3,15 0,8 29,38  1,90 0,65 20,92
3,55 0,8 33,18  2,00 0,65 22,04
2,12 0,65 23,38
4,00 1,0 37,14  2,24 0,65 24,73
4,50 1,0 41,89
5,00 1,0 46,64  2,36 0,8 25,88
5,60 1,0 52,34  2,50 0,8 27,45
2,65 0,8 29,13
10,00 1,25 0,5 12,29  2,80 0,8 30,81
1,32 0,5 12,99  3,00 0,8 33,05
1,40 0,5 13,79  3,15 0,8 34,73
1,50 0,5 14,79  3,35 0,8 36,97
1,60 0,5 15,79  3,55 0,8 39,21

1,70 0,65 16,64  3,75 1,0 41,14
1,80 0,65 17,64  4,00 1,0 43,94
1,90 0,65 18,64  4,25 1,0 46,74
2,00 0,65 19,64  4,50 1,0 49,54
2,12 0,65 20,84  4,75 1,0 52,34
2,24 0,65 22,04  5,00 1,0 55,14
5,30 1,0 58,50
2,36 0,8 23,05  5,60 1,0 61,86
2,50 0,8 24,45
2,65 0,8 25,95 11,80 1,60 0,5 18,67
2,80 0,8 27,45
3,00 0,8 29,45  1,80 0,65 20,88
3,15 0,8 30,95  2,00 0,65 23,24
3,35 0,8 32,95  2,24 0,65 26,07
3,55 0,8 34,95
2,50 0,8 28,95
3,75 1,0 36,64  2,80 0,8 32,49

– 22 – IEC 60317-0-9:2015 © IEC 2015
Table A.1 (8
...
