IEC 61753-081-2:2014

IEC 61753-081-2 ®
Edition 2.0 2014-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 081-2: Non-connectorized single-mode fibre optic middle-scale 1 × N DWDM
devices for category C – Controlled environments

Dispositifs d'interconnexion et composants passifs à fibres optiques – Norme
de performance –
Partie 081-2: Dispositifs DWDM 1 × N de milieu d'échelle à fibres optiques
unimodales, non connectorisés, pour catégorie C – Environnements contrôlés

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61753-081-2 ®
Edition 2.0 2014-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Performance

standard –
Part 081-2: Non-connectorized single-mode fibre optic middle-scale 1 × N DWDM

devices for category C – Controlled environments

Dispositifs d'interconnexion et composants passifs à fibres optiques – Norme

de performance –
Partie 081-2: Dispositifs DWDM 1 × N de milieu d'échelle à fibres optiques

unimodales, non connectorisés, pour catégorie C – Environnements contrôlés

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.10 ISBN 978-2-8322-3075-6

– 2 – IEC 61753-081-2:2014 © IEC 2014

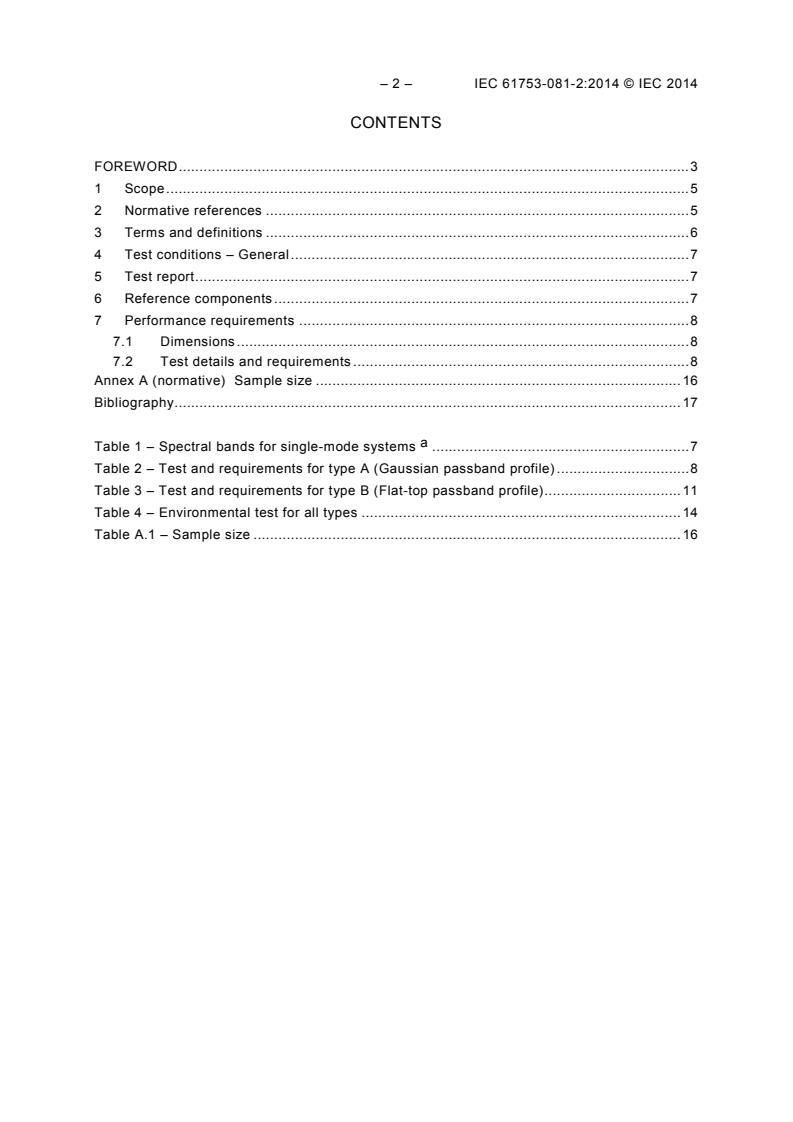

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Test conditions – General . 7
5 Test report . 7
6 Reference components . 7
7 Performance requirements . 8
7.1 Dimensions . 8
7.2 Test details and requirements . 8
Annex A (normative) Sample size . 16
Bibliography . 17

a
Table 1 – Spectral bands for single-mode systems . 7
Table 2 – Test and requirements for type A (Gaussian passband profile) . 8
Table 3 – Test and requirements for type B (Flat-top passband profile) . 11
Table 4 – Environmental test for all types . 14
Table A.1 – Sample size . 16

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
PERFORMANCE STANDARD –
Part 081-2: Non-connectorized single-mode fibre optic middle-scale
1 × N DWDM devices for category C – Controlled environments

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61753-081-2 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
This second edition cancels and replaces the first edition published in 2009 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– to add passband ripple as a test item;
– to revise details to be specified and the formats of Tables 2, 3 and 4;
– to add IEC 61300-3-38 as a normative reference.

– 4 – IEC 61753-081-2:2014 © IEC 2014
This bilingual version (2015-12) corresponds to the monolingual English version, published in
2014-04.
The text of this standard is based on the following documents:
CDV Report on voting
86B/3646/CDV 86B/3720/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61753 series, under the general title Fibre optic interconnecting
devices and passive components performance standards, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
PERFORMANCE STANDARD –
Part 081-2: Non-connectorized single-mode fibre optic middle-scale
1 × N DWDM devices for category C – Controlled environments

1 Scope
This part of IEC 61753 contains the minimum initial test and measurement requirements and
severities which a fibre optic middle-scale 1 × N (16 ≤N ≤64) DWDM (dense wavelength
division multiplexing) device with channel spacing of 50 GHz, 100 GHz or 200 GHz needs to
satisfy in order to be categorized as meeting the requirements of category C – Controlled
environment. The requirements are given for the DWDM devices with Gaussian passband
profile and flat-top passband profile. The requirements cover devices with single-mode non-
connectorized pigtails and no circuit board.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2-50:2012, Optical fibres – Part 2-50: Product specifications – Sectional
specification for class B single-mode fibres
IEC 60794-2-50, Optical fibre cables – Part 2-50: Indoor cables – Family specification for
simplex and duplex cables for use in terminated cable assemblies
IEC 61300-2-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-1: Tests – Vibration (sinusoidal)
IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-4: Tests – Fibre/cable retention
IEC 61300-2-9, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-9: Tests – Shock
IEC 61300-2-14, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-14: Tests – High optical power
IEC 61300-2-17, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-17: Tests – Cold
IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-18: Tests – Dry heat – High temperature endurance
IEC 61300-2-19, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-19: Tests – Damp heat (steady state)

– 6 – IEC 61753-081-2:2014 © IEC 2014
IEC 61300-2-22, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-22: Tests – Change of temperature
IEC 61300-2-42, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-42: Tests – Static side load for connectors
IEC 61300-3-2, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-2: Examinations and measurements – Polarization
dependence of attenuation in a a single-mode fibre optic device
IEC 61300-3-6, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-6: Examinations and measurements – Return loss
IEC 61300-3-20, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-20: Examinations and measurements – Directivity of
fibre optic branching devices
IEC 61300-3-29, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-29: Examinations and measurements – Measurement
techniques for characterizing the amplitude of the spectral transfer function of DWDM
components
IEC 61300-3-32, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-32: Examinations and measurements – Polarization
mode dispersion measurement for passive optical components
IEC 61300-3-38, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-38: Examinations and measurements – Group delay,
chromatic dispersion and phase ripple
IEC 61753-021-2, Fibre optic interconnecting devices and passive components performance
standard – Part 021-2: Fibre optic connectors terminated on single mode fibre for category C
–Controlled environment
IEC 62074-1, Fibre optic WDM devices – Part 1: Generic specification
ITU-T Recommendation G series – Supplement 39, Optical system design and engineering
considerations
ITU-T Recommendation G.692, Optical interfaces for multichannel systems with optical
amplifiers
ITU-T Recommendation G.694.1, Spectral grids for WDM applications: DWDM frequency grid
3 Terms and definitions
For the purposes of this document, the following terms and definitions, as well as those given
in IEC 62074-1, apply.
3.1
middle-scale 1 × N DWDM device
wavelength-selective branching device which performs the function both of a wavelength
multiplexer and demultiplexer with DWDM channel spacing of 50 GHz, 100 GHz or 200 GHz
and a number of channels (N) equalling 16 ~ 64

3.2
type A (Gaussian passband profile)
middle-scale 1 × N DWDM device whose passband profile is Gaussian shape
3.3
type B (Flat-top passband profile)
middle-scale 1 × N DWDM device whose passband profile is flat-top shape
4 Test conditions – General
Unless otherwise specified, all test methods shall be in accordance with the IEC 61300 series.
The samples shall be terminated onto single-mode fibres as per IEC 60793-2-50:2012
category B1.1 or B1.3 or B6 in either coated fibres (primary and secondary) or reinforced
cable format as per IEC 60794-2-50. DWDM devices used for each test are intended to be
previously unstressed new samples but may also be selected from previously used samples, if
desired. All measurements shall be carried out at normal room temperature, unless otherwise
stated. If the device is provided with an active temperature control, this shall be set at the set-
point specified by the manufacturer.
The requirements apply to every combination of input and output port.
All tests shall be carried out to validate performance over the required operating wavelength
range. As a result, single or multiple spectral bands may be chosen for the qualification and
differing target specifications may be assigned to each spectral band.
The following Table 1 is intended to provide guidance on the wavelength ranges of the
various spectral bands. It is not intended for specification. Values of operating wavelength
used in performance verification shall be defined in the manufacturer’s specification.
a
Table 1 – Spectral bands for single-mode systems
Band Descriptor Range
nm
O-band Original 1 260 to 1 360
E-band Extended 1 360 to 1 460
S-band Short wavelength 1 460 to 1 530
C-band Conventional 1 530 to 1 565
L-band Long wavelength 1 565 to 1 625
U-band Ultralong wavelength 1 625 to 1 675
a
Taken from ITU-T G-series Recommendations – Supplement 39, Optical system design and engineering
considerations
5 Test report
Fully documented test reports and supporting evidence shall be prepared and be available for
inspection as evidence that the tests have been carried out and complied with.
6 Reference components
The testing for these components does not require the use of reference components.

– 8 – IEC 61753-081-2:2014 © IEC 2014
7 Performance requirements
7.1 Dimensions
Dimensions shall comply with those given in appropriate manufacturers’ drawings.
7.2 Test details and requirements
The device is equipped with no circuit-board including a temperature controller. The
requirements are given only for pigtailed DWDM devices. For connectorized components, the
connector performances shall be in compliance with IEC 61753-021-2.
A minimum length of fibre or cable of 2,0 m per port shall be included in all climatic and
environmental tests. The operating wavelengths, unless otherwise specified, shall be in
accordance with ITU-T Recommendation G.692 and G.694.1. Where devices with wavelength
spaced channels have to be considered, the conversion should refer to vacuum wavelength.
Table 2 – Test and requirements for type A (Gaussian passband profile)
No Tests Requirements Details
1A Number of Operating ITU-T grid or custom design
16 ≤ N ≤64
channels: N wavelength:
NOTE: Design information (not test item)
2A Channel Channel central frequency Channel central ITU-T grid or custom design
frequency range frequency:
± 0,125 × ∆f where ∆f is
the channel spacing
NOTE: Design information (not test item)
ITU-T Recommendation G.694.1
3A Attenuation ≤ 4,3 dB Launch fibre ≥ 2,0 m
(insertion loss) length:
(channel n° ≤ 24)
IEC 61300-3-29 Measurement
± 0,05 dB
≤ 4,8 dB
uncertainty:
(channel n° > 24)
NOTE: The insertion loss is determined as
Maximum allowable
the worst case over all states of
insertion loss over the
polarization
channel frequency range
4A Channel non- ≤ 1,0 dB Launch fibre ≥ 2,0 m
uniformity length:
(channel n°. ≤24)
IEC 61300-3-29
Measurement ± 0,05 dB
≤ 1,5 dB
uncertainty:
(channel n° >24)
NOTE: The channel non-uniformity shall be
Maximum allowable
determined as the worst case over
channel non-uniformity of
all states of polarization
insertion losses
5A 1 dB passband Launch fibre
≥ 0,25 × ∆f where ∆f is ≥ 2,0 m
width length:
the channel spacing.
IEC 61300-3-29 Minimum allowable 1 dB Measurement
± 0,01 × ∆f
passband width (centred uncertainty:
at the channel frequency)
NOTE: The 1 dB passband width shall be
determined as the worst case over
all states of polarization
6A 3 dB passband Launch fibre
≥ 0,5 × ∆f where ∆f is ≥ 2,0 m
width length:
the channel spacing
IEC 61300-3-29 Minimum allowable 3 dB Measurement
± 0,01 × ∆f
passband width (centred uncertainty:
at the channel frequency)
NOTE: The 3 dB passband width is
determined as the worst case over
all states of polarization
Table 2 (continued)
No Tests Requirements Details
7A Passband ≤ 1,5 dB Launch fibre ≥ 2,0 m
ripple length:
Maximum insertion loss
IEC 61300-3- Measurement
variation within the ± 0,05 dB
channel frequency range uncertainty:
NOTE: The passband ripple is determined
as the worst case over all states of
polarization.
8A Adjacent Launch fibre
≤ –25 dB ≥ 2,0 m
channel length:
Maximum allowable
crosstalk
adjacent channel Measurement
± 0,1 dB
IEC 61300-3-
crosstalk over the uncertainty:
channel frequency range
NOTE: The adjacent channel crosstalk is
specified only for demultiplexer.
The adjacent channel crosstalk is
determined as the worst case over
all states of polarization
9A Non-adjacent ≤ –30 dB Launch fibre ≥ 2,0 m
channel length:
Maximum allowable non-
crosstalk
adjacent channel Measurement ± 0,1 dB
IEC 61300-3-
crosstalk over the channel uncertainty:
29 frequency range
NOTE: The non-adjacent channel crosstalk
is specified only for demultiplexer.
The non-adjacent channel crosstalk
is determined as the worst case
over all states of polarization
10A Total channel Launch fibre
≤ –22 dB (channel n° ≤40) ≥ 2,0 m
crosstalk length:
≤ –20 dB (channel n°
IEC 61300-3-
Measurement ± 0,1 dB
>40)
29 uncertainty:
Maximum allowable total
NOTE: The total channel crosstalk is
channel crosstalk value
specified only for demultiplexer.
The total channel crosstalk is
determined as the worst case over
all states of polarization
11A Polarization Launch fibre
≤ 0,4 dB ≥ 2,0 m
dependent loss length:
Maximum allowable
(PDL)
PDL over the channel Measurement
± 0,05 dB
IEC 61300-3-2 uncertainty:
frequency range
NOTE: The allowable PDL combination
applies to all combination of input
and output ports
12A Polarization Launch fibre
≤ 0,5 ps ≥.2,0 m
mode length:
Maximum allowable PMD
dispersion
over the channel Measurement
±.0,1 dB
(PMD)
frequency range uncertainty:
IEC 61300-3-
NOTE: The allowable PMD combination
applies to all combination of input
and output ports.
– 10 – IEC 61753-081-2:2014 © IEC 2014
Table 2 (continued)
No Tests Requirements Details
13A Chromatic ≤ 20 ps/nm for 100 GHz Launch fibre ≥ 2,0 m
dispersion (CD) channel spacing length:
IEC 61300-3-38 Measurement
≤ 60 ps/nm for 50 GHz ± 1 ps
channel spacing uncertainty:
NOTE: The allowable CD combination
Maximum allowable CD
applies to all combination of input
over the channel
frequency range and output ports.
(absolute value)
14A Return loss ≥ 40 dB Launch fibre ≥ 2,0 m
length:
IEC 61300-3-6
Minimum allowable
return loss Measurement ± 1 dB
uncertainty:
NOTE: All ports not under test is terminated
to avoid unwanted reflections
contributing to the measurement.
15A Directivity ≥ 40 dB Launch fibre ≥ 2,0 m
length:
IEC 61300-3-20
Minimum allowable
directivity Measurement ± 1 dB
uncertainty:
NOTE: All ports not under test shall be
terminated to avoid unwanted
reflections contributing to the
measurement.
The directivity is measured between
any pair of input or output ports
16A High optical Before and after the test, Optical power: 300 mW
power the limits of insertion
Wavelength: 1 550 nm
loss and return loss of
IEC 61300-2-14
test 3A and 14A shall be
Duration of the 30 min
met.
optical power
exposure:
During the test, the
insertion loss change is
Temperature: 60 °C ± 2° C
monitored. During and
after the test, the
Relative humidity:
+
insertion loss change
93 % RH
−
shall be within ±0,3 dB
of the initial value.
Input port: Single input port
During the test, the
Measurement
± 0,05 dB for insertion loss
return loss change is
uncertainty:
measurement
monitored. The sum of
the initial value and the
± 1 dB for return loss measurement
change of the return loss
shall be within the value
defined at test 14A
Table 3 – Test and requirements for type B (Flat-top passband profile)
No Tests Requirements Details
1B Number of 16 ≤ channel n° ≤64 Operating ITU-T grid or custom design
channels wavelength:
NOTE: Design information (not test item)
2B Channel Channel central Channel central ITU-T grid or custom design
frequency frequency:
frequency ± 0,125 × ∆f
range
where ∆f is the channel
NOTE: Design information (not test item)
spacing
ITU-T Recommendation G.694.1
3B Attenuation Launch fibre
≤5,5 dB ≥ 2,0 m
Insertion loss length:
(channel n° ≤24)
IEC 61300-3-
Measurement ± 0,05 dB
≤6,0 dB
29 uncertainty:
(channel n° >24)
NOTE: The insertion loss is determined as
Maximum allowable
the worst case over all states of
insertion loss over the
polarization.
channel frequency range
4B Channel non- Launch fibre
≤1,0 dB ≥ 2,0 m
uniformity length:
(channel n° ≤24)
IEC 61300-3- Measurement
≤1,5 dB ± 0,05 dB
29 uncertainty:
(channel n° >24)
NOTE: The channel non-uniformity is
Maximum allowable
determined as the worst case over
channel non-uniformity
all states of polarization.
of insertion losses
5B 1 dB passband ≥ 0,5 × ∆f where ∆f is Launch fibre ≥ 2,0 m
width the channel spacing length:
IEC 61300-3- Measurement
Minimum allowable 1 dB ± 0,01 × ∆f
passband width (centred uncertainty:
at the channel
NOTE: The 1 dB passband width is
frequency)
determined as the worst case over
all states of polarization.
6B 3 dB passband Launch fibre
≥ 0,5 × ∆f where ∆f is ≥ 2,0 m
width the channel spacing length:
IEC 61300-3- Minimum allowable 3 dB Measurement
± 0,01 × ∆f
passband width (centred uncertainty:
at the channel
NOTE: The 3 dB passband width is
frequency)
determined as the worst case over
all states of polarization.
7B Passband Launch fibre
≤ 0,5 dB ≥ 2,0 m
ripple length:
Maximum insertion loss
IEC 61300-3- variation within the Measurement
± 0,05 dB
29 uncertainty:
channel frequency range
NOTE: The passband ripple is determined
as the worst case over all states of
polarization.
8B Adjacent Launch fibre
≤ -25 dB ≥ 2,0 m
channel length:
Maximum allowable
crosstalk
adjacent channel Measurement
± 0,1 dB
IEC 61300-3-29 crosstalk over the uncertainty:
channel frequency range
NOTE: The adjacent channel crosstalk is
specified only for demultiplexer.
The adjacent channel crosstalk is
determined as the worst case over
all states of polarization.
– 12 – IEC 61753-081-2:2014 © IEC 2014
Table 3 (continued)
No Tests Requirements Details
9B Non-adjacent ≤ –30 dB Launch fibre ≥ 2,0 m
channel length:
Maximum allowable non-
crosstalk
Measurement
adjacent channel ± 0,1 dB
IEC 61300-3-29
crosstalk over the uncertainty:
channel frequency range
NOTE: The non-adjacent channel crosstalk
is specified only for demultiplexer.
The non-adjacent channel crosstalk
is determined as the worst case over
all states of polarization.
10B Total channel ≤ –22 dB Launch fibre ≥ 2,0 m
crosstalk length:
(channel n° ≤40)
IEC 61300-3-29
Measurement ± 0,1 dB
≤ –20 dB
uncertainty:
(channel n° >40)
NOTE: The total channel crosstalk is
Maximum allowable total
specified only for demultiplexer.
channel crosstalk value
The total channel crosstalk is
determined as the worst case over
all states of polarization.
11B Polarization Launch fibre
≤ 0,4 dB ≥ 2,0 m
dependent loss length:
Maximum allowable PDL
(PDL)
over the channel Measurement
± 0,05 dB
IEC 61300-3-2 frequency range uncertainty:
NOTE: The allowable PDL combination
applies to all combination of input
and output ports.
12B Polarization Launch fibre
≤ 0,5 ps ≥ 2,0 m
mode length:
Maximum allowable
dispersion
PMD over the channel Measurement ± 0,1 dB
(PMD)
frequency range uncertainty:
IEC 61300-3-32
NOTE: The allowable PMD combination
applies to all combination of input
and output ports.
13B Chromatic Launch fibre
≤ 40 ps/nm for 100 GHz ≥ 2,0 m
dispersion (CD) length:
channel spacing
± 1 ps
IEC 61300-3-38 Measurement
≤ 100 ps/nm for 50 GHz
The allowable CD combination
uncertainty:
channel spacing
applies to all combination of input
NOTE:
Maximum allowable CD and output ports.
over the channel
frequency range
(absolute value)
14B Return loss Launch fibre
≥ 40 dB ≥ 2,0 m
length:
IEC 61300-3-6
Minimum allowable
± 1 dB
return loss Measurement
All ports not under test is terminated
uncertainty:
to avoid unwanted reflections
NOTE:
contributing to the measurement.

Table 3 (continued)
No Tests Requirements Details
15B Directivity ≥ 40 dB Launch fibre ≥ 2,0 m
length:
IEC 61300-3-20 Minimum allowable
Measurement
directivity ± 1 dB
uncertainty:
NOTE: All ports not under test is terminated
to avoid unwanted reflections
contributing to the measurement.
The directivity is measured between
any pair of input or output ports
16B High optical Before and after the Optical power: 300 mW
power test, the limits of
Wavelength: 1 550 nm
insertion loss and return
IEC 61300-2-14
loss of test n° 3B and
Duration of the 30 min
14B shall be met.
optical power
exposure:
During the test, the
insertion loss change is
Temperature:
60 °C ± 2 ° C
monitored. During and
after the test, the
Relative humidity:
+
insertion loss change
93 % RH
−
shall be within ±0,5 dB
of the initial value.
Input port: Single input port
During the test, the
Measurement ± 0,05 dB for insertion loss
return loss change is
uncertainty:
measurement
monitored. The sum of
the initial value and the
± 1 dB for return loss measurement
change of the return
loss shall be within the
value defined at test
14B
– 14 – IEC 61753-081-2:2014 © IEC 2014
Table 4 – Environmental test for all types
No Tests Requirements Details
17 Cold Before and after the test, the Temperature: –10 °C ± 2 °C
limits of insertion loss and
IEC 61300-2-17
Duration of exposure: 96 h
return loss of tests 3A (3B)
and 14A (14B) shall be met.
The insertion loss change
after the test shall be within
±0,5 dB of the initial value
18 High Before and after the test, the Temperature:
+60 °C ± 2 °C
temperature limits of insertion loss and
Duration of exposure: 96 h
endurance return loss of test 3A (3B)
and 14A (14B) shall be met.
IEC 61300-2-18
The insertion loss change
after the test shall be within
±0,5 dB of the initial value
19 Damp heat Before and after the test, the Temperature:
+40 ± 2 °C
(steady state) limits of insertion loss and
Relative humidity:
return loss of test 3A (3B) +
IEC 61300-2-19
93 % RH
and 14A (14B) shall be met.
−
During the test, the insertion
Duration of exposure: 96 h
loss change is monitored.
During and after the test, the
insertion loss change shall
be within ± 0,5 dB of the
initial value
20 Change of Before and after the test, the High temperature: +60 °C ± 2 °C
temperature limits of insertion loss and
Low temperature:
–10 °C ± 2 °C
return loss of tests 3A (3B)
IEC 61300-2-22
and 14A (14B) shall be met.
Number of cycles: 5
During the test, the insertion
Duration at extreme 60 min
loss change is monitored.
temperature:
During and after the test, the
insertion loss change shall
Rate of change: 1 °C/min
be within ± 0,5 dB of the
initial value
21 Vibration Before and after the test, the Frequency range: 5 Hz – 55 Hz.
limits of insertion loss and
IEC 61300-2-1 Number of axes: 3 orthogonal axes.
return loss of tests 3A (3B)
and 14A (14B) shall be met.
Number of sweeps: 15 /axis
During the test, the insertion
Sweep rate: 1 octave/min
loss change is monitored.
During and after the test, the
Amplitude: 0,75 mm
insertion loss change shall
be within ± 0,5 dB of the
initial value
Table 4 (continued)
No Tests Requirements Details
22 Fibre/cable Before and after the test, the Magnitude and (10 ± 1) N at 5 N/s for
retention limits of insertion loss and rate of application: reinforced cables.
return loss of tests 3A (3B)
IEC 61300-2-4
(5,0 ± 0,5) N at 0,5 N/s for
and 14A (14B) shall be met.
secondary coated fibres.
The insertion loss change
(2,0 ± 0,2) N at 0,5 N/s for
after the test shall be within
primary coated fibres.
± 0,5 dB of the initial value
Duration of the test: 120 s duration at 10 N
60 s duration at 2 N or 5 N
Point of application of 0,3 m from the exit point
tensile load: of the fibre/cable from the
specimen.
Method of mounting:
The sample shall be
rigidly mounted such that
the load is only applied to
the fibre/cable retention
mechanism
23 Shock Before and after the test, the Acceleration: Components: 5 000 m/s
limits of insertion loss and
IEC 61300-2-9 Modules:
return loss of test 3A (3B)
and 14A (14B) shall be met.
0,125 kg < module mass
≤0,225 kg: 2 000 m/s
The insertion loss change
after the test shall be within
0,225 kg < module mass
± 0,5 dB of the initial value
≤1 kg: 500 m/s
Duration: 1 ms, half sine pulse
Number of axis: 3 axes in 2 directions
Number of shocks: 2 shocks per axis, 12
shock in total
24 Static side load Before and after the test, the Magnitude and duration 1 N for 1 h for reinforced
limits of insertion loss and of the tensile load: cable
IEC 61300-2-42
return loss of tests 3A (3B)
0,2 N for 5 min for
and 14A (14B) shall be met.
secondary coated fibres
The insertion loss change
Direction of application: Two mutually
after the test shall be within
perpendicular directions
±0,5 dB of the initial value
– 16 – IEC 61753-081-2:2014 © IEC 2014
Annex A
(normative)
Sample size
All samples shall be subjected to tests 1 – 13. All other tests shall be done in any of the
following order. Consecutive testing on the same optical sample is allowed, but, in case of
failure during the consecutive testing, a new sample shall be prepared and the failed test shall
be redone.
Table A.1 – Sample size
No Tests Sample size
1 Insertion loss 12
2 Channel non-uniformity 12
3 1 dB passband width 12
4 3 dB passband width 12
5 Passbamd ripple 12
6 Adjacent channel crosstalk 12
7 Non-adjacent channel crosstalk 12
8 Total channel crosstalk 12
9 Polarisation dependent loss (PDL) 12
10 Polarisation mode dispersion (PMD) 12
11 Chromatic dispersion 12
12 Return loss 12
13 Directivity 12
14 High optical power 4
15 Cold 4
16 High temperature endurance 4
17 Damp heat (steady state) 4
18 Change of temperature 4
19 Vibration (sinusoidal) 4
20 Fibre/Cable retention 4
21 Shock 4
22 Static side load 4
Bibliography
ITU-T Recommendation G.671, Transmission characteristics of optical components and
subsystems
_____________
– 18 – IEC 61753-081-2:2014 © IEC 2014
SOMMAIRE
AVANT-PROPOS . 19
1 Domaine d'application . 21
2 Références normatives . 21
3 Termes et définitions . 23
4 Conditions d'essais – Généralités . 23
5 Rapport d’essai . 24
6 Composants de référence . 24
7 Exigences de performances . 24
7.1 Dimensions . 24
7.2 Exigences et détails des essais . 24
Annexe A (normative) Nombre d'échantillons . 34
Bibliographie . 35

a
Tableau 1 – Bandes spectrales pour systèmes unimodaux . 24
Tableau 2 – Essais et exigences pour le type A (profil passe-bande gaussien) . 25
Tableau 3 – Essais et exigences pour le type B (profil passe-bande carré) . 29
Tableau 4 – Essai environnemental pour tous les types . 32
Tableau A.1 – Nombre d'échantillons . 34

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
DISPOSITIFS D'INTERCONNEXION ET
COMPOSANTS PASSIFS À FIBRES OPTIQUES –
NORME DE PERFORMANCE –
Partie 081-2: Dispositifs DWDM 1 × N de milieu d'échelle à fibres
optiques unimodales, non connectorisés, pour catégorie C –
Environnements contrôlés
AVANT-PROPOS
1) La Commission Electrotechnique Internationale (l'IEC) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l'IEC). L'IEC a pour
objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines
de l'électricité et de l'électronique. A cet effet, l'IEC – entre autres activités – publie des Normes internationales,
des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au public (PAS) et des
Guides (ci-après dénommés "Publication(s) de l'IEC"). Leur élaboration est confiée à des comités d'études, aux
travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les organisations
internationales, gouvernementales et non gouvernementales, en liaison avec l'IEC, participent également aux
travaux. L'IEC collabore étroitement avec l'Organisation Internationale de Normalisation (ISO), selon des
conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de l'IEC concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de l'IEC
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de l'IEC se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de l'IEC. Tous les efforts raisonnables sont entrepris afin que la IEC
s'assure de l'exactitude du contenu technique de ses publications; l'IEC ne peut pas être tenue responsable de
l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de l'IEC s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les P
...
