IEC 60317-37:2013

IEC 60317-37 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding
layer
Spécifications pour types particuliers de fils de bobinage –
Partie 37: Fil de section circulaire en cuivre émaillé avec polyesterimide, classe
180, avec une couche adhérente

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

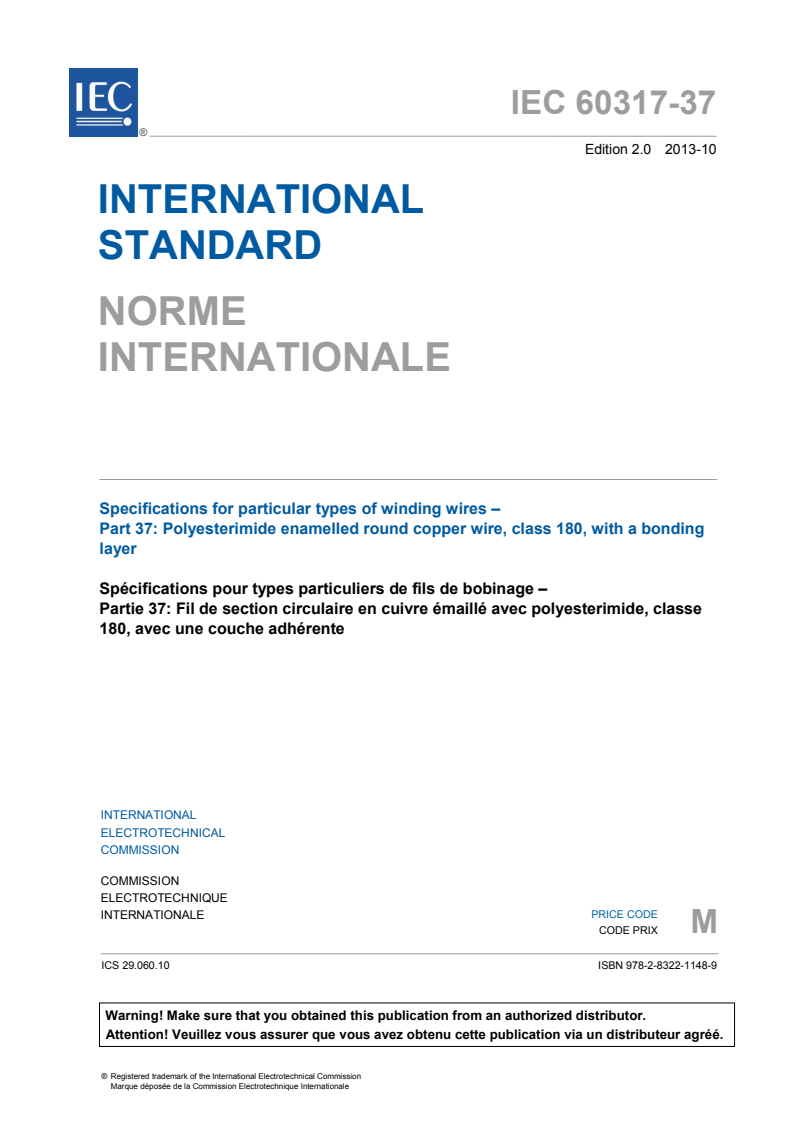

IEC 60317-37 ®
Edition 2.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding

layer
Spécifications pour types particuliers de fils de bobinage –

Partie 37: Fil de section circulaire en cuivre émaillé avec polyesterimide, classe

180, avec une couche adhérente

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.060.10 ISBN 978-2-8322-1148-9

– 2 – 60317-37 © IEC:2013

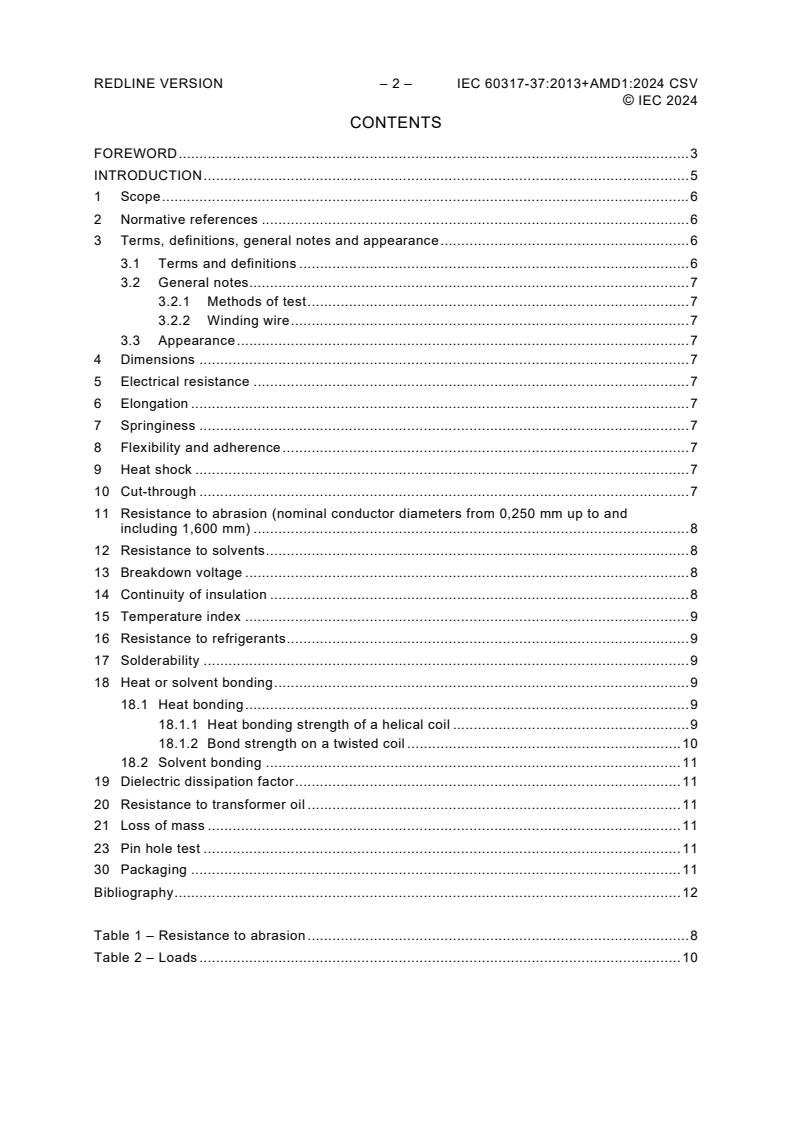

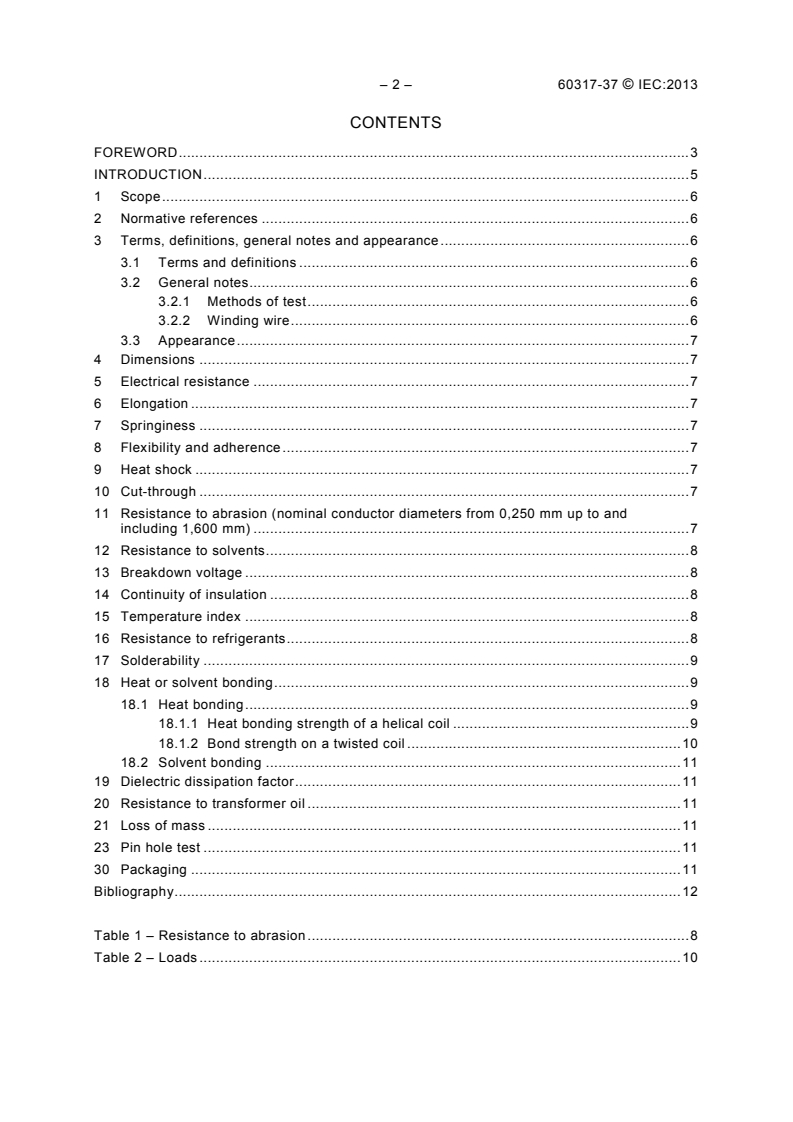

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 6
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 1,600 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength on a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

60317-37 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 37: Polyesterimide enamelled round copper wire,
class 180, with a bonding layer

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60317-37 has been prepared by IEC technical committee 55:
Winding wires.
This second edition cancels and replaces the first edition published in 1992,
Amendment 1:1997 and Amendment 2:1999. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– new 3.2.2 containing general notes on winding wire, formerly a part of the scope;
– revision to references to IEC 60317-0-1:2013 to clarify that their application is normative;
– new Clause 23, Pin hole test.

– 4 – 60317-37 © IEC:2013
The text of this standard is based on the following documents:
FDIS Report on voting
55/1418/FDIS 55/1439/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60317 series, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order
to reserve space for possible future wire requirements prior to those for wire packaging.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60317-37 © IEC:2013 – 5 –
INTRODUCTION
This part of IEC 60317 is one of a series which deals with insulated wires used for windings in
electrical equipment. The series has three groups describing:
1) Winding wires – Test methods (IEC 60851);
2) Specifications for particular types of winding wires (IEC 60317);
3) Packaging of winding wires (IEC 60264).

– 6 – 60317-37 © IEC:2013
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 37: Polyesterimide enamelled round copper wire,
class 180, with a bonding layer

1 Scope
This part of IEC 60317 specifies the requirements of enamelled round copper winding wire of
class 180 with a dual coating. The underlying coating is based on polyesterimide resin, which
may be modified providing it retains the chemical identity of the original resin and meets all
specified wire requirements. The superimposed coating is a bonding layer based on a
thermoplastic resin.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance or application characteristics.
The range of nominal conductor diameters covered by this part is:
– Grade 1B: 0,020 mm up to and including 1,600 mm;
– Grade 2B: 0,020 mm up to and including 1,600 mm.
The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60317-0-1:2013, Specifications for particular types of winding wires – Part 0-1: General
requirements – Enamelled round copper wire
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
Subclause 3.1 of IEC 60317-0-1:2013 applies.
3.2 General notes
3.2.1 Methods of test
Subclause 3.2.1 of IEC 60317-0-1:2013 applies. In case of inconsistencies between
IEC 60317-0-1:2013 and this part of IEC 60317, the latter shall prevail.
3.2.2 Winding wire
Class 180 is a thermal class that requires a minimum temperature index of 180 and a heat
shock temperature of at least 200 °C.
The temperature in degrees Celsius corresponding to the temperature index is not necessarily
that at which it is recommended that the wire be operated and this will depend on many
factors, including the type of equipment involved.

60317-37 © IEC:2013 – 7 –
3.3 Appearance
Subclause 3.3 IEC 60317-0-1:2013 applies.
4 Dimensions
Clause 4 of IEC 60317-0-1:2013 applies.
5 Electrical resistance
Clause 5 of IEC 60317-0-1:2013 applies.
6 Elongation
Clause 6 of IEC 60317-0-1:2013 applies.
7 Springiness
Clause 7 of IEC 60317-0-1:2013 applies.
8 Flexibility and adherence
Clause 8 of IEC 60317-0-1:2013 applies. For 8.4, the constant K used for the calculation of
the number of revolutions for the peel test shall be 110 mm.
9 Heat shock
Clause 9 of IEC 60317-0-1:2013 applies. The minimum heat shock temperature shall be
200 °C.
10 Cut-through
No failure shall occur within 2 min at 300 °C.
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to
and including 1,600 mm)
The wire shall meet the requirements given in Table 1.
For intermediate nominal conductor diameters, the value of the next larger nominal conductor
diameter shall be taken.
– 8 – 60317-37 © IEC:2013
Table 1 – Resistance to abrasion
Grade 1B Grade 2B
Nominal conductor
Minimum average Minimum force to Minimum average Minimum force to
diameter
force to failure failure of each force to failure failure of each
measurement measurement
mm N N N N
0,250 2,85 2,45 4,70 4,00
0,280 3,10 2,60 5,05 4,30
0,315 3,35 2,80 5,45 4,60
0,355 3,60 3,05 5,85 4,95
0,400 3,85 3,25 6,25 5,30
0,450 4,15 3,50 6,75 5,70
0,500 4,45 3,75 7,20 6,10
0,560 4,75 4,05 7,70 6,50
0,630 5,10 4,35 8,25 7,00
0,710 5,45 4,65 8,85 7,50
0,800 5,85 4,95 9,50 8,05
0,900 6,30 5,35 10,2 8,60
1,000 6,75 5,75 10,9 9,20
1,120 7,35 6,20 11,6 9,80
1,250 7,90 6,70 12,5 10,5
1,400 8,50 7,20 13,3 11,3
1,600 9,20 7,80 14,3 12,1
12 Resistance to solvents
Test inappropriate.
13 Breakdown voltage
Clause 13 of IEC 60317-0-1:2013 applies. The elevated temperature shall be 180 °C.
14 Continuity of insulation
Clause 14 of IEC 60317-0-1:2013 applies.
15 Temperature index
Clause 15 of IEC 60317-0-1:2013 applies. The minimum temperature index shall be 180.
16 Resistance to refrigerants
Test inappropriate.
60317-37 © IEC:2013 – 9 –
17 Solderability
Test inappropriate.
18 Heat or solvent bonding
18.1 Heat bonding
18.1.1 Heat bonding strength of a helical coil
18.1.1.1 At room temperature
The specimens shall be prepared according to the test method, and the temperature of the
oven for bonding shall be fixed as agreed between purchaser and supplier for the different
types of bonding enamels. The suggested temperature for polyamide bonding enamel
is (200 ± 2) °C and the suggested temperature for aromatic polyamide bonding enamel is
(230 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall separate.
18.1.1.2 At elevated temperature
The specimens shall be prepared and shall be conditioned as described in the test method.
The elevated temperature shall be fixed as agreed between purchaser and supplier for the
different types of bonding enamels. The suggested temperature for polyamide bonding
enamel is (155 ± 2) °C and the suggested temperature for aromatic polyamide bond-
ing enamel is (170 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall separate.

– 10 – 60317-37 © IEC:2013
Table 2 – Loads
Nominal conductor diameter Load
mm N
Over Up to Room Elevated
and including temperature temperature
a a
– 0,050
0,050 0,071 0,05 0,04
0,071 0,100 0,08 0,06
0,100 0,160 0,12 0,08
0,160 0,200 0,25 0,19
0,200 0,315 0,35 0,25
0,315 0,400 0,70 0,55
0,400 0,500 1,10 0,80
0,500 0,630 1,60 1,20
0,630 0,710 2,20 1,70
0,710 0,800 2,80 2,10
0,800 0,900 3,40 2,60
0,900 1,000 4,20 3,20
1,000 1,120 5,00 3,80
1,120 1,250 5,80 4,40
1,250 1,400 6,50 4,90
1,400 1,600 8,50 6,40
a
For nominal conductor diameters up to and including 0,050 mm, the test method and requirements shall be
agreed between purchaser and supplier.

18.1.2 Bond strength on a twisted coil
18.1.2.1 General
This test shall be considered only as a special test and is applicable to the diameter
0,315 mm.
18.1.2.2 At room temperat
...
