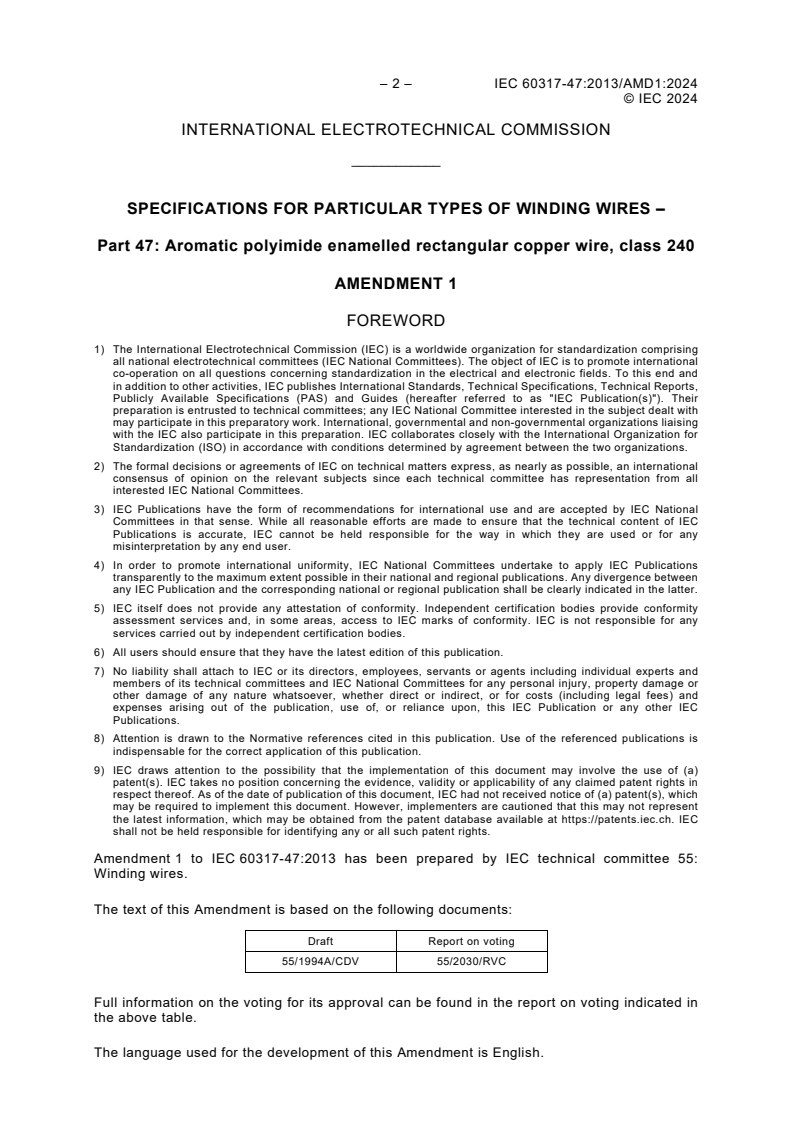

– 2 – IEC 60317-47:2013/AMD1:2024
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 47: Aromatic polyimide enamelled rectangular copper wire, class 240

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 60317-47:2013 has been prepared by IEC technical committee 55:
Winding wires.
The text of this Amendment is based on the following documents:
Draft Report on voting
55/1994A/CDV 55/2030/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

© IEC 2024
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
A list of all parts in the IEC 60317 series, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
Foreword
Replace the existing statement "This International standard is to be read in conjunction with
IEC 60317-0-2:2013." by the following "This International Standard is to be used in conjunction
with IEC 60317-0-2:2020".
2 Normative references
Replace the existing text by the following:
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60317-0-2:2020, Specifications for particular types of winding wires – Part 0-2: General
requirements – Enamelled rectangular copper wire
3.1 Terms and definitions
Replace the existing text by the following:
"For the purposes of this document, the terms and definitions given in IEC 60317-0-2 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp"
3.2.1 Methods of test
Replace the existing text by the following:
Subclause 3.2.1 of IEC 60317-0-2:2020 applies.

– 4 – IEC 60317-47:2013/AMD1:2024
© IEC 2024
In case of inconsistencies between IEC 60317-0-2 and this document, IEC 60317-47 shall
prevail.
3.3 Appearance
Replace the existing text by the following:
Subclause 3.3 of IEC 60317-0-2:2020 applies.
4 Dimensions
Replace the existing text by the following:
Clause 4 of IEC 60317-0-2:2020 applies.
5 Electrical resistance
Replace the existing text by the following:
Clause 5 of IEC 60317-0-2:2020 applies
6 Elongation
Replace the existing text by the following:
Clause 6 of IEC 60317-0-2:2020 applies.
7 Springiness
Replace the existing text by the following:
Clause 7 of IEC 60317-0-2:2020 applies.
8 Flexibility and adherence
Replace the existing text by the following:
Clause 8 of IEC 60317-0-2:2020 applies. For 8.2, the wire for the adherence test shall be
stretched by 10 %.
9 Heat shock
Replace the existing text by the following:
Clause 9 of IEC 60317-0-2:2020 applies. The minimum heat shock temperature shall be 260 °C.
10 Cut-through
Replace the existing text by the following:
Clause 10 of IEC 60317-0-2:2020 applies.

© IEC 2024
12 Resistance to solvents
Replace the existing text by the following:
Clause 12 of IEC 60317-0-2:2020 applies.
13 Breakdown voltage
Replace the existing text by the following:
Clause 13 of IEC 60317-0-2:2020 applies. The elevated temperature shall be 240 °C.
15 Temperature index
Replace the existing text by the following:
Clause 15 of IEC 60317-0-2:2020 applies. The minimum temperature index shall be 240.
20 Resistance to transformer oil
Replace the existing text by the following:
Test inappropriate.
30 Packaging
Replace the existing text by the following:
Clause 30 of IEC 60317-0-2:2020 applies.
___________
– 6 – IEC 60317-47:2013/AMD1:2024
© IEC 2024
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
SPÉCIFICATIONS POUR TYPES PARTICULIERS DE FILS DE BOBINAGE –

Partie 47: Fil de section re
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
